2014 NISSAN MURANO Quick Reference Guide

QUICK REFERENCE GUIDE
2 014
MURANO
1591421_14d_Murano_QRG_012714b.indd 21/27/14 3:11 PM

INSTRUMENT BRIGHTNESS CONTROL SWITCH*
TWIN TRIP ODOMETER SWITCHES*
HEADLIGHT AND TURN SIGNAL CONTROL
LOW TIRE PRESSURE WARNING LIGHT
VEHICLE INFORMATION DISPLAY
WINDSHIELD WIPER AND WASHER SWITCH STEERING WHEEL SWITCHES FOR
AUDIO* / BLUETOOTH
® / NAVIGATION
CRUISE CONTROL
TRUNK LID / LIFTGATE RELEASE SWITCH
FUEL-FILLER DOOR RELEASE SWITCH
INTELLIGENT KEY
® PORT VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH*
ALL-WHEEL DRIVE (AWD) LOCK SWITCH*
REMOTE WALK-IN SWITCH
TILT / TELESCOPIC STEERING COLUMN*
HOOD RELEASE*
CONTROL PANEL DISPLAY* PUSH-BUTTON IGNITION SWITCH
AU D I O SYSTE M
AUTOMATIC CLIMATE CONTROLS
FRONT PASSENGER AIR BAG
STATUS LIGHT*
SOFT TOP OPENER SWITCH
*See your Owner’s Manual for information.010203040506
09
15
0710
1617
1819202122
0811
131214
1920
16
12
1014
09
02
05
0611
18
08
0301
04
15
13
07
17
21
22
Behind
steering wheel
Behind
steering wheel
1591421_14d_Murano_QRG_012714b.indd 31/27/14 3:11 PM

Please see your Owner’s Manual for important safety
information, and system operation limitations.
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
•
Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)”, the “Monitor, heater, air
conditioner, audio, phone and voice recognition systems (section 4)”
and the “Starting and driving (section 5)” of your Owner’s Manual.
TABLE OF CONTENTS
Additional information about your vehicle is also available in your Owner’s Manual, Navigation System Owner’s Manual and at www.nissanusa.com. To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/ 2014/murano
or snap this barcode with an appropriate barcode reader.
NEW SYSTEM FEATURES
Heated Steering Wheel (if so equipped) ............................2
Moving Object Detection (MOD) (if so equipped) ....................2
Blind Spot Warning (BSW) System (if so equipped) ................. 2
Lane Departure Warning (LDW) System (if so equipped) ..............3
RearView Monitor (if so equipped) ................................. 3
ESSENTIAL INFORMATION
Tire Pressure Monitoring System (TPMS) ...........................4
Loose Fuel Cap ................................................ 4
Fuel-filler Door ................................................. 4
Towing Your Vehicle ............................................. 5
Clock Set/Adjustment ........................................... 5
Automatic Power Windows (CrossCabriolet models) .................5
FIRST DRIVE FEATURES
NISSAN Intelligent Key
® System .................................. 6
Power Liftgate Release (Hardtop models - if so equipped) ............ 7
Trunk Lid Release (CrossCabriolet models) .........................7
Soft Top Operation (CrossCabriolet models) ........................8
Front Seat Adjustments .......................................... 9
Automatic Drive Positioner (if so equipped) ......................... 9
Rear Seat Adjustments (Hardtop models) ......................... 10
Rear Seat Entry/Exit (CrossCabriolet models) ......................10
Outside Mirror Control Switch ................................... 11
Starting/Stopping the Engine .................................... 11
Headlight Control Switch ....................................... 12

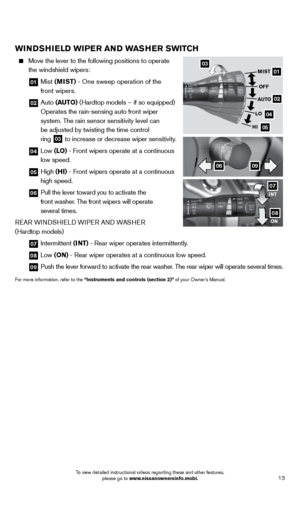

Windshield Wiper and Washer Switch ............................ 13
Automatic Climate Controls (if so equipped) ....................... 14
FM/AM/SiriusXM
® Satellite Radio with CD/DVD Player (if so equipped) . 16
USB/iPod® Interface (if so equipped) ............................. 17
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 17
Front Armrest/Center Console Storage Box ........................17
SYSTEM GUIDE
Trip Computer ................................................ 18
Bluetooth
® Hands-free Phone System (if so equipped) ..............19
System Operating Tips ...................................... 19
Bluetooth
® System with Navigation (if so equipped) .................20
Bluetooth® System without Navigation (if so equipped) .............. 21
Bluetooth® Streaming Audio (with Navigation System - if so equipped) ....22
Navigation System (if so equipped) ............................... 23
HomeLink
® Universal Transceiver (if so equipped) ...................24
1591421_14d_Murano_QRG_012714b.indd 41/27/14 3:11 PM

2
NEW SYSTEM FEATURES
HEATED STEERING WHEEL (if so equipped)
Once activated, your heated steering wheel
will automatically turn on and off to maintain a
temperature above 68°F (20°C).

When the surface temperature of the steering wheel
is above 68°F (20°C) and the control switch

01 is
turned on, the system will not heat the steering wheel. This does not indicate a malfunction.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
MOVING OBJECT DETECTION (MOD) (if so equipped)
If the MOD system detects moving objects while in rearview, a yellow frame
01 will be
displayed on the camera image and a chime will sound.

To temporarily disable the MOD function, follow this procedure:
1. Start with the vehicle in the P (PA R K ) position.
2. On the vehicle information display, push the
SETTING button.
3. Select DRIVER ASSISTANCE and push ENTER.
4. Select MOVING OBJECT DETECTION ( MOD)
and press ENTER.

When the following are displayed:
• Blue MOD

02 icon; the system is operative in this view.
• Gray MOD
02 icon; the system is not operative in this view.
• No MOD icon; the system is off.
For more information, refer to the “Monitor, heater, air conditioner, audio, phone and voice recognition systems
(section 4)” of your Owner’s Manual.
02
01
BLIND SPOT WARNING (BSW) SYSTEM (if so equipped)
The Blind Spot Warning (BSW) system alerts the
driver when another vehicle moves into the vehicle’s
blind spot area.

An indicator light near the driver’s outside mirror will
illuminate if the radar sensors detect a vehicle in the
detection zone.

The indicator light will first illuminate in orange and then turn green\
while
the system is on. This indicates that the Blind Spot Warning (BSW)
system is operational.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
1591421_14d_Murano_QRG_012714b.indd 21/27/14 3:11 PM
To view detailed instructional videos regarding features in this Quick Reference Guide, please go to www.nissanownersinfo.mobi.

3
LANE DEPARTURE WARNING (LDW) SYSTEM (if so equipped)
The LANE DEPARTURE WARNING ( LDW) system alerts the driver
when the vehicle moves close to either the left or the right of a clearl\
y
marked traveling lane.

When the vehicle approaches either the left or right of the clearly marked
traveling lane, a chime will sound and the LDW light
01 (orange) on the
instrument panel will blink.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
01
REARVIEW MONITOR (if so equipped)
When the shift lever is shifted into the R (REVERSE)
position, the monitor display shows a rearward view
from the vehicle.

The colored guide lines on the display screen indicate
vehicle width and approximate distances to objects
with reference to the vehicle body line:
• Red 1.5 ft (0.5 m); Yellow 3 ft (1 m); Green 7 ft
(2 m) and 10 ft (3 m).
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of your
Owner’s Manual.
1591421_14d_Murano_QRG_012714b.indd 31/27/14 3:11 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

4
FUEL-FILLER DOOR
To open the fuel-filler door, push the opener switch 01, located on the instrument panel to the left of the
steering wheel.

The fuel-filler door is located on the driver’s side of
the vehicle.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
01
ESSE NTIAL I N FOR MATION
TIRE PRESSURE MONITORING SYSTEM (TPMS)
A CHECK TIRE PRESSURE warning
message will appear in the vehicle information
display
01 and the low tire pressure warning
light 02 will illuminate when one or more tires
are low on pressure and air is needed.
• The tire pressures should be checked when
the tires are cold. The tires are considered cold after the vehicle has
been parked for 3 hours or more or driven less than 1 mile (1.6 km)
at moderate speeds.

After tire pressures are adjusted, drive the vehicle at speeds above 16 \
MPH (25 km/h). The
CHECK TIRE PRESSURE warning message and low tire pressure warning light will disappear.

When the low tire pressure warning light flashes for 1 minute and then \
remains on, the TPMS
is not functioning properly. Have the system checked by a NISSAN dealer.

Tire pressure rises and falls depending on the heat caused by the vehicle\
’s operation and the
outside temperature. Low outside temperature can lower the temperature o\
f the air inside
the tire, which can cause a lower tire inflation pressure. This may cause the low tire pressure
warning light to illuminate. If the warning light illuminates, check the tire pressure in your tires.
• Check the tire pressure (including the spare tire) often and always prior \
to long distance trips.

The Tire and Loading Information label contains valuable information. Please refer to section 9,
“Technical and consumer information”, in your Owner’s Manual for the location of the Tire and
Loading Information label.
For more information, refer to the “Instruments and controls (section 2)” , the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
01
02
LOOSE FUEL CAP
A LOOSE FUEL CAP warning message will appear
in the vehicle information display 01 when the fuel-
filler cap is not tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will disappear when the vehicle detects the fuel-
filler cap is properly tightened and the reset button
02 is pressed.
If the cap is not properly tightened, the Malfunction Indicator Light

may illuminate.
For more information, refer to the “Instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
01
02
1591421_14d_Murano_QRG_012714b.indd 41/27/14 3:11 PM
To view detailed instructional videos regarding features in this Quick Reference Guide, please go to www.nissanownersinfo.mobi.

5
AUTOMATIC POWER WINDOWS
(CrossCabriolet models)
Your power windows have an automatic adjusting
function to ensure windows close completely to help
seal against wind noise and weather leaks.

When the front doors are opened, the windows
automatically lower slightly to avoid contact between
the windows and the side roof panels.

If your vehicle’s battery has been discharged or disconnected, the power window automatic
adjusting function will not operate.

Refer to your Owner’s Manual for information on how to initialize your power window system.

If the power window functions do not operate properly after initializing\
the system, have your
vehicle checked by a NISSAN dealer.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
TOWING YOUR VEHICLE
ALL-WHEEL DRIVE (AWD) VEHICLE

An all-wheel drive vehicle must be towed with all wheels off the ground.\


For proper towing and to avoid accidental damage to your vehicle, NISSAN recommends that
a service operator tow your vehicle after carefully reading the Owner’s Manual precautions.
For more information, refer to the “In case of emergency (section 6)” of your Owner’s Manual.
CLOCK SET/ADJUSTMENT
To adjust the time and the appearance of the clock
on the display:
1. Press the SETTING button on the control panel.
2. Touch the Others key.
3. Touch the Clock key.

The following settings can be adjusted:
• On-screen Clock: The clock in the upper right
corner of the display can be turned ON or OFF.
• Clock Format (24h): The clock can be set to 12 hours or 24 hours.
• Offset (hour): The time can be adjusted by increasing or decreasing per hour.
• Offset (min): The time can be adjusted by increasing or decreasing per minute.
• Daylight Savings Time: The application of daylight savings time can be turned ON or OFF.
• Time Zone: Adjust the time zone. Choose a time zone from the available list.

Press the BACK button to return to the previous screen.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of
your Owner’s Manual.
1591421_14d_Murano_QRG_012714b.indd 51/27/14 3:11 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

6
NISSAN INTELLIGENT KEY® SYSTE M
The NISSAN Intelligent Key® system allows you to lock
or unlock your vehicle, open your trunk lid and start the
engine. It is important to make sure the Intelligent Key is
with you (that is, in your pocket or purse).

The operating range of the Intelligent Key is within
31.5 in (80 cm) from each request switch.

To lock the vehicle, push either door handle
request switch
01 once or press the
button
02 on the key fob.

To unlock the vehicle, perform one of the
following procedures:
• Push either door handle request switch
01 once;
the corresponding door will unlock. Push the door
handle request switch
01 again within 1 minute; all
other doors will unlock, or
• Press the

button 03 on the key fob to unlock the
driver’s side door. Press the button again; all other doors will unlock.

The Intelligent Key can also be used to activate the panic alarm by pressing and holding \
the

button 04 for more than 1 second. Once activated, the panic alarm and headlights w\
ill stay on
for a period of time.
NISSAN INTELLIGENT KEY
® BATTERY DISCHARGE

If the battery in the Intelligent Key is almost discharged,
the guide light

05 of the Intelligent Key port blinks, and
the key battery discharge indicator 06 is displayed in
the vehicle information display.

To start the engine under these circumstances, insert
the Intelligent Key into the key port with the buttons
facing upward and the key ring end toward you until
it latches into place. Then push the ignition switch to
start the engine.

To remove the Intelligent Key from the port, push the
ignition switch to turn the engine off and then pull the
Intelligent Key out of the port.

The Intelligent Key port does not charge the Intelligent
Key battery. If you see the key battery discharge
indicator

06, replace the battery in the Intelligent Key.

Do not insert the mechanical key or other objects into the key port because they will damage
the key port.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” , the “Starting and driving (section
5)” and the “Maintenance and do-it yourself (section 8)” of your Owner’s Manual.
FIRST DRIVE FEATURES
F
02
03
04
01
06
05
1591421_14d_Murano_QRG_012714b.indd 61/27/14 3:11 PM
To view detailed instructional videos regarding features in this Quick Reference Guide, please go to www.nissanownersinfo.mobi.
