2014 NISSAN LEAF display

Black plate (40,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
2-6Unique EV functions
LNB0038X
INFO:
When a charging icon on the map is touched, a
pop-up screen will appear.
. Touch [Go Here] to set the destination.
. Touch [Place Info] to display charging
station information.
Other settings
The charging station icon can be also set by
performing the following procedure.
1. Push the
(Zero Emission menu) button
and touch [Settings].
2. Touch [Map icons for charging stations].
or
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation]. 3. Touch [Map Icons].
INFO:
. The map icons are not displayed on the map
screen when the map scale is set to 1/4 mile
(500 m) or higher in the 2D map and the
Birdview
TMmap.
. Display of icons for charging stations
registered in the address book cannot be
removed using this procedure.
“Show Icon on Map” (page 3-63)
CONFIRMING CHARGING STATION
AVAILABILITY
GUID-9D465F37-4939-4C10-BAA5-9FCD9B6F45BDIt is possible to confirm the availability of
charging stations via the NISSAN CARWINGS
Data Center. This allows you to reduce the time
spent waiting to charge.
Viewing from Zero Emission buttonGUID-525FF801-0E56-4CCA-A9FF-65B69B60CF7F1. Push the(Zero Emission menu) button
and touch [CARWINGS].
2. Touch [Charging Availability].
LNE0920X
3. Select the area for searching for charging station locations.
.[Near Current Location]:
Displays a list of charging stations that
are near the current vehicle location.
.[Near Destination]:Displays a list of charging stations that
are near the destination, when a destina-
tion has been set.
.[Near Scroll Position]:Displays a list of charging stations that
are near the cursor when the map has
been moved.
Condition: NAM/

Black plate (41,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
LNE0921X

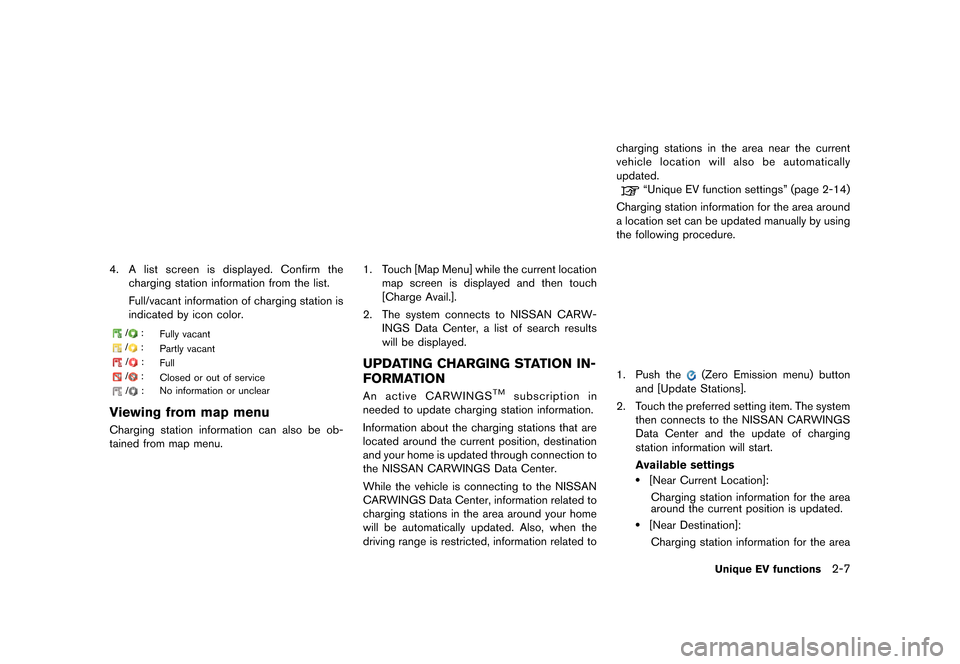

4.A list screen is displayed. Confirm the
charging station information from the list.
Full/vacant information of charging station is
indicated by icon color.
/:
Fully vacant
/:
Partly vacant
/:Full
/:
Closed or out of service
/: No information or unclear
Viewing from map menuGUID-454D0275-393C-490B-9B21-2C5B70BF4E53Charging station information can also be ob-
tained from map menu.
LNE0901X
1. Touch [Map Menu] while the current location
map screen is displayed and then touch
[Charge Avail.].
2. The system connects to NISSAN CARW- INGS Data Center, a list of search results
will be displayed.
UPDATING CHARGING STATION IN-
FORMATION
GUID-70CEE977-F138-4ECE-B639-15E8F3F2BEA3An active CARWINGSTMsubscription in
needed to update charging station information.
Information about the charging stations that are
located around the current position, destination
and your home is updated through connection to
the NISSAN CARWINGS Data Center.
While the vehicle is connecting to the NISSAN
CARWINGS Data Center, information related to
charging stations in the area around your home
will be automatically updated. Also, when the
driving range is restricted, information related to charging stations in the area near the current
vehicle location will also be automatically
updated.
“Unique EV function settings” (page 2-14)
Charging station information for the area around
a location set can be updated manually by using
the following procedure.
LND0007X
1. Push the(Zero Emission menu) button
and [Update Stations].
2. Touch the preferred setting item. The system then connects to the NISSAN CARWINGS
Data Center and the update of charging
station information will start.
Available settings
.[Near Current Location]:
Charging station information for the area
around the current position is updated.
.[Near Destination]:Charging station information for the area
Unique EV functions2-7
Condition: NAM/

Black plate (42,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
2-8Unique EV functions

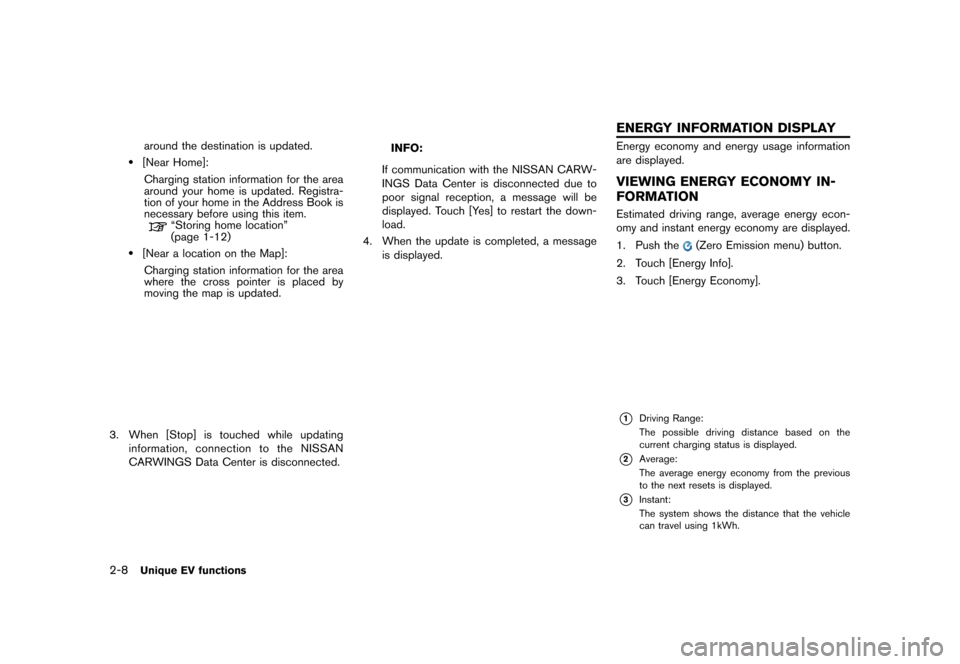

around the destination is updated.
.[Near Home]:Charging station information for the area
around your home is updated. Registra-
tion of your home in the Address Book is
necessary before using this item.
“Storing home location”
(page 1-12)
.[Near a location on the Map]:Charging station information for the area
where the cross pointer is placed by
moving the map is updated.
LND0008X
3. When [Stop] is touched while updating
information, connection to the NISSAN
CARWINGS Data Center is disconnected.
INFO:
If communication with the NISSAN CARW-
INGS Data Center is disconnected due to
poor signal reception, a message will be
displayed. Touch [Yes] to restart the down-
load.
4. When the update is completed, a message is displayed.
GUID-21881F25-3D34-4510-9A98-89C3567CC056Energy economy and energy usage information
are displayed.
VIEWING ENERGY ECONOMY IN-
FORMATION
GUID-805ADB13-E973-45A3-B975-0A4C9928C3D4Estimated driving range, average energy econ-
omy and instant energy economy are displayed.
1. Push the
(Zero Emission menu) button.
2. Touch [Energy Info].
3. Touch [Energy Economy].
LND0010X
*1Driving Range:
The possible driving distance based on the
current charging status is displayed.
*2Average:
The average energy economy from the previous
to the next resets is displayed.
*3Instant:
The system shows the distance that the vehicle
can travel using 1kWh.
ENERGY INFORMATION DISPLAY
Condition: NAM/

Black plate (43,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

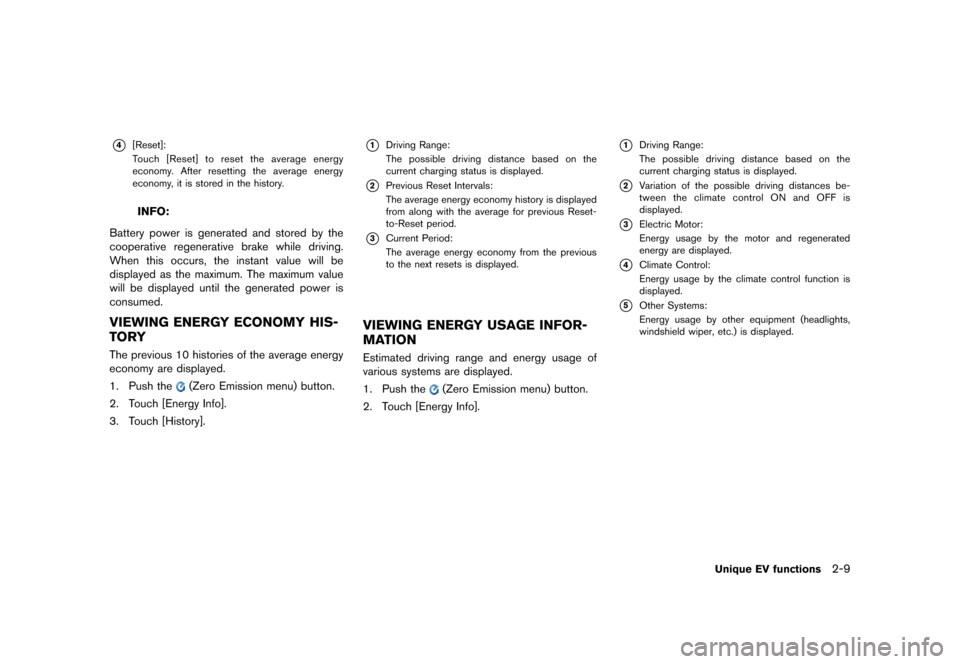

*4[Reset]:
Touch [Reset] to reset the average energy
economy. After resetting the average energy
economy, it is stored in the history.
INFO:
Battery power is generated and stored by the
cooperative regenerative brake while driving.
When this occurs, the instant value will be
displayed as the maximum. The maximum value
will be displayed until the generated power is
consumed.
VIEWING ENERGY ECONOMY HIS-
TORY
GUID-FB423C15-39A9-43F5-97ED-E09A9CA96D60The previous 10 histories of the average energy
economy are displayed.
1. Push the
(Zero Emission menu) button.
2. Touch [Energy Info].
3. Touch [History].
LND0011X
*1Driving Range:
The possible driving distance based on the
current charging status is displayed.
*2Previous Reset Intervals:
The average energy economy history is displayed
from along with the average for previous Reset-
to-Reset period.
*3Current Period:
The average energy economy from the previous
to the next resets is displayed.
VIEWING ENERGY USAGE INFOR-
MATION
GUID-A263CDDB-8264-497D-AEFC-B5D2F6A8025DEstimated driving range and energy usage of
various systems are displayed.
1. Push the
(Zero Emission menu) button.
2. Touch [Energy Info].
LND0012X
*1Driving Range:
The possible driving distance based on the
current charging status is displayed.
*2Variation of the possible driving distances be-
tween the climate control ON and OFF is
displayed.
*3Electric Motor:
Energy usage by the motor and regenerated
energy are displayed.
*4Climate Control:
Energy usage by the climate control function is
displayed.
*5Other Systems:
Energy usage by other equipment (headlights,
windshield wiper, etc.) is displayed.
Unique EV functions2-9
Condition: NAM/

Black plate (44,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
2-10Unique EV functions

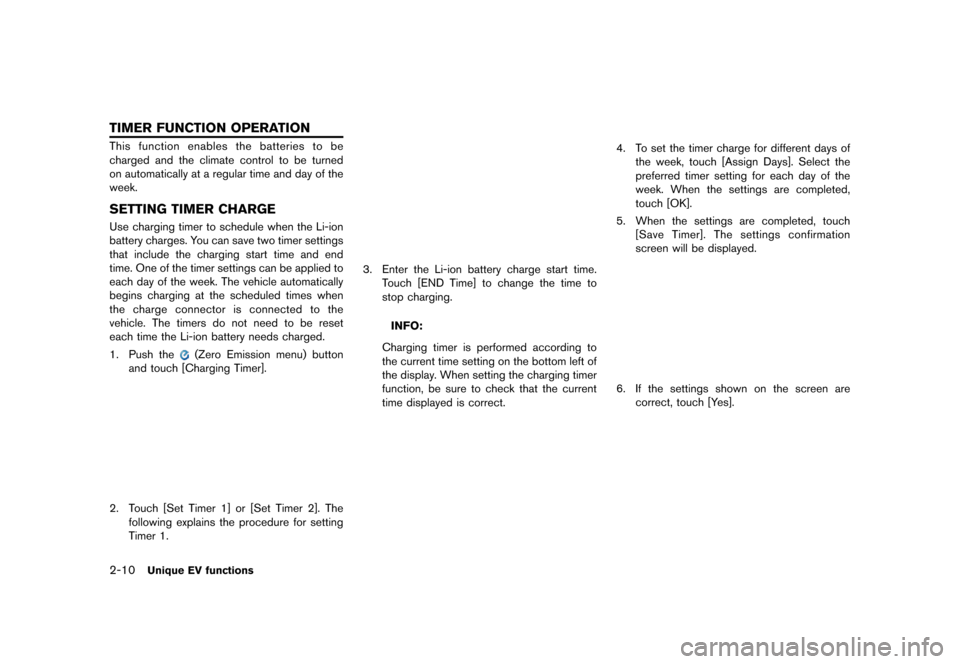

GUID-76EF94D1-3F8C-4350-B32D-504536913217This function enables the batteries to be
charged and the climate control to be turned
on automatically at a regular time and day of the
week.
SETTING TIMER CHARGEGUID-5A729305-7710-4308-A8AF-8091F9CF58E3Use charging timer to schedule when the Li-ion
battery charges. You can save two timer settings
that include the charging start time and end
time. One of the timer settings can be applied to
each day of the week. The vehicle automatically
begins charging at the scheduled times when
the charge connector is connected to the
vehicle. The timers do not need to be reset
each time the Li-ion battery needs charged.
1. Push the
(Zero Emission menu) button
and touch [Charging Timer].
LND0213X
2. Touch [Set Timer 1] or [Set Timer 2]. The following explains the procedure for setting
Timer 1.
LND0210X
3. Enter the Li-ion battery charge start time.Touch [END Time] to change the time to
stop charging.
INFO:
Charging timer is performed according to
the current time setting on the bottom left of
the display. When setting the charging timer
function, be sure to check that the current
time displayed is correct.
LND0214X
4. To set the timer charge for different days of the week, touch [Assign Days]. Select the
preferred timer setting for each day of the
week. When the settings are completed,
touch [OK].
5. When the settings are completed, touch [Save Timer]. The settings confirmation
screen will be displayed.
LND0211X
6. If the settings shown on the screen arecorrect, touch [Yes].
LND0212X
TIMER FUNCTION OPERATION
Condition: NAM/

Black plate (45,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

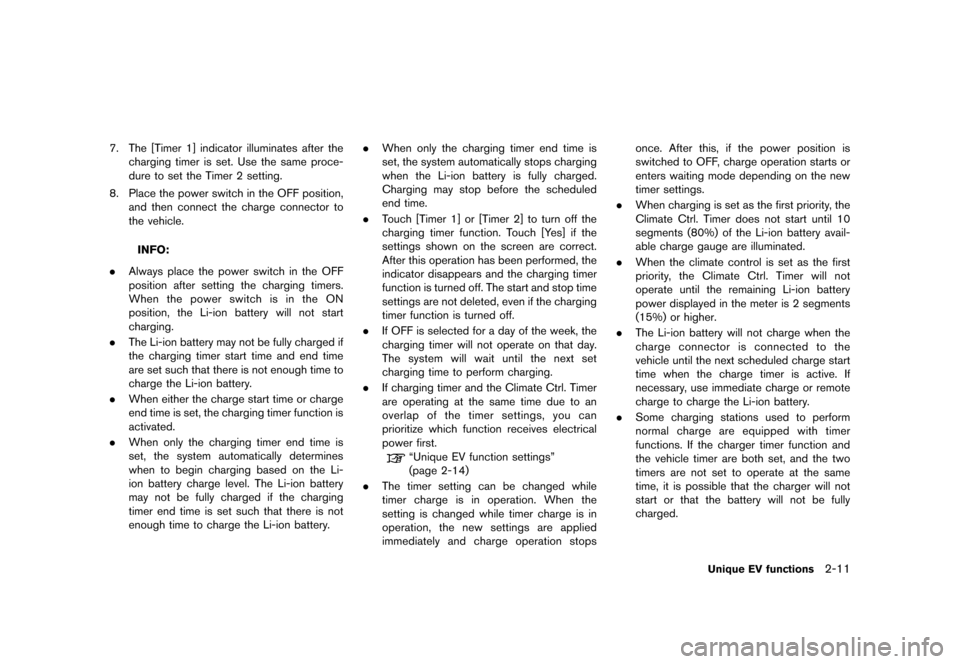

7. The [Timer 1] indicator illuminates after thecharging timer is set. Use the same proce-
dure to set the Timer 2 setting.
8. Place the power switch in the OFF position, and then connect the charge connector to
the vehicle.
INFO:
. Always place the power switch in the OFF
position after setting the charging timers.
When the power switch is in the ON
position, the Li-ion battery will not start
charging.
. The Li-ion battery may not be fully charged if
the charging timer start time and end time
are set such that there is not enough time to
charge the Li-ion battery.
. When either the charge start time or charge
end time is set, the charging timer function is
activated.
. When only the charging timer end time is
set, the system automatically determines
when to begin charging based on the Li-
ion battery charge level. The Li-ion battery
may not be fully charged if the charging
timer end time is set such that there is not
enough time to charge the Li-ion battery. .
When only the charging timer end time is
set, the system automatically stops charging
when the Li-ion battery is fully charged.
Charging may stop before the scheduled
end time.
. Touch [Timer 1] or [Timer 2] to turn off the
charging timer function. Touch [Yes] if the
settings shown on the screen are correct.
After this operation has been performed, the
indicator disappears and the charging timer
function is turned off. The start and stop time
settings are not deleted, even if the charging
timer function is turned off.
. If OFF is selected for a day of the week, the
charging timer will not operate on that day.
The system will wait until the next set
charging time to perform charging.
. If charging timer and the Climate Ctrl. Timer
are operating at the same time due to an
overlap of the timer settings, you can
prioritize which function receives electrical
power first.
“Unique EV function settings”
(page 2-14)
. The timer setting can be changed while
timer charge is in operation. When the
setting is changed while timer charge is in
operation, the new settings are applied
immediately and charge operation stops once. After this, if the power position is
switched to OFF, charge operation starts or
enters waiting mode depending on the new
timer settings.
. When charging is set as the first priority, the
Climate Ctrl. Timer does not start until 10
segments (80%) of the Li-ion battery avail-
able charge gauge are illuminated.
. When the climate control is set as the first
priority, the Climate Ctrl. Timer will not
operate until the remaining Li-ion battery
power displayed in the meter is 2 segments
(15%) or higher.
. The Li-ion battery will not charge when the
charge connector is connected to the
vehicle until the next scheduled charge start
time when the charge timer is active. If
necessary, use immediate charge or remote
charge to charge the Li-ion battery.
. Some charging stations used to perform
normal charge are equipped with timer
functions. If the charger timer function and
the vehicle timer are both set, and the two
timers are not set to operate at the same
time, it is possible that the charger will not
start or that the battery will not be fully
charged.
Unique EV functions2-11
Condition: NAM/

Black plate (46,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

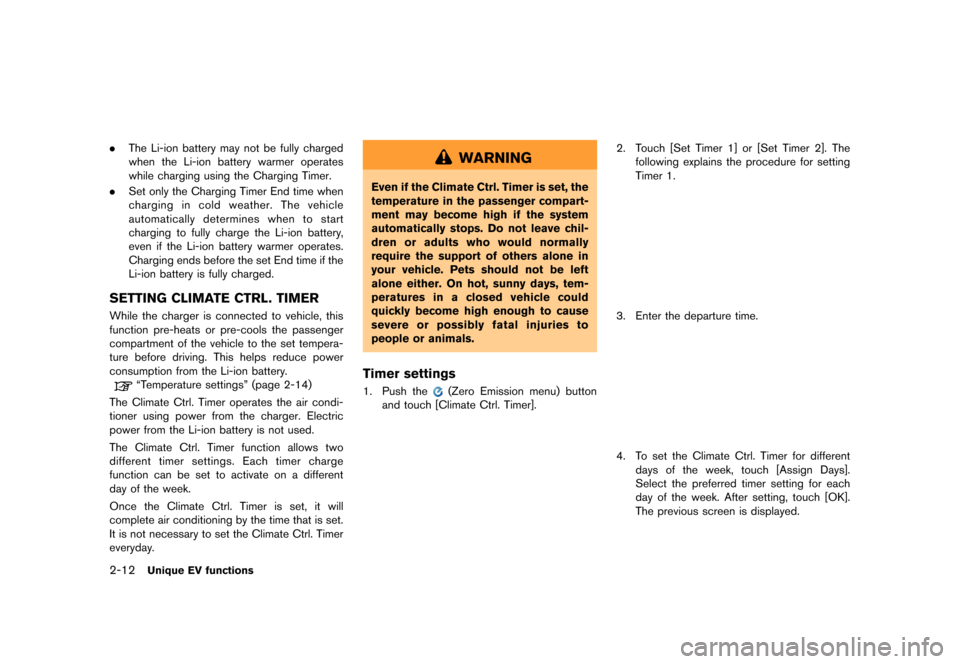

2-12Unique EV functions
.The Li-ion battery may not be fully charged
when the Li-ion battery warmer operates
while charging using the Charging Timer.
. Set only the Charging Timer End time when
charging in cold weather. The vehicle
automatically determines when to start
charging to fully charge the Li-ion battery,
even if the Li-ion battery warmer operates.
Charging ends before the set End time if the
Li-ion battery is fully charged.
SETTING CLIMATE CTRL. TIMERGUID-B26518E0-1D61-476C-BA29-80FA3CBC3944While the charger is connected to vehicle, this
function pre-heats or pre-cools the passenger
compartment of the vehicle to the set tempera-
ture before driving. This helps reduce power
consumption from the Li-ion battery.
“Temperature settings” (page 2-14)
The Climate Ctrl. Timer operates the air condi-
tioner using power from the charger. Electric
power from the Li-ion battery is not used.
The Climate Ctrl. Timer function allows two
different timer settings. Each timer charge
function can be set to activate on a different
day of the week.
Once the Climate Ctrl. Timer is set, it will
complete air conditioning by the time that is set.
It is not necessary to set the Climate Ctrl. Timer
everyday.
WARNING
Even if the Climate Ctrl. Timer is set, the
temperature in the passenger compart-
ment may become high if the system
automatically stops. Do not leave chil-
dren or adults who would normally
require the support of others alone in
your vehicle. Pets should not be left
alone either. On hot, sunny days, tem-
peratures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
Timer settingsGUID-09A12233-D1ED-43B2-937D-C4264026AEB11. Push the(Zero Emission menu) button
and touch [Climate Ctrl. Timer].
LND0095X
2. Touch [Set Timer 1] or [Set Timer 2]. The following explains the procedure for setting
Timer 1.
LND0097X
3. Enter the departure time.
LND0132X
4. To set the Climate Ctrl. Timer for different
days of the week, touch [Assign Days].
Select the preferred timer setting for each
day of the week. After setting, touch [OK].
The previous screen is displayed.
Condition: NAM/

Black plate (47,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

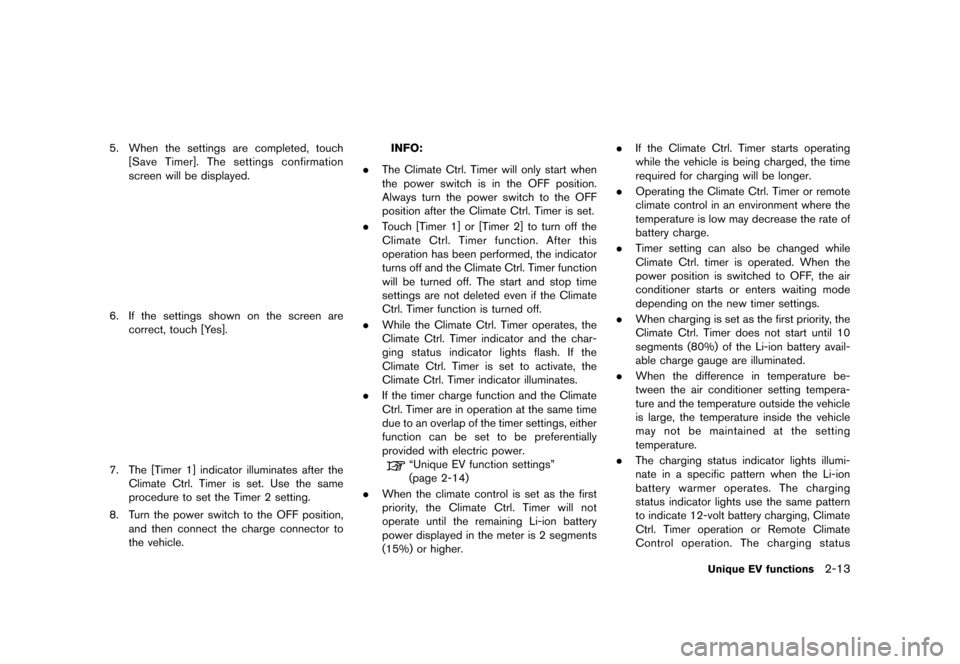

5. When the settings are completed, touch[Save Timer]. The settings confirmation
screen will be displayed.
LND0133X
6. If the settings shown on the screen arecorrect, touch [Yes].
LNB0037X
7. The [Timer 1] indicator illuminates after theClimate Ctrl. Timer is set. Use the same
procedure to set the Timer 2 setting.
8. Turn the power switch to the OFF position, and then connect the charge connector to
the vehicle.
INFO:
. The Climate Ctrl. Timer will only start when
the power switch is in the OFF position.
Always turn the power switch to the OFF
position after the Climate Ctrl. Timer is set.
. Touch [Timer 1] or [Timer 2] to turn off the
Climate Ctrl. Timer function. After this
operation has been performed, the indicator
turns off and the Climate Ctrl. Timer function
will be turned off. The start and stop time
settings are not deleted even if the Climate
Ctrl. Timer function is turned off.
. While the Climate Ctrl. Timer operates, the
Climate Ctrl. Timer indicator and the char-
ging status indicator lights flash. If the
Climate Ctrl. Timer is set to activate, the
Climate Ctrl. Timer indicator illuminates.
. If the timer charge function and the Climate
Ctrl. Timer are in operation at the same time
due to an overlap of the timer settings, either
function can be set to be preferentially
provided with electric power.
“Unique EV function settings”
(page 2-14)
. When the climate control is set as the first
priority, the Climate Ctrl. Timer will not
operate until the remaining Li-ion battery
power displayed in the meter is 2 segments
(15%) or higher. .
If the Climate Ctrl. Timer starts operating
while the vehicle is being charged, the time
required for charging will be longer.
. Operating the Climate Ctrl. Timer or remote
climate control in an environment where the
temperature is low may decrease the rate of
battery charge.
. Timer setting can also be changed while
Climate Ctrl. timer is operated. When the
power position is switched to OFF, the air
conditioner starts or enters waiting mode
depending on the new timer settings.
. When charging is set as the first priority, the
Climate Ctrl. Timer does not start until 10
segments (80%) of the Li-ion battery avail-
able charge gauge are illuminated.
. When the difference in temperature be-
tween the air conditioner setting tempera-
ture and the temperature outside the vehicle
is large, the temperature inside the vehicle
may not be maintained at the setting
temperature.
. The charging status indicator lights illumi-
nate in a specific pattern when the Li-ion
battery warmer operates. The charging
status indicator lights use the same pattern
to indicate 12-volt battery charging, Climate
Ctrl. Timer operation or Remote Climate
Control operation. The charging status
Unique EV functions2-13
Condition: NAM/
