0-4Introduction
.CARWINGSTMcommunications may be
received at a verified e-mail address or
by SMS/text messaging-enabled cellu-
lar phone.
. Standard text rates and/or data usage
may apply depending on your carrier.
GUID-415B0FE3-387A-46ED-8CD5-D088A6D68506This navigation system is certified as a Class 1
laser product.
The navigation system complies with DHHS
Rules 21 CFR Chapter 1, Subchapter J.
WARNING
.Do not disassemble or modify this
system. There are no user service-
able parts in this navigation system.
. If maintenance, adjustments and
operations other than those speci-
fied in this manual are attempted,
injury due to laser radiation and
exposure could occur.
Required SiriusXM Satellite
Radio and NavTraffic monthly
subscriptions are sold sepa-
rately. NavTraffic are only avail-
able in select markets. For more
information,
see www.siriusxm.com/navtraffic.
SiriusXM Satellite Radio requires
subscription, sold separately.
Not available in Alaska, Hawaii or
Guam. For more information, visit
www.siriusxm.com.
Bluetooth®is a trademark owned
by Bluetooth SIG, Inc., and
licensed to Clarion.
LASER PRODUCT
Condition: NAM/

Black plate (17,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
1 Getting Started
Control buttons and functions...
................................................ 1-2
Control panel ...
........................................................................\
1-2
Steering wheel switches ...
.................................................... 1-4
USB connector and Auxiliary input jack ...
........................ 1-4
Start-up screen ...
........................................................................\
.. 1-5
Functions disabled while driving ...
............................................ 1-6
Basic operation ...
........................................................................\
.. 1-7
Selecting item ...
....................................................................... 1-7
Adjusting volume and others ...
............................................ 1-7
Scrolling message or list ...
................................................... 1-7
How to input letters and numbers ...
.................................. 1-7
Viewing display screens ...
........................................................... 1-9
Map screen ...
........................................................................\
.... 1-9
Zero Emission menu screen ...
............................................. 1-9 Menu screen
...
....................................................................... 1-9
Status screen ...
................................................................... 1-10
FM·AM radio screen ...
....................................................... 1-10
SiriusXM Satellite Radio screen ...
................................. 1-10
CD·AUX screen ...
............................................................... 1-10
Items to be set initially ...
.......................................................... 1-11
Subscription to CARWINGS
TMservice ...
.................... 1-11
Inputting user ID and password ...
................................. 1-11
Storing home location ...
................................................... 1-12
Connecting cellular phone ...
........................................... 1-13
Display adjustment ...
......................................................... 1-14
Volume settings ...
............................................................... 1-16
Clock settings ...
.................................................................. 1-16
Language and unit settings ...
.......................................... 1-17
Condition: NAM/

Black plate (18,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
1-2Getting Started
GUID-A9E6F207-4B16-4522-84EB-16B8F6F3D435
LNC0185X
CONTROL PANELGUID-F61A5004-3170-4638-BADF-9BE57D108E56*1FM·AMbutton:
Push to switch between the FM the AM radio
bands.
*2XM button:
Push to switch to an SiriusXM satellite radio
band.
*3CD·AUX button:
Push to switch between USB memory/iPod®
player/CD/Bluetooth®streaming audio/AUX/
Pandora®(if so equipped) screens.
*4VOL (Volume control) button:
Push to adjust the volume of the audio system.
*5(Audio system ON·OFF) button:
Push to turn the audio system on or off.
*6Monitor:
*7MAP button/VOICE button:
Push to display the current location map screen.
Push and hold to repeat voice guidance.
*8MENU button:
Push to display the setting menu (destination,
route, information, settings, phone and CAR-
WINGS
TM) screen.
*9STATUS button:
Push to display the current status of the climate
control, radio, audio, vehicle information (driving
range and average energy economy) and naviga-
tion systems.
*10TUNE SEEK CH button:
Push to select a track/station. Push and hold to
search for a track/station automatically or to fast-
CONTROL BUTTONS AND
FUNCTIONS
Condition: NAM/

Black plate (26,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
1-10Getting Started
.[CARWINGS]:
Information feeds are displayed and settings
for CARWINGS
TMcan be performed.
“5. CARWINGSTM”
STATUS SCREENGUID-C59D9F23-051C-4909-840F-9659DFB5FE6E
LNC0017X
Push the STATUS button to display the current
status of the navigation system.
Each time the STATUSbutton is pushed,
displayed information is switched in the order
of climate control, vehicle information and
navigation route information.
There are different status screens displayed
depending on various factors, such as the
currently active mode, whether a destination
has been set or not, etc.
FM·AM RADIO SCREENGUID-F18B130E-F474-4E1B-B8A7-AFA62A4EA4EC
LNC0018X
Push the FM·AMbutton to turn on the radio and
display the radio screen. Push the switch to
toggle the radio mode: AM?FM1?FM2.
“FM-AM-SAT radio operation” (page 4-11)
SiriusXM SATELLITE RADIO
SCREEN
GUID-EDED61A6-8D25-4ADA-A44A-36AFCBA043FE
LNC0019X
Push the XMbutton to turn on the satellite radio
and display the SiriusXM Satellite Radio screen.
Push the switch to toggle the radio mode:
XM1?XM2?XM3.
“FM-AM-SAT radio operation” (page 4-11)
CD·AUX SCREENGUID-50077224-4B9F-4058-BE80-9C925824B7C3
LNC0020X
Push the CD·AUXbutton to turn on the audio
system and display the audio screen. Push the
CD·AUX button to toggle the mode: iPod
®
player*1/USB memory/Pandora®*1*2?CD?
Bluetooth®streaming audio*1?AUX.
*1 Screen only displays when a device capable of
playback is connected.
*2 The Pandora
®is only available in U.S.
“Compact Disc (CD) player operation”
(page 4-13)
“iPod®player operation” (page 4-15)
“USB memory operation” (page 4-18)
“Bluetooth®streaming audio” (page 4-10)
“Auxiliary input jack” (page 4-22)
“Pandora®operation” (page 4-16)
Condition: NAM/

Black plate (129,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

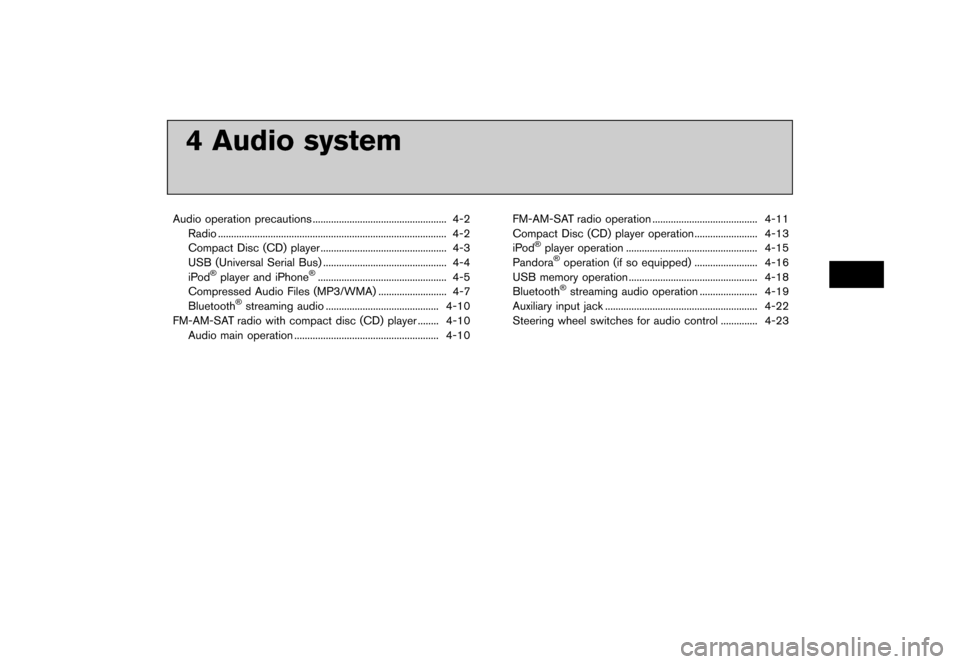

4 Audio system
Audio operation precautions...
................................................... 4-2
Radio ...
........................................................................\
............... 4-2
Compact Disc (CD) player ...
................................................ 4-3
USB (Universal Serial Bus) ...
............................................... 4-4
iPod
®player and iPhone®...
................................................. 4-5
Compressed Audio Files (MP3/WMA) ...
.......................... 4-7
Bluetooth
®streaming audio ...
........................................... 4-10
FM-AM-SAT radio with compact disc (CD) player ...
........ 4-10
Audio main operation ...
....................................................... 4-10 FM-AM-SAT radio operation
...
........................................ 4-11
Compact Disc (CD) player operation ...
........................ 4-13
iPod
®player operation ...
.................................................. 4-15
Pandora®operation (if so equipped) ...
........................ 4-16
USB memory operation ...
................................................. 4-18
Bluetooth
®streaming audio operation ...
...................... 4-19
Auxiliary input jack ...
.......................................................... 4-22
Steering wheel switches for audio control ...
.............. 4-23
Condition: NAM/

Black plate (131,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

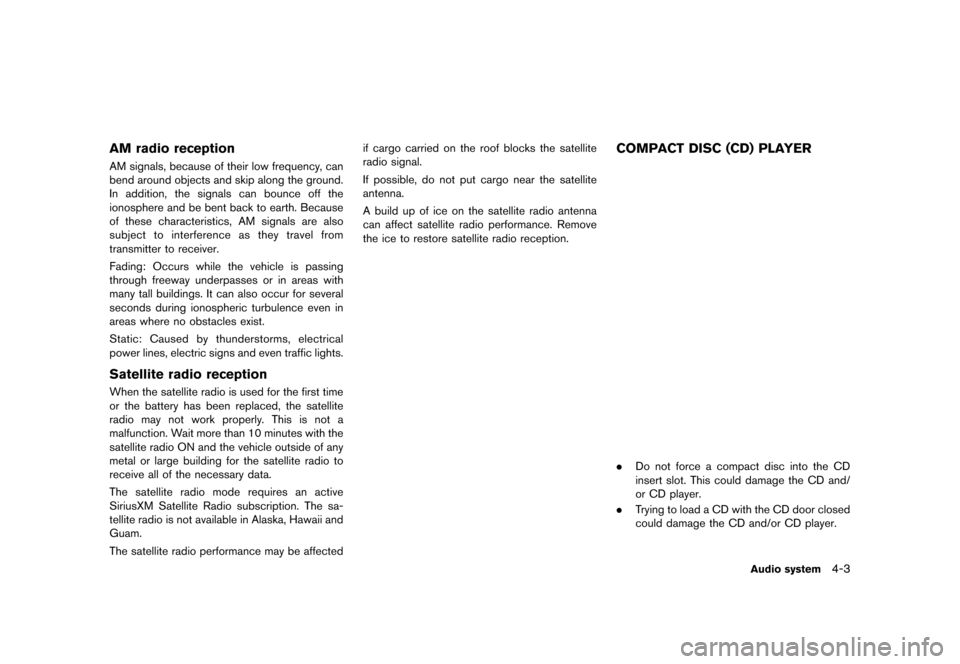

AM radio receptionGUID-F3C8ECE4-EFC7-4ED4-9553-9C805FE5ED54AM signals, because of their low frequency, can
bend around objects and skip along the ground.
In addition, the signals can bounce off the
ionosphere and be bent back to earth. Because
of these characteristics, AM signals are also
subject to interference as they travel from
transmitter to receiver.
Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas with
many tall buildings. It can also occur for several
seconds during ionospheric turbulence even in
areas where no obstacles exist.
Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic lights.
Satellite radio receptionGUID-2273FD6D-FB06-452C-998D-A63512E7162FWhen the satellite radio is used for the first time
or the battery has been replaced, the satellite
radio may not work properly. This is not a
malfunction. Wait more than 10 minutes with the
satellite radio ON and the vehicle outside of any
metal or large building for the satellite radio to
receive all of the necessary data.
The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.
The satellite radio performance may be affectedif cargo carried on the roof blocks the satellite
radio signal.
If possible, do not put cargo near the satellite
antenna.
A build up of ice on the satellite radio antenna
can affect satellite radio performance. Remove
the ice to restore satellite radio reception.
COMPACT DISC (CD) PLAYERGUID-DC5E2611-026D-452C-A4AC-47F0F8806FC5
NAI0802
.
Do not force a compact disc into the CD
insert slot. This could damage the CD and/
or CD player.
. Trying to load a CD with the CD door closed
could damage the CD and/or CD player.
Audio system4-3
Condition: NAM/

Black plate (138,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
4-10Audio system

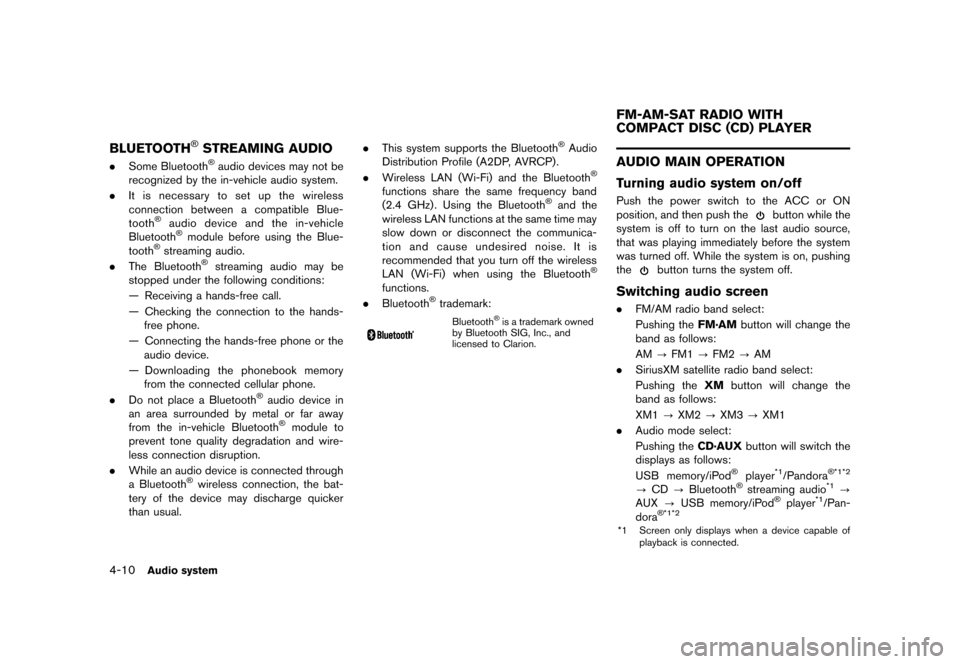

BLUETOOTH®STREAMING AUDIOGUID-24BDA0F9-283E-4615-995E-7F61FFF7F7B7.Some Bluetooth®audio devices may not be
recognized by the in-vehicle audio system.
. It is necessary to set up the wireless
connection between a compatible Blue-
tooth
®audio device and the in-vehicle
Bluetooth®module before using the Blue-
tooth®streaming audio.
. The Bluetooth®streaming audio may be
stopped under the following conditions:
— Receiving a hands-free call.
— Checking the connection to the hands-
free phone.
— Connecting the hands-free phone or the audio device.
— Downloading the phonebook memory from the connected cellular phone.
. Do not place a Bluetooth
®audio device in
an area surrounded by metal or far away
from the in-vehicle Bluetooth
®module to
prevent tone quality degradation and wire-
less connection disruption.
. While an audio device is connected through
a Bluetooth
®wireless connection, the bat-
tery of the device may discharge quicker
than usual. .
This system supports the Bluetooth
®Audio
Distribution Profile (A2DP, AVRCP).
. Wireless LAN (Wi-Fi) and the Bluetooth
®
functions share the same frequency band
(2.4 GHz) . Using the Bluetooth®and the
wireless LAN functions at the same time may
slow down or disconnect the communica-
tion and cause undesired noise. It is
recommended that you turn off the wireless
LAN (Wi-Fi) when using the Bluetooth
®
functions.
. Bluetooth®trademark:
Bluetooth®is a trademark owned
by Bluetooth SIG, Inc., and
licensed to Clarion.
GUID-A938169A-7CA3-4090-A129-8D9144D84039
AUDIO MAIN OPERATIONGUID-21A3D1F2-D88E-4CCE-B170-B9485A368E7F
Turning audio system on/offGUID-DEC1D39C-0B79-4535-9FBF-86BD31187CDDPush the power switch to the ACC or ON
position, and then push the
button while the
system is off to turn on the last audio source,
that was playing immediately before the system
was turned off. While the system is on, pushing
the
button turns the system off.
Switching audio screenGUID-2A84B441-03C2-4E17-9A89-AC3DD54D9273. FM/AM radio band select:
Pushing the FM·AMbutton will change the
band as follows:
AM ?FM1 ?FM2 ?AM
. SiriusXM satellite radio band select:
Pushing the XMbutton will change the
band as follows:
XM1 ?XM2 ?XM3 ?XM1
. Audio mode select:
Pushing the CD·AUXbutton will switch the
displays as follows:
USB memory/iPod
®player*1/Pandora®*1*2
? CD ?Bluetooth®streaming audio*1?
AUX ?USB memory/iPod®player*1/Pan-
dora®*1*2
*1 Screen only displays when a device capable of
playback is connected.
FM-AM-SAT RADIO WITH
COMPACT DISC (CD) PLAYER
Condition: NAM/

Black plate (139,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

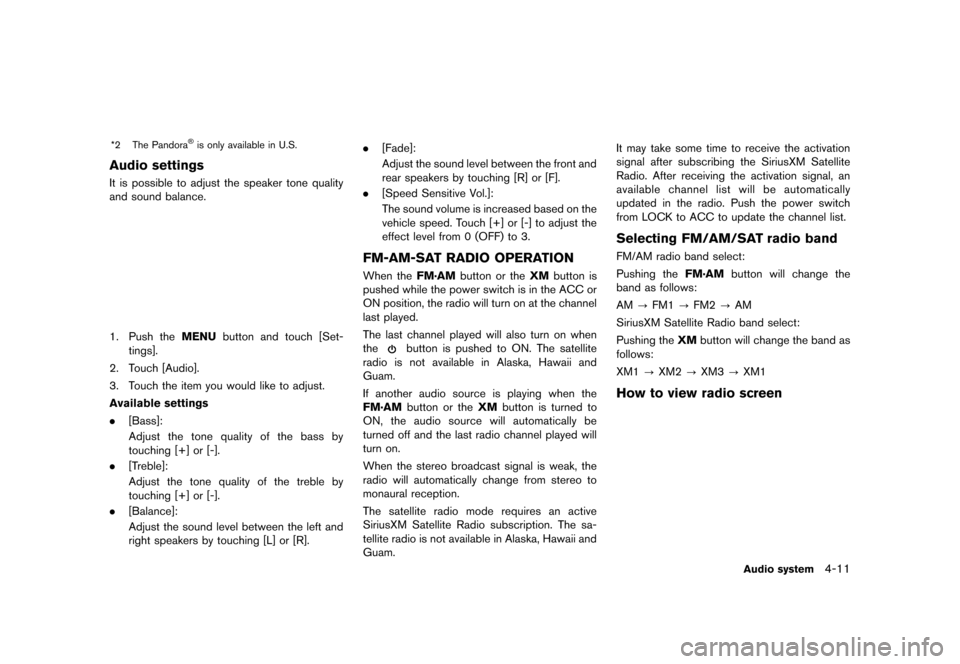

*2 The Pandora®is only available in U.S.
Audio settingsGUID-ECFE1718-B192-4A27-91B2-70E3D8B84B09It is possible to adjust the speaker tone quality
and sound balance.
LNF0002X
1. Push theMENUbutton and touch [Set-
tings].
2. Touch [Audio].
3. Touch the item you would like to adjust.
Available settings
. [Bass]:
Adjust the tone quality of the bass by
touching [+] or [-].
. [Treble]:
Adjust the tone quality of the treble by
touching [+] or [-].
. [Balance]:
Adjust the sound level between the left and
right speakers by touching [L] or [R]. .
[Fade]:
Adjust the sound level between the front and
rear speakers by touching [R] or [F].
. [Speed Sensitive Vol.]:
The sound volume is increased based on the
vehicle speed. Touch [+] or [-] to adjust the
effect level from 0 (OFF) to 3.
FM-AM-SAT RADIO OPERATIONGUID-952EDDB7-2BDB-4ADF-BF9F-C1407C8FAA3EWhen the FM·AMbutton or the XMbutton is
pushed while the power switch is in the ACC or
ON position, the radio will turn on at the channel
last played.
The last channel played will also turn on when
the
button is pushed to ON. The satellite
radio is not available in Alaska, Hawaii and
Guam.
If another audio source is playing when the
FM·AM button or the XMbutton is turned to
ON, the audio source will automatically be
turned off and the last radio channel played will
turn on.
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam. It may take some time to receive the activation
signal after subscribing the SiriusXM Satellite
Radio. After receiving the activation signal, an
available channel list will be automatically
updated in the radio. Push the power switch
from LOCK to ACC to update the channel list.
Selecting FM/AM/SAT radio bandGUID-089AA72F-5994-41A6-92D0-13CB10EA45B9FM/AM radio band select:
Pushing the
FM·AMbutton will change the
band as follows:
AM ?FM1 ?FM2 ?AM
SiriusXM Satellite Radio band select:
Pushing the XMbutton will change the band as
follows:
XM1 ?XM2 ?XM3 ?XM1
How to view radio screenGUID-C7E211CC-F05B-44A2-86A6-770B8278B318
LNF0003X
Audio system4-11
Condition: NAM/
