9-8Monitor system

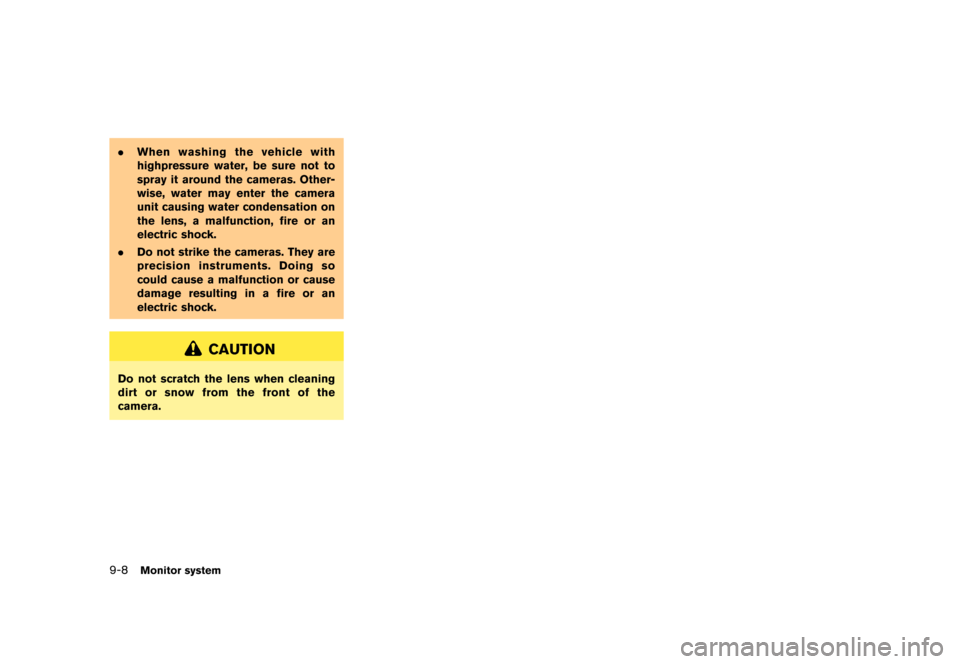

.When washing the vehicle with
highpressure water, be sure not to
spray it around the cameras. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the cameras. They are
precision instruments. Doing so
could cause a malfunction or cause
damage resulting in a fire or an
electric shock.
CAUTION
Do not scratch the lens when cleaning
dirt or snow from the front of the
camera.
LNL0043X
Condition: NAM/

Black plate (238,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10-10Troubleshooting guide/General system information
Vehicle iconGUID-C0C1C898-A889-456C-A1BE-60ABF2162EC7
SymptomPossible cause Possible solution
Names of roads and locations differ between
Plan View and Birdview
TM. This is because the quantity of the displayed information is reduced
so that the screen does not become too cluttered. There is also a
chance that names of the roads or locations may be displayed
multiple times, and the names appearing on the screen may be
different because of a processing procedure. This is not a malfunction.
The vehicle icon is not displayed in the correct
position. The vehicle was transported after the power switch was pushed off,
for example, by a ferry or car transporter. Drive the vehicle for a period of time on a road where
GPS signals can be received.
The position and direction of the vehicle icon may be incorrect
depending on the driving environments and the levels of positioning
accuracy of the navigation system. This is not a malfunction. Drive the vehicle for a
period of time to automatically correct the position
and direction of the vehicle icon.
“Current vehicle location” (page 10-29)
When the vehicle is traveling on a new road,
the vehicle icon is located on another road
nearby. Because the new road is not stored in the map data, the system
automatically places the vehicle icon on the nearest road available.
Updated road information will be included in the next
version of the map data.
The screen does not switch to the night screen
even after turning on the headlights. The daytime screen was set the last time the headlights were turned
on. Set the screen to the night screen mode using the
button when turning on the headlights.“Display adjustment” (page 1-14)
The map does not scroll even when the vehicle
is moving. The current location map screen is not displayed. Push the
MAPbutton.
The vehicle icon is not displayed. The current location map screen is not displayed. Push the MAPbutton.
The GPS indicator on the screen remains gray. GPS signals cannot be received under certain conditions, such as in a parking garage, on a road with many tall buildings, etc. Drive on an open, straight road for a period of time.
GPS signals cannot be received because objects are placed on the
instrument panel. Remove the objects from the instrument panel.
A sufficient number of GPS satellites is not available. Wait for the satellites to move to locations available for the navigation system.
Condition: NAM/

Black plate (245,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
AUDIO SYSTEMGUID-A966E4C8-AA58-414B-9A6A-500CC260D786
Compact Disc (CD) playerGUID-8097E05E-298F-400A-AE85-F2150D8AD7BC
SymptomPossible cause Possible solution
Music cannot be played back. The disc is inserted upside down.Insert a CD with the label side facing up.
Moisture condensation occurs inside the unit. Wait until the moisture evaporates. (approximately 1 hour)
The cabin temperature is too high. Wait until the cabin temperature becomes moderate.
The disc is scratched or dirty. A disc is not always
playable if it is scratched. Wipe off any dirt from the disc.
Depending on the condition in which they are stored,
discs may become unreadable due to deterioration (for
example, keeping the discs in the passenger compart-
ment, etc.) . Change the disc with a deterioration-free disc. Do not
use a deteriorated disc. The label surface of the disc
may crack or chip, and the layer of the label surface may
eventually peel off.
The compressed audio files cannot be played back. If both music CD files (CD-DA data) and compressed audio files (MP3 data, etc.) are mixed on one disc, the
audio compression files cannot be played back.Prepare a disc that includes compressed audio files
only.
The files are not named using characters that are
compliant with the specifications. Use the character codes and the number of characters
that are compliant with the specifications for folder
names and file names. In addition, always use ".MP3", ".
WMA", ".mp3" or ".wma" for file extensions.
It takes a long time before the music starts playing. The disc contains a large amount of data. Some time may be required to check the files. It is
recommended that unnecessary folders or any files
other than compressed audio files should not be
recorded in a disc.
Sound quality is poor. The disc is dirty. Wipe off any dirt from the disc.
No sounds are played though CD play time is displayed. The system plays back the first track of the mix mode disc. (Mix mode is a format in which data except music
is recorded on the first track and music data is recorded
on other than the first track in a session.)Play back music data that are recorded on other than
the first track.
Troubleshooting guide/General system information10-17
Condition: NAM/

Black plate (255,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

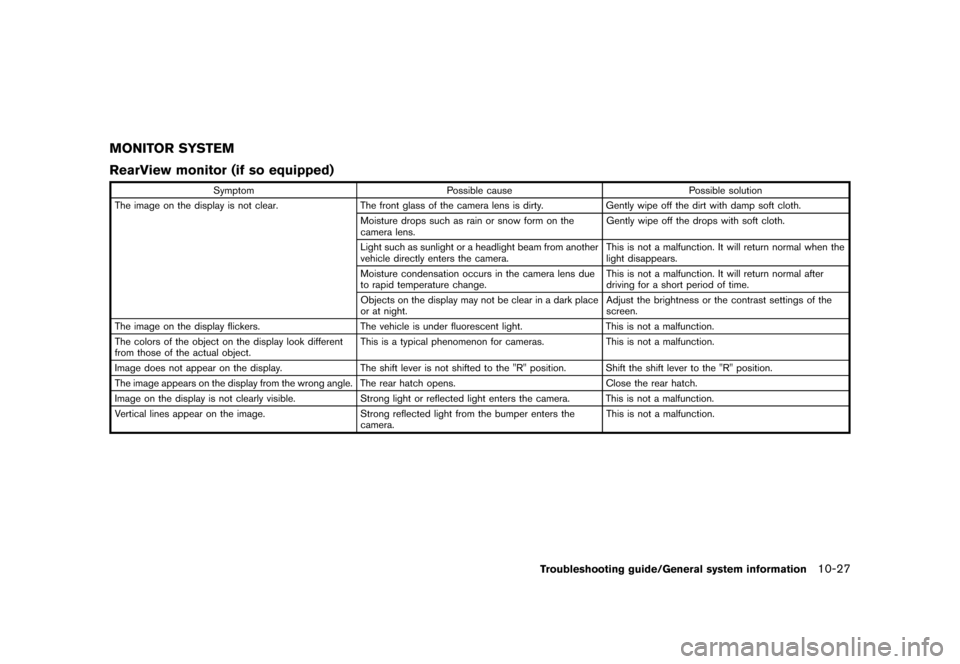

MONITOR SYSTEMGUID-DE38966F-3237-4C0C-9DD6-E33DA7FAB126
RearView monitor (if so equipped)GUID-A56DACCE-043B-4C24-9764-0622D94A05FB
SymptomPossible cause Possible solution
The image on the display is not clear. The front glass of the camera lens is dirty.Gently wipe off the dirt with damp soft cloth.
Moisture drops such as rain or snow form on the
camera lens. Gently wipe off the drops with soft cloth.
Light such as sunlight or a headlight beam from another
vehicle directly enters the camera. This is not a malfunction. It will return normal when the
light disappears.
Moisture condensation occurs in the camera lens due
to rapid temperature change. This is not a malfunction. It will return normal after
driving for a short period of time.
Objects on the display may not be clear in a dark place
or at night. Adjust the brightness or the contrast settings of the
screen.
The image on the display flickers. The vehicle is under fluorescent light.This is not a malfunction.
The colors of the object on the display look different
from those of the actual object. This is a typical phenomenon for cameras.
This is not a malfunction.
Image does not appear on the display. The shift lever is not shifted to the "R" position. Shift the shift lever to the "R" position.
The image appears on the display from the wrong angle. The rear hatch opens. Close the rear hatch.
Image on the display is not clearly visible. Strong light or reflected light enters the camera. This is not a malfunction.
Vertical lines appear on the image. Strong reflected light from the bumper enters the
camera. This is not a malfunction.
Troubleshooting guide/General system information10-27
Condition: NAM/

Black plate (257,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
GUID-53E79F5D-9AE6-4984-955E-CB2A39EB4D66
CURRENT VEHICLE LOCATIONGUID-3DB2B298-7959-42E7-A529-EBC2E6E1A510
Display of current vehicle locationGUID-AC334D4E-00C5-4F0B-889E-D50DC5D61202This navigation system combines the data
obtained from the vehicle (by gyro sensor) and
from GPS (Global Positioning System) satellites
to calculate the current location of the vehicle.
This position is then displayed throughout route
guidance to a destination.
What is GPS (Global Positioning
System)?
GUID-A33AD639-F86B-4DA8-B59E-2726CD899634GPS is a position detecting system that uses
satellites deployed by the U.S. government. This
navigation system receives radio signals from
three or more different satellites that orbit
13,049 miles (21,000 km) above the earth in
space, and detects the position of the vehicle by
utilizing the principle of triangulation.
Positioning adjustment:
When the system judges that the vehicle
position is not accurate based on vehicle speed
and gyro sensor data calculations, the system
will automatically adjust the position of the
vehicle icon using GPS signals.
Receiving signals from GPS satellites:
The reception of GPS signals can be weak,
depending on the environment. Vehicles in the
following areas/environments may not receiveGPS signals (indicator color: gray) .INI0121
*Inside tunnels or parking garages
INI0122
*In areas with numerous tall buildings
INI0123
*Under multi-layered highways
INI0124
*Areas with numerous tall trees
Troubleshooting guide/General system information10-29
GENERAL SYSTEM INFORMATION
Condition: NAM/

Black plate (266,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10-38Troubleshooting guide/General system information
where road data is not complete, voice
guidance may stop for long periods of time.
Be sure to follow the actual traffic restric-
tions while driving.
NOTES ON NAV TRAFFIC INFOR-
MATION
GUID-3C768737-3150-4B3D-BA4F-F358165C07E4.The NavTraffic information service is not
provided for some cities. In addition, the
cities for which the traffic information service
is provided may be changed.
. In some cases, infrastructure problems may
prevent the complete display of the traffic
information. This is not a malfunction.
. Due to infrastructure problems, or due to the
time when the traffic information service
broadcast is received, the displayed infor-
mation may differ from the actual traffic
conditions.
. Depending on the traffic information, a
detour route may be slower than the original
route.
. NavTraffic is a service of SiriusXM Satellite
Radio. NavTraffic is only available in select
markets and is subject to data availability.
Reception of the XM
®signal may vary
depending on location. It requires a monthly
premium subscription. The service provider
is solely responsible for the quality and accuracy of the information provided. All
fees and programming are subject to
change. For more details on the NavTraffic
service, terms and conditions, please visit
www.siriusxm.com/navtraffic.
You can also contact SiriusXM Satellite
Radio at
1-866-635-2349.
. As of January 31, 2009, the NavTraffic
service covers 80 major metropolitan mar-
kets. For the most current list of markets
covered, please refer to
www.siriusxm.com/navtraffic, or call Sir-
iusXM Satellite Radio customer support at
1-866-635-2349.
. Due to road maintenance, infrastructure
problems (e.g. malfunction of road sensors,
outage of central computer of infrastructure)
or natural disasters, there are times when
some or all traffic information may not be
available.
. Incident information is based on human
collection. Not all incidents that have hap-
pened are collected and provided.
. Due to infrastructure problems, or transmis-
sion delay, there are times when the
information may differ from the actual con-
dition. Always observe safe driving practices
and follow all traffic regulations. .
Due to the coverage and quality of traffic
information and road conditions, it is not
always possible for the system to provide
the shortest time route even when traffic
information is considered.
. Traffic information that is displayed may
differ from information from other media
(e.g., radio) , as other media may use
different information sources.
MAP DATAGUID-E8AC15C0-C36D-42F7-9BDE-323856EC8947
How to handle the Map SD cardGUID-BB0BDEC0-EF03-4703-85B5-BFABC2E2D404In the right side slot, an SD card that includes
the map data is inserted. When handling the
Map SD card, please be careful and adhere to
the following instructions:
.An SD card is inserted in the slot on the
right side. This is the SDHC card that is
exclusively used for this device. This card
includes the map data. The SDHC card is
necessary to operate the device. Do not
remove this card except when update of the
map data is required.
. The device does not work even if the SDHC
card with the map data is inserted in the slot
on the left side.
. Never analyze, modify, delete or format the
map data. Doing so may cause an improper
operation of the device.
Condition: NAM/

Black plate (275,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
11 Index
A
About route guidance...
................................................ 3-41
Adjusting volume and others ...
...................................... 1-7
Audio operation precautions ...
...................................... 4-2
Auxiliary input jack ...
....................................................... 4-22
B
Basic operation ...
.............................................................. 1-7
Battery and power information ...
................................ 2-16
Bluetooth
®Hands-Free Phone System ...
.................. 7-2
Bluetooth®streaming audio ...
..................................... 4-10
Bluetooth®streaming audio operation ...
.................. 4-19
C
Camera settings ...
................................................. 9-6, 9-14
Canceling/reactivating route ...
.................................... 3-47
Car phone or CB radio ...
............................................. 7-10
CARWINGS
TMoverview ...
............................................. 5-4
CARWINGSTMsettings ...
............................................. 5-12
CD·AUX screen ...
........................................................... 1-10
Changing map view ...
...................................................... 3-8
Changing region ...
.......................................................... 3-18
Changing scale of map ...
............................................... 3-7
Character (letters and numbers) input screen ...
...... 1-7
Charge recommendation guidance ...
........................ 2-16
Charging station information ...
...................................... IT-2
Clock settings ...
.............................................................. 1-16
Comfort & convenience settings ...
............................... 6-4
Compact Disc (CD) player ...
......................................... 4-3
Compact Disc (CD) player operation ...
.................... 4-13
Compressed Audio Files (MP3/WMA) ...
................... 4-7
Confirming route ...
.......................................................... 3-52
Connecting cellular phone ...
........................................ 1-13 Connecting procedure
...
................................................. 7-4
Control button and microphone ...
................................ 7-3
Control buttons and functions ...
................................... 1-2
Control panel ...
.................................................................. 1-2
Current vehicle location ...
.......................................... 10-29
Customer assistance ...
.................................................. 10-2
D
Data communication settings ...
................................... 5-20
Deleting phone information ...
......................................... 7-9
Deleting stored item ...
................................................... 3-68
Destination screen ...
...................................................... 3-17
Display adjustment ...
...................................................... 1-14
Display urgent traffic information ...
.............................. 6-8
Displaying CARWINGS
TMinformation screen ...
...... 5-7
Displaying charging station icons on map ...
............. 2-5
Displaying command list ...
............................................. 8-6
Displaying current vehicle location ...
........................... 3-5
Displaying estimated driving range ...
........................... 2-3
Displaying unit ID information ...
.................................. 5-18
Downloading phonebook memory ...
............................ 7-8
Driving range ...
.................................................................. IT-2
During a call ...
................................................................... 7-6
E
Editing address book ...
................................................. 3-62
Editing route ...
................................................................. 3-48
Energy information display ...
................................. IT-3, 2-8
Error message on communication ...
.......................... 5-19
F
Features of LEAF Navigation ...
..................................... IT-2
Finding address ...
........................................................... 3-20
Finding charging station ...
............................................ 3-25
Finding nearby Points of Interest ...
............................ 3-29
Finding points of interest ...
.......................................... 3-21
FM·AM radio screen ...
................................................... 1-10
FM-AM-SAT radio operation ...
.................................... 4-11
Functions disabled while driving ...
............................... 1-6
G
Giving voice commands ...
.............................................. 8-2
Guidance screen settings ...
......................................... 3-43
H
How to handle CD and USB memory ...
................ 10-43
How to handle display ...
............................................ 10-42
How to handle the Map SD card ...
........................ 10-38
How to handle the SD card ...
.................................. 10-43
How to park with predictive course lines ...
............... 9-4
How to read displayed lines ...
...................................... 9-2
How to set Climate Ctrl. Timer ...
............................... 2-12
How to set Climate Ctrl. Timer and remote
climate control temperature ...
...................................... 2-14
How to view information screen ...
................................ 5-8
I
Info on route ...
................................................................... 6-7
Information feed setting ...
............................................. 5-15
Information screen ...
........................................................ 6-2
Condition: NAM/

Black plate (276,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
11-2Index
Inputting user ID and password...
.............................. 1-11
iPod®player and iPhone®...
........................................... 4-5
iPod®player operation ...
............................................... 4-15
Items to be set initially ...
............................................... 1-11
L
Language settings ...
....................................................... 1-17
Laser product ...
................................................................. 0-4
Limited Power Notice ...
................................................. 2-17
Looking at information on map ...
................................ 3-12
Low battery ...
................................................................... 2-16
M
Making a call ...
.................................................................. 7-5
Map data ...
.................................................................... 10-38
Map menu screen ...
....................................................... 3-14
Map screen ...
..................................................................... 1-9
Map settings ...
................................................................... 3-3
Map symbols ...
................................................................ 3-16
Map types ...
....................................................................... 3-3
Map view settings ...
......................................................... 3-9
Menu screen ...
................................................................... 1-9
Monitor systemAround View
TMMonitor ...
................... 9-7
Moving map ...
.................................................................... 3-5
N
Navigation settings ...
..................................................... 3-72
Navigation Telematics (CARWINGSTMservice) ...
.... IT-5
Nearby traffic info. ...
......................................................... 6-7
NISSAN voice recognition ...
.......................................... 8-2
Notes on Nav Traffic information ...
.......................... 10-38
O
Operations after setting destination ...
....................... 3-36
Other navigation settings ...
.......................................... 3-73
P
Pandora®...
...................................................................... 4-16
Phone number input screen ...
....................................... 1-8
Phone selection ...
............................................................. 7-4
Phone settings ...
............................................................... 7-8
Phone volume settings ...
.............................................. 7-10
Procedures after setting route ...
................................. 3-39
R
Radio ...
................................................................................ 4-2
RearView monitor ...
.......................................................... 9-2
Recalculating route ...
..................................................... 3-53
Receiving a call ...
............................................................. 7-5
Regulatory information ...
................................................. 7-3
Remote functions ...
.......................................................... IT-4
Reset all CARWINGS
TMsettings to default ...
........ 5-18
Resetting all navigation settings to default ...
.......... 3-76
Restoring default settings for notifications ...
........... 5-15
Route calculation ...
...................................................... 10-32
Route guidance ...
............................................. 3-39, 10-34
Route guidance settings ...
........................................... 3-57
Route screen ...
................................................................ 3-46
S
Scrolling message or list ...
............................................. 1-7
Searching for detour route using
traffic information ...
......................................................... 3-54
Searching from address book ...
................................. 3-28
Searching from history ...
............................................... 3-28 Selecting item
...
................................................................ 1-7
Sending battery charge status information to
Data Center ...
................................................................. 5-14
Sending charge connector status information to
Data Center ...
.................................................................. 5-14
Setting by phone number ...
......................................... 3-32
Setting city center ...
....................................................... 3-34
Setting Climate Ctrl. Timer ...
....................................... 2-12
Setting conditions for route calculation ...
................ 3-55
Setting detour route ...
................................................... 3-54
Setting freeway entrance/exit ...
................................... 3-35
Setting from stored routes ...
........................................ 3-31
Setting home as destination ...
.................................... 3-24
Setting intersection ...
..................................................... 3-32
Setting messages that are displayed
on screen ...
...................................................................... 2-15
Setting messages that are received by email ...
...... 5-12
Setting point on map ...
................................................. 3-36
Setting time for receiving charge connector
status notifications ...
...................................................... 5-13
Setting timer charge ...
................................................... 2-10
SiriusXM Satellite Radio screen ...
.............................. 1-10
Speed limit indication on map ...
................................. 3-73
Start-up screen ...
.............................................................. 1-5
Status screen ...
............................................................... 1-10
Steering wheel switches ...
............................................. 1-4
Steering wheel switches for audio control ...
........... 4-23
Storing a location/route ...
............................................. 3-58
Storing avoid area ...
....................................................... 3-61
Storing favorites ...
............................................................ 5-9
Storing home location ...
................................................ 1-12
Storing location ...
........................................................... 3-58
Storing location for receiving charge connector
disconnected notifications ...
........................................ 5-12
Storing route ...
................................................................ 3-60
Storing vehicle phonebook ...
......................................... 7-6
Subscription to CARWINGS
TMservice ...
................ 1-11
Condition: NAM/
