1-14Getting Started
LNC0033X

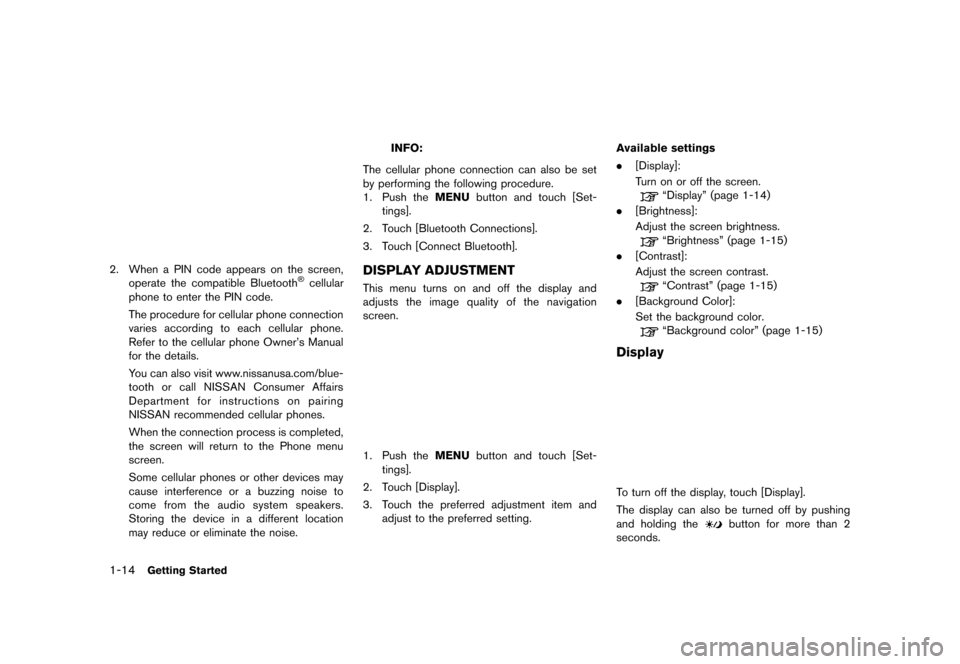

2. When a PIN code appears on the screen,operate the compatible Bluetooth®cellular
phone to enter the PIN code.
The procedure for cellular phone connection
varies according to each cellular phone.
Refer to the cellular phone Owner’s Manual
for the details.
You can also visit www.nissanusa.com/blue-
tooth or call NISSAN Consumer Affairs
Department for instructions on pairing
NISSAN recommended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
screen.
Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.
INFO:
The cellular phone connection can also be set
by performing the following procedure.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Bluetooth Connections].
3. Touch [Connect Bluetooth].
DISPLAY ADJUSTMENTGUID-6BF6BB79-7BC5-47FC-AE67-09BC1505C4C5This menu turns on and off the display and
adjusts the image quality of the navigation
screen.
LNC0034X
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Display].
3. Touch the preferred adjustment item and adjust to the preferred setting. Available settings
.
[Display]:
Turn on or off the screen.
“Display” (page 1-14)
. [Brightness]:
Adjust the screen brightness.
“Brightness” (page 1-15)
. [Contrast]:
Adjust the screen contrast.
“Contrast” (page 1-15)
. [Background Color]:
Set the background color.
“Background color” (page 1-15)
DisplayGUID-7C252615-E2C6-447B-8887-BFBEBB0E6F12
LNC0035X
To turn off the display, touch [Display].
The display can also be turned off by pushing
and holding the
button for more than 2
seconds.
Condition: NAM/

Black plate (31,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
LNC0036X

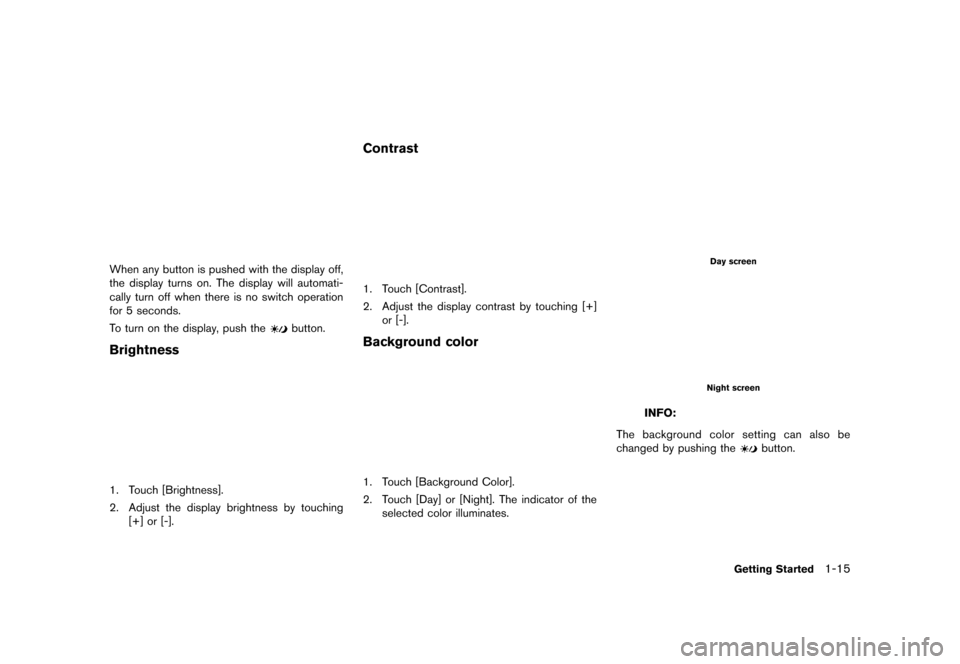

When any button is pushed with the display off,
the display turns on. The display will automati-
cally turn off when there is no switch operation
for 5 seconds.
To turn on the display, push the
button.
BrightnessGUID-2879B020-3DC2-405E-82FA-E10F80586C2C
LNC0037X
1. Touch [Brightness].
2. Adjust the display brightness by touching[+] or [-].
ContrastGUID-D109E07C-6E82-4966-A2BF-B086F27D282D
LNC0038X
1. Touch [Contrast].
2. Adjust the display contrast by touching [+]or [-].
Background colorGUID-E394FC85-8919-4E4D-A990-4DCE6F6F5100
LNC0039X
1. Touch [Background Color].
2. Touch [Day] or [Night]. The indicator of theselected color illuminates.
LNC0040X
Day screen
LNC0041X
Night screen
INFO:
The background color setting can also be
changed by pushing the
button.
Getting Started1-15
Condition: NAM/

Black plate (32,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
1-16Getting Started

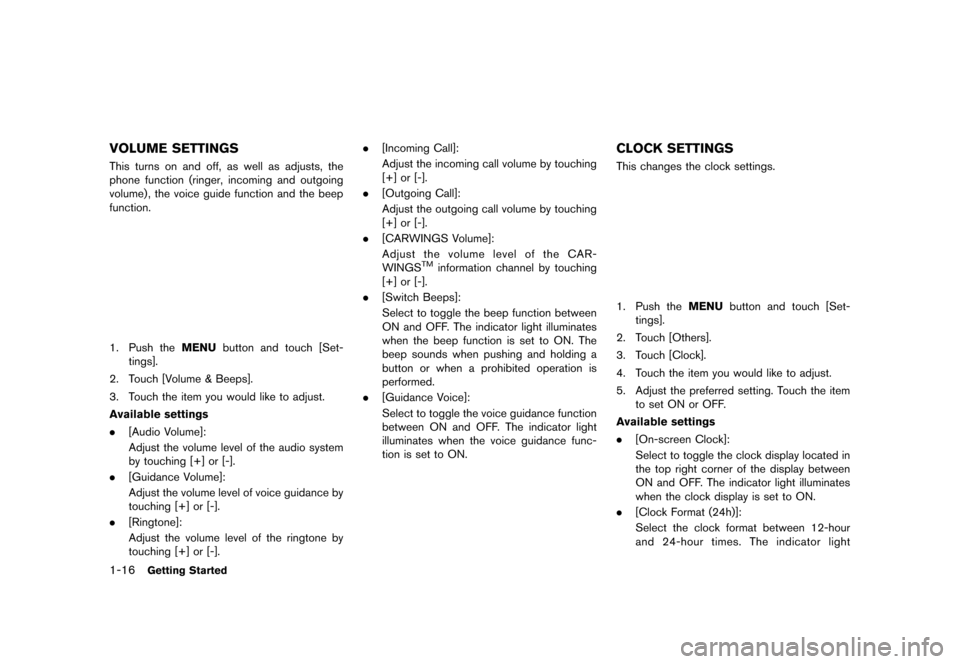

VOLUME SETTINGSGUID-210F184A-892E-4546-8D2A-0868DA7C4F52This turns on and off, as well as adjusts, the
phone function (ringer, incoming and outgoing
volume) , the voice guide function and the beep
function.
LNC0042X
1. Push theMENUbutton and touch [Set-
tings].
2. Touch [Volume & Beeps].
3. Touch the item you would like to adjust.
Available settings
. [Audio Volume]:
Adjust the volume level of the audio system
by touching [+] or [-].
. [Guidance Volume]:
Adjust the volume level of voice guidance by
touching [+] or [-].
. [Ringtone]:
Adjust the volume level of the ringtone by
touching [+] or [-]. .
[Incoming Call]:
Adjust the incoming call volume by touching
[+] or [-].
. [Outgoing Call]:
Adjust the outgoing call volume by touching
[+] or [-].
. [CARWINGS Volume]:
Adjust the volume level of the CAR-
WINGS
TMinformation channel by touching
[+] or [-].
. [Switch Beeps]:
Select to toggle the beep function between
ON and OFF. The indicator light illuminates
when the beep function is set to ON. The
beep sounds when pushing and holding a
button or when a prohibited operation is
performed.
. [Guidance Voice]:
Select to toggle the voice guidance function
between ON and OFF. The indicator light
illuminates when the voice guidance func-
tion is set to ON.
CLOCK SETTINGSGUID-6FB05DB7-7A72-4B43-A7A5-4796C1370711This changes the clock settings.
LNC0043X
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Others].
3. Touch [Clock].
4. Touch the item you would like to adjust.
5. Adjust the preferred setting. Touch the item to set ON or OFF.
Available settings
. [On-screen Clock]:
Select to toggle the clock display located in
the top right corner of the display between
ON and OFF. The indicator light illuminates
when the clock display is set to ON.
. [Clock Format (24h)]:
Select the clock format between 12-hour
and 24-hour times. The indicator light
Condition: NAM/

Black plate (35,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

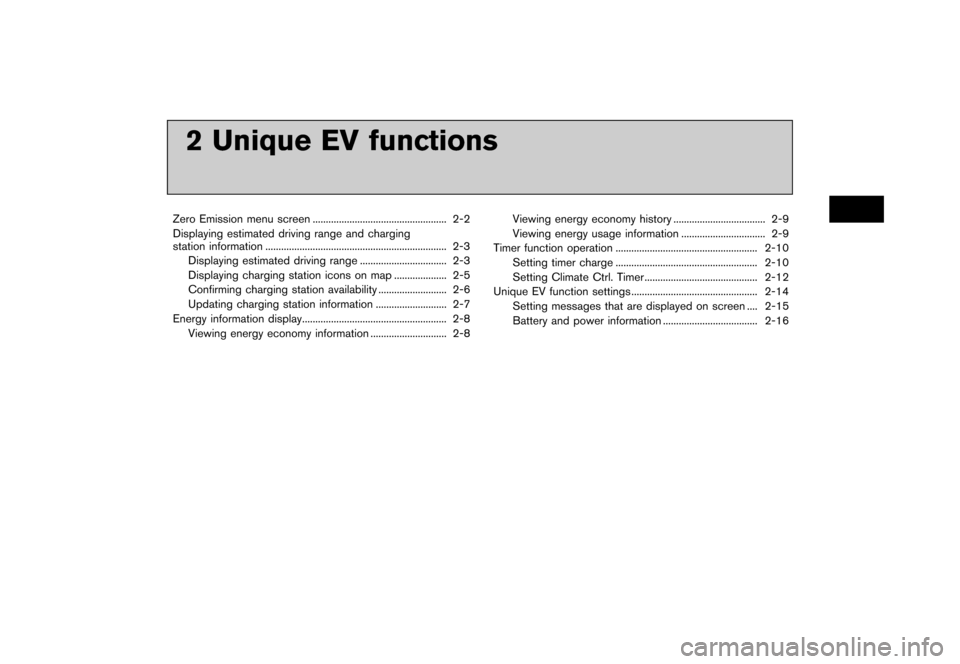

2 Unique EV functions
Zero Emission menu screen...
................................................... 2-2
Displaying estimated driving range and charging
station information ...
..................................................................... 2-3
Displaying estimated driving range ...
................................. 2-3
Displaying charging station icons on map ...
.................... 2-5
Confirming charging station availability ...
.......................... 2-6
Updating charging station information ...
........................... 2-7
Energy information display ...
....................................................... 2-8
Viewing energy economy information ...
............................. 2-8 Viewing energy economy history
...
................................... 2-9
Viewing energy usage information ...
................................ 2-9
Timer function operation ...
...................................................... 2-10
Setting timer charge ...
...................................................... 2-10
Setting Climate Ctrl. Timer ...
........................................... 2-12
Unique EV function settings ...
................................................ 2-14
Setting messages that are displayed on screen ...
.... 2-15
Battery and power information ...
.................................... 2-16
Condition: NAM/

Black plate (36,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
2-2Unique EV functions

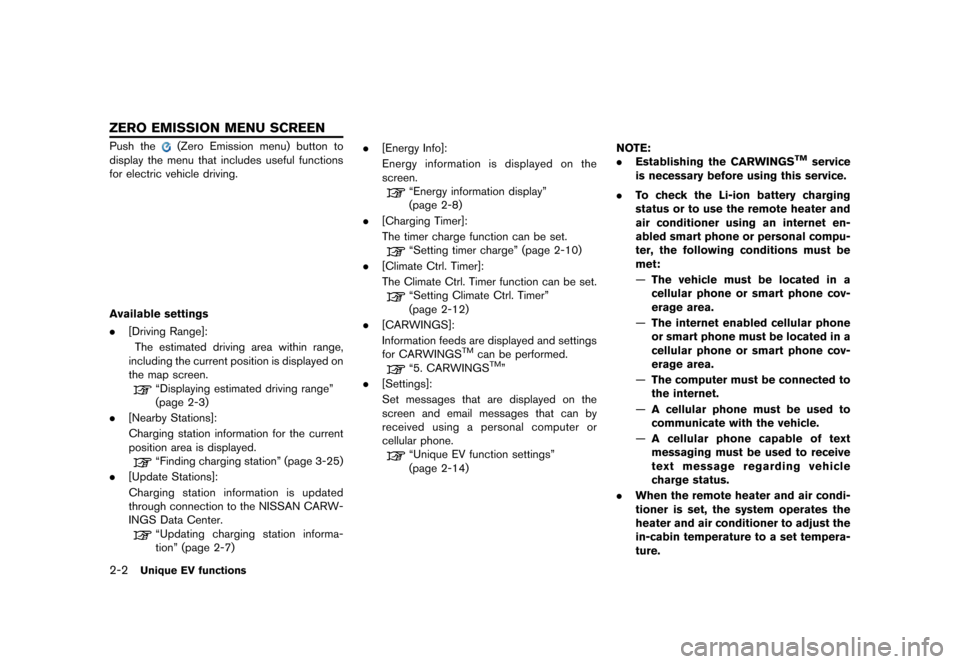

GUID-C21D2150-F7F0-4C39-BE4B-58106A8753F0Push the(Zero Emission menu) button to
display the menu that includes useful functions
for electric vehicle driving.
LND0093X
Available settings
. [Driving Range]:
The estimated driving area within range,
including the current position is displayed on
the map screen.
“Displaying estimated driving range”
(page 2-3)
. [Nearby Stations]:
Charging station information for the current
position area is displayed.
“Finding charging station” (page 3-25)
. [Update Stations]:
Charging station information is updated
through connection to the NISSAN CARW-
INGS Data Center.
“Updating charging station informa-
tion” (page 2-7) .
[Energy Info]:
Energy information is displayed on the
screen.
“Energy information display”
(page 2-8)
. [Charging Timer]:
The timer charge function can be set.
“Setting timer charge” (page 2-10)
. [Climate Ctrl. Timer]:
The Climate Ctrl. Timer function can be set.
“Setting Climate Ctrl. Timer”
(page 2-12)
. [CARWINGS]:
Information feeds are displayed and settings
for CARWINGS
TMcan be performed.
“5. CARWINGSTM”
. [Settings]:
Set messages that are displayed on the
screen and email messages that can by
received using a personal computer or
cellular phone.
“Unique EV function settings”
(page 2-14) NOTE:
.
Establishing the CARWINGS
TMservice
is necessary before using this service.
. To check the Li-ion battery charging
status or to use the remote heater and
air conditioner using an internet en-
abled smart phone or personal compu-
ter, the following conditions must be
met:
—The vehicle must be located in a
cellular phone or smart phone cov-
erage area.
— The internet enabled cellular phone
or smart phone must be located in a
cellular phone or smart phone cov-
erage area.
— The computer must be connected to
the internet.
— A cellular phone must be used to
communicate with the vehicle.
— A cellular phone capable of text
messaging must be used to receive
text message regarding vehicle
charge status.
. When the remote heater and air condi-
tioner is set, the system operates the
heater and air conditioner to adjust the
in-cabin temperature to a set tempera-
ture.
ZERO EMISSION MENU SCREEN
Condition: NAM/

Black plate (37,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

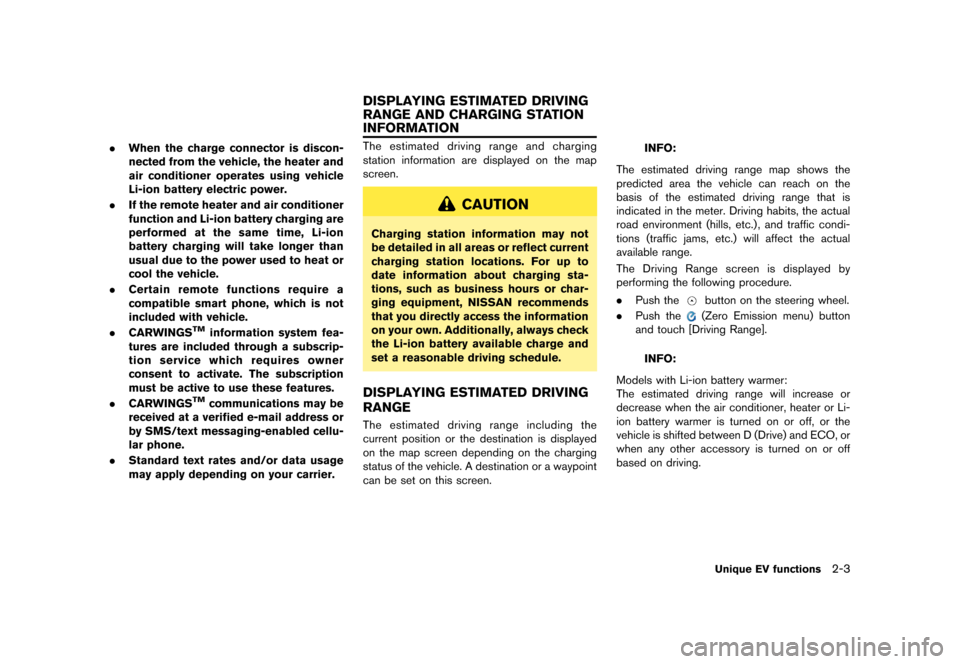

.When the charge connector is discon-
nected from the vehicle, the heater and
air conditioner operates using vehicle
Li-ion battery electric power.
. If the remote heater and air conditioner
function and Li-ion battery charging are
performed at the same time, Li-ion
battery charging will take longer than
usual due to the power used to heat or
cool the vehicle.
. Certain remote functions require a
compatible smart phone, which is not
included with vehicle.
. CARWINGS
TMinformation system fea-
tures are included through a subscrip-
tion service which requires owner
consent to activate. The subscription
must be active to use these features.
. CARWINGS
TMcommunications may be
received at a verified e-mail address or
by SMS/text messaging-enabled cellu-
lar phone.
. Standard text rates and/or data usage
may apply depending on your carrier.
GUID-DBBF191F-7227-4E71-9B89-F63596487267The estimated driving range and charging
station information are displayed on the map
screen.
CAUTION
Charging station information may not
be detailed in all areas or reflect current
charging station locations. For up to
date information about charging sta-
tions, such as business hours or char-
ging equipment, NISSAN recommends
that you directly access the information
on your own. Additionally, always check
the Li-ion battery available charge and
set a reasonable driving schedule.
DISPLAYING ESTIMATED DRIVING
RANGE
GUID-5A1FA606-E63E-4FD2-B18B-1B94796BA6B3The estimated driving range including the
current position or the destination is displayed
on the map screen depending on the charging
status of the vehicle. A destination or a waypoint
can be set on this screen.
INFO:
The estimated driving range map shows the
predicted area the vehicle can reach on the
basis of the estimated driving range that is
indicated in the meter. Driving habits, the actual
road environment (hills, etc.), and traffic condi-
tions (traffic jams, etc.) will affect the actual
available range.
The Driving Range screen is displayed by
performing the following procedure.
. Push the
button on the steering wheel.
. Push the
(Zero Emission menu) button
and touch [Driving Range].
INFO:
Models with Li-ion battery warmer:
The estimated driving range will increase or
decrease when the air conditioner, heater or Li-
ion battery warmer is turned on or off, or the
vehicle is shifted between D (Drive) and ECO, or
when any other accessory is turned on or off
based on driving.
Unique EV functions2-3
DISPLAYING ESTIMATED DRIVING
RANGE AND CHARGING STATION
INFORMATION
Condition: NAM/

Black plate (38,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
2-4Unique EV functions

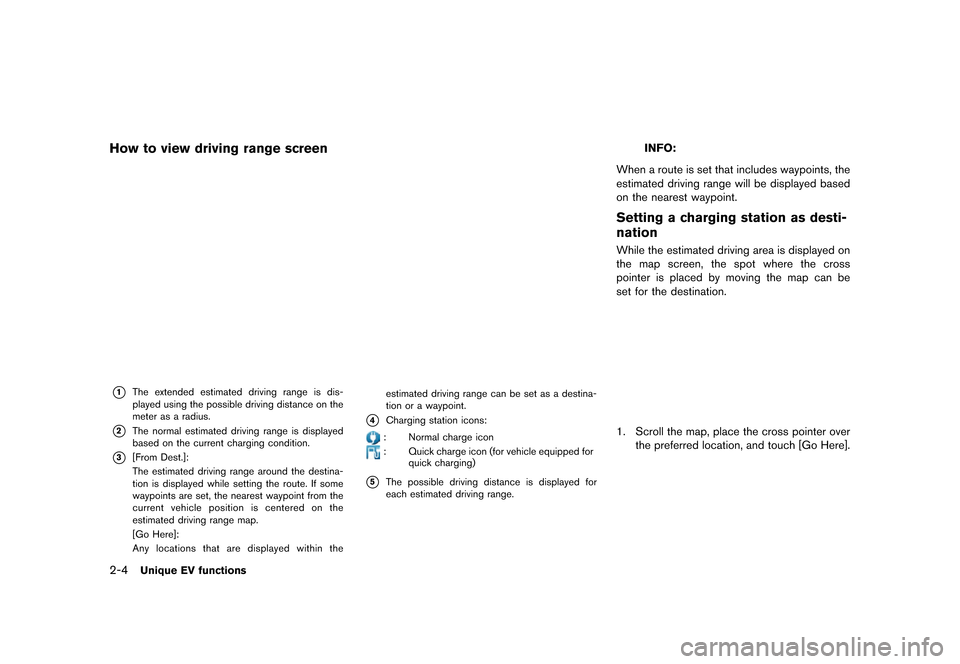

How to view driving range screenGUID-9CC93CF9-571E-484A-91DA-AD2F565D5B7F
LND0002X
*1The extended estimated driving range is dis-
played using the possible driving distance on the
meter as a radius.
*2The normal estimated driving range is displayed
based on the current charging condition.
*3[From Dest.]:
The estimated driving range around the destina-
tion is displayed while setting the route. If some
waypoints are set, the nearest waypoint from the
current vehicle position is centered on the
estimated driving range map.
[Go Here]:
Any locations that are displayed within theestimated driving range can be set as a destina-
tion or a waypoint.
*4Charging station icons:
: Normal charge icon
: Quick charge icon (for vehicle equipped for
quick charging)
*5The possible driving distance is displayed for
each estimated driving range.
INFO:
When a route is set that includes waypoints, the
estimated driving range will be displayed based
on the nearest waypoint.
Setting a charging station as desti-
nation
GUID-CF4689EA-B384-433B-9945-41E58188B38DWhile the estimated driving area is displayed on
the map screen, the spot where the cross
pointer is placed by moving the map can be
set for the destination.
LND0003X
1. Scroll the map, place the cross pointer over the preferred location, and touch [Go Here].
Condition: NAM/

Black plate (39,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
LND0004X

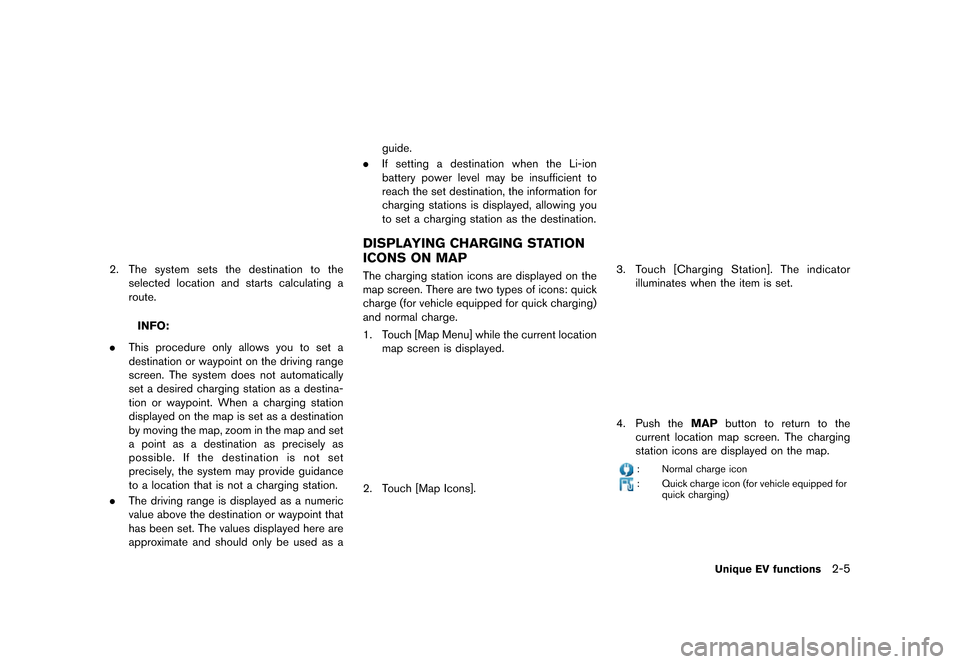

2.The system sets the destination to the
selected location and starts calculating a
route.
INFO:
. This procedure only allows you to set a
destination or waypoint on the driving range
screen. The system does not automatically
set a desired charging station as a destina-
tion or waypoint. When a charging station
displayed on the map is set as a destination
by moving the map, zoom in the map and set
a point as a destination as precisely as
possible. If the destination is not set
precisely, the system may provide guidance
to a location that is not a charging station.
. The driving range is displayed as a numeric
value above the destination or waypoint that
has been set. The values displayed here are
approximate and should only be used as a guide.
. If setting a destination when the Li-ion
battery power level may be insufficient to
reach the set destination, the information for
charging stations is displayed, allowing you
to set a charging station as the destination.
DISPLAYING CHARGING STATION
ICONS ON MAP
GUID-CB3356B9-BB71-4E7B-9B36-35EC618E6E12The charging station icons are displayed on the
map screen. There are two types of icons: quick
charge (for vehicle equipped for quick charging)
and normal charge.
1. Touch [Map Menu] while the current location
map screen is displayed.
LNE0900X
2. Touch [Map Icons].
LNE0038X
3.Touch [Charging Station]. The indicator
illuminates when the item is set.
LND0006X
4.Push the MAPbutton to return to the
current location map screen. The charging
station icons are displayed on the map.
: Normal charge icon
: Quick charge icon (for vehicle equipped for quick charging)
Unique EV functions2-5
Condition: NAM/
