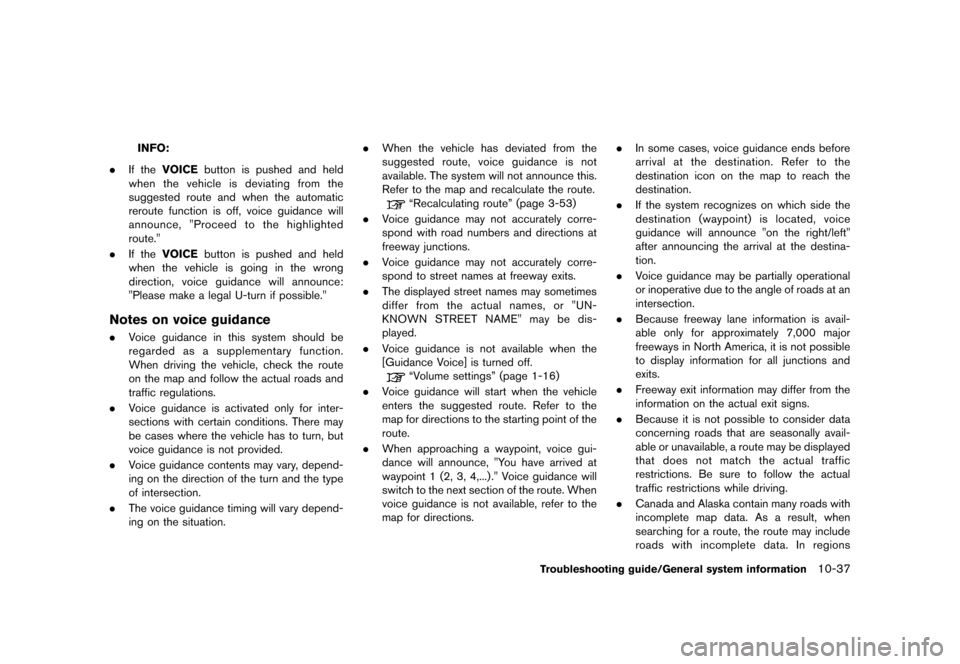

INFO:
. If the VOICE button is pushed and held
when the vehicle is deviating from the
suggested route and when the automatic
reroute function is off, voice guidance will
announce, "Proceed to the highlighted
route."
. If the VOICE button is pushed and held
when the vehicle is going in the wrong
direction, voice guidance will announce:
"Please make a legal U-turn if possible."
Notes on voice guidanceGUID-D97CC207-69BB-4213-9710-6F7BC47DE9D0. Voice guidance in this system should be
regarded as a supplementary function.
When driving the vehicle, check the route
on the map and follow the actual roads and
traffic regulations.
. Voice guidance is activated only for inter-
sections with certain conditions. There may
be cases where the vehicle has to turn, but
voice guidance is not provided.
. Voice guidance contents may vary, depend-
ing on the direction of the turn and the type
of intersection.
. The voice guidance timing will vary depend-
ing on the situation. .
When the vehicle has deviated from the
suggested route, voice guidance is not
available. The system will not announce this.
Refer to the map and recalculate the route.
“Recalculating route” (page 3-53)
. Voice guidance may not accurately corre-
spond with road numbers and directions at
freeway junctions.
. Voice guidance may not accurately corre-
spond to street names at freeway exits.
. The displayed street names may sometimes
differ from the actual names, or "UN-
KNOWN STREET NAME" may be dis-
played.
. Voice guidance is not available when the
[Guidance Voice] is turned off.
“Volume settings” (page 1-16)
. Voice guidance will start when the vehicle
enters the suggested route. Refer to the
map for directions to the starting point of the
route.
. When approaching a waypoint, voice gui-
dance will announce, "You have arrived at
waypoint 1 (2, 3, 4,...) ." Voice guidance will
switch to the next section of the route. When
voice guidance is not available, refer to the
map for directions. .
In some cases, voice guidance ends before
arrival at the destination. Refer to the
destination icon on the map to reach the
destination.
. If the system recognizes on which side the
destination (waypoint) is located, voice
guidance will announce "on the right/left"
after announcing the arrival at the destina-
tion.
. Voice guidance may be partially operational
or inoperative due to the angle of roads at an
intersection.
. Because freeway lane information is avail-
able only for approximately 7,000 major
freeways in North America, it is not possible
to display information for all junctions and
exits.
. Freeway exit information may differ from the
information on the actual exit signs.
. Because it is not possible to consider data
concerning roads that are seasonally avail-
able or unavailable, a route may be displayed
that does not match the actual traffic
restrictions. Be sure to follow the actual
traffic restrictions while driving.
. Canada and Alaska contain many roads with
incomplete map data. As a result, when
searching for a route, the route may include
roads with incomplete data. In regions
Troubleshooting guide/General system information10-37
Condition: NAM/

Black plate (266,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10-38Troubleshooting guide/General system information
where road data is not complete, voice
guidance may stop for long periods of time.
Be sure to follow the actual traffic restric-
tions while driving.

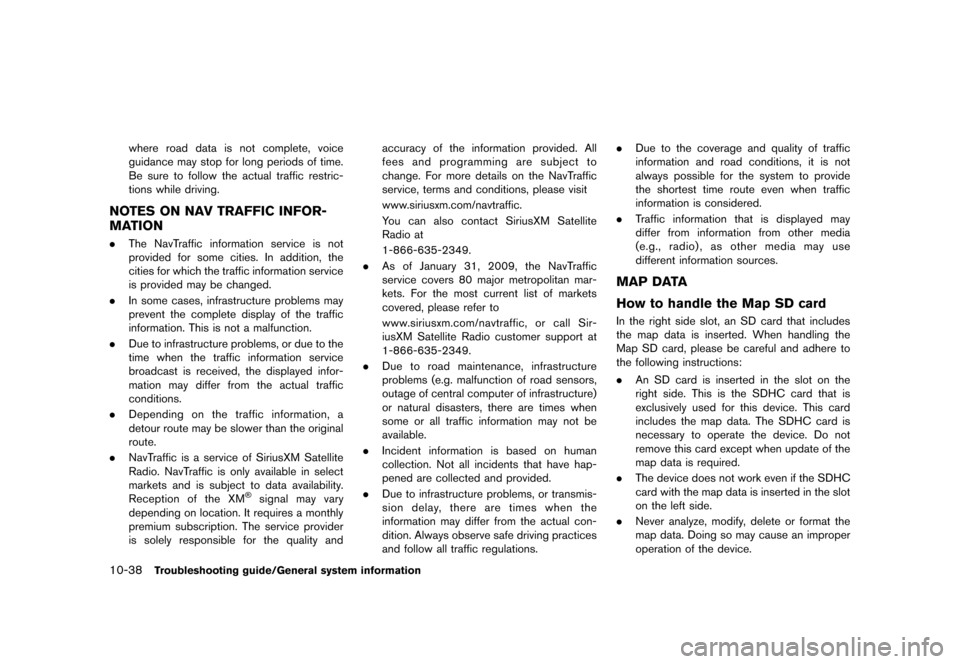

NOTES ON NAV TRAFFIC INFOR-
MATION
GUID-3C768737-3150-4B3D-BA4F-F358165C07E4.The NavTraffic information service is not
provided for some cities. In addition, the
cities for which the traffic information service
is provided may be changed.
. In some cases, infrastructure problems may
prevent the complete display of the traffic
information. This is not a malfunction.
. Due to infrastructure problems, or due to the
time when the traffic information service
broadcast is received, the displayed infor-
mation may differ from the actual traffic
conditions.
. Depending on the traffic information, a
detour route may be slower than the original
route.
. NavTraffic is a service of SiriusXM Satellite
Radio. NavTraffic is only available in select
markets and is subject to data availability.
Reception of the XM
®signal may vary
depending on location. It requires a monthly
premium subscription. The service provider
is solely responsible for the quality and accuracy of the information provided. All
fees and programming are subject to
change. For more details on the NavTraffic
service, terms and conditions, please visit
www.siriusxm.com/navtraffic.
You can also contact SiriusXM Satellite
Radio at
1-866-635-2349.
. As of January 31, 2009, the NavTraffic
service covers 80 major metropolitan mar-
kets. For the most current list of markets
covered, please refer to
www.siriusxm.com/navtraffic, or call Sir-
iusXM Satellite Radio customer support at
1-866-635-2349.
. Due to road maintenance, infrastructure
problems (e.g. malfunction of road sensors,
outage of central computer of infrastructure)
or natural disasters, there are times when
some or all traffic information may not be
available.
. Incident information is based on human
collection. Not all incidents that have hap-
pened are collected and provided.
. Due to infrastructure problems, or transmis-
sion delay, there are times when the
information may differ from the actual con-
dition. Always observe safe driving practices
and follow all traffic regulations. .
Due to the coverage and quality of traffic
information and road conditions, it is not
always possible for the system to provide
the shortest time route even when traffic
information is considered.
. Traffic information that is displayed may
differ from information from other media
(e.g., radio) , as other media may use
different information sources.
MAP DATAGUID-E8AC15C0-C36D-42F7-9BDE-323856EC8947
How to handle the Map SD cardGUID-BB0BDEC0-EF03-4703-85B5-BFABC2E2D404In the right side slot, an SD card that includes
the map data is inserted. When handling the
Map SD card, please be careful and adhere to
the following instructions:
.An SD card is inserted in the slot on the
right side. This is the SDHC card that is
exclusively used for this device. This card
includes the map data. The SDHC card is
necessary to operate the device. Do not
remove this card except when update of the
map data is required.
. The device does not work even if the SDHC
card with the map data is inserted in the slot
on the left side.
. Never analyze, modify, delete or format the
map data. Doing so may cause an improper
operation of the device.
Condition: NAM/

Black plate (267,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
.The SDHC card that is exclusively used for
this device does not work properly even if it
is inserted in another device.
. The map data cannot be used even if it is
copied to another SDHC card.
. Do not remove the SDHC card containing
map data from the system. Using the system
with the SDHC card containing map data
removed will prevent some functions from
operating.
NOTE:
Do not remove the SD card containing map
data that is inserted in the right-hand slot.
When this SD card containing map data is
removed the navigation system will not
operate. If the SD card containing map
data is accidentally removed, after rein-
serting the SD card containing map data
into the right-hand slot, place the power
switch in the OFF position and then place
back in the ON position again.

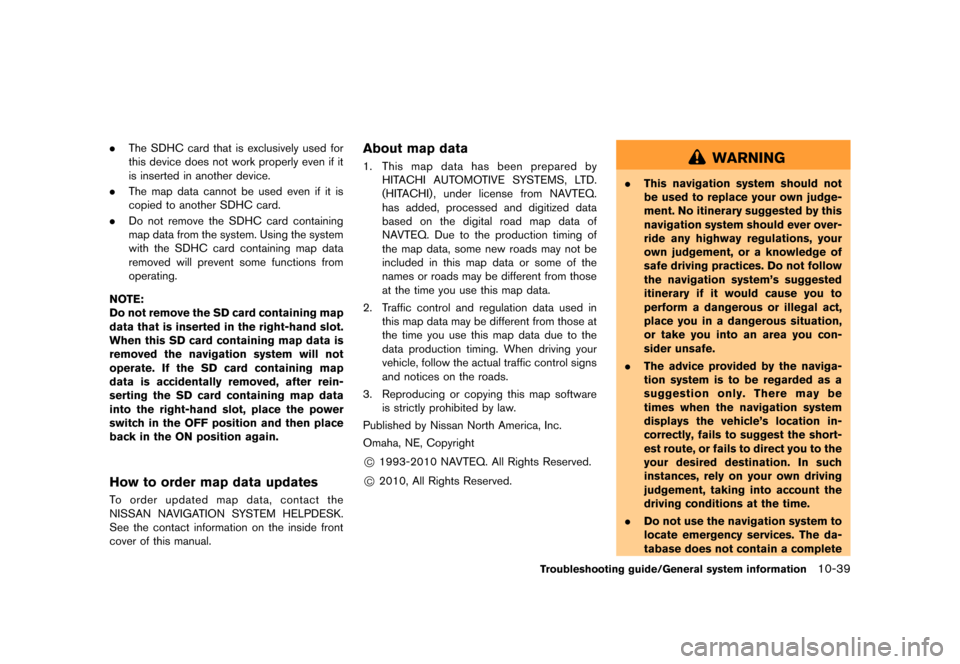

How to order map data updatesGUID-2BB87323-4211-4749-8BF6-64CBF5675E0CTo order updated map data, contact the
NISSAN NAVIGATION SYSTEM HELPDESK.
See the contact information on the inside front
cover of this manual.
About map dataGUID-C4F93B33-ABFF-4B67-8DB7-9D120E61CC1B1. This map data has been prepared by
HITACHI AUTOMOTIVE SYSTEMS, LTD.
(HITACHI) , under license from NAVTEQ.
has added, processed and digitized data
based on the digital road map data of
NAVTEQ. Due to the production timing of
the map data, some new roads may not be
included in this map data or some of the
names or roads may be different from those
at the time you use this map data.
2. Traffic control and regulation data used in this map data may be different from those at
the time you use this map data due to the
data production timing. When driving your
vehicle, follow the actual traffic control signs
and notices on the roads.
3. Reproducing or copying this map software is strictly prohibited by law.
Published by Nissan North America, Inc.
Omaha, NE, Copyright
*C1993-2010 NAVTEQ. All Rights Reserved.
*C2010, All Rights Reserved.
WARNING
. This navigation system should not
be used to replace your own judge-
ment. No itinerary suggested by this
navigation system should ever over-
ride any highway regulations, your
own judgement, or a knowledge of
safe driving practices. Do not follow
the navigation system’s suggested
itinerary if it would cause you to
perform a dangerous or illegal act,
place you in a dangerous situation,
or take you into an area you con-
sider unsafe.
. The advice provided by the naviga-
tion system is to be regarded as a
suggestion only. There may be
times when the navigation system
displays the vehicle’s location in-
correctly, fails to suggest the short-
est route, or fails to direct you to the
your desired destination. In such
instances, rely on your own driving
judgement, taking into account the
driving conditions at the time.
. Do not use the navigation system to
locate emergency services. The da-
tabase does not contain a complete
Troubleshooting guide/General system information10-39
Condition: NAM/

Black plate (268,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10-40Troubleshooting guide/General system information
listing of emergency services such
as police stations, fire halls, hospi-
tals and walk-in clinics. Please
show discretion and ask for direc-
tions in such instances.

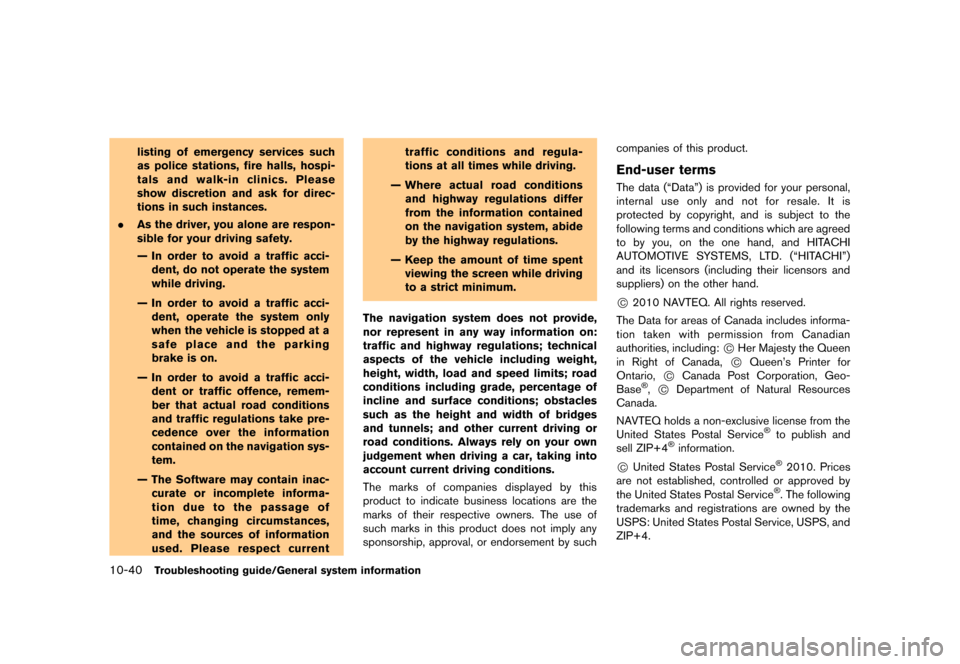

. As the driver, you alone are respon-
sible for your driving safety.
— In order to avoid a traffic acci-
dent, do not operate the system
while driving.
— In order to avoid a traffic acci- dent, operate the system only
when the vehicle is stopped at a
safe place and the parking
brake is on.
— In order to avoid a traffic acci- dent or traffic offence, remem-
ber that actual road conditions
and traffic regulations take pre-
cedence over the information
contained on the navigation sys-
tem.
— The Software may contain inac- curate or incomplete informa-
tion due to the passage of
time, changing circumstances,
and the sources of information
used. Please respect current traffic conditions and regula-
tions at all times while driving.
— Where actual road conditions and highway regulations differ
from the information contained
on the navigation system, abide
by the highway regulations.
— Keep the amount of time spent viewing the screen while driving
to a strict minimum.
The navigation system does not provide,
nor represent in any way information on:
traffic and highway regulations; technical
aspects of the vehicle including weight,
height, width, load and speed limits; road
conditions including grade, percentage of
incline and surface conditions; obstacles
such as the height and width of bridges
and tunnels; and other current driving or
road conditions. Always rely on your own
judgement when driving a car, taking into
account current driving conditions.
The marks of companies displayed by this
product to indicate business locations are the
marks of their respective owners. The use of
such marks in this product does not imply any
sponsorship, approval, or endorsement by such companies of this product.
End-user termsGUID-4AADC288-E82C-45B2-B0EB-368B3B3F0ABEThe data (“Data”) is provided for your personal,
internal use only and not for resale. It is
protected by copyright, and is subject to the
following terms and conditions which are agreed
to by you, on the one hand, and HITACHI
AUTOMOTIVE SYSTEMS, LTD. (“HITACHI”)
and its licensors (including their licensors and
suppliers) on the other hand.
*C2010 NAVTEQ. All rights reserved.
The Data for areas of Canada includes informa-
tion taken with permission from Canadian
authorities, including:
*CHer Majesty the Queen
in Right of Canada,
*CQueen’s Printer for
Ontario,
*CCanada Post Corporation, Geo-
Base®,*CDepartment of Natural Resources
Canada.
NAVTEQ holds a non-exclusive license from the
United States Postal Service
®to publish and
sell ZIP+4®information.
*CUnited States Postal Service®2010. Prices
are not established, controlled or approved by
the United States Postal Service
®. The following
trademarks and registrations are owned by the
USPS: United States Postal Service, USPS, and
ZIP+4.
Condition: NAM/

Black plate (270,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

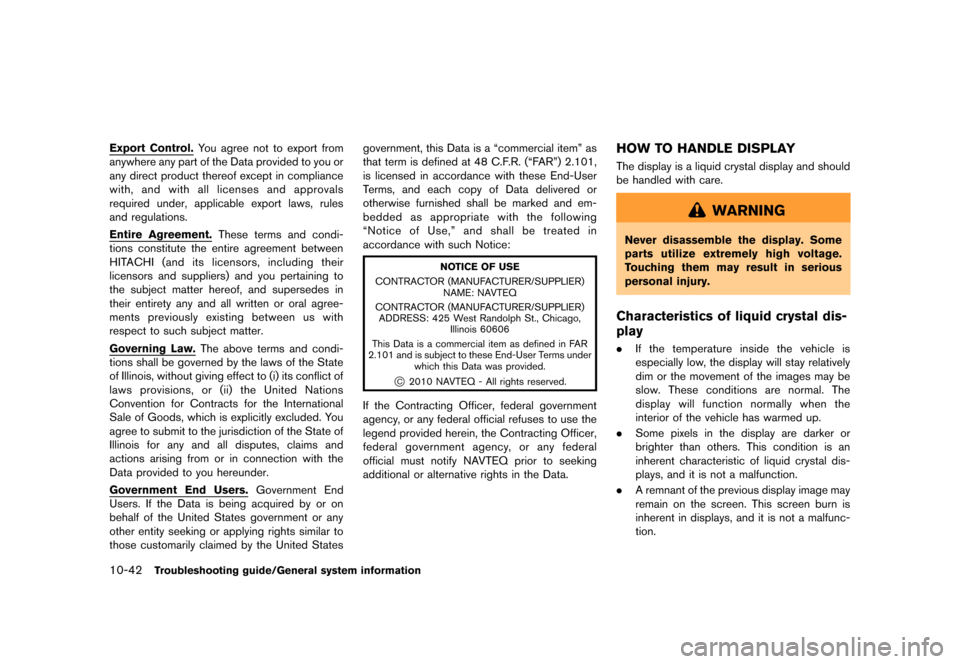

10-42Troubleshooting guide/General system information
Export Control.You agree not to export from
anywhere any part of the Data provided to you or
any direct product thereof except in compliance
with, and with all licenses and approvals
required under, applicable export laws, rules
and regulations.
Entire Agreement. These terms and condi-
tions constitute the entire agreement between
HITACHI (and its licensors, including their
licensors and suppliers) and you pertaining to
the subject matter hereof, and supersedes in
their entirety any and all written or oral agree-
ments previously existing between us with
respect to such subject matter.
Governing Law. The above terms and condi-
tions shall be governed by the laws of the State
of Illinois, without giving effect to (i) its conflict of
laws provisions, or (ii) the United Nations
Convention for Contracts for the International
Sale of Goods, which is explicitly excluded. You
agree to submit to the jurisdiction of the State of
Illinois for any and all disputes, claims and
actions arising from or in connection with the
Data provided to you hereunder.
Government End Users. Government End
Users. If the Data is being acquired by or on
behalf of the United States government or any
other entity seeking or applying rights similar to
those customarily claimed by the United States government, this Data is a “commercial item” as
that term is defined at 48 C.F.R. (“FAR”) 2.101,
is licensed in accordance with these End-User
Terms, and each copy of Data delivered or
otherwise furnished shall be marked and em-
bedded as appropriate with the following
“Notice of Use,” and shall be treated in
accordance with such Notice:
NOTICE OF USE
CONTRACTOR (MANUFACTURER/SUPPLIER) NAME: NAVTEQ
CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS: 425 West Randolph St., Chicago, Illinois 60606
This Data is a commercial item as defined in FAR
2.101 and is subject to these End-User Terms under which this Data was provided.
*C2010 NAVTEQ - All rights reserved.
If the Contracting Officer, federal government
agency, or any federal official refuses to use the
legend provided herein, the Contracting Officer,
federal government agency, or any federal
official must notify NAVTEQ prior to seeking
additional or alternative rights in the Data.
HOW TO HANDLE DISPLAYGUID-372A4E1B-44A4-402D-B2E2-BBC1C2EE95EAThe display is a liquid crystal display and should
be handled with care.
WARNING
Never disassemble the display. Some
parts utilize extremely high voltage.
Touching them may result in serious
personal injury.
Characteristics of liquid crystal dis-
play
GUID-72F07E58-A17C-45D9-BF47-39A4827F02CB.If the temperature inside the vehicle is
especially low, the display will stay relatively
dim or the movement of the images may be
slow. These conditions are normal. The
display will function normally when the
interior of the vehicle has warmed up.
. Some pixels in the display are darker or
brighter than others. This condition is an
inherent characteristic of liquid crystal dis-
plays, and it is not a malfunction.
. A remnant of the previous display image may
remain on the screen. This screen burn is
inherent in displays, and it is not a malfunc-
tion.
Condition: NAM/

Black plate (271,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
INFO:
The screen may become distorted by strong
magnetic fields.
Maintenance of displayGUID-72D69B6D-01E1-4BC7-9C57-190D3F5CCDD6
CAUTION
. To clean the display, never use a
rough cloth, alcohol, benzine, thin-
ner and any kind of solvent or paper
towel with a chemical cleaning
agent. They will scratch or deterio-
rate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To clean the display screen, use a dry, soft cloth.
If additional cleaning is necessary, use a small
amount of neutral detergent with a soft cloth.
Never spray the screen with water or detergent.
Dampen the cloth first, then wipe the screen.
HOW TO HANDLE THE SD CARDGUID-FDEBCDA1-7B04-49F0-B952-C1291DD04F39When handling the SD card, please be careful
and adhere to the following instructions:
. Always follow the instructions described in
this manual and in the handbook attached to
the SD card when using an SD card in this
device.
. Do not handle an SD card with wet hands.
Doing so may cause electric shock or a
malfunction.
. Do not allow hands or metal objects to
contact the terminal area of SD cards.
. Do not place SD cards on the instrument
panel, on any place with direct sunlight or in
moist circumstances. Doing so may damage
or deform the SD card.
. Do not use any conventional cleaner,
benzine, thinner or antistatic spray.
. Do not use SD cards in any place where
static electricity or electric noise adversely
affects SD cards. This may cause data
corruption or data loss.
. SD card optimization must not be per-
formed.
. Always place the SD card in its storage case
when not in use. .
If an SD card is disposed of when it is not
used, it is recommended not only to delete
the stored data but also to physically break
the card.
HOW TO HANDLE CD AND USB
MEMORY
GUID-DC92BB0A-0EC3-4B1C-8EA5-76A93B7EF87B
CDGUID-5DD991C3-D2C9-478E-AB06-0259A92D890E.Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.
. A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil.
USB memoryGUID-269D1C80-A38F-4452-A06A-757B3A385144.Never touch the terminal portion of the USB
memory.
. Do not place heavy objects on the USB
memory.
Troubleshooting guide/General system information10-43
Condition: NAM/

Black plate (275,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
11 Index
A
About route guidance...
................................................ 3-41
Adjusting volume and others ...
...................................... 1-7
Audio operation precautions ...
...................................... 4-2
Auxiliary input jack ...
....................................................... 4-22
B
Basic operation ...
.............................................................. 1-7
Battery and power information ...
................................ 2-16
Bluetooth
®Hands-Free Phone System ...
.................. 7-2
Bluetooth®streaming audio ...
..................................... 4-10
Bluetooth®streaming audio operation ...
.................. 4-19
C
Camera settings ...
................................................. 9-6, 9-14
Canceling/reactivating route ...
.................................... 3-47
Car phone or CB radio ...
............................................. 7-10
CARWINGS
TMoverview ...
............................................. 5-4
CARWINGSTMsettings ...
............................................. 5-12
CD·AUX screen ...
........................................................... 1-10
Changing map view ...
...................................................... 3-8
Changing region ...
.......................................................... 3-18
Changing scale of map ...
............................................... 3-7
Character (letters and numbers) input screen ...
...... 1-7
Charge recommendation guidance ...
........................ 2-16
Charging station information ...
...................................... IT-2
Clock settings ...
.............................................................. 1-16
Comfort & convenience settings ...
............................... 6-4
Compact Disc (CD) player ...
......................................... 4-3
Compact Disc (CD) player operation ...
.................... 4-13
Compressed Audio Files (MP3/WMA) ...
................... 4-7
Confirming route ...
.......................................................... 3-52
Connecting cellular phone ...
........................................ 1-13 Connecting procedure
...
................................................. 7-4
Control button and microphone ...
................................ 7-3
Control buttons and functions ...
................................... 1-2
Control panel ...
.................................................................. 1-2
Current vehicle location ...
.......................................... 10-29
Customer assistance ...
.................................................. 10-2
D
Data communication settings ...
................................... 5-20
Deleting phone information ...
......................................... 7-9
Deleting stored item ...
................................................... 3-68
Destination screen ...
...................................................... 3-17
Display adjustment ...
...................................................... 1-14
Display urgent traffic information ...
.............................. 6-8
Displaying CARWINGS
TMinformation screen ...
...... 5-7
Displaying charging station icons on map ...
............. 2-5
Displaying command list ...
............................................. 8-6
Displaying current vehicle location ...
........................... 3-5
Displaying estimated driving range ...
........................... 2-3
Displaying unit ID information ...
.................................. 5-18
Downloading phonebook memory ...
............................ 7-8
Driving range ...
.................................................................. IT-2
During a call ...
................................................................... 7-6
E
Editing address book ...
................................................. 3-62
Editing route ...
................................................................. 3-48
Energy information display ...
................................. IT-3, 2-8
Error message on communication ...
.......................... 5-19
F
Features of LEAF Navigation ...
..................................... IT-2
Finding address ...
........................................................... 3-20
Finding charging station ...
............................................ 3-25
Finding nearby Points of Interest ...
............................ 3-29
Finding points of interest ...
.......................................... 3-21
FM·AM radio screen ...
................................................... 1-10
FM-AM-SAT radio operation ...
.................................... 4-11
Functions disabled while driving ...
............................... 1-6
G
Giving voice commands ...
.............................................. 8-2
Guidance screen settings ...
......................................... 3-43
H
How to handle CD and USB memory ...
................ 10-43
How to handle display ...
............................................ 10-42
How to handle the Map SD card ...
........................ 10-38
How to handle the SD card ...
.................................. 10-43
How to park with predictive course lines ...
............... 9-4
How to read displayed lines ...
...................................... 9-2
How to set Climate Ctrl. Timer ...
............................... 2-12
How to set Climate Ctrl. Timer and remote
climate control temperature ...
...................................... 2-14
How to view information screen ...
................................ 5-8
I
Info on route ...
................................................................... 6-7
Information feed setting ...
............................................. 5-15
Information screen ...
........................................................ 6-2
Condition: NAM/

Black plate (276,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
11-2Index
Inputting user ID and password...
.............................. 1-11
iPod®player and iPhone®...
........................................... 4-5
iPod®player operation ...
............................................... 4-15
Items to be set initially ...
............................................... 1-11
L
Language settings ...
....................................................... 1-17
Laser product ...
................................................................. 0-4
Limited Power Notice ...
................................................. 2-17
Looking at information on map ...
................................ 3-12
Low battery ...
................................................................... 2-16
M
Making a call ...
.................................................................. 7-5
Map data ...
.................................................................... 10-38
Map menu screen ...
....................................................... 3-14
Map screen ...
..................................................................... 1-9
Map settings ...
................................................................... 3-3
Map symbols ...
................................................................ 3-16
Map types ...
....................................................................... 3-3
Map view settings ...
......................................................... 3-9
Menu screen ...
................................................................... 1-9
Monitor systemAround View
TMMonitor ...
................... 9-7
Moving map ...
.................................................................... 3-5
N
Navigation settings ...
..................................................... 3-72
Navigation Telematics (CARWINGSTMservice) ...
.... IT-5
Nearby traffic info. ...
......................................................... 6-7
NISSAN voice recognition ...
.......................................... 8-2
Notes on Nav Traffic information ...
.......................... 10-38
O
Operations after setting destination ...
....................... 3-36
Other navigation settings ...
.......................................... 3-73
P
Pandora®...
...................................................................... 4-16
Phone number input screen ...
....................................... 1-8
Phone selection ...
............................................................. 7-4
Phone settings ...
............................................................... 7-8
Phone volume settings ...
.............................................. 7-10
Procedures after setting route ...
................................. 3-39
R
Radio ...
................................................................................ 4-2
RearView monitor ...
.......................................................... 9-2
Recalculating route ...
..................................................... 3-53
Receiving a call ...
............................................................. 7-5
Regulatory information ...
................................................. 7-3
Remote functions ...
.......................................................... IT-4
Reset all CARWINGS
TMsettings to default ...
........ 5-18
Resetting all navigation settings to default ...
.......... 3-76
Restoring default settings for notifications ...
........... 5-15
Route calculation ...
...................................................... 10-32
Route guidance ...
............................................. 3-39, 10-34
Route guidance settings ...
........................................... 3-57
Route screen ...
................................................................ 3-46
S
Scrolling message or list ...
............................................. 1-7
Searching for detour route using
traffic information ...
......................................................... 3-54
Searching from address book ...
................................. 3-28
Searching from history ...
............................................... 3-28 Selecting item
...
................................................................ 1-7
Sending battery charge status information to
Data Center ...
................................................................. 5-14
Sending charge connector status information to
Data Center ...
.................................................................. 5-14
Setting by phone number ...
......................................... 3-32
Setting city center ...
....................................................... 3-34
Setting Climate Ctrl. Timer ...
....................................... 2-12
Setting conditions for route calculation ...
................ 3-55
Setting detour route ...
................................................... 3-54
Setting freeway entrance/exit ...
................................... 3-35
Setting from stored routes ...
........................................ 3-31
Setting home as destination ...
.................................... 3-24
Setting intersection ...
..................................................... 3-32
Setting messages that are displayed
on screen ...
...................................................................... 2-15
Setting messages that are received by email ...
...... 5-12
Setting point on map ...
................................................. 3-36
Setting time for receiving charge connector
status notifications ...
...................................................... 5-13
Setting timer charge ...
................................................... 2-10
SiriusXM Satellite Radio screen ...
.............................. 1-10
Speed limit indication on map ...
................................. 3-73
Start-up screen ...
.............................................................. 1-5
Status screen ...
............................................................... 1-10
Steering wheel switches ...
............................................. 1-4
Steering wheel switches for audio control ...
........... 4-23
Storing a location/route ...
............................................. 3-58
Storing avoid area ...
....................................................... 3-61
Storing favorites ...
............................................................ 5-9
Storing home location ...
................................................ 1-12
Storing location ...
........................................................... 3-58
Storing location for receiving charge connector
disconnected notifications ...
........................................ 5-12
Storing route ...
................................................................ 3-60
Storing vehicle phonebook ...
......................................... 7-6
Subscription to CARWINGS
TMservice ...
................ 1-11
Condition: NAM/
