2014 NISSAN LEAF display

Black plate (208,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

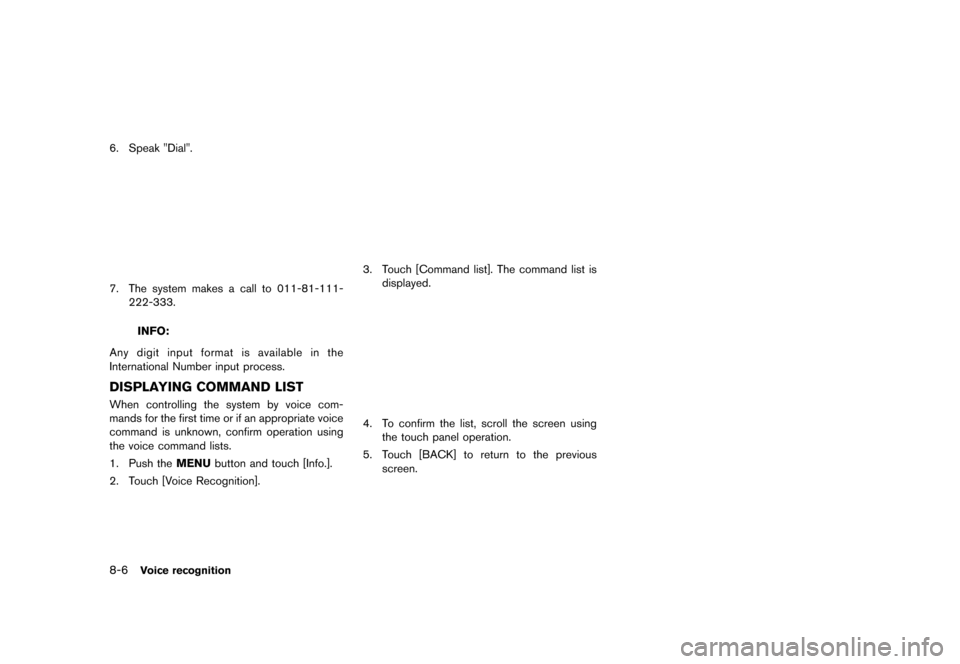

8-6Voice recognition
6. Speak "Dial".
LNK0017X
7. The system makes a call to 011-81-111-222-333.
INFO:
Any digit input format is available in the
International Number input process.
DISPLAYING COMMAND LISTGUID-CCEC32FB-D592-41C8-9108-1642A4118F00When controlling the system by voice com-
mands for the first time or if an appropriate voice
command is unknown, confirm operation using
the voice command lists.
1. Push the MENUbutton and touch [Info.].
2. Touch [Voice Recognition].
LNK0018X
3. Touch [Command list]. The command list is displayed.
LNK0019X
4. To confirm the list, scroll the screen usingthe touch panel operation.
5. Touch [BACK] to return to the previous screen.
Condition: NAM/

Black plate (210,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

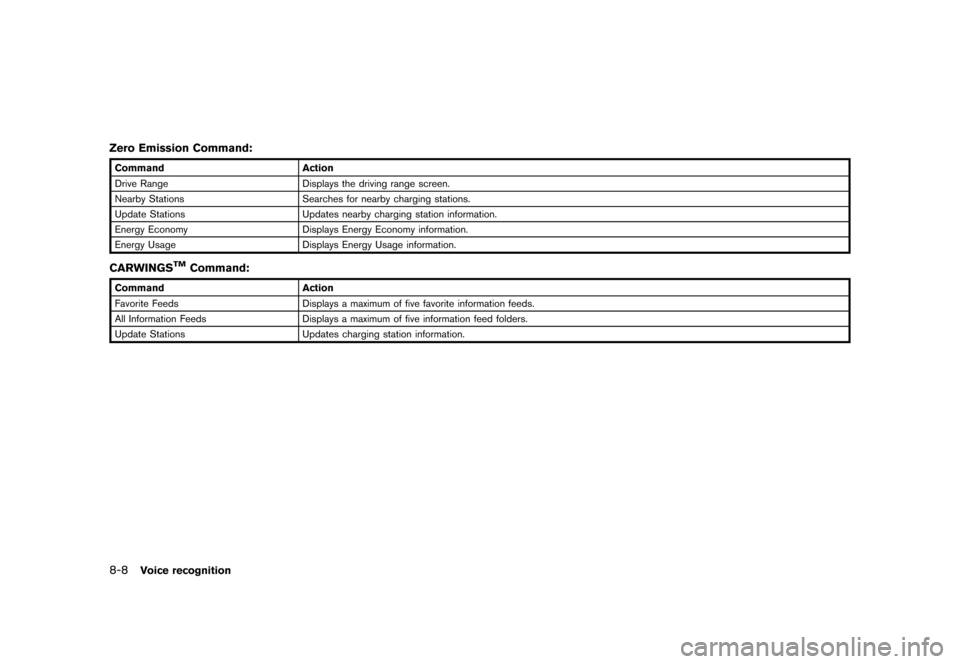

8-8Voice recognition
Zero Emission Command:
CommandAction
Drive Range Displays the driving range screen.
Nearby Stations Searches for nearby charging stations.
Update Stations Updates nearby charging station information.
Energy Economy Displays Energy Economy information.
Energy Usage Displays Energy Usage information.
CARWINGSTMCommand:
Command Action
Favorite Feeds Displays a maximum of five favorite information feeds.
All Information Feeds Displays a maximum of five information feed folders.
Update Stations Updates charging station information.
Condition: NAM/

Black plate (211,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

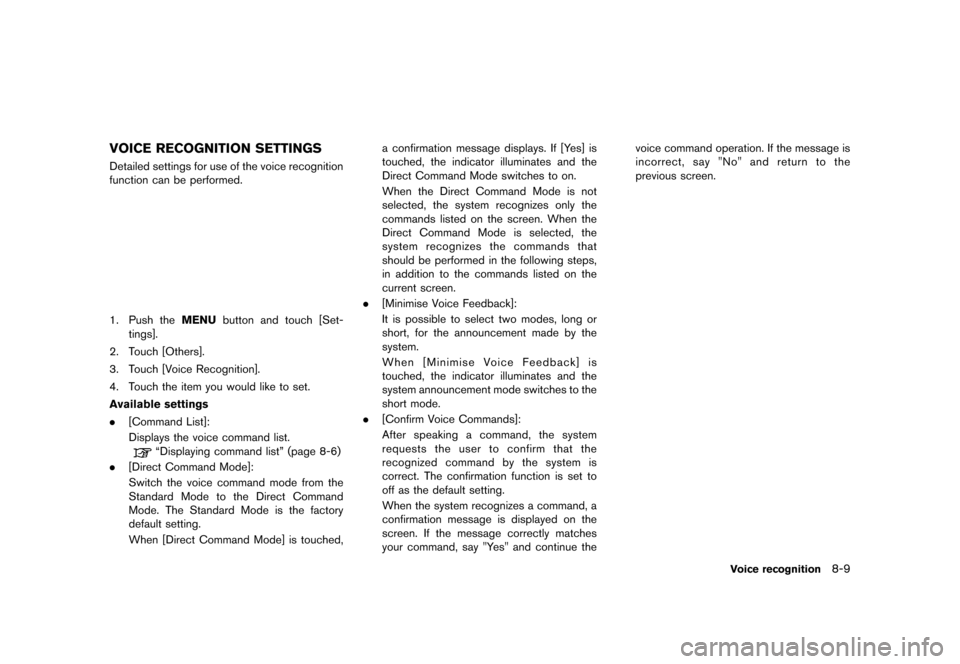

VOICE RECOGNITION SETTINGSGUID-67D614E7-55A6-4EA8-BDE1-5FF2EFEB3D40Detailed settings for use of the voice recognition
function can be performed.
LNK0020X
1. Push theMENUbutton and touch [Set-
tings].
2. Touch [Others].
3. Touch [Voice Recognition].
4. Touch the item you would like to set.
Available settings
. [Command List]:
Displays the voice command list.
“Displaying command list” (page 8-6)
. [Direct Command Mode]:
Switch the voice command mode from the
Standard Mode to the Direct Command
Mode. The Standard Mode is the factory
default setting.
When [Direct Command Mode] is touched, a confirmation message displays. If [Yes] is
touched, the indicator illuminates and the
Direct Command Mode switches to on.
When the Direct Command Mode is not
selected, the system recognizes only the
commands listed on the screen. When the
Direct Command Mode is selected, the
system recognizes the commands that
should be performed in the following steps,
in addition to the commands listed on the
current screen.
. [Minimise Voice Feedback]:
It is possible to select two modes, long or
short, for the announcement made by the
system.
When [Minimise Voice Feedback] is
touched, the indicator illuminates and the
system announcement mode switches to the
short mode.
. [Confirm Voice Commands]:
After speaking a command, the system
requests the user to confirm that the
recognized command by the system is
correct. The confirmation function is set to
off as the default setting.
When the system recognizes a command, a
confirmation message is displayed on the
screen. If the message correctly matches
your command, say "Yes" and continue the voice command operation. If the message is
incorrect, say "No" and return to the
previous screen.
Voice recognition8-9
Condition: NAM/

Black plate (213,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

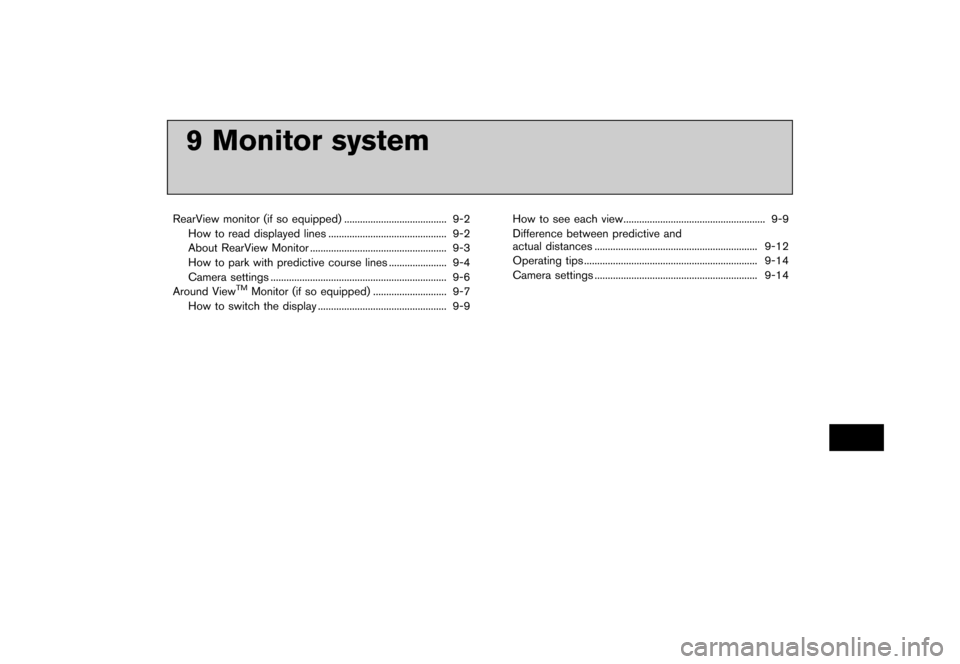

9 Monitor system
RearView monitor (if so equipped)...
....................................... 9-2
How to read displayed lines ...
............................................. 9-2
About RearView Monitor ...
.................................................... 9-3
How to park with predictive course lines ...
...................... 9-4
Camera settings ...
................................................................... 9-6
Around View
TMMonitor (if so equipped) ...
............................ 9-7
How to switch the display ...
................................................. 9-9 How to see each view
...
...................................................... 9-9
Difference between predictive and
actual distances ...
.............................................................. 9-12
Operating tips ...
.................................................................. 9-14
Camera settings ...
.............................................................. 9-14
Condition: NAM/

Black plate (214,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
9-2Monitor system
GUID-9889CA9D-8797-4DA7-B771-207B147B4B33When the shift lever is shifted into the "R"
(Reverse) position, the center display shows the
view to the rear of the vehicle.
The system is designed as an aid to the driver in
detecting large stationary objects to help avoid
damaging the vehicle. The system will not detect
small objects below the bumper and may not
detect objects close to the bumper or on the
ground.
WARNING
.The RearView Monitor is a conve-
nience but it is not a substitute for
proper backing up. Always turn and
check that it is safe to do so before
backing up. Always back up slowly.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
Objects in the RearView Monitor
will appear visually opposite like
ones viewed in the inside and out-
side mirrors.
. Make sure that the rear hatch is
securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor because of its monitoring range
limitation.
. Do not put anything on the camera.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
There is a plastic cover over the camera.
Do not scratch the cover when cleaning
dirt or snow from the cover.
HOW TO READ DISPLAYED LINESGUID-4043E995-FDA2-4EC7-95A4-83851EC424E2
LNL0001X
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Predictive course lines
*6:
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the shift lever is in the "R"
REARVIEW MONITOR (if so
equipped)
Condition: NAM/

Black plate (215,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
(Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
How to adjust rearview screenGUID-75E9A75A-D094-4D28-A1C5-CED9B4070873To adjust the Brightness, Tint, Color, Contrast
and Black Level of the RearView Monitor.
1. Push theMENUbutton with the RearView
Monitor on.
2. Touch [Display].
3. Touch the preferred setting items.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the RearView
Monitor while the vehicle is moving.
ABOUT REARVIEW MONITORGUID-F1A5FC86-7306-42C4-BAAE-6C20770A0FCA
Difference between predictive and
actual distances
GUID-0B788328-52CC-4C74-8090-06C1E7654880The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface.
The distance viewed on the monitor is for
reference only and may be different from the
actual distance between the vehicle and dis-
played objects. Backing up on a steep uphill:LNL0002X
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is to the place
*B. Note that any object
on the hill is further than it appears on the monitor.
Backing up on a steep downhill:
LNL0003X
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
Monitor system9-3
Condition: NAM/

Black plate (216,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

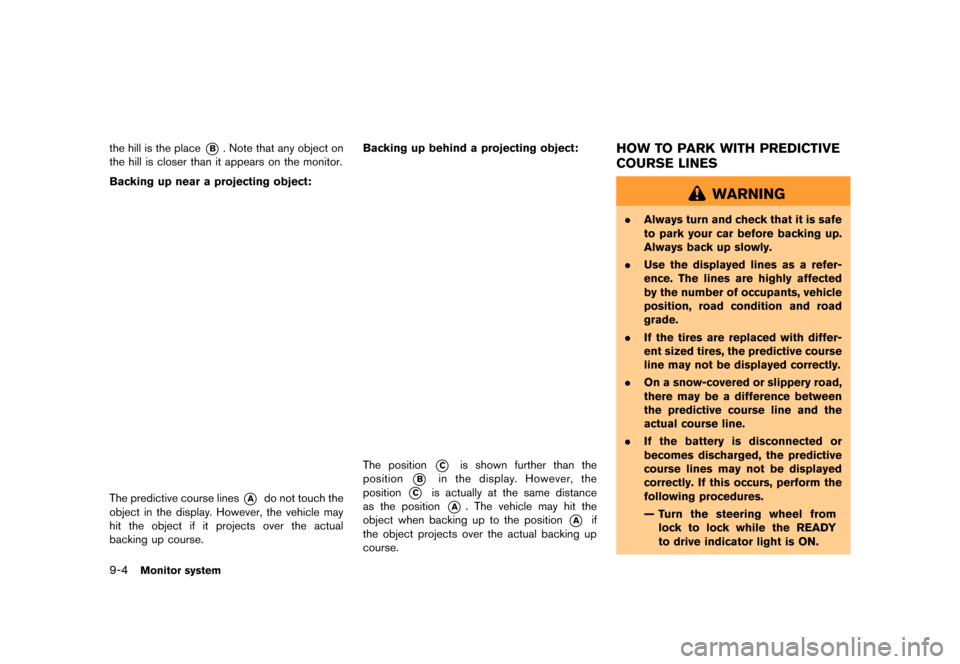

9-4Monitor system
the hill is the place*B. Note that any object on
the hill is closer than it appears on the monitor.
Backing up near a projecting object:
LNL0004X
The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course. Backing up behind a projecting object:
LNL0005X
The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual backing up
course.
HOW TO PARK WITH PREDICTIVE
COURSE LINES
GUID-98CEE8C3-518C-4157-97AF-634616A645F5
WARNING
. Always turn and check that it is safe
to park your car before backing up.
Always back up slowly.
. Use the displayed lines as a refer-
ence. The lines are highly affected
by the number of occupants, vehicle
position, road condition and road
grade.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line may not be displayed correctly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. If the battery is disconnected or
becomes discharged, the predictive
course lines may not be displayed
correctly. If this occurs, perform the
following procedures.
— Turn the steering wheel from
lock to lock while the READY
to drive indicator light is ON.
Condition: NAM/

Black plate (217,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
— Drive the vehicle on a straightroad for more than 5 minutes.
. When the steering wheel is turned
with the power switch in the ACC
position, the predictive course lines
may be displayed incorrectly.
. The distance guide line and the
vehicle width guide line should be
used as a reference only when the
vehicle is on a level paved surface.
The distance viewed on the monitor
is for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. When backing up the vehicle up a
hill, objects viewed in the monitor
are further than they appear. When
backing up the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the
inside mirror or glance over your
shoulder to properly judge dis-
tances to other objects. The vehicle width and predictive course
lines are wider than the actual width and
course.
LNL0006X
1. Visually check that the parking space is safe
before parking your vehicle.
2. The RearView of the vehicle is displayed on the screen
*Aas illustrated when the shift
lever is moved to the "R" (Reverse) position.
LNL0007X
3. Slowly back up the vehicle, adjusting the steering wheel so that the predictive course
lines
*Benter the parking space*C.
4. Maneuver the steering wheel to make the vehicle width guide lines
*Dparallel to the
parking space
*Cwhile referring to the
predictive course lines.
Monitor system9-5
Condition: NAM/
