2014 NISSAN LEAF display

Black plate (183,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
LNH0011X
1. Push theMENUbutton and touch [Info.].
2. Touch [Traffic Info].
3. Touch the preferred information setting.
Available settings
. [Info on Route]:
Displays the list of traffic information found
on the recommended route from the current
vehicle location to the destination.
. [Nearby Traffic Info]:
Displays the list of traffic information around
the current vehicle location.
INFO ON ROUTEGUID-26F6B1D8-668A-40FF-88E4-FCB3FDB65FDEThis is only available when a route is set.
The list of traffic information found on the
recommended route from the current vehicle
location to the destination is displayed. Detailed
information about displayed events can also be
checked.
LNH0012X
1.Touch [Info on Route]. A list screen is
displayed.
LNH0013X
2.Touch the event to check the detailed
information.
LNH0014X
3.The map screen centered around the
selected event is displayed. On the left
screen, detailed information about the event
is displayed.
The message can be scrolled by touching
[
] or [].
4. Touch [BACK] to return to the previous screen.
NEARBY TRAFFIC INFO.GUID-A542A19F-7B72-4F87-A8E7-7A00E73E1A98The list of available traffic information near the
current vehicle location is displayed.
LNH0015X
Viewing technical information6-7
Condition: NAM/

Black plate (184,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
6-8Viewing technical information
1. Touch [Nearby Traffic Info]. A list screen isdisplayed.
LNH0016X
2. Touch the event to check detailed informa-tion.
LNH0017X
3.The map screen centered around the
selected event is displayed. On the left
screen, detailed information about the event
is displayed. The message can be scrolled
touch [
] or []. 4. Touch [BACK] to return to the previous
screen.
DISPLAY URGENT TRAFFIC INFOR-
MATION
GUID-922958E3-92B3-40A9-B2C0-B7954B24AC3DWhen an urgent event is found near the current
vehicle location, a message pops up automati-
cally with a voice announcement.
LNH0018X
The message includes the icon, event type,
event information and the direct distance from
the current location to the event.
INFO:
. Urgent traffic information is displayed re-
gardless of whether the traffic information
setting is on or off.
. When there are multiple urgent events, the
event with the shortest direct distance from
the current location is displayed. .
If the urgent event is on the recommended
route, and if a detour is found, the detour
route notification screen is displayed when
the vehicle approaches the detour point.
TRAFFIC INFORMATION ON MAPGUID-AB3BF49A-86CB-4B03-A2B4-AA2AD7E31596With subscription to NavTraffic service, traffic
information is displayed on both Plan View and
Birdview
TMmap screen.
See "Notes on Traffic Information" for further
information.
“Notes on Nav Traffic information”
(page 10-38)
Condition: NAM/

Black plate (185,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
Screen informationGUID-114661F6-283A-48E6-A282-06966EFC0F99
LNH0019X
*1Traffic indicator:
Displays the reception condition of traffic infor-
mation transmitted from the provider.
Green: Reception condition is good.
Gray: Reception condition is poor.
No mark: Subscription to NavTraffic service is not
detected.
*2Road conditions
Free Flow:
(Green)
Moderate traffic:
(Yellow)
Heavy traffic:
(Red)
Section affected by serious traffic event:
(Purple)
*3Estimated travel time to destination calculated
taking traffic information on route info considera-
tion.
*4Traffic information icon:
If the route is not already set, all of the traffic
information icons on the map screen are dis-
played in color. When the route is already set, the
icons on the route are displayed in color, and the
icons outside the route are displayed in gray.
: Accident
: Closed road
: Information
: Road work
: Slippery road
: Weather
: Incident
Traffic information display and scale
levels
GUID-F241FEAF-60AD-42D5-BE0E-89F222F845D8
2D map and Birdview Map
5 miles 10 km
2 miles 4 km
1 mile 2 km
1/2 mile 1 km
1/4 mile 500 m
1/8 mile 200 m
1/16 mile 100 m
1/32 mile 50 m
1/64 mile 25 m
Viewing technical information6-9
Condition: NAM/

Black plate (186,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
6-10Viewing technical information
Checking detailed information for
traffic information icons on map
GUID-28EFD838-29AC-45EF-BC9E-086ABE9A3F5B
LNH0020X
1.Place the cross pointer over the traffic
information icon. The general description of
the icon is displayed.
2. Touch [Detail]. The screen for showing
detailed information for the traffic informa-
tion icon is displayed.
LNH0021X
3.The map screen centered around the
selected event is displayed. On the left
screen, detailed information about the event is displayed. You can scroll the message by
touching [
] or [].
4. Push the MAPbutton to return to the
current location map screen.
TRAFFIC INFORMATION SETTINGSGUID-6EFBBA9B-B2DE-4BB5-BA6A-8F97BE784DF6This displays or changes the settings for the
traffic information related functions.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
LNH0022X
3. Touch [Traffic Info Settings].
LNH0023X
4. Touch the preferred setting. The indicator for the selected setting illuminates.
Available settings
. [Use Traffic Info].:
Enables all traffic information related func-
tions.
. [Show Incidents on Map]:
Displays the traffic incidents (e.g., accident)
on the map screen.
. [Show Traffic Flow on Map]:
Displays the traffic flow with an arrow on the
map screen.
. [Traffic Announcement]:
Announces the traffic information event on
the route.
Condition: NAM/

Black plate (187,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
INFO:
. Even when [Show Traffic Flow on Map] and
[Show Incidents on Map] are set to OFF, the
list display of [Info on Route] and [Nearby
Traffic Info] will not be affected.
. Even when [Traffic Announcement] is set to
OFF, the route guidance will not be affected.
Also, the announcement of emergency
information will not be turned off.
GUID-E776263C-893E-44F9-BD26-9CE6B875D04DThis displays GPS information, such as the
positioning status, latitude/longitude, altitude
and satellite locations.
LNH0029X
1. Push the MENUbutton and touch [Info.].
2. Touch [GPS Position].
3. Push the MAPbutton to return to the
current location map screen.
Contents of GPS information
*1The number of satellites:
(green): Satellites are available.
(gray): Satellites are being searched for.
*2Calculation:
Displays the GPS positioning method.
3 dimension:
Calculates the latitude, longitude and altitude by
four or more satellites.
2 dimension:
Calculates the latitude, longitude and altitude by
three or more satellites.
Out of range: Cannot calculate because no GPS satellites can
be located.
*3Latitude:
Displays the latitude.
*4Longitude:
Displays the longitude.
*5Approx Altitude:
Displays the approximate altitude.
Viewing technical information6-11
VIEWING GPS CURRENT LOCATION
INFORMATION
Condition: NAM/

Black plate (188,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
6-12Viewing technical information
GUID-2286BD91-8259-4719-BA17-5CC144BF2D35This displays the map version information.
LNH0024X
1. Push theMENUbutton and touch [Info.].
2. Touch [Navigation Version].
3. Push the MAPbutton to return to the
current location map screen.
VIEWING NAVIGATION SYSTEM
VERSION INFORMATION
Condition: NAM/

Black plate (193,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

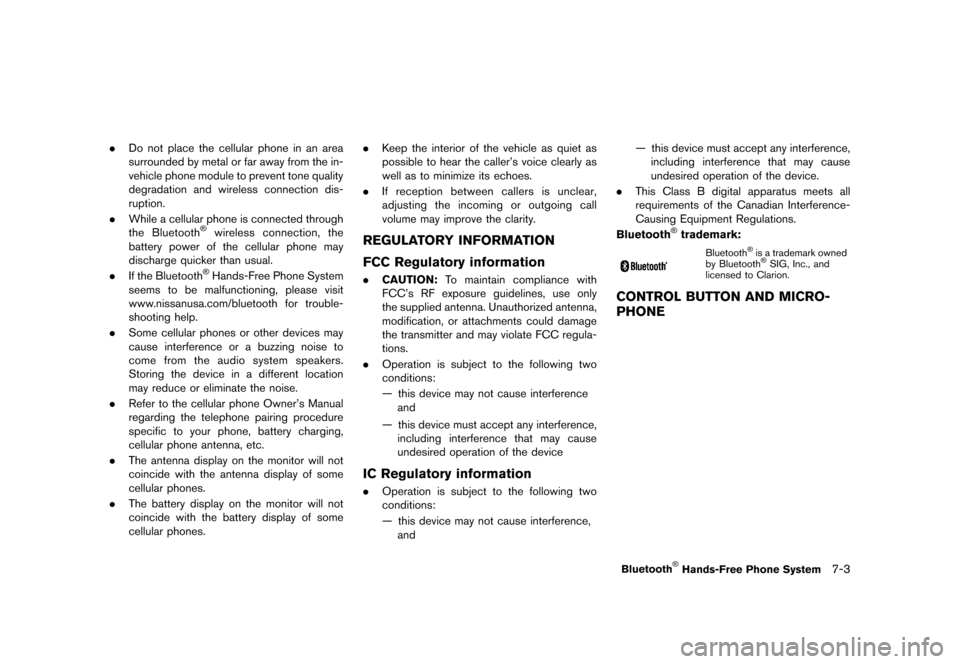

.Do not place the cellular phone in an area
surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.
. While a cellular phone is connected through
the Bluetooth
®wireless connection, the
battery power of the cellular phone may
discharge quicker than usual.
. If the Bluetooth
®Hands-Free Phone System
seems to be malfunctioning, please visit
www.nissanusa.com/bluetooth for trouble-
shooting help.
. Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.
. Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
. The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
. The battery display on the monitor will not
coincide with the battery display of some
cellular phones. .
Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
. If reception between callers is unclear,
adjusting the incoming or outgoing call
volume may improve the clarity.
REGULATORY INFORMATIONGUID-840AD5C0-AA6E-4478-83E4-9D3DC4D5072C
FCC Regulatory informationGUID-77D05CEE-1B1F-4251-A1D7-C3109BD2DE0B.CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
— this device may not cause interference
and
— this device must accept any interference, including interference that may cause
undesired operation of the device
IC Regulatory informationGUID-4EC6610C-03CA-410D-997C-9192EA7CA320. Operation is subject to the following two
conditions:
— this device may not cause interference,
and — this device must accept any interference,
including interference that may cause
undesired operation of the device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations.
Bluetooth
®trademark:
Bluetooth®is a trademark owned
by Bluetooth®SIG, Inc., and
licensed to Clarion.
CONTROL BUTTON AND MICRO-
PHONE
GUID-85AC7B74-1DD6-44DF-B6D3-E2E5644CE195
LNI0001X
Bluetooth®Hands-Free Phone System7-3
Condition: NAM/

Black plate (194,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
7-4Bluetooth®Hands-Free Phone System
*1Microphone
*2button on the steering wheel
CONNECTING PROCEDUREGUID-46BD8347-EF56-4BDE-AE6B-DB97C7EC282D
LNI0002X
1. Push thebutton on the steering wheel
and touch [Connect Phone].
LNI0003X
2. When a PIN code appears on the screen, operate the Bluetooth®compatible cellular
phone to enter the PIN code.
The procedure for connecting of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s Manual for the details.
You can also visit www.nissanusa.com/blue-
tooth or call NISSAN Consumer Affairs
Department for instructions on pairing
NISSAN recommended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
display.
PHONE SELECTIONGUID-205885D8-3C6A-48D8-97F0-5631F1B29D25Up to 3 cellular phones can be registered to the
system.
1. Push the
MENUbutton and touch [Phone].
LNI0014X
2. Touch [Connected Phones]. The list of the
registered cellular phones is displayed.
LNI0015X
3. Touch one of the registered cellular phonesfrom the list.
LNI0016X
4. Touch [Connect]. If you select a cellularphone that is different from the one currently
connected, the newly selected phone will be
connected to the system.
