2014 NISSAN 370Z ROADSTER Quick Reference Guide

7
POWER SEAT ADJUSTMENTS (if so equipped)
To slide the seat forward or backward, push the
control switch
01 forward or backward

To adjust the angle of the seatback, push the switch
02 forward or backward.
MANUAL S EAT LIFTER
(if so equipped for driver’s seat)

To adjust the angle and height of the seat cushion to
the desired position, turn either dial
03 .
MANUAL LUMBAR SUPPORT
(if so equipped for driver’s seat)

Your driver’s seat lumbar support
04 is located on

the inboard side of the driver’s seat. To adjust the
lumbar support, move the lever up or down.
For more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.
01
02
03
04
P OWER OUTSIDE MIRROR CONTROL SWITCH
To select the right or left side mirror , turn the control
switch

01 right or left.

To adjust the mirror angle, move the control switch

01 up, down, right or left.

To prevent accidentally moving the mirror, turn and
set the switch to the middle “neutral” position.
For more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
01
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi

8
STARTING/STOPPING THE ENGINE
It is important to make sure the NISSAN Intelligent
key® is with you (that is, in your pocket or purse).
AUTOMATI c TRANSMISSION (if so equipped)

Depress the brake pedal.
• If the brake pedal is not depressed, pushing the
ignition switch once will activate the ACC mode.
• Pushing the ignition switch a second time will
activate the ON mode.

Move the shift lever to P (PAR k).

Press the ignition switch START/STOP button to start the engine.
MANUAL TRANSMISSION (if so equipped)

Depress the brake pedal.

Move the shift lever to N (NEUTRAL).

Depress the clutch pedal to the floor.
• If the clutch pedal is not depressed, pushing the ignition switch once will activate the
ACC mode.
• Pushing the ignition switch a second time will activate the ON mode.

Press the ignition switch START/STOP button to start the engine.
TURNING THE ENGINE OFF

For an automatic transmission, move the shift lever to the P (PAR k) position, apply the
parking brake and press the ignition switch START/STOP button to turn the engine off.

For a manual transmission, move the shift lever to the N (NEUTRAL) position, apply the
parking brake, place the vehicle in 1st gear and press the ignition switch START/STOP
button to turn the engine off.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
first drive features

9

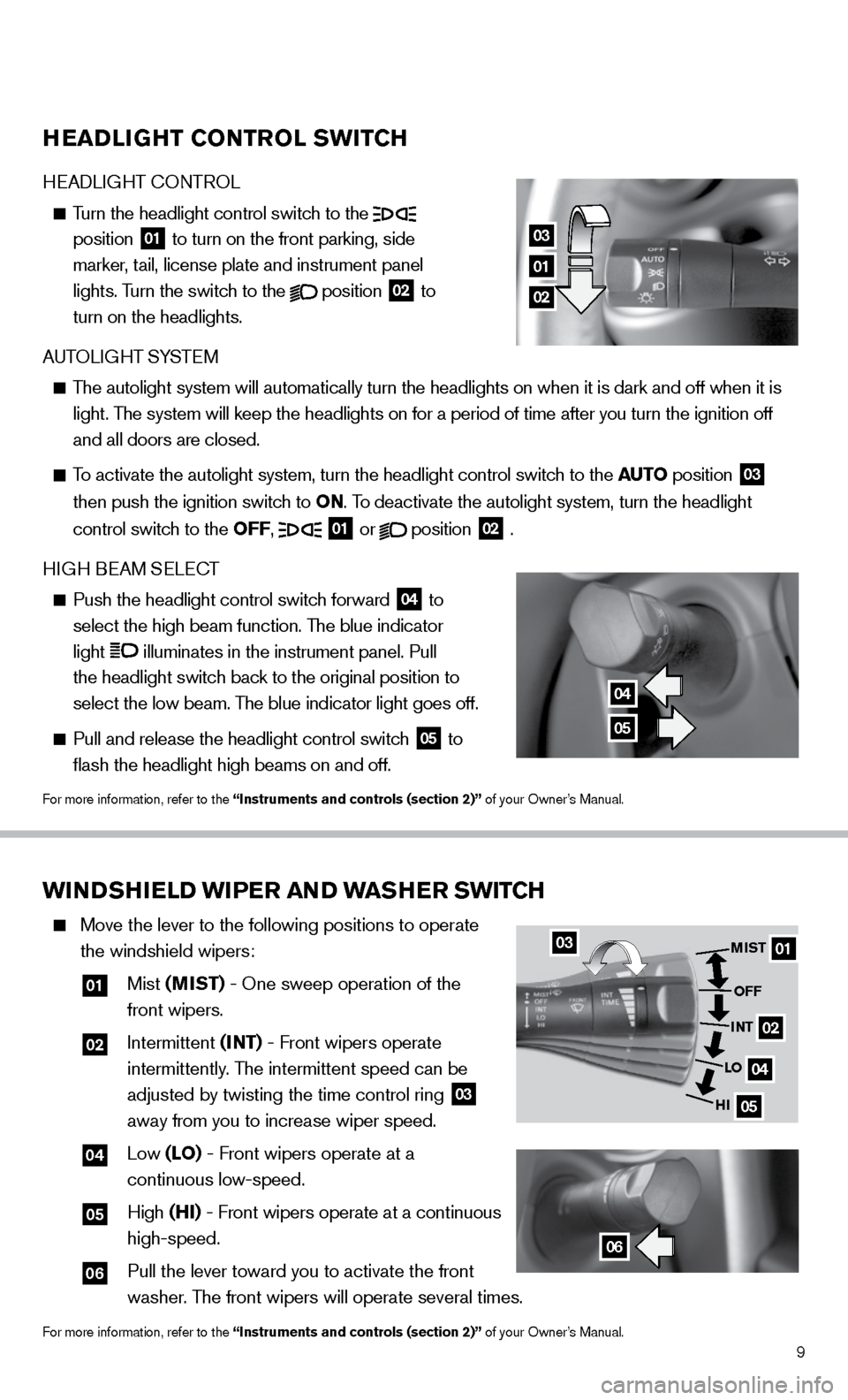

WINDSHIELD WIPER AND WASHER SWITCH
Move the lever to the following positions to operate
the windshield wipers:

01 Mist (MIST) - One sweep operation of the
front wipers.

02 Intermittent (INT) - Front wipers operate
intermittently. The intermittent speed can be
adjusted by twisting the time control ring
03
away from you to increase wiper speed.

04 Low (LO) - Front wipers operate at a
continuous low-speed.

05 High (HI) - Front wipers operate at a continuous
high-speed.

06 Pull the lever toward you to activate the front
washer. The front wipers will operate several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
0301
02
04
05
MIST
OFF
INT
LO
HI
06
HEADLIGHT CONTROL SWITCH
HEADLIGHT c ONTROL

Turn the headlight control switch to the

position
01 to turn on the front parking, side

marker, tail, license plate and instrument panel
lights. Turn the switch to the

position
02 to
turn on the headlights.
AUTOLIGHT SYSTEM

The autolight system will automatically turn the headlights on when it is\
dark and off when it is
light. The system will keep the headlights on for a period of time after you tur\
n the ignition off
and all doors are closed.

To activate the autolight system, turn the headlight control switch to the AUTO position
03
then push the ignition switch to ON. To deactivate the autolight system, turn the headlight
control switch to the OFF,

01 or
position
02 .

HIGH BEAM SELE cT

Push the headlight control switch forward
04 to

select the high beam function. The blue indicator
light
illuminates in the instrument panel. Pull
the headlight switch back to the original position to
select the low beam. The blue indicator light goes off.

Pull and release the headlight control switch
05 to
flash the headlight high beams on and off.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
03
01
02
04
05

10
AUTOMATIC CLIMATE CONTROLS
01 A/C BUTTON/FAN SPEED CONTROL DIAL

Push the A/C button to turn the A/c on or off. Turn the fan speed control dial to the left to
decrease fan speed or to the right to increase fan speed.
02 AUTO BUTTON/TEMPERATURE CONTROL DIAL

The auto mode may be used year-round. Push the AUTO button to turn the system on
and the system will automatically control the inside temperature (autom\
atic cooling and/
or dehumidified heating), air flow distribution and fan speed.
03 MODE/MANUAL AIR FLOW CONTROL BUTTON


Push the MODE button
to cycle through the following air flow outlets:

Air flows from the center and side vents.

Air flows from the center, side, and foot vents.

Air flows mainly from the foot vents.

Air flows from the defroster and foot vents.
04 DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS

Press the front window defroster button
to turn the system on. The A/c automatically

turns on when the defroster mode is selected. This feature removes humidity from the air.

Set the fan speed control dial
01 and the temperature control dial 02 to their

maximum settings.
05 AIR RECIRCULATION BUTTON

Press the air recirculation button
to recirculate air inside the vehicle. The indicator

light on the button will illuminate. This system is used to avoid certain outside odors and
helps to adjust the inside vehicle temperature more effectively.

Press the air recirculation button
again to turn air recirculation off. This allows outside

air to be drawn into the passenger compartment to prevent fogging in def\
rost, floor or
defrost/floor modes.
06 REAR WINDOW AND OUTSIDE MIRROR DEFROSTER SWITCH

Push the rear window defroster switch
to turn the system on or off.

The rear window defroster automatically turns off after approximately 15 minutes.
07 OFF BUTTON

Press the OFF button to turn the climate control system off.
For more information, refer to the “Instruments and controls (section 2)” and the “Center display, heater, air conditioner,
audio, phone and voice recognition systems (section 4)” of your Owner’s Manual.
01
04
060307
05
02
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
first drive features

11
FM/AM/SiriusXM* SATELLITE RADIO WITH CD/DVD PLAYER
( if so equipped)
01 VOL/ON•OFF CONTROL k
NOB

Press the VOL/ON•OFF control knob to turn the system on or off.

Turn the knob right or left to increase or decrease the volume.
02 SEE
k/CAT AND TRACk BUTTONS

To scan quickly through each broadcasting station, press the SEEk /CAT button or
the TRACk
button to stop at the previous or next broadcast station.

For SiriusXM Satellite Radio, to switch to the first channel of the previous or next category,
press the
SEEk /CAT button or the TRACk button.

To change tracks on a c D, press the SEEk /CAT button or the TRACk button.

To fast forward or rewind a track on a c D, press and hold the SEEk /CAT button or
the TRACk
button.
03 TUNE/FOLDER/AUDIO CONTROL k
NOB

To manually tune the radio, turn the TUNE/FOLDER/AUDIO knob left or right.
04 STATION PRESET BUTTONS


Twelve stations can be set for the FM band, six for the AM band and eighteen for SiriusXM
Satellite Radio.

To store a station in a preset, you must first select a radio band by pressing the \
FM•AM
button
05 or
S AT button
06 , then tune to the desired AM, FM or SiriusXM Satellite
Radio station.

Then press and hold the desired station preset button (1-6) until the sound is briefly
muted. The channel indicator will then display and the sound will resume. Programmin\
g
is now complete.

To retrieve a previously set station, select the radio band where the preset was stored
then press the corresponding station select button (1-6).
*SiriusXM Satellite Radio is only available on vehicles equipped with optional Siri\
usXM Satellite Radio subscription service.
For more information, refer to the “Center display, heater, air conditioner, audio, phone and voice recognition systems
(section 4)” of your Owner’s Manual.
01
0506
02
03
04

12
CRUISE CONTROL
The cruise control system enables you to set a
constant cruising speed once the vehicle has
reached 25 MPH (40 km/h).

The system will automatically maintain the set speed
until you tap the brake pedal, accelerate, cancel or
turn the system off.

To activate the cruise control, push the ON/OFF
01
switch. The CRUISE indicator light in the instrument
panel will illuminate.

To set cruising speed, accelerate the vehicle to the desired speed, push \
the COAST/SET


02 switch and release. Take your foot off the accelerator pedal. Your vehicle will maintain

the set speed.

To reset at a faster cruising speed, push and hold the ACCEL/RES
03 switch. When the
vehicle attains the desired speed, release the switch.

To reset at a slower cruising speed, push and hold the COAST/SET
02 switch. Release

the switch when the vehicle slows to the desired speed.

To cancel the preset speed, tap the brake pedal or push the CANCEL switch
04 .

To turn off cruise control, push the ON/OFF
01 switch. The CRUISE
indicator light in the
instrument panel will turn off.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
01
03
02
04
01
02
03
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
first drive features
CLOCk SET/ADJUSTMENT
Adjust the clock
01 using the trip computer’s

switch
02 and
switch
03 :
1. Press

until the
SETTING mode appears in
vehicle information display.
2. Press

until
CLOCk is highlighted.
3. Press

. The clock mode setting menu appears.
4. Press

to enter the clock setting mode.
5. Press

to begin setting the clock.
6. Press

to select hours, then press
. Hours
is selected and minutes is highlighted.
7. Press

to set minutes, then press
to
complete the clock set procedure.
For more information, refer to the “Instruments and controls (section 2)”
of your Owner’s Manual.

13
FUEL-FILLER DOOR
The fuel-filler door is located on the passenger’s
side of the vehicle.

Unlock the fuel-filler door using one of the following
operations, then push and release the left side
of the door to open:
• Push the door handle request switch while
carrying the NISSAN Intelligent k ey
® with you.
• Press the

button on the Intelligent k
ey.
• Push the power door lock switch to the

position.

For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi

14
TRIP COMPUTER
When the button
01 is pressed, the following

modes will appear on the vehicle information
display
02 :
• MPG – Displays the current fuel consumption.
• MPG/MPH – Displays the average fuel
consumption and speed since the last reset.
• TIME/ MILES – Displays the elapsed time and
total distance the vehicle has been driven since
the last reset.
• RANGE – Displays the estimated distance to empty (dte) the vehicle can be driven
before refueling.
• OUTSIDE TEMP – Displays the exterior air temperature including a low temperature
warning feature.
• SETTING – Allows you to set reminders for alerts and maintenance intervals o\
r change
the language and units used in the system.
— Press the

button
03 to cycle through the various setting modes.
— Press the

button
01 to choose the selected menu.
• WARNING – If there are any.

To reset TIME/MILES go to the desired mode on the trip computer and hold the
button 03 for more than 1 second.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
03
02
BLUETOOTH® HANDS-FREE PHONE SYSTEM* (
if so equipped)
With an overhead microphone and sound
transmitted through the audio system speakers,
the Bluetooth
® Hands-free Phone System utilizes
Bluetooth wireless technology and voice recognition
to provide hands-free cellular phone communication.

A cellular telephone should not be used while driving
so full attention may be given to vehicle operation.*
SYSTEM OPERATING TIPS

The “Help” command can be used to hear a list of
available commands at any time.

Reduce background noise as much as possible by closing windows and pointing
HVA c vents away from the ceiling.

Say commands after the tone, or press the
or
button to say a command
at any time.
Bluetooth® Controls
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
s ystem guide
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
