2014 NISSAN 370Z ROADSTER Quick Reference Guide

QUI ck REFEREN cE GUIDE
2014
370
Z

*See your Owner’s Manual for information.01
ENTER / NEXT SWIT
cHES*
02
INSTRUMENT BRIGHTNESS c
ONTROL*
03
VEHI
cLE INFORMATION DISPLAY*
04
LOW TIRE PRESSURE WARNING LIGHT
05
HEADLIGHT AND TURN SIGNAL c
ONTROL
06
PADDLE SHIFTERS*
07
WINDSHIELD WIPER / WASHER SWIT
cH
08
VEHI
cLE DYNAMI c cONTROL (VD c)
OFF SWIT cH*
09
STEERING WHEEL SWIT
cHES FOR
AUDIO* / BLUETOOTH
® / NAVIGATION
10
cRUISE cONTROL11 INTELLIGENT k
EY PORT
12
HOOD RELEASE*
13
TILT STEERING c
OLUMN ADJUSTMENT*
14
c
ONTROL PANEL DISPLAY*
15
FRONT PASSENGER AIR BAG
STATUS LIGHT*
16
AU D I O SYSTE M
17
AUTOMATI
c cLIMATE c ONTROLS
18
SYNcHROREV MAT
cH
® MODE
(S-MODE) SWIT cH*
02
03
01
04
06
06
15
05
13
16
12
14
11
09
07
10
08
1718

NEW SYSTEM FEATURES
RearView Monitor (if so equipped) ................................. 2
Opening the Soft Top (Roadster models) ...........................2
USB/iPod
® Interface (if so equipped) .............................. 2
ESSENTIAL INFORMATION
Tire Pressure Monitoring System (TPMS) ...........................3
Loose Fuel cap ................................................ 3
Engine Oil Temperature Gauge ................................... 4
Automatic Power Windows ...................................... 4
FIRST DRIVE FEATURES
NISSAN Intelligent k ey
® System.................................. 5
Rear Hatch/Trunk Lid Release .................................... 6
Soft Top Operation (Roadster models) .............................6
Power Seat Adjustments (if so equipped) ...........................7
Power Outside Mirror control Switch ..............................7
Starting/Stopping the Engine ..................................... 8
Headlight control Switch ........................................ 9
Windshield Wiper and Washer Switch ............................. 9
Automatic climate controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 10
FM/AM/SiriusXM Satellite Radio with c D/DVD Player (if so equipped) 11
cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 12
clock Set/Adjustment .......................................... 12
Fuel-Filler Door ............................................... 13
SYSTEM GUIDE
Trip computer ................................................ 14
Bluetooth
® Hands-free Phone System (if so equipped) .............. 14
System Operating Tips ....................................... 14
Bluetooth
® System with Navigation (if so equipped) ...............15
Bluetooth® System without Navigation (if so equipped) ............ 17
Navigation System (if so equipped) ............................... 18
HomeLink
® Universal Transceiver (if so equipped) ...................20

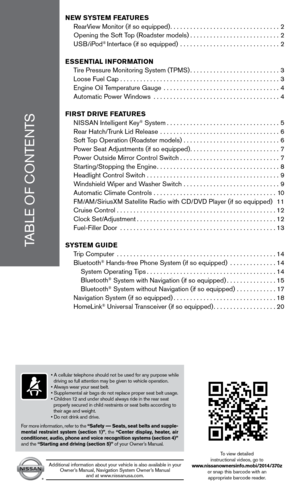

• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety –– Seats, seat belts and supple-
mental restraint system (section 1)”, the “Center display, heater, air
conditioner, audio, phone and voice recognition systems (section 4)”
and the “Starting and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, Navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2014/370z or snap this barcode with an appropriate barcode reader.
TABLE OF c ONTENTS

2
OPENING THE SOFT TOP (Roadster models)
It is important to make sure the Nissan Intelligent k ey®
is with you (that is, in your pocket or purse).

The soft top can be opened from outside the vehicle
using the door handle request switch

01 as follows:
• The ignition switch must be in the OFF position.
• Push and hold the door handle request switch

01
until the soft top is fully opened.
For more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
USB/iPod® Interface (if so equipped)
The USB jack is located in the center console under the armrest.

When a compatible USB memory device or iPod® is plugged into the USB jack, compatible
audio and video files stored on the device can be played through the v\
ehicle’s audio system
and front display.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of your
Owner’s Manual.
01
new system features
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
REARVIEW MONITOR (if so equipped)
When the shift lever is shifted into the R (REVERSE
position, the monitor display shows a rearward view
from the vehicle.

The colored guide lines on the display screen
indicate vehicle width and approximate distances to
objects with reference to the vehicle body line.:
• Red 1.5 ft (0.5 m); Yellow 3 ft (1 m);
Green 7 ft (2m) and 10 ft (3 m).
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of your
Owner’s Manual.

3
LOOSE FUEL CAP
A LOOSE FUEL CAP warning message will
appear in the vehicle information display

01 when

the fuel-filler cap is not tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will disappear when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button

02 is pressed for about 1 second.

If the cap is not properly tightened, the Malfunction
Indicator Light

may illuminate.
For more information, refer to the “Instruments and controls (section 2)”
and the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
02
01
TIRE PRESSURE MONITORING SYSTEM (TPMS)
A
CHEC k TIRE PRESSURE warning message
will appear in the vehicle information display
01 and

the low tire pressure warning light 02 will illuminate

when one or more tires are low on pressure and air
is needed.
• The tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more or
driven less than 1 mi (1.6 km) at moderate speeds.

After tire pressures are adjusted, press the reset
button
03 to turn off the
CHEC k TIRE PRESSURE
warning message. To turn off the warning light, drive
the vehicle at speeds above 16 MPH (25 km/h).

When the low tire pressure warning light flashes for 1 minute and then \
remains on, the
TPMS is not functioning properly. Have the system checked by a NISSAN dealer.

Tire pressure rises and falls depending on the heat caused by the vehicle\
’s operation and the
outside temperature. Low outside temperature can lower the temperature o\
f the air inside
the tire, which can cause a lower tire inflation pressure. This may cause the low tire pressure
warning light to illuminate. If the warning light illuminates, check the tire pressure in your tires.
• check the tire pressure (including the spare tire) often and always prior \
to long
distance trips.

The Tire and Loading Information label contains valuable information. Please refer to
section 9, “Technical and consumer information”, in your Owner’s Manual for the location
of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
03
01
02
esse ntial i n for mation

4
ENGINE OIL TEMPERATURE GAUGE
Performance driving patterns or extended driving at
elevated ambient temperatures may result in increased
engine oil temperature during operation.

During normal vehicle operation oil temperatures will
be below 280°F (138°c). If the engine oil temperature
gauge
01 indicates 280°F (138°c) or above while

driving, reduce engine speed (RPM) and drive at a
reduced speed.

When the engine oil temperature is high, the engine protection mode, whic\
h helps reduce
chance of engine damage, may activate and automatically decrease engine p\
ower.
For more information, refer to the “Instrument and controls (section 2)”, “Maintenance and do-it-yourself (section 8)”
and the “Technical and consumer information (section 9)” of your Owner’s Manual.
01
AUTOMATIC POWER WINDOWS
Your power windows have an automatic adjusting
function to ensure windows close completely to
help seal against wind noise and weather leaks.

When the front doors are opened, the windows
automatically lower slightly to avoid contact between
the windows and the side roof panels.

If your vehicle’s battery has been discharged or
disconnected, your power window automatic
function will not operate.

Refer to your Owner’s Manual for information to initialize your power window system.

If the power window functions do not operate properly after initializing\
the system, have your
vehicle checked by a NISSAN dealer.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
esse ntial i n for mation
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi

5
NISSAN INTELLIGENT kEY® SYSTE M
The NISSAN Intelligent key® system allows you to lock
or unlock your vehicle, open your rear hatch/trunk lid and
start the engine. It is important to make sure the Intelligent
k ey is with you (that is, in your pocket or purse).

The operating range of the Intelligent k ey is within
31.5 in (80 cm) from each request switch.

To lock the vehicle, push either door handle
request switch
01 once or press the
button
02
on the key fob.

To unlock the vehicle, perform one of the following procedures:
• Push either door handle request switch

01 once; the corresponding

door will unlock. Push the door handle request switch 01 again

within 1 minute; all other doors will unlock, or
• Press the

button
03 on the key fob to unlock the driver’s side door.
• Press the

button again; all other doors will unlock.

The Intelligent k ey can also be used to activate the panic alarm by
pressing and holding the
button
04 for more than 1 second. Once

activated, the panic alarm and headlights will stay on for a period of time.
INTELLIGENT k EY BATTERY DIS cHARGE

If the low battery indicator
05 appears in the vehicle

information display, replace the battery as soon
as possible.

If the battery in the Intelligent k ey is almost
discharged, the guide light
06 of the Intelligent k
ey
port blinks and the key insertion indicator 07 will

appear in the vehicle information display.

To start the engine under these circumstances, insert
the Intelligent k ey into the key port with the key ring
end toward you until it latches into place. Then push
the ignition switch to start the engine.

To remove the Intelligent k ey from the port, push the
ignition switch to turn the engine off and then pull the
Intelligent k ey out of the port.

Do not insert the mechanical key or any other objects
into the Intelligent k ey port. Inserting any object other
than the Intelligent k ey will damage the Intelligent
k ey port.
For more information, refer to the “Pre-driving checks and adjustments
(section 3)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it yourself (section 8)” of your Owner’s Manual.
01
06
F
05
07
02
03
04
first drive features
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi

6
REAR HATCH/TRUNk LID RELEASE
It is important to make sure the NISSAN Intelligent
key® is with you (that is, in your pocket or purse).

Unlock the rear hatch/trunk lid by pushing the
request switch
01 .

Once unlocked, push the opener switch
02 and

pull up to open the rear hatch/trunk lid.
For more information, refer to the “Pre-driving checks and adjustments (section 3)”
of your Owner’s Manual.0102
SOFT TOP OPERATION ( Roadster models)
Before opening or closing your soft top, refer to the
Owner’s Manual for detailed warnings and cautions
regarding soft top operation.
Soft Top Operation
1. Make sure the area is clear of obstructions and
that there is at least 6 ft (2 m) of clearance above
the vehicle.
2. Apply the parking brake and move the shift lever to
the P (P ARk) position (automatic transmission) or
the N (N EUTRAL ) position (manual transmission).
3. Depress the brake pedal and the clutch pedal
(manual transmission).
4. Start the engine.
5. Push and hold the soft top operating switch,
located on the center console, to OPEN

01 or

CLOSE
02 until the top is fully opened or closed.

For more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
01
02
To view detailed instructional videos regarding these and other features, please go\
to www.nissanownersinfo.mobi
first drive features
