2014 MITSUBISHI LANCER SPORTBACK engine

Replacement of light bulbs 9-38 Vehicle care and maintenance
9
4. Turn the bulb counterclockwise while pressing it and pull it out of the socket. 5. To install a bulb, perform the removal steps in reverse.
N00902000029
Do not attempt to disassemble or repair head- lights, and do not attempt to replace their bulbs.
N00943200121
The alignment of the headlights should bechecked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00917300495
1. For vehicles equipped with turbocharger,when replacing the bulb on the driver’sside, remove the bo
lt (A) holding down
the relay box and move the relay box toward the rear of the vehicle.
2. For vehicles equipped with turbocharger, when replacing the bulb on the passen- ger’s side, lift up the engine coolant reser- voir (B). 3. Turn the socket (C) counterclockwise to remove it.
Headlights (low/high beam, for vehicles equipped with high intensity discharge lights)
WA R N I N G A high voltage is present in the power cir- cuit and in the bulbs and bulb terminals. To avoid the risk of an electric shock, con-tact an authorized Mitsubishi dealer whenever repair or replacement is neces- sary.
Adjustment of headlight aim Front side-marker and parking lights (except for vehicles equipped with high intensity discharge headlights) * - Front of the vehicle
*- Front of the vehicle * - Front of the vehicle
BK0200700US.bo
ok 38 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Cleaning the outside of your vehicle 9-50 Vehicle care and maintenance
9
clean water and a car washing mitt or sponge, wash the vehicle from top to bottom. Use a mild car washing soap if necessary. Rinse thoroughly and wipe dry with a cham-ois or soft cloth. After washing the vehicle, carefully clean the joints and flanges of the doors, hood, etc., where dirt is likely toremain.
Salt and other chemicals spread on winter roads in some geographical areas can have adetrimental effect on the vehicle underbody. You should flush the underbody with a high pressure hose every time you wash the out-side of your vehicle. Take special care to remove mud or other debris which could trap and hold salt andmoisture.After washing your vehicle, wipe off all waterdrops from the rubber parts around the doors to prevent the doors from freezing.
N00946000218
Wax your vehicle once or twice a year, or when water does not bead up on the paint.
CAUTION When washing the underside of your vehicle or the wheels, wear a pair of gloves to pro- tect your hands. If your vehicle has rain sensor wipers, place the wiper switch lever in the “OFF” positionto deactivate the rain sensor before washing the vehicle. Otherwise, the wipers will oper- ate in the presence of water spray on thewindshield and may get damaged as a result. Never spray or splash water on the electrical parts in the engine compartment. This may damage them. Be careful also when washing the underbody. Do not spray water into theengine compartment. Avoid automatic car washers that use rotat- ing brushes. These brushes may scratch the paint surface and make it dull. Scratches are more noticeable on darker col- ored vehicles.
 Some hot water washing equipment uses high pressure and heat to clean your vehicle. This heated water may damage your vehi- cle’s resin parts. It can flood the interior of the vehicle. Therefore, be sure of the follow-ing:• Keep the washing nozzle at least 20 inches(50 cm) away from the vehicle body.• When washing around the door glass, holdthe nozzle at a distance of more than 20 inches (50 cm) and at right angles to the glass surface.
 When using high-pressure water to wash a vehicle equipped with the F.A.S.T.-key sys-tem, keep the water from spraying on the open button on the rear hatch. This could cause the rear hatch
to open and flood the
inside of the rear hatch.  Make sure to do the following when using an automatic car wash, with help from either this manual or the car wash operator, to avoid damaging your vehicle:• Fold the outside rear-view mirrors.• Put down (except for vehicles equipped with SIRIUS satellite radio antenna only) or remove the antenna.• If your vehicle is equipped with rearspoiler, check with the car wash operator before using the car wash.• If your vehicle has rain sensor wipers, placethe wiper switch lever in the “OFF” posi- tion to deactivate the rain sensor.CAUTION
During cold weather
NOTE
 When the door is frozen, opening it by force may tear off or crack the rubber gasket installed around the door. Pour warm waterto melt the ice. Be sure to thoroughly wipe off the water after opening the door. To pre- vent freezing of the weatherstripping on thedoors, hood, etc., treat with silicone lubri- cant.
Waxing
BK0200700US.bo
ok 50 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Cleaning the outside of your vehicle Vehicle care and maintenance 9-51
9
Use a soft cloth to put a small amount of wax on the painted surfaces. After the wax has dried, polish with a dry soft cloth. Do not wax your vehicle in direct sunlight.You should wax when the painted surfaces are cool.
N00946100059
If painted surfaces have been severely dam- aged and lost their original luster and colortone, polish the surface lightly with a fine polishing compound. Avoid limiting your polishing to the damaged surface only; polisha somewhat wider area, moving the polishing cloth in one direction. After polishing, flush the compound from the surface and apply acoat of wax to regain a beautiful luster.
N00946200063
Small cracks and scratches in the paint coatshould be touched up as soon as possible withtouch-up paint to prevent corrosion. Check body areas facing the road or the tires carefully for damage to the paint caused byflying stones, etc. The paint code number for your vehicle can be found on the vehicle information code plate in the engine compart-ment.
N00946300178
Use a sponge or chamois to clean these parts.If a vehicle wax sticks to a gray or black rough surface of the bumper, molding or lights, the surface may appear white in color.
In this case, wipe it
off using lukewarm water
and a soft cloth or chamois.
N00946400065
To prevent spots and corrosion of chrome parts, wash with water, dry thoroughly, and apply a nonabrasive automotive wax. If thechrome is severely damaged or pitted, use a commercially available chrome polish.
CAUTION Waxes containing high abrasive compounds should not be used. These waxes remove rust and stain effectively from the paintwork, but are harmful to the finish
on the paint and the
plate, because they also remove clearcoat. They are also harmful to other glossy sur- faces such as the grill
e, trim, moldings, etc.
Do not use gasoline, kerosene, benzine or paint thinners to remove road tar or other dirtfrom the vehicle surface. Do not put wax on the areas having black matte coating because it can cause uneven discoloration, patches, blurs, etc. If these get wax on them, wipe the wax off right awaywith a soft cloth and warm water. On vehicles equipped with sunroof, be care- ful not to apply any wax on the weatherstrip (black rubber) when waxing the area around the sunroof opening. If stained with wax, the weatherstrip cannot maintain a weatherproof seal with the sun-roof.
Polishing Damaged paint Cleaning plastic parts
CAUTION Do not use a scrubbing brush or other rough scrubber as these may damage the plastic surface.  Do not use wax containing compounds (pol- ishing powder) which may damage the plas-tic surface.  Do not let the plastic parts get soiled with gasoline, oil, brake fluids, engine oils, greases, paint thinner, and sulfuric acid (bat- tery electrolyte). These fluids, etc., maycrack, stain or discolor the plastic parts. If any of these get on the plastic parts, wipe them up with a soft cloth or chamois and amild solution of soap and water. Then rinse them immediately with water.
Chrome parts
BK0200700US.bo
ok 51 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Cleaning the outside of your vehicle 9-52 Vehicle care and maintenance
9
N00946500196
1. Remove dirt using a wet sponge. 2. Use a mild detergent on any dirt that can- not be removed easily with water. Rinse off the detergent after washing thewheel. 3. Dry the wheel thoroug
hly using a chamois
leather or a soft cloth.
N00946600067
The window glass can usually be cleanedusing only a sponge and water. Glass cleanercan be used to remove wax, oil, grease, dead
insects, etc. After washing the glass, wipe it dry with a clean, dry, soft cloth.
N00946700097
Use a soft cloth and glass cleaner to removegrease, dead insects, etc., from the wiper blades. Replace the wiper blades when they no longerclean the windshield and rear window prop-erly.
N00946800072
Clean the inside of the sunroof with a softcloth. Hard deposits should be wiped awaywith a cloth dipped in warm, neutral deter- gent solution. Wipe away the solution with a sponge dipped in fresh water.
N00947000042
Never spray or splash water on the electricalcomponents in the engine compartment, asthis may cause damage. Do not allow any nearby parts (such as plastic parts) come into contact with sulphuric acid(battery electrolyte), which may crack, stain, or discolour them. If this occurs, wipe the parts with a soft clothsaturated with a mild detergent and watersolution. Then immediately rinse the affected parts with plenty of water.
Aluminum wheels (if so equipped)
CAUTION Do not use a brush or other hard implement on the wheels.Doing so could scratch the wheels. Do not use any cleaner that contains an abra- sive substance or is acidic or alkaline. Doing so could cause the coating on the wheels to peel or become discolored or stained. Do not directly apply hot water using a steam cleaner or by any other means. Contact with seawater or road salt used for de-icing can cause corrosion. Rinse off suchsubstances as soon as possible.
Window glass
Wiper blades Cleaning the sunroof
(if so
equipped)
NOTE
 The surface treatment on the inside of the glass may be removed if a hard cloth ororganic solvent is used.
Engine compartment
BK0200700US.bo
ok 52 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

11
SpecificationsVehicle labeling ...............
............................................................... 11-2
Vehicle dimensions ..........
............................................................... 11-4
Vehicle weights ................
............................................................... 11-4
Engine specifications
..............................................
........................ 11-5
Battery........................................
..................................................... 11-5
Tires and wheels ..............
............................................................... 11-5
Refill capacities ...............
............................................................... 11-6
BK0200700US.bo
ok 1 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Vehicle labeling 11-2 Specifications
11
N01147400700
Keep a record of the chassis number and vehicle identification number. Such informa-tion will assist the police if your vehicle is stolen.
The vehicle emission control information label is affixed on the inside panel of the engine hood. The vehicle identification number is stamped on the plate riveted to the left front corner of the vehicle body. It is visible from outside ofthe vehicle through the windshield. The air conditioning label is affixed on the inside panel of the engine compartment.
The vehicle information code plate is located on the front passenger door sill. The chassis number is stamped on the floor under the front passenger
seat. It is visible by
pulling back the carpet flap as shown in the illustration. The engine serial number is stamped on the cylinder block as shown in the illustration.
Vehicle labeling Except for vehicles with turbochargerVehicles with turbocharger
1 - Vehicle emission control information label 2 - Vehicle identification num- ber plate 3 - Air conditioning label
4 - Vehicle information code plate Chassis number Engine serial number
BK0200700US.bo
ok 2 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Engine specifications Specifications 11-5
11
Seating capacity: the number of maximum occupants
N01147700471
N01147800182
Battery is a 12 volt type.
N01147901757
PCD: Pitch Circle Diameter (installation holes)
Engine specifications
Item
2.0 liter
2.4 liter
Vehicles without turbocharger
Vehicles with turbocharger
Engine model 4B11 4B12Engine displacement 121.9 CID
(1,998 cm³) 144.0 CID (2,360 cm³)
No. of cylinders and cylinder arrangement 4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 9.0 10.5Thermostat valve opening temperature 189 °F
(87.0 °C) 180 °F (82.0 °C) 189 °F (87.0 °C)
Spark plugs
NGK DIFR6C11 DILKR7B6 DIFR5C11
Spark plug gap
.040 to .043 in (1.0 to 1.1 mm)
.020 to .023 in (0.5 to 0.6 mm)
.040 to .043 in (1.0 to 1.1 mm)
Firing order
1-3-4-2
Battery
75D23L
Tires and wheels Tire
P205/60R16
91H
P215/45R18
89V
Wheel
Size
16 x 6 1/2JJ, 16 x 6 1/2J
18 x 7J
PCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0200700US.bo
ok 5 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Refill capacities 11-6 Specifications
11
N01148001029
NOTE
 Contact an authorized Mitsubishi Motors dealer for details on the combination used on your vehicle.
 These tires satisfy vehicle loading conditions described in this owner’s manual.NOTE

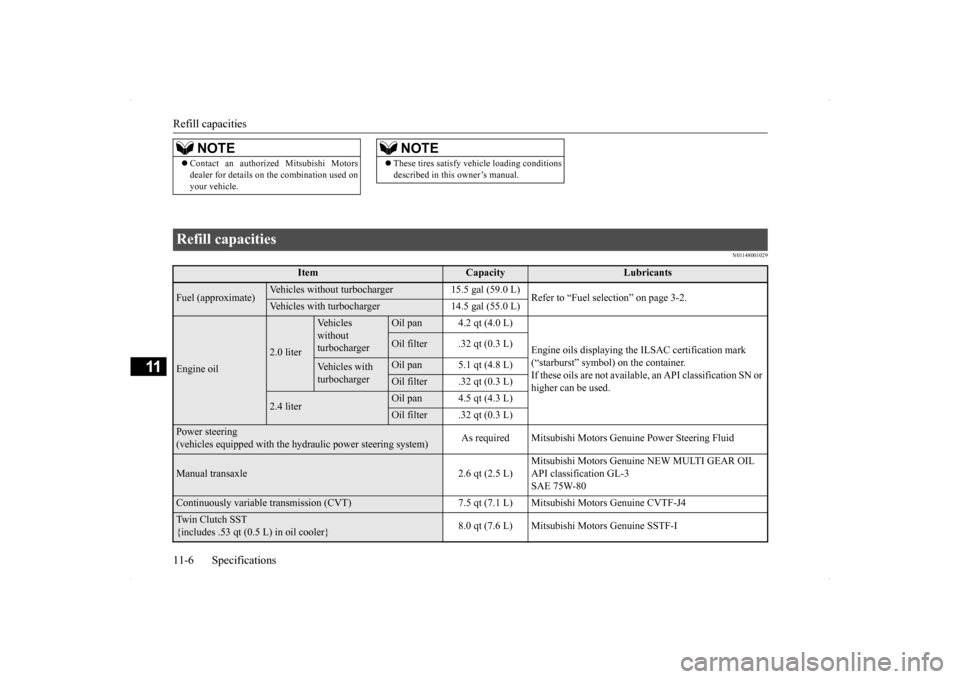

Refill capacities
Item
Capacity
Lubricants
Fuel (approximate)
Vehicles without turbocharger 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 3-2.
Vehicles with turbocharger 14.5 gal (55.0 L)
Engine oil
2.0 liter
Vehicles without turbocharger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark (“starburst” symbol) on the container.If these oils are not available, an API classification SN or higher can be used.
Oil filter .32 qt (0.3 L)
Vehicles with turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering(vehicles equipped with the hydr
aulic power steering system)
As required Mitsubishi Motors Genuine Power Steering Fluid
Manual transaxle 2.6 qt (2.5 L)
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API classification GL-3 SAE 75W-80
Continuously variable transmission (CVT) 7.5 qt
(7.1 L) Mitsubishi Motors Genuine CVTF-J4
Twin Clutch SST {includes .53 qt (0.5 L) in oil cooler}
8.0 qt (7.6 L) Mitsubishi Motors Genuine SSTF-I
