2014 MITSUBISHI LANCER SPORTBACK display

Operation Keys
Comfort controls 7-37
7
N00716700025

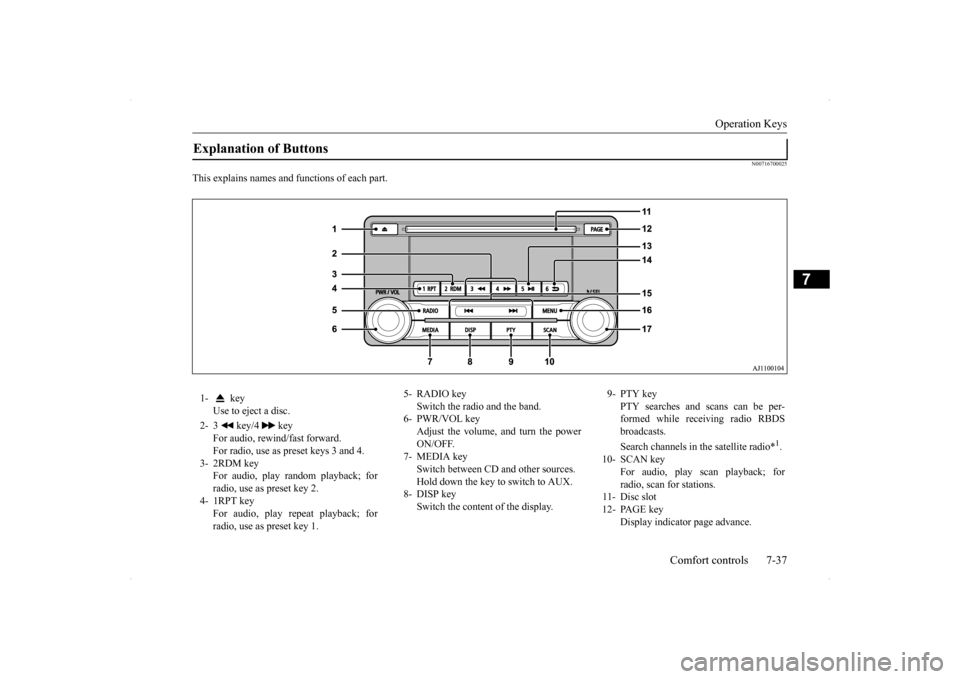

This explains names and functions of each part.Explanation of Buttons 1- key
Use to eject a disc.
2- 3 key/4 key
For audio, rewind/fast forward. For radio, use as preset keys 3 and 4.
3- 2RDM key
For audio, play random playback; for radio, use as preset key 2.
4- 1RPT key
For audio, play repeat playback; forradio, use as preset key 1.
5- RADIO key
Switch the radio and the band.
6- PWR/VOL key
Adjust the volume, and turn the power ON/OFF.
7- MEDIA key
Switch between CD and other sources. Hold down the key to switch to AUX.
8- DISP key
Switch the content of the display.
9- PTY key
PTY searches and scans can be per-formed while receiving radio RBDS broadcasts. Search channels in the satellite radio*
1.
10- SCAN key
For audio, play scan playback; for radio, scan for stations.
11- Disc slot 12- PAGE key
Display indicator page advance.
BK0200700US.bo
ok 37 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Listen to Radio
Comfort controls 7-39
7
N00716900027
This explains how to listen to AM and FM radio broadcasts. Press the RADIO key to switch the band. Switch between AM and FM bands. The selected band is indicated on the display. *: When a satellite tuner is connected Turn the /SEL key to the frequency to lis- ten to.
Collective search for stations that can be received. Press the SCAN key.When a station is received, this is played for 5 seconds, then the product searches for the next station. Register the broadcast station in advance, and select this at a later time. 1. Tune in to the frequency to register.
2. Hold down any of the keys from the 1RPT key to the 6 key. A “Beep” sounds, and the preset key is registered.
During RBDS broadcast reception, select PTY (program content), and automatically scan for stations. 1. During FM reception, press the PTY key. This switches to the PTY selection mode.2. Press the PTY key to select PTY. 3. Press the key or key. The PTY (program content) indicator will flash, and station selection will automati-cally start. When a station is r
eceived, the frequency
is displayed.
Listen to Radio To Listen to the Radio
NOTE
 Bands switch in the order AM, FM1, FM2, SIR1*, SIR2*, SIR3*, and SIR4*.  If no signal is received, bands will not be switched to SIR2, SIR3, or SIR4.
Manual/Seek Station Selection
/SEL key (counter- clockwise)
Reduces the frequency being received.
/SEL key(clockwise)
Increases the frequency being received.
key
(hold down)
Release the button to start seek station selection, and when a station is received, scanning stops.
key
(hold down)Scan Station Selection
NOTE
 Press this button again while receiving the station to return to normal reception.
Preset Memory
NOTE
 The preset memory can register a maximum of 6 stations for each band.  If a preset key that already has a station reg- istered is selected, then this is overwritten with the new preset.  Pressing the preset key will select the previ- ously registered frequency.
PTY Search
BK0200700US.bo
ok 39 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Listen to Satellite Radio (if so equipped) 7-40 Comfort controls
7
During RBDS broadcast reception, select PTY (program content) to perform a collec- tive search for stations. 1. During FM reception, press the PTY key. This switches to the PTY selection mode. 2. Press the PTY key to select PTY. 3. Press the SCAN key.When a broadcast stat
ion is received, this
is played for 5 seconds, then the product searches for the next station.
N00717000025
This section explains ho
w to listen to satellite
radio. Press the RADIO key to switch the band. Switches between SIR1, SIR2, SIR3, and SIR4 bands. The selected band is indicated on the display.
Press the key or key to select the sta- tion.
NOTE
 This receives the station detected first.  10 seconds after reception, PTY search mode will be cancelled.  To receive a different station, press the key or key again.
PTY Scan
NOTE
 Press this key again while receiving the sta- tion to return to normal reception.
Listen to Satellite Radio
(if so
equipped)
NOTE
 A subscription is require
d to listen to satel-
lite radio. Satellite radio cannot be received after the free trial period has expired.  If no subscription has been made when the free trial period expires, the display willalternate between “CALL” and “888-539- SIRI”.
To listen to Satellite Radio

NOTE
 Bands switch in the order AM, FM1, FM2, SIR1, SIR2*, SIR3*, and SIR4*.  Switch satellite radio bands by holding down the key or key on the steering remote control switch.
*:If no signal is received, bands will not be switched.
Select a Station

key
Go down one step from the channel being received.
key
Go up one step from the channel being received.
key
(Hold down)
While the key is held down, it will cycle down through the channels being received.
key
(Hold down)
While the key is held down, it will cycle up through the channels being received.
NOTE
 When cycling up/down through channels, the channel number display in the upper level of the display changes.  When channel number “000” is selected, the SIRIUS ID (12 digits) is displayed.
BK0200700US.bo
ok 40 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Listen to Satellite Radio (if so equipped)
Comfort controls 7-41
7
Channels are received in order and take 10 seconds each. Press the SCAN key. All of the channels are scanned. 1. Press the PTY key. Switches to the category search mode,and the category name is indicated on the display. 2. Turn the /SEL key to select the cate- gory. 3. Press the SCAN key.The channels in the selected category are scanned.
Register the channel in advance, and select this at a later time. 1. Tune in to the channel to register. 2. Hold down any of the keys from the 1RPT key to the 6 key. A “Beep” sounds, and the preset key is registered.
Other channels can be selected while listen- ing to a channel. 1. Press the PTY key. Switches to the category search mode, and the category name is indicated on the display. 2. Turn the /SEL key to select the cate- gory. 3. Press the /SEL key. Switches to channel search mode. 4. Turn the /SEL key to select the chan- nel. 5. Press the /SEL key. A “Beep” sounds, and the selected chan- nel is received. (Channel preliminary set- ting mode)The channel name shown on the display flashes. Press the /SEL key again to cancel the search mode and return to normal recep- tion. 6. To continue the search, turn the /SEL key to select the channel.The selected channel is received. 7. Press the /SEL key. Cancels the search mode and returns to normal reception.
Scan Station Selection

Scan All Channels

NOTE
 Press this key again while receiving the channel to return to normal reception.  Selecting a channel will cancel this.
Scan Category Channels

NOTE
Press the SCAN key or PTY key again while receiving the channel to return to normal reception.  Turning the /SET key will cancel.
Preset Memory

NOTE
The preset memory can register a maximum of 6 stations per band.  If a preset key that already has a channel reg- istered is selected, then this is overwritten with the new preset.  Pressing the preset key will select the previ- ously registered channel. The preset channels on the display are shownas “P1” though “P6”.
Channel Search

BK0200700US.bo
ok 41 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Listen to CDs 7-42 Comfort controls
7
The CODE required for changing the LOCK settings in the satellite settings is initialized.(The factory setting is “1111”.) When the power is off, press the PWR/VOL key while holding down the /SEL key.  “Turn the Power ON/OFF” (P7-36)
N00717100026
This explains how to listen to audio CDs (CD-DA/CD-TEXT). Insert the disc. Insert a disc to automatically start playback.  “Insert/Eject Discs” (P.7-36) If a disc is already within the product, pressthe MEDIA key to switch to CD as the source. Press the key or key to select the track. This enables selection of the next or previous track. Hold down the 3 key or the 4 key. Fast forward/rewind is possible.
Repeat playback, random playback, and scan playback are possible. Press the 1RPT key. Repeat playback of th
e track currently being
played. Press the 2RDM key. Play the tracks on the disc in a random order.
NOTE
 After making preliminary settings in the channel search mode, this will switch to the channel being received.  Channel number “000” is for the SIRUS ID display, so it cannot be searched.  If the “PTY ALL” category is selected, all channels can be searched in the channel search mode.  In the category mode, press the PTY key to cancel search mode.  In the channel search mode, press the 6 key to return to the category search mode.  In the channel preliminary setting mode, press the 6 key to return to the category search mode without returning to the previ-ous channel search mode.  If there is no operation for 10 seconds, the search mode will be cancelled.
Initialize the CODE (Passcode)

Listen to CDs Play CDs Select the Track Fast Forward or Rewind
Switch Playback Mode Repeat Playback (RPT)
NOTE
 Pressing again will cancel.  Selecting a track, ejecting, fast forwarding, or rewinding will cancel.
Random Playback (RDM)
NOTE
 Pressing again will cancel.  Ejecting will cancel this.
BK0200700US.bo
ok 42 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Listen to an iPod
Comfort controls 7-45
7
Press the MEDIA key to set the iPod as the source. The selected source is indicated on the dis- play. Press the key or key to select the track. This enables selection of the next or previous track.
Hold down the 3 key or the 4 key. Fast forward/rewind is possible. Repeat playback and shuffle playback are possible. Press the 1RPT key. Repeat playback of th
e track currently being
played. Press the 2RDM key. Play tracks in the category currently being played in a random order.
 Regarding details such as types of iPod/iPhone that can be connected to equip- ment by type (vehicles with a Bluetooth
® 2.0
interface), and types of files that can be played back, refer to “Types of connectabledevices and supported file specifications” on page 5-182.  Regarding how to connect the iPod/iPhone, refer to “How to connect an iPod” on page 5-181.  When connecting the iPod/iPhone, use a commercially-available iPod connectioncable.  Set up the device in order that no unsafe actions, such as plugging in the connection cable are taken while driving.  When inserting and removing the iPod/iPhone, for safety’s sake first stop the vehicle.  Depending on the status of the iPod/iPhone, it may take some time until the device is rec- ognized, or playback starts.  Buttons on the product will not operate while iPod/iPhone is connected.  iPod/iPhone specifications and settings may mean that connection is not possible, or result in differences in operation or display.  Depending on audio data in the iPod/iPhone, track information may not be displayed cor-rectly.  Depending on the status of the vehicle and device, the iPod/iPhone may not play back after starting the engine.NOTE
 Data containing copyright information may not play back.  It is recommended that the iPod/iPhone equalizer settings be set to flat.  Operate the iPod/iPhone while connected to this product.  If the iPod/iPhone is connected via Bluetooth as a Bluetooth-capable audio device, then donot connect the iPod/iPhone using an iPod cable. Connection using both methods will result in erroneous operation.  If an iPod/iPhone does not operate correctly, then remove the iPod/iPhone from the prod-uct, reset, then reconnect.
Play iPod Select the Track (File)
NOTE
Fast Forward or Rewind Switch Playback Mode Repeat Playback (RPT)
NOTE
 Pressing again will cancel.
Shuffle Playback (RDM)
BK0200700US.bo
ok 45 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Listen to Audio Files on a USB Device 7-46 Comfort controls
7
Hold down the 2RDM key. Play back the album in a random order (tracks in any order on the album). Search categories or track names, and select a track. 1. Turn the /SEL key to select the cate- gory. 2. Press the /SEL key. Categories or tracks within the selected category are displayed. 3. Turn the /SEL key to select the cate- gory or track.
4. Press the /SEL key. Repeat steps 1 to 4, and search for tracks. Select the track, and press the /SEL key to play.
N00717400032
By connecting commercially-available USB devices such as USB memory to this product,
you can play back audio files on these through the product.
NOTE
 Pressing again will cancel.
Album Shuffle Playback
NOTE
Pressing again will cancel.
Search Tracks
NOTE
While the category (1st level) is selected, press the 6 key to cancel track search mode.  If there is no operation for 10 seconds after selecting the category, then track searchmode will be cancelled.  Select the category, and hold down the
/SEL key to start playback from the first
track in that category.  While the track is selected, press the 6 key to return to the previous operation.  While the track is selected, hold down the 6 key to cancel track search mode.  If there is no operation for five seconds after selecting the track, that file is played back.  iPod operations such as selecting a track will cancel track search mode.
Listen to Audio Files on a USB Device
CAUTION Do not leave the USB device unattended in the vehicle. Never hold these devices in your hand to operate while driving, as this is dangerous. Do not use hard discs, card readers, or mem- ory readers, as damage may occur to these or to the data contained therein. If these areerroneously connected, then turn the ignition switch to the “LOCK” position, then remove. Because of the risk of data loss, it is recom- mended that files be backed up. No guarantee is made as regards damage to the USB device, nor regarding loss or dam- age to data contained therein. Depending on how the devices are handled, audio files being damaged or lost, thereforeit is recommended that data be backed up.NOTE
 Regarding details such as types of USB devices that can be connected, and USB input ports, refer to “Device types” on page 5-182.  Regarding details of types of files that can be played back in equipment by type (vehicles with a Bluetooth
® 2.0 interface), refer to
“File specifications” on page 5-182.
BK0200700US.bo
ok 46 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Listen to Audio Files on a USB Device
Comfort controls 7-47
7
Press the MEDIA key to set USB as the source. The selected source is indicated on the dis- play. Press the key or key to select the track. This enables selection of the next or previous track.
Hold down the 3 key or the 4 key. Fast forward/rewind is possible. Repeat playback, random playback, and scan playback are possible. Press the 1RPT key. Repeat playback of th
e track currently being
played. Hold down the 1RPT key.
 Regarding how to connect USB devices, refer to “How to connect a USB memory device” on page 5-180.  When connecting a USB device, use a con- nection cable. Failure to use a connection cable when connecting may place undue load on, or damage the USB connector.  Set up the device in order that no unsafe actions, such as plugging in the connectioncable are taken while driving.  When inserting and removing the USB device, for safety’s sake first stop the vehi- cle.  Do not insert other than audio devices into the USB port. Damage to the device or equipment may result.  Depending on the status of the USB device, it may take some time until the device is rec-ognized, or playback starts.  Depending on USB devices, buttons on the product will not operate while the USB device is connected.  USB device specifications and settings may mean that connection is not possible, or result in differences in operation or display.  Depending on audio data in the USB device, track information may not be displayed cor- rectly.  Depending on the status of the vehicle and device, the iPod/iPhone may not play back after starting the engine.  Data containing copyright information may not play back.NOTE
 This product can play back MP3, WMA, and AAC format audio files.  Depending on the type of USB device, usage may not be possible, or functions that can beused may be restricted.  The recommended file system for USB memory is FAT32.  The maximum supported capacity for USB memory is 32GB.  Operate the USB device containing recorded audio files while connected to this product.
Play Back of Audio Files on a USB Device Select the Track (File)
NOTE
Fast Forward or Rewind Switch Playback Mode Repeat Playback (RPT)
NOTE
 Pressing again will cancel.  Selecting a file will cancel this. However, it will not be cancelled in vehicles with a Bluetooth
® 2.0 interface.
Folder Repeat Playback
