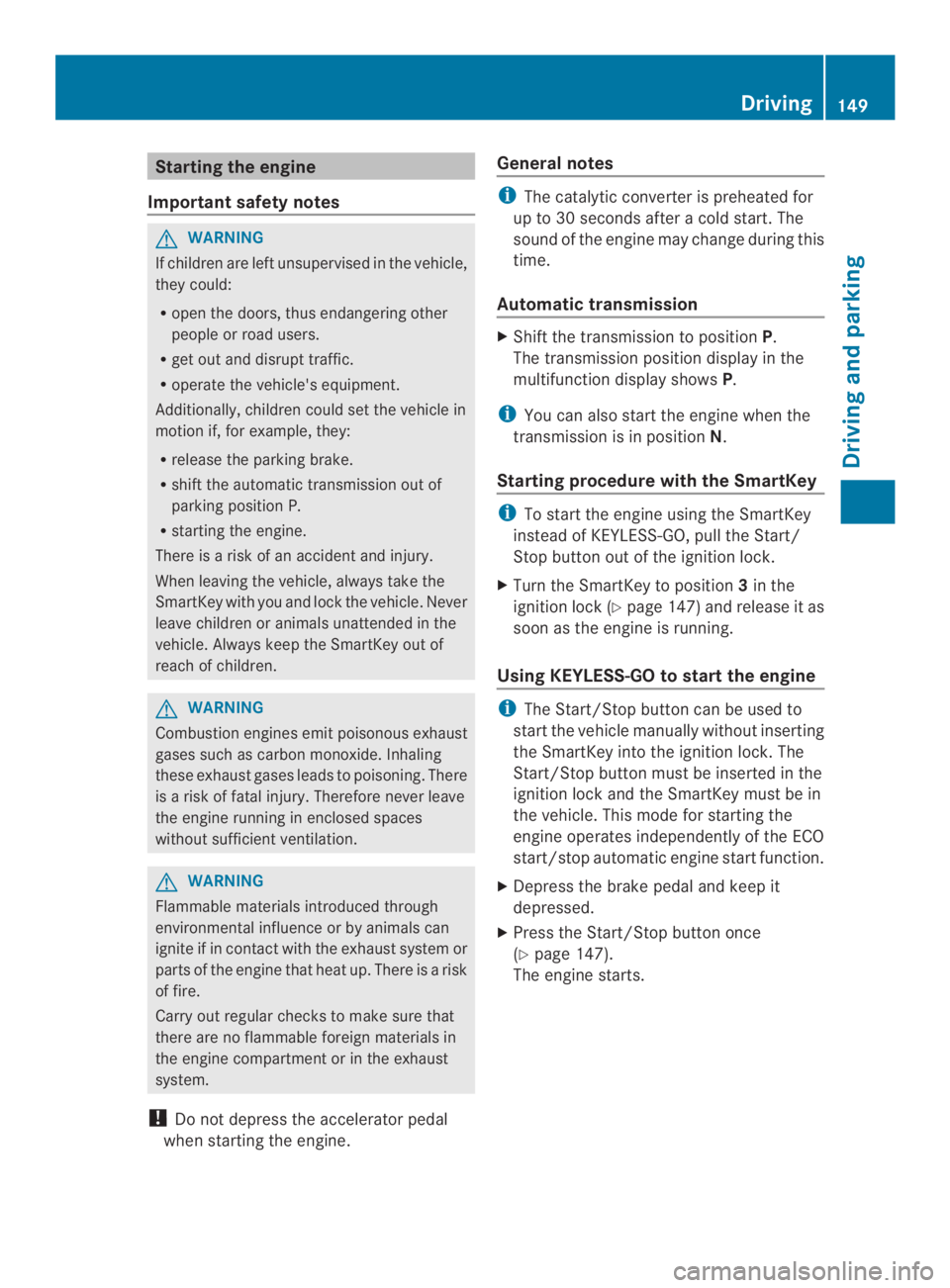

Starting the engine
Important safety notes
GWARNING
If children are left unsupervised in the vehicle,
they could:
Ropen the doors, thus endangering other
people or road users.
Rget out and disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake.
Rshift the automatic transmission out of
parking position P.
Rstartingthe engine.
There isarisk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
GWARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Inhaling
these exhaust gases leads to poisoning. There
isarisk of fatal injury. Therefore never leave
the engine running in enclosed spaces
without sufficient ventilation.
GWARNING
Flammable materials introduced through
environmental influence or by animals can
ignite if in contact with the exhaust system or
parts of the engine that heat up. There isarisk
of fire.
Carry out regular checkstomake sure that
there are no flammable foreign materials in
the engine compartmentorinthe exhaust
system.
!Do not depress the accelerator pedal
when startingthe engine.
General notes
iThe catalytic converter is preheated for
up to 30 seconds afteracold start. The
sound of the engine may change during this
time.
Automatic transmission
XShift the transmission to positionP.
The transmission position display in the
multifunction display showsP.
iYou can also start the engine when the
transmission is in positionN.
Starting procedurewith the SmartKey
iTo start the engine using the SmartKey
instead of KEYLESS-GO, pull the Start/
Stop button out of the ignition lock.
XTurn the SmartKey to position3in the
ignition lock (Ypage 147) and release it as
soon as the engine is running.
Using KEYLESS-GO to startthe engine
iThe Start/Stop button can be usedto
start the vehicle manually without inserting
the SmartKey into the ignition lock. The
Start/Stop button must be inserted in the
ignition lock and the SmartKey must be in
the vehicle. This mode for starting the
engine operates independently of the ECO
start/stop automatic engine start function.
XDepress the brake pedal and keep it
depressed.
XPress the Start/Stop button once
(Ypage147).
The engine starts.
Driving149
Driving and parking
Z

Pulling away
Automatic transmission
GWARNING
If the engine speed is above the idling speed
and you engage transmission positionDor
R,the vehicle could pull away suddenly. There
isarisk of an accident.
When engaging transmission positionDorR,
always firmly depress the brake pedal and do
not simultaneously accelerate.
!Ifawarning tone sounds and the
Release Park. Brakemessage appears
in the multifunction display,the parking
brake is still applied. Release the parking
brake.
XDepress the brake pedal and keep it
depressed.
XShift the transmission to positionDorR.
XRelease the parking brake (Ypage 169).
XRelease the brake pedal.
XCarefullydepress the accelerator pedal.
iIt is only possible to shift the transmission
from positionPto the desired position if
you depress the brake pedal. Only then is
the parking lock released. If you do not
depress the brake pedal, you can move the
DIRECT SELECT lever but the parking lock
remains engaged.
iThe vehicle locks centrally once you have
pulledaway.The locking knobs in the doors
drop down.
You can open the doors from the inside at
any time.
You can also deactivate the automatic
locking feature (Ypage 232).
iUpshifts take place at higher engine
speeds afteracold start. This helps the
catalytic converter to reach its operating
temperature more quickly.
Hill startassist
GWARNING
Afterashort time, hill start assist will no
longer brake your vehicle and it could roll
away. There isarisk of an accident and injury.
Therefore, quickly move your foot from the
brake pedal to the accelerator pedal. Never
leave the vehicle when it is held by hill start
assist.
Hill start assist helps you when pulling away
forwards or in reverse on an uphill gradient.
It holds the vehicle forashort time after you
have removed your foot from the brake pedal.
This gives you enough time to move your foot
from the brake pedal to the accelerator pedal
and to depress it before the vehicle begins to
roll.
XTake your foot off the brake pedal.
The vehicle is then held for aboutasecond.
XPull away.
Hill start assist will not function if:
Ryou are pulling away onalevel road or on
adownhill gradient.
Rthe transmission is in positionN.
Rthe parking brake is applied.
RESP®is malfunctioning.
ECO start/stop function
Introduction
The ECO start/stop function switches the
engine off automatically if the vehicle is
stopped under certain conditions.
The engine startsautomatically when the
driver wants to pull away again. The ECO
start/stop function thereby helps you to
reduce the fuel consumption and emissions
of your vehicle.
150Driving
Driving and parking

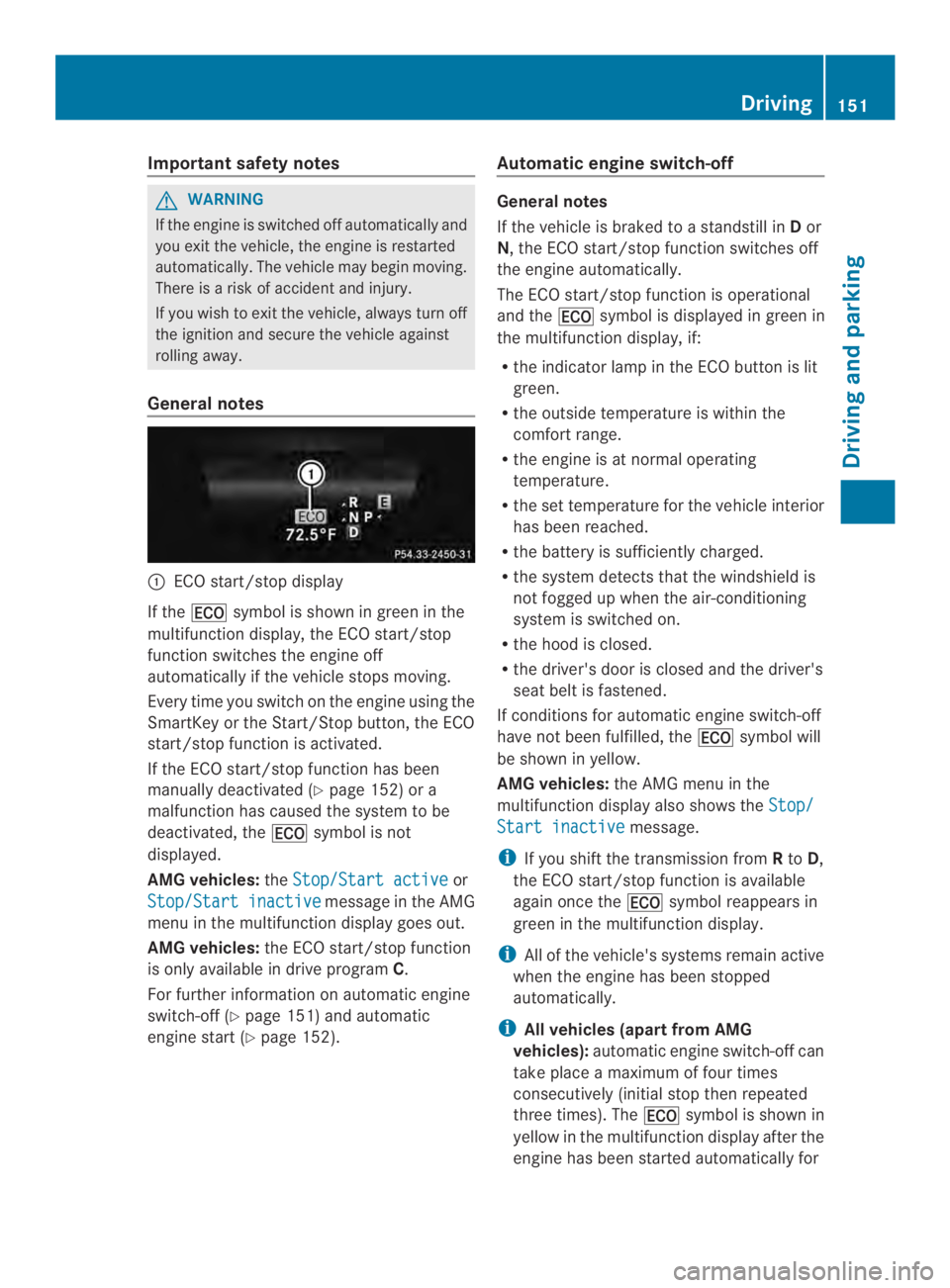

Important safety notes
GWARNING
If theengineisswitched off automatically and
you exit thevehicle, theengine is restarted
automatically. The vehiclemay beginmoving.
There isarisk of accident and injury.
If you wish to exit the vehicle, alwaysturn off
the ignition and secure the vehicle against
rolling away.
General notes
ECO start/stop display
If thesymbol is shown in green in the
multifunction display,the ECO start/stop
function switches the engine off
automatically if the vehicle stops moving.
Every time you switch on the engine using the
SmartKey or the Start/Stop button,the ECO
start/stop function is activated.
If the ECO start/stop function has been
manually deactivated (Ypage 152) or a
malfunction has caused the system to be
deactivated, thesymbol is not
displayed.
AMG vehicles:theStop/Start activeor
Stop/Start inactivemessage in the AMG
menu in the multifunction display goes out.
AMG vehicles:the ECO start/stop function
is only available in drive programC.
For further information on automatic engine
switch-off (Ypage 151) and automatic
engine start (Ypage 152).
Automatic engine switch-off
General notes
If the vehicle is braked toastandstill inDor
N,the ECO start/stop function switches off
the engine automatically.
The ECO start/stop function is operational
and thesymbol is displayed in green in
the multifunction display,if:
Rthe indicator lamp in the ECO button is lit
green.
Rthe outside temperature is within the
comfortrange.
Rthe engine is at normal operating
temperature.
Rthe set temperature for the vehicle interior
has been reached.
Rthe battery is sufficiently charged.
Rthe system detectsthat the windshield is
not fogged up when the air-conditioning
system is switched on.
Rthe hood is closed.
Rthe driver's door is closed and the driver's
seat belt is fastened.
If conditions for automatic engine switch-off
have not been fulfilled, thesymbol will
be shown in yellow.
AMG vehicles:the AMG menu in the
multifunction display also shows theStop/
Start inactivemessage.
iIf you shift the transmission fromRtoD,
the ECO start/stop function is available
again once thesymbol reappears in
green in the multifunction display.
iAll of the vehicle's systems remain active
when the engine has been stopped
automatically.
iAll vehicles (apartfrom AMG
vehicles):automatic engine switch-off can
take placeamaximum of four times
consecutively (initial stop then repeated
three times). Thesymbol is shown in
yellow in the multifunction display after the
engine has been started automatically for
Driving151
Driving and parking
Z

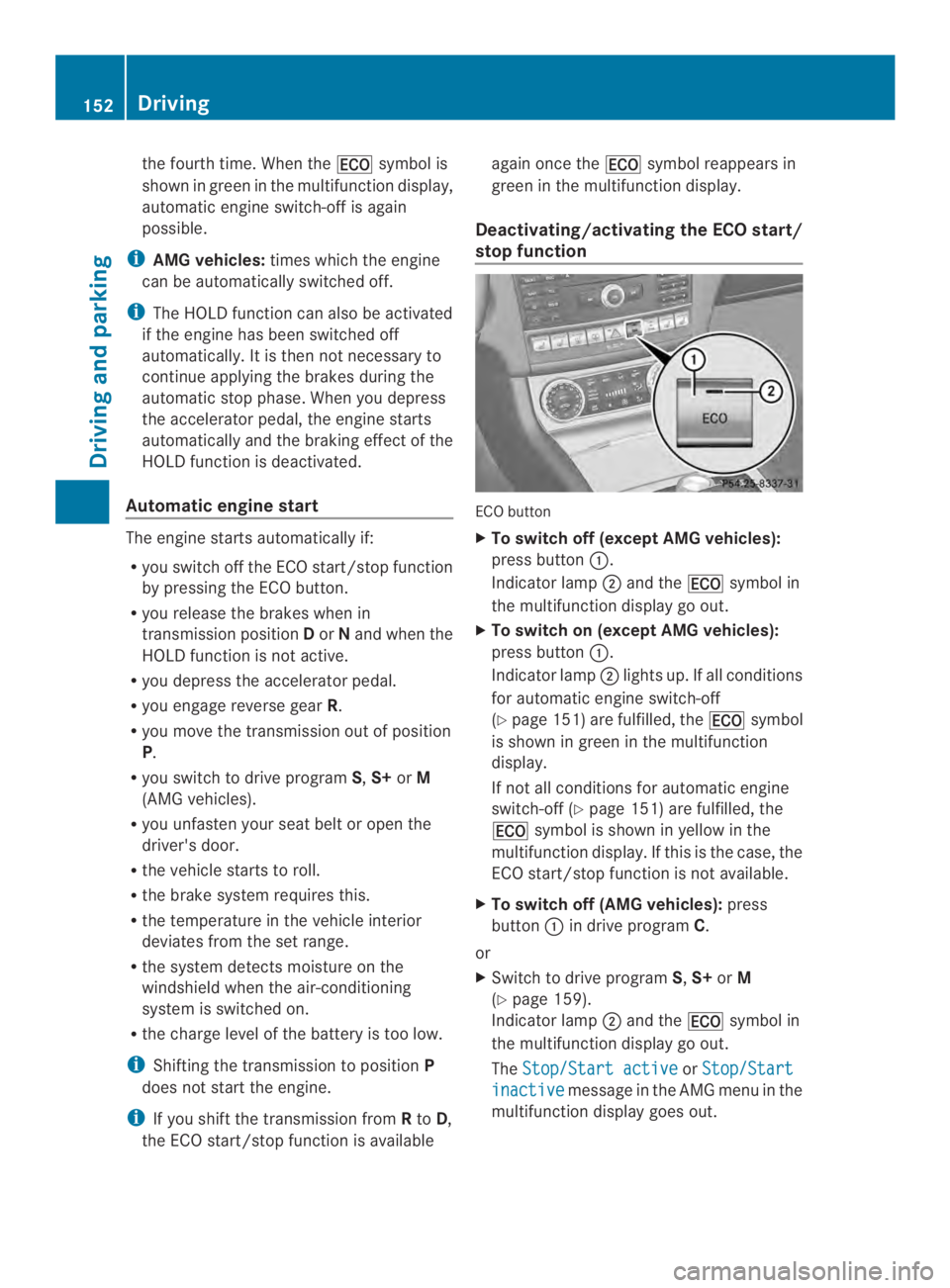

the fourth time. When thesymbolis
shown in green in the multifunctiondisplay,
automatic engine switch-off is again
possible.
iAMG vehicles:times which the engine
can be automatically switched off.
iThe HOLDfunction can also be activated
if the engine has been switched off
automatically. It is thennot necessary to
continue applying the brakes duringthe
automatic stop phase. When you depress
the accelerator pedal, the engine starts
automatically and the braking effect of the
HOLDfunction is deactivated.
Automatic engine start
The engine startsautomatically if:
Ryou switchoff the ECO start/stop function
by pressing the ECO button.
Ryou release the brakes when in
transmission positionDorNand when the
HOLDfunction is not active.
Ryou depressthe accelerator pedal.
Ryou engage reverse gearR.
Ryou movethe transmission out of position
P.
Ryou switchtodrive programS,S+orM
(AMG vehicles).
Ryou unfasten your seat belt or open the
driver's door.
Rthe vehicle startstoroll.
Rthe brakesystem requiresthis.
Rthe temperature in the vehicle interior
deviates fromthe set range.
Rthe system detectsmoisture on the
windshield when the air-conditioning
system is switched on.
Rthe charge level of the battery is too low.
iShiftingthe transmission to positionP
does not start the engine.
iIf you shift the transmission fromRtoD,
the ECO start/stop function is available
again once thesymbol reappears in
green in the multifunction display.
Deactivating/activating the ECO start/
stop function
ECO button
XTo switch off (except AMG vehicles):
press button.
Indicator lampand thesymbol in
the multifunction displaygoout.
XTo switch on (except AMG vehicles):
press button.
Indicator lamplights up. If all conditions
for automatic engine switch-off
(Ypage 151) are fulfilled,thesymbol
is shown in green in the multifunction
display.
If not all conditionsfor automatic engine
switch-off (Ypage 151) are fulfilled,the
symbol is shown in yellow in the
multifunction display. If this is the case, the
ECO start/stop function is not available.
XTo switch off (AMG vehicles):press
buttonin drive programC.
or
XSwitch to drive programS,S+orM
(Ypage 159).
Indicator lampand thesymbol in
the multifunction displaygoout.
TheStop/Start activeorStop/Start
inactivemessage in the AMG menu in the
multifunction displaygoes out.
152Driving
Driving and parking

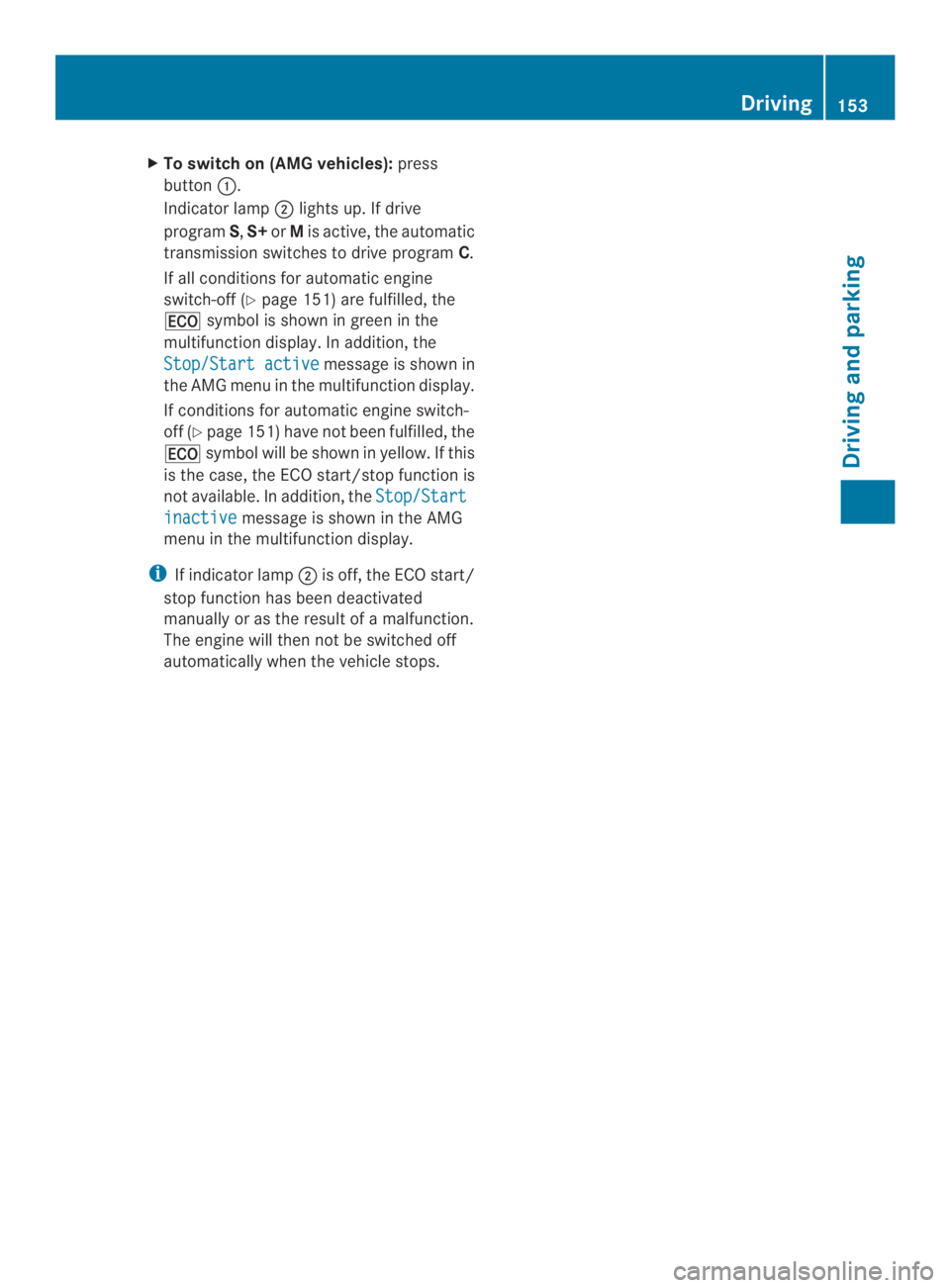

XTo switchon(AMG vehicles):press
button.
Indicator lamplights up. If drive
programS,S+orMis active, the automatic
transmission switches to drive programC.
If all conditions for automatic engine
switch-off (Ypage 151) are fulfilled, the
symbol is shown in green in the
multifunction display. In addition, the
Stop/Start activemessage is shown in
the AMG menu in the multifunction display.
If conditions for automatic engine switch-
off (Ypage 151) have not been fulfilled, the
symbol will be shown in yellow. If this
is the case, the ECO start/stop function is
not available. In addition, theStop/Start
inactivemessage is shown in the AMG
menu in the multifunction display.
iIf indicator lampis off, the ECO start/
stop function has been deactivated
manually or as the result ofamalfunction.
The enginewill then not be switched off
automatically when the vehicle stops.
Driving153
Driving and parking
Z

Problems with the engine
ProblemPossible causes/consequences andSolutions
The engine does not
start. The starter motor
can be heard.
RThere isamalfunction in the engine electronics.
RThere isamalfunction in the fuel supply.
XBefore attempting to start the engine again, turn the SmartKey
in the ignition back to position0or press the Start/Stop button
repeatedly until all indicator lamps in the instrumentcluster go
out.
XTry to start the engine again (Ypage 149). Avoid excessively
long and frequent attemptstostart the engine as these will drain
the battery.
If the engine does not start after several attempts:
XConsultaqualified specialist workshop.
The engine does not
start.You cannot hear
the starter motor.
The on-board voltage is too low because the battery is too weak
or discharged.
XJump-startthe vehicle (Ypage 326).
If the engine does not start despite attemptstojump-start it:
XConsultaqualified specialist workshop.
The starter motor was exposed toathermal load that was too high.
XAllow the starter motor to cool down for approximately two
minutes.
XTry to start the engine again.
If the engine still does not start:
XConsultaqualified specialist workshop.
The engine is not
running smoothly and
is misfiring.
There isamalfunction in the engine electronics or inamechanical
componentofthe engine management system.
XOnly depress the accelerator pedal slightly.
XHave the cause rectified immediately ataqualified specialist
workshop.
Otherwise, non-combusted fuel may get into the catalytic
converter and damage it.
The coolant
temperature gauge
showsavalue above
248‡(120 †).
The coolant level is too low. The coolant is too hot and the engine
is no longer being cooled sufficiently.
XStop as soon as possible and allow the engine and the coolant
to cool down.
XCheck the coolant level (Ypage 308). Observe the warning
notes as you do so and add coolant if necessary.
154Driving
Driving and parking

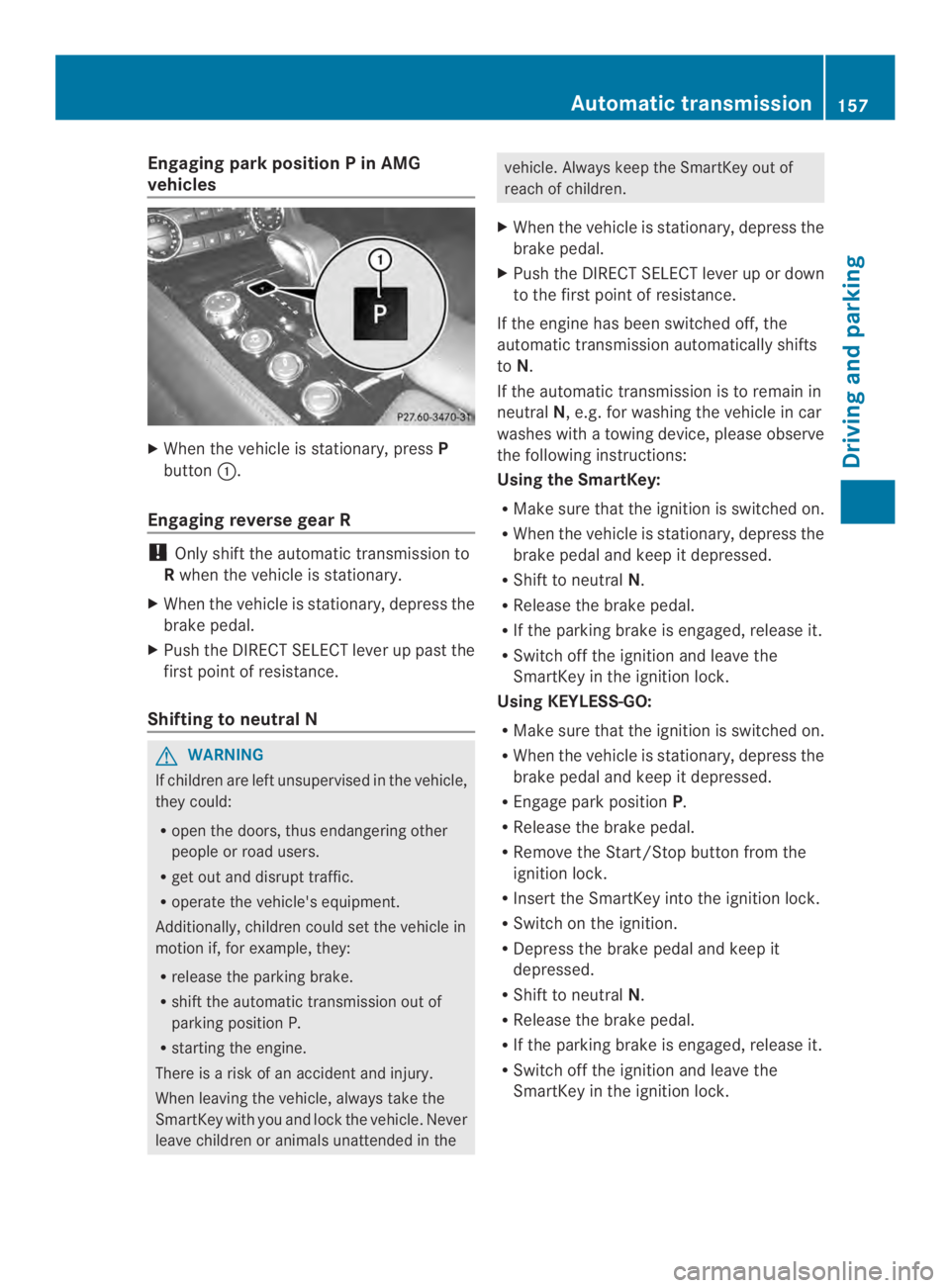

Engaging park positionPinAMG
vehicles
XWhen thevehicle is stationary, pressP
button.
Engaging reversegear R
!Only shiftthe automatic transmission to
Rwhen the vehicle is stationary.
XWhen the vehicle is stationary, depress the
brake pedal.
XPush the DIRECT SELECT lever up past the
first point of resistance.
Shifting to neutralN
GWARNING
If children are left unsupervised in the vehicle,
they could:
Ropen the doors, thus endangering other
people or road users.
Rget out and disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake.
Rshift the automatic transmission out of
parking position P.
Rstartingthe engine.
There isarisk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
XWhen the vehicle is stationary, depress the
brake pedal.
XPush the DIRECT SELECT lever up or down
to the first point of resistance.
If the engine has been switched off, the
automatic transmission automatically shifts
toN.
If the automatic transmission is to remain in
neutralN,e.g. for washing the vehicle in car
washes withatowing device, please observe
the following instructions:
Using the SmartKey:
RMake sure that the ignition is switched on.
RWhen the vehicle is stationary, depress the
brake pedal and keep it depressed.
RShift to neutralN.
RRelease the brake pedal.
RIf the parking brake is engaged, release it.
RSwitch off the ignition and leave the
SmartKey in the ignition lock.
Using KEYLESS-GO:
RMake sure that the ignition is switched on.
RWhen the vehicle is stationary, depress the
brake pedal and keep it depressed.
REngage park positionP.
RRelease the brake pedal.
RRemove the Start/Stop button from the
ignition lock.
RInsert the SmartKey into the ignition lock.
RSwitch on the ignition.
RDepress the brake pedal and keep it
depressed.
RShift to neutralN.
RRelease the brake pedal.
RIf the parking brake is engaged, release it.
RSwitch off the ignition and leave the
SmartKey in the ignition lock.
Automatic transmission157
Driving and parking
Z

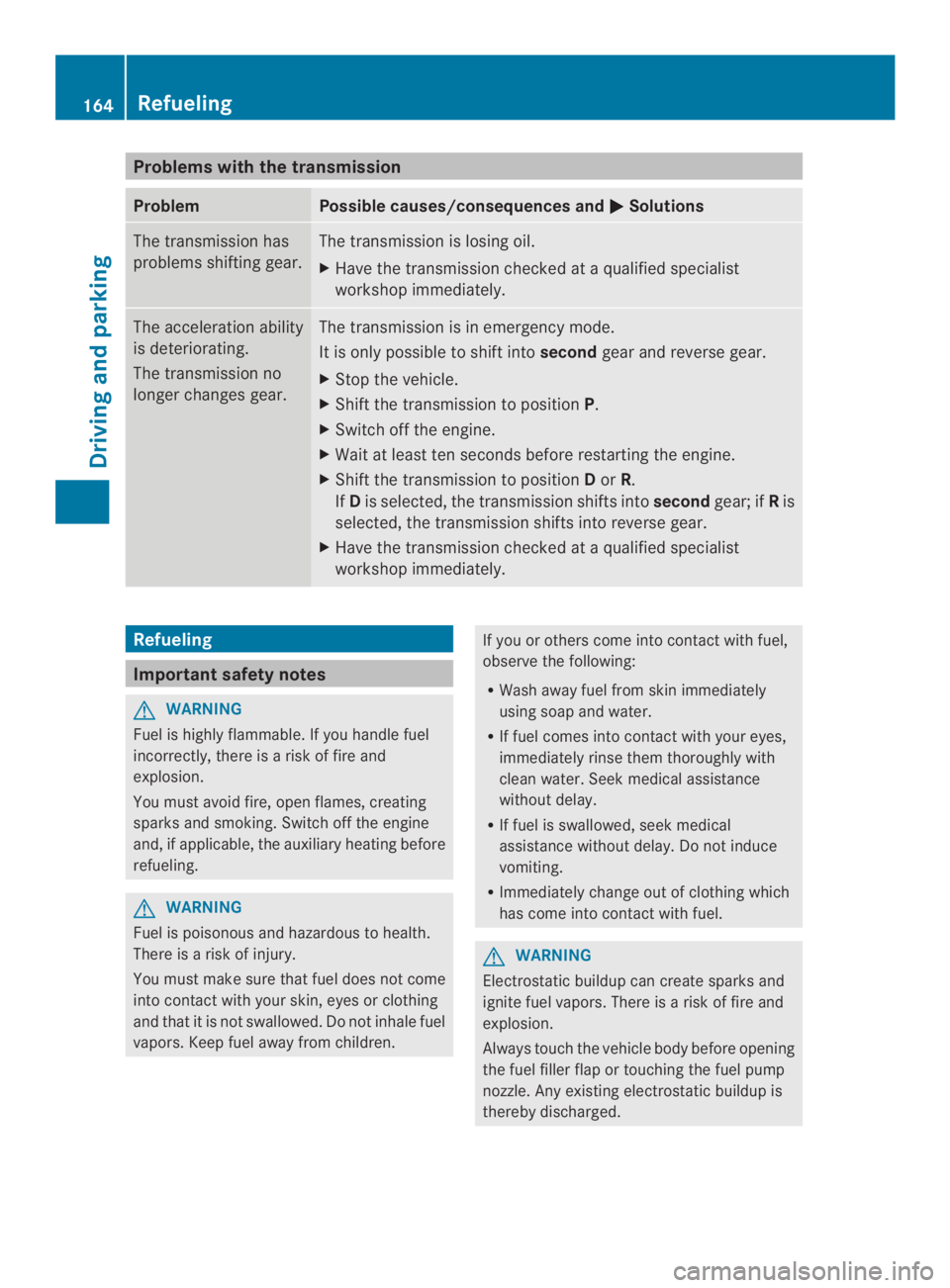

Problems with the transmission
ProblemPossible causes/consequences andSolutions
The transmission has
problems shifting gear.
The transmission is losing oil.
XHave the transmission checked ataqualified specialist
workshop immediately.
The acceleration ability
is deteriorating.
The transmission no
longer changes gear.
The transmission is in emergency mode.
It is only possible to shift intosecondgear and reverse gear.
XStop the vehicle.
XShift the transmission to positionP.
XSwitch off the engine.
XWait at least ten seconds before restarting the engine.
XShift the transmission to positionDorR.
IfDis selected, the transmission shifts intosecondgear; ifRis
selected, the transmission shifts into reverse gear.
XHave the transmission checked ataqualified specialist
workshop immediately.
Refueling
Important safety notes
GWARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there isarisk of fire and
explosion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating before
refueling.
GWARNING
Fuel is poisonous and hazardous to health.
There isarisk of injury.
You must make sure that fuel does not come
into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
If you or others come into contact with fuel,
observe the following:
RWash away fuel from skin immediately
using soap and water.
RIf fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance
without delay.
RIf fuel is swallowed, seek medical
assistance without delay.Donot induce
vomiting.
RImmediately change out of clothingwhich
has come into contact with fuel.
GWARNING
Electrostatic buildupcan create sparks and
ignite fuel vapors. There isarisk of fire and
explosion.
Always touch the vehicle body before opening
the fuel filler flap or touching the fuel pump
nozzle. Any existingelectrostatic buildupis
thereby discharged.
164Refueling
Driving and parking
