2014 MERCEDES-BENZ CLS stop start

Do not remove the SmartKeyfromthe
ignition lock. Do not open the driver's
door or front-passengerdoor when the
engine is switched off. Otherwise, the
automatic transmission selects park
positionPautomatically and locks the
wheels. You can prevent this by shifting
the automatic transmission toN
beforehand.
RVehicles with KEYLESS-GO:
Do not open the driver's door or front-
passenger door when the engine is
switched off. Otherwise, the automatic
transmission selects park positionP
automatically and locks the wheels.
Observe the following to make sure that the
automatic transmission stays in positionN:
XMake sure the vehicle is stationary and the
ignition is switched off.
XTurn the SmartKey to position2in the
ignition lock (Ypage 147).
Use the SmartKey instead of the Start/
Stop button on vehicles with KEYLESS-GO.
XDepress and hold the brake pedal.
XShift the automatic transmission to
positionN.
XRelease the brake pedal.
XRelease the electric parking brake.
XSwitch off the ignition and leave the
SmartKey in the ignition lock.
You can wash the vehicle in an automatic car
wash from the very start.
If the vehicle is very dirty, pre-wash it before
cleaning it in an automatic car wash.
After using an automatic car wash, wipe off
wax from the windshield and the wiper
blades. This will prevent smears and reduce
wiping noises caused by residue on the
windshield.
Washing by hand
In some countries, washing by hand is only
allowedatspecially equipped washing bays.
Observe the legal requirements in all
countries concerned.
XDo not use hot water and do not wash the
vehicle in direct sunlight.
XUseasoft sponge to clean.
XUseamild cleaning agent, such asacar
shampoo approved by Mercedes-Benz.
XThoroughly hose down the vehicle with a
gentle jet of water.
XDo not point the water jet directly towards
the air inlet.
XUse plenty of water and rinse out the
sponge frequently.
XRinse the vehicle with clean water and dry
thoroughly withachamois.
XDo not let the cleaning agent dry on the
paintwork.
When using the vehicle in winter, remove all
traces of road salt deposits carefully and as
soon as possible.
Power washers
GWARNING
The water jet fromacircular jet nozzle (dirt
blasters) can cause invisible exterior damage
to the tires or chassis components.
Componentsdamaged in this way may fail
unexpectedly. There isarisk of an accident.
Do not use power washers with circular jet
nozzles to clean the vehicle. Have damaged
tires or chassis components replaced
immediately.
!Always maintainadistance of at least
11.8in(30 cm) between the vehicleand the
powerwasher nozzle. Information about
thecorrectdistanceisavailablefromthe
equipmentmanufacturer.
Movethepower washernozzle around
when cleaning your vehicle.
Do not aim directly at any of the following:
Rtires
Rdoor gaps, roof gaps, joints, etc.
Relectrical components
312Care
Maintenance and care

Alignment bolt
%Sheet for faulty wheel
Tire inflation compressor
Lugwrench
Fuseallocation chart
XOpenthe trunk lid.
XLift the trunk floor upwards (Ypage 283).
Flat tire
Preparing the vehicle
Your vehicle may be equipped with:
RMOExtended tires (tires with run-flat
properties) (Ypage 321)
Vehicle preparation is not necessary on
vehicles with MOExtended tires.
Ran emergency spare wheel(Ypage 367)
Information on changing/mountingawheel
(Ypage 357).
XStop the vehicle on solid, non-slippery and
level ground, as far away as possible from
traffic.
XSwitch on the hazard warning lamps.
XSecure the vehicle against rolling away
(Ypage 167).
XIf possible, bring the front wheels into the
straight-ahead position.
XVehicles with AIRMATIC: make sure that
"normal" level is selected (Ypage 189).
XSwitch off the engine.
XVehicles without KEYLESS-GO:remove
the SmartKey from the ignition lock.
XVehicles with KEYLESS-GO:open the
driver's door.
The on-board electronicsnow have status
0.This is the same as the SmartKey having
been removed.
XVehicles with KEYLESS-GO:remove the
Start/Stop button from the ignition lock
(Ypage 147).
XAll occupants must get out of the vehicle.
Make sure that they are not endangered as
they do so.
XMake sure that no one is near the danger
area whileawheel is being changed.
Anyone who is not directly assisting in the
wheel change should, for example, stand
behind the barrier.
XGet out of the vehicle. Pay attention to
traffic conditionswhen doing so.
XClose the driver's door.
MOExtended tires (tires with run-flat
properties)
General notes
With MOExtended tires (tires with run flat
characteristics), you can continue to drive
your vehicle even if there isatotal loss of
pressure in one or more tires. The affected
tire must not show any clearly visible damage.
You can recognizeMOExtended tires by the
MOExtended marking which appears on the
sidewall of the tire. You will find this marking
next to the tire size designation, the load-
bearing capacity and the speed index
(Ypage 351).
MOExtended tires may only be used in
conjunction with an active tire pressure loss
warning system or with an active tire pressure
monitor.
If the pressureloss warning message
appearsinthe multifunction display:
RObserve the instructions in the display
messages (Ypage 258).
RCheck the tire for damage.
RIf driving on, observe the following notes.
The maximum driving distance is
approximately 50 miles (80 km) when the
vehicle is partially laden and approximately
18 miles (30 km) when the vehicle is fully
laden.
Flat tire321
Breakdown assistance

In addition to the vehicle load, the driving
distance possible depends upon:
RSpeed
RRoadcondition
ROutside temperature
The driving distance possible in run-flat mode
may be reduced by extreme driving
conditions/maneuvers, or it can be increased
throughamoderate style of driving.
The maximum permissible distance which
can be driven in run-flat mode is counted from
the moment the tire pressure loss warning
appears in the multifunction display.
You must not exceedamaximum speed of
50 mph (80 km/h).
iWhen replacing one or all tires, make sure
that you use only tires:
Rof the size specified for the vehicle and
Rmarked "MOExtended"
Ifatire has gone flat and cannot be
replaced withaMOExtended tire, a
standard tire may be used asatemporary
measure. Make sure that you use the
proper size and type (summerorwinter
tire).
Important safety notes
GWARNING
When drivinginemergencymode, the driving
characteristics deteriorate, e.g. when
cornering, accelerating quickly and when
braking. There isarisk of an accident.
Do not exceed the stated maximum speed.
Avoid abrupt steeringand drivingmaneuvers,
and drivingover obstacles (curbs, potholes,
off-road). This applies in particular toaladen
vehicle.
Stop drivinginemergencymode if:
Ryou hear bangingnoises.
Rthe vehicle starts to shake.
Ryou see smokeand smell rubber.
RESP®is interveningconstantly.
Rthere are tearsinthe sidewalls of the tire.
After drivinginemergency mode, have the
wheel rims checked ataqualified specialist
workshop with regardtotheir further use. The
defectivetiremust be replaced in everycase.
Battery (vehicle)
Important safety notes
Special tools and expert knowledge are
requiredwhen working on the battery, e.g.
removal and installing. You should therefore
have all work involvingthe battery carried out
ataqualified specialist workshop.
GWARNING
Work carried out incorrectly on the battery
can lead, for example, toashortcircuit and
thus damage the vehicle electronics. This can
lead to function restrictionsapplying to
safety-relevantsystems,e.g.thelighting
system, ABS(anti-lockbrakingsystem) or
ESP®(Electronic StabilityProgram). The
operating safetyofyour vehiclemay be
restricted. You could lose control of the
vehicle, for example:
Rbraking
Rin theevent of abruptsteeringmaneuver
and/orwhen the vehicle's speed is not
adapted to the road conditions
There isarisk of an accident.
In the event ofashort circuit orasimilar
incident, contactaqualified specialist
workshop immediately. Do not drive any
further. You should have all work involving the
battery carried out ataqualifiedspecialist
workshop.
GWARNING
Electrostatic build-up can lead to thecreation
of sparks,whichcould ignite thehighly
explosive gases ofabattery. Thereisariskof
an explosion.
322Battery (vehicle)
Breakdown assistance

XFirst, remove the jumper cablesfrom earth pointand negative terminal!,then from
positiveclampand positiveterminal$.Begineachtime at the contacts on your own
vehicle first.
XClose coverof positiveclampafterremoving the jumper cables.
XHave the battery checkedataqualified specialist workshop.
iJump-startingisnot considered to beanormal operatingcondition.
iJumper cables and further information regardingjump-starting can be obtained at any
qualified specialist workshop.
Towing and tow-starting
Importantsafetynotes
GWARNING
Functionsrelevant to safety are restricted or
no longer available if:
Rthe engineisnot running.
Rthe brake system or the power steering is
malfunctioning.
Rthereisamalfunction in the voltage supply
or the vehicle's electrical system.
If your vehicle is being towed, much more
forcemay be necessary to steer or brake.
There isarisk of an accident.
In such cases, useatow bar. Beforetowing,
make sure that the steering moves freely.
GWARNING
If the weight of the vehicle to be towed or tow-
started is greater than the permissible gross
weight of your vehicle:
Rthe towingeye could detach itself
Rthe vehicle/trailer combination could
rollover.
There isarisk of an accident.
When towingortow-starting another vehicle,
its weight should not be greater than the
permissible gross weight of your vehicle.
Information on your vehicle's gross vehicle
weight ratingcan be found on the vehicle
identification plate (Ypage 372).
!If DISTRONIC PLUS or the HOLD function
is activated, the vehicle brakes
automatically in certain situations. To
preventdamage to thevehicle,deactivate
DISTRONICPLUS and the HOLD function in
the following or other similar situations:
Rwhen towing the vehicle
Rin the car wash
!Only secure the tow rope or tow bar at the
towing eyes. Otherwise,the vehicle could
be damaged.
!Do not use the towing eye for recovery,
this could damage the vehicle.Ifindoubt,
recover the vehicle withacrane.
!When towing, pullawayslowly and
smoothly.Ifthe tractive power is too high,
the vehicles could be damaged.
!Do not tow with sling-type equipment.
This could damage the vehicle.
!When towing vehicles with KEYLESS-GO,
use the key instead of the Start/Stop
button. Otherwise, the automatic
transmission may shift to positionPwhen
the driver's or front-passenger door are
opened, which could lead to damage to the
transmission.
!The vehicle can be towedamaximum of
30 miles (50km). The towing speed of
30 mph (50 km/h) must not be exceeded.
If the vehicle has to be towed more than
30 miles(50km), the entire vehicle must be
raised and transported.
328Towing and tow-starting
Breakdown assistance

XTake coveroff the opening.
XScrew in and tighten the towing eye
clockwise to the stop.
Removing the towing eye
XUnscrew and remove the towing eye.
XPosition the top of coverin the bumper
and press it in at the bottom until it
engages.
XAttach coverto the bumper and press
until it engages.
XPlace the towing eye in the vehicle tool kit.
Towing the vehicle with the rear axle
raised
!The ignition must be switched off if you
are towing the vehicle with the rear axle
raised. Intervention by ESP®could
otherwise damage the brake system.
Only possible for vehicles without
4MATIC.
XSwitchonthe hazard warning lamps
(Ypage 120).
XTurn the SmartKey to position0in the
ignition lock and remove the SmartKey
from the ignition lock.
XWhen leaving the vehicle, take the
SmartKey or the KEYLESS-GO key with you.
When towing your vehicle with the rear axle
raised, it is importantthat you observe the
safety instructions (Ypage 328).
Towingavehicle with both axles on
theground
It is importantthat you observe the safety
instructions when towing away your vehicle
(Ypage 328).
The automatic transmission automatically
shifts to positionPwhen you open the driver's
or front-passenger door or when you remove
the SmartKey from the ignition lock. In order
to ensure that the automatic transmission
stays in positionNwhen towing the vehicle,
you must observe the following points:
XMake sure that the vehicle is stationary and
the SmartKey in the ignition lock is in
position0.
XTurn the SmartKey to position2in the
ignition lock.
On vehicles with KEYLESS-GO, use the
SmartKey instead of the Start/Stop button
(Ypage 147).
XDepress and hold the brake pedal.
XShift the automatic transmission to
positionN.
XRelease the brake pedal.
XRelease the parking brake.
XSwitch on the hazard warning lamps
(Ypage 120).
XLeave the SmartKey in position2in the
ignition lock.
iWhen towing with the hazard warning
lamps switched on, use the combination
switch as usualtosignalachange of
direction. In this case, only the indicator
lamps for the direction of travel flash. After
resetting the combination switch, the
hazard warning lamp starts flashing again.
Transporting the vehicle
!Only lash the vehicle down by the wheels
or wheel rims, not by parts of the vehicle
such as axle or steering components.
Otherwise, the vehicle could be damaged.
The towing eye can be used to pull the vehicle
ontoatrailer or transporter for transporting
purposes.
330Towing and tow-starting
Breakdown assistance

XTurn the SmartKey to position2in the
ignition lock.
XShift the automatic transmission to
positionN.
As soon as the vehicle is loaded:
XPrevent the vehicle from rolling away by
applying the parking brake.
XShift the automatic transmission to
positionP.
XTurn the SmartKey to position0in the
ignition lock and remove the SmartKey
from the ignition lock.
XSecure the vehicle.
Notes on 4MATIC vehicles
!Vehicles with 4MATICmust not be towed
with either the frontorthe rear axle raised,
as doing so will damage the transmission.
If the vehicle has transmission damage or
damage to the front or rear axle, have it
transported onatransporter or trailer.
In the event of damage to the electrical
system
If the battery is defective, the automatic
transmission will be locked in positionP.To
shift the automatic transmission to position
N,you must provide power to the vehicle's
electrical system in the same way as when
jump-starting (Ypage 326).
Have the vehicle transported onatransporter
or trailer.
Tow-starting (emergency engine
starting)
!Vehicles with automatic transmission
must not be started by tow-starting. This
could otherwise damage the transmission.
You can find information on "Jump-starting"
at (Ypage 326).
Fuses
Important safety notes
GWARNING
If you manipulate or bridgeafaulty fuse or if
you replace it withafuse withahigher
amperage, the electric cables could be
overloaded. This could result inafire. There
isarisk of an accident and injury.
Always replace faulty fuses with the specified
new fuses having the correct amperage.
!Only use fuses that have been approved
for Mercedes-Benzvehicles and which
have the correct fuse ratingfor the system
concerned. Otherwise, componentsor
systems could be damaged.
The fuses in your vehicle serve to close down
faulty circuits. Ifafuse blows,all the
componentsonthecircuit and their functions
stop operating.
Blown fusesmust be replacedwith fuses of
the same rating, which you can recognize by
the color and value. The fuse ratings are listed
in the fuse allocation chart.
Ifanewly inserted fuse also blows, have the
cause traced and rectified ataqualified
specialist workshop, e.g. an authorized
Mercedes-BenzCenter.
Beforechangingafuse
XSecure the vehicle against rolling away
(Ypage 167).
XSwitchoff all electrical consumers.
XTurn the SmartKey to position0in the
ignition lock and remove it (Ypage 147).
or
XOn vehicles with KEYLESS-GO, make sure
the ignition is switched off (Ypage 147).
All indicator lamps in the instrument cluster
must be off.
Fuses331
Breakdown assistance
Z

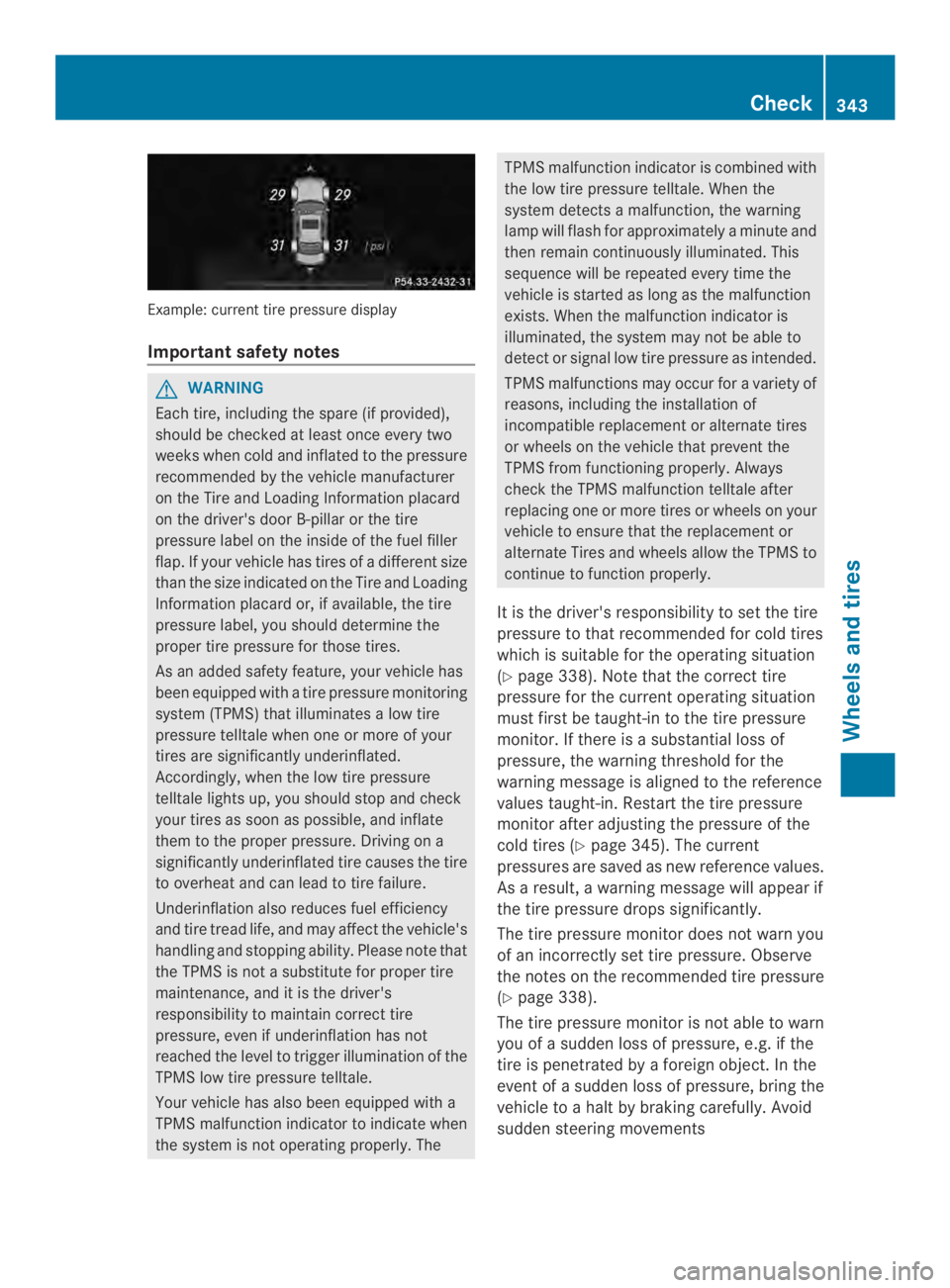

Example: current tire pressure display
Important safety notes
GWARNING
Each tire,including the spare (ifprovided),
should be checked at least once every two
weeks when cold and inflated to the pressure
recommended by the vehiclemanufacturer
on the Tire and Loading Information placard
on the driver'sdoor B-pillar or the tire
pressure label on the inside of the fuel filler
flap.Ifyour vehicle has tires ofadifferent size
than the size indicated on the Tire and Loading
Information placard or, if available, the tire
pressure label, you should determinethe
proper tire pressure for those tires.
As an added safety feature, your vehicle has
been equipped withatire pressure monitoring
system (TPMS) that illuminatesalow tire
pressure telltale when one or more of your
tires are significantly underinflated.
Accordingly, when the low tire pressure
telltale lights up, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Drivingona
significantly underinflated tire causes the tire
to overheat and can lead to tire failure.
Underinflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle's
handling and stopping ability. Please note that
the TPMS is notasubstitute for proper tire
maintenance, and it is the driver's
responsibility to maintain correcttire
pressure, even if underinflation has not
reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The
TPMS malfunction indicator is combined with
the low tire pressure telltale. When the
system detectsamalfunction, the warning
lamp will flash for approximatelyaminute and
then remain continuously illuminated. This
sequence will be repeated every time the
vehicle is started as long as the malfunction
exists. When the malfunction indicator is
illuminated, the system may not be able to
detect or signal low tire pressure as intended.
TPMS malfunctions may occur foravariety of
reasons, including the installation of
incompatible replacement or alternate tires
or wheels on the vehicle that prevent the
TPMS from functioning properly. Always
check the TPMS malfunction telltale after
replacing one or more tires or wheels on your
vehicle to ensure that the replacement or
alternate Tires and wheels allow the TPMS to
continue to function properly.
It is the driver's responsibility to set the tire
pressure to that recommended for cold tires
which is suitable for the operating situation
(Ypage 338). Note that the correcttire
pressure for the current operating situation
must first be taught-in to the tire pressure
monitor. If there isasubstantial loss of
pressure, the warning threshold for the
warning message is aligned to the reference
values taught-in.Restart the tire pressure
monitor after adjustingthe pressure of the
cold tires (Ypage 345). The current
pressures are saved as new reference values.
Asaresult,awarning message will appear if
the tire pressure drops significantly.
The tire pressure monitor does not warn you
of an incorrectly set tire pressure. Observe
the notes on the recommended tire pressure
(Ypage 338).
The tire pressure monitor is not able to warn
you ofasudden loss of pressure, e.g. if the
tire is penetrated byaforeign object. In the
event ofasudden loss of pressure, bring the
vehicle toahalt by brakingcarefully. Avoid
sudden steering movements
Check343
Wheels and tires
Z

to the tiresorchassiscomponents.
Components damagedinthiswaymayfail
unexpectedly.There isarisk of an accident.
Do not use power washers with circular jet
nozzles to clean the vehicle. Have damaged
tires or chassis components replaced
immediately.
Mountingawheel
Preparing the vehicle
XStop the vehicle on solid, non-slippery and
levelground.
XApply the parking brake.
XBring the front wheels into the straight-
ahead position.
XShift the transmission to positionP.
XVehicles with AIRMATIC:make sure that
"normal" levelisselected(Ypage 189).
XSwitch off theengine.
XVehicles without KEYLESS-GO:remove
theSmartKey from theignition lock.
XVehicles with KEYLESS-GO:open the
driver'sdoor.
The on-board electronics nowhave status
0.This is the same as the SmartKey having
been removed.
XVehicles with KEYLESS-GO:remove the
Start/Stop button from the ignition lock
(Ypage 147).
XIf included in the vehicle equipment,
remove the tire-change tool kit from the
vehicle (Ypage 320).
XSecure the vehicle to prevent it from rolling
away.
Securing the vehicle to prevent it from
rolling away
If your vehicle is equipped withawheel chock,
it can be found in the tire-change tool kit
(Ypage 320).
The folding wheel chock is an additional
safety measure to prevent the vehicle from
rolling away,for example when changing a
wheel.
XFold both plates upwards.
XFold out lower plate.
XGuidethe lugs on the lower plate fully into
the openings in base plate$.
Securing the vehicle on level ground
XOn level ground:place chocksorother
suitable items under the front and rear of
the wheel that is diagonallyopposite the
wheel you wish to change.
358Changingawheel
Wheels and tires
