Example:
RTreadweargrade:200
RTractiongrade:AA
RTemperature grade:A
All passengercar tires must conform to the
statutory safety requirements in additionto
these grades.
iTheactual values for tires arevehicle-
specificand maydeviate from the values in
the illustration.
Treadwear
The treadweargrade isacomparative rating
based on the wearrate of thetirewhen tested
undercontrolled conditions onaspecified
U.S. government course. For example,atire
graded 150 would wear one and one-half
times as well on the government course as a
tire graded 100.
The relative performanceoftires depends
upon the actual conditions of their use,
however, and may depart significantly from
the norm, due to variations in driving habits,
service practices and differences in road
characteristics and climate conditions.
Traction
GWARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
!Avoid wheelspin. This can lead to damage
to the drive train.
The traction grades, from highest to lowest,
are AA, A, B, and C. Those grades represent
the tire's ability to stop onawet surface as
measured under controlled conditions on
specified government test surfaces of asphalt
and concrete.Atire markedCmay have poor
traction performance.
The safe speed onawet, snowcovered or icy
road is always lower than on dry road
surfaces.
You should pay special attention to road
conditions when temperatures are around
freezingpoint.
Mercedes-Benzrecommendsaminimum
tread depthof in(4mm)onall four winter
tires. Observe the legally required minimum
tire tread depth (Ypage335). Winter tires can
reduce the braking distance on snow-covered
surfaces in comparison with summer tires.
The braking distance is still much further than
on surfaces that are not icy or covered with
snow. Take appropriate care when driving.
Further informationonwinter tires (M+S
tires) (Ypage336).
Temperature
GWARNING
The temperature grade for this tire is
established foratire that is properly inflated
and not overloaded. Excessive speed,
underinflation, or excessive loading, either
separately or in combination, can cause
excessive heat build-up and possible tire
failure.
The temperature grades areA(the highest),
B, and C. Theserepresent the tire's
resistancetothe generationofheat and its
ability to dissipate heat when tested under
controlled conditions onaspecified indoor
laboratory test wheel. Sustained high
temperature can cause the material of the tire
to degenerateand reduce tire life, and
excessive temperature can lead to sudden
tire failure. The gradeCcorresponds toalevel
of performancewhich all passenger car tires
must meet under the Federal Motor Vehicle
Safety Standard No. 109. GradesBand A
represent higher levels of performanceonthe
laboratory test wheel than the minimum
required by law.
350All about wheelsand tires
Wheels and tires

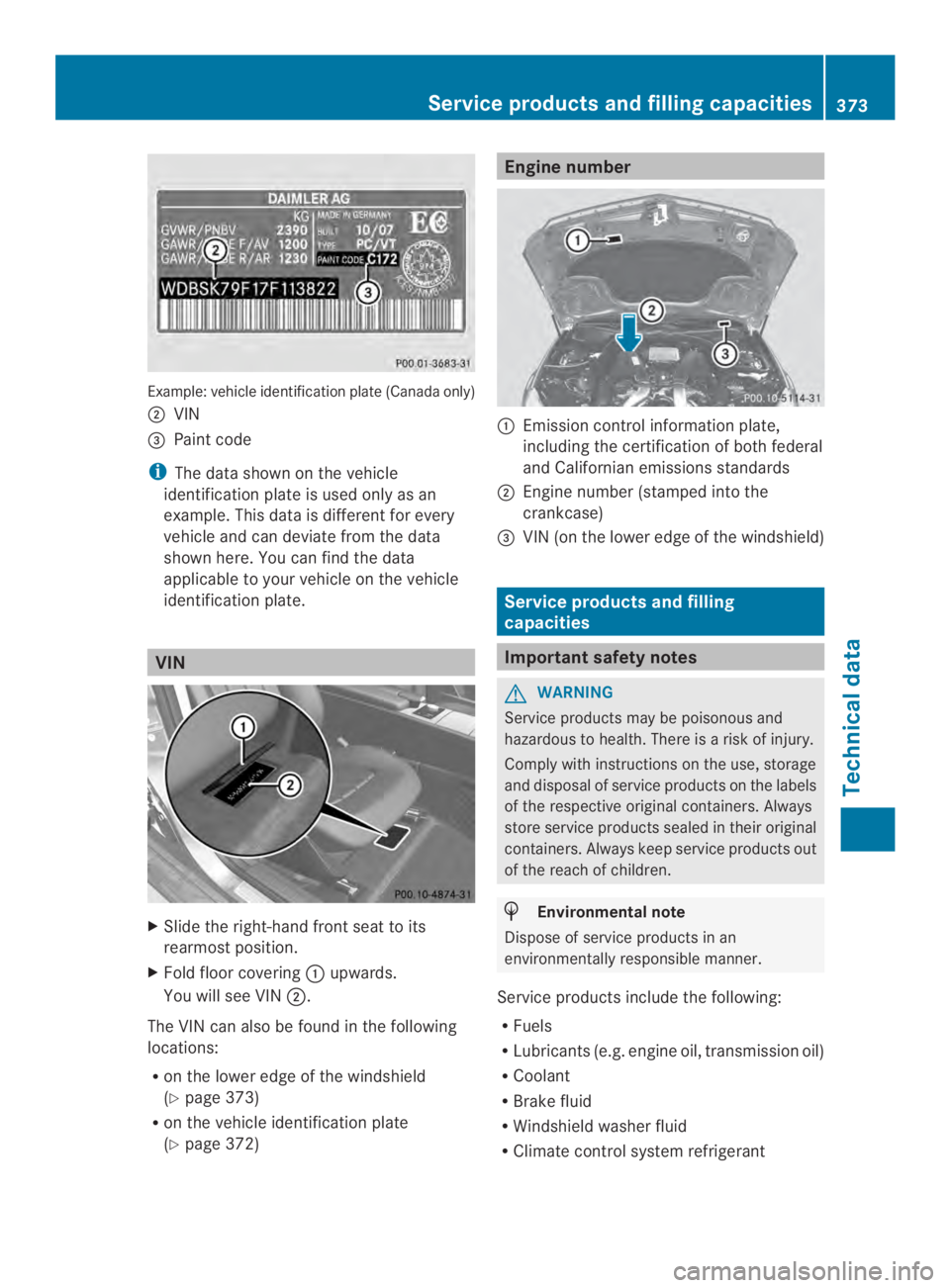

Example: vehicleidentification plate (Canada only)
VIN
$Paint code
iThe data shown on the vehicle
identificationplate is used only as an
example. This data is differentfor every
vehicle and can deviate from the data
shown here. You can find the data
applicabletoyour vehicle on the vehicle
identification plate.
VIN
XSlide the right-hand front seat to its
rearmost position.
XFold floor covering upwards.
You will see VIN .
The VIN can also be found in the following
locations:
Ron the lower edge of the windshield
(Ypage 373)
Ron the vehicle identification plate
(Ypage 372)
Engine number
Emission control information plate,
including the certification of both federal
and Californian emissions standards
Engine number (stamped into the
crankcase)
$VIN (on the lower edge of the windshield)
Service products and filling
capacities
Important safety notes
GWARNING
Serviceproducts may be poisonous and
hazardous to health. There isarisk of injury.
Comply with instructions on the use, storage
and disposal of service products on the labels
of the respective original containers. Always
store service products sealed in their original
containers. Always keep service products out
of the reach of children.
HEnvironmental note
Dispose of service products in an
environmentally responsible manner.
Serviceproducts include the following:
RFuels
RLubricants (e.g. engine oil, transmission oil)
RCoolant
RBrake fluid
RWindshield washer fluid
RClimate control system refrigerant
Service products and filling capacities373
Technical data
Z
Windshield washersystemand
headlamp cleaning system
Important safety notes
GWARNING
Windshieldwasher concentrate is highly
flammable. If it comes into contact with hot
engine components or the exhaust systemit
could ignite. There isariskoffire and injury.
Make sure that no windshield washer
concentrate is spilled nexttothe filler neck.
!Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or
MB WinterFit. Unsuitable washer fluid
could damage the plastic lenses of the
headlamps.
!Do not add distilled or de-ionized water to
the washer fluid container. Otherwise, the
level sensor may be damaged.
!Only MB SummerFit and MB WinterFit
washer fluid should be mixed together. The
spray nozzles may otherwise become
blocked.
Comply with the importantsafetynotesfor
serviceproductswhen handlingwasher fluid
(Ypage 373).
At temperatures abovefreezing:
XFill thewasherfluid reservoir withamixture
of water and windshield washer fluid, e.g.
MB SummerFit.
Add1part MB SummerFit to 100 partswater.
At temperatures below freezing:
XFill thewasherfluid reservoir withamixture
of water and washer fluid, e.g. MB
WinterFit.
Adapt the mixing ratio to the outside
temperature.
RDown to 14‡( "10 †): mix1part MB
WinterFit to2partswater.
RDown to "4‡( "20 †): mix1part MB
WinterFit to1part water.
RDown to "20.2‡( "29 †): mix2partsMB
WinterFit to1part water.
iAdd windshield washer fluid, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round.
Climate control system refrigerant
Important safety notes
Typeofrefrigerant
The climate control system of your vehicle is
The instruction label regarding the refrigerant
type used can be foundonthe radiator cross
member.
Refrigerant R-134a
!Only the refrigerantR-134a and the PAG
oil approved by Mercedes-Benzmay be
used. The approved PAGoil may notbe
mixed with any other PAG oil that is not
approved for R-134a refrigerant.
Otherwise, the climate control system may
be damaged.
Service work, such as topping-uprefrigerant
or replacing components, may only be carried
out byaqualified specialist workshop.All
applicable regulations must be adhered to,
SAEstandard J639 included.
Always have work on the climate control
system carried out ataqualified specialist
workshop.
378Service products and filling capacities
Technica ld ata
filled with refrigerantsR-134a.
