qJackí
NOTE
Your vehicle may or may not be equipped with
a jack and lug wrench. For details, consult an
Authorized Mazda Dealer.
To remove the jack
1. Lift the trunk mat.
Trunk mat
2. Remove the pocket.
3. Turn the wing bolt and jack screw
counterclockwise.
Wing bolt
Jack screw
To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing to the front and
turn the wing bolt clockwise to
temporarily tighten it.
2. Turn the jack screw in the direction
shown in the figure.
Wing bolt
Jack screw
3. Turn the wing bolt completely to
secure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
If Trouble Arises
Flat Tire
7-5íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page465
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (466,1)
Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
qSpare Tireí
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound
roads, and have an accident. Move a
regular tire to the front wheel and
install the temporary spare tire to the
rear.
CAUTION
ØWhen using the temporary spare
tire, driving stability may decrease
compared to when using only the
conventional tire. Drive carefully.
ØTo avoid damage to the temporary
spare tire or to the vehicle, observe
the following precautions:
ØDo not exceed 80 km/h (50
mph).
ØAvoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire, so the ground
clearance is reduced about
10 mm (0.4 in).
ØDo not use a tire chain on this
tire because it will not fit
properly.
ØDo not use your temporary
spare tire on any other vehicle,
it has been designed only for
your Mazda.
ØUse only one temporary spare
tire on your vehicle at the same
time.
To remove the spare tire
1. Lift the trunk mat.
Trunk mat
7-6
If Trouble Arises
íSome models.
Flat Tire
Mazda6_8DQ8-EA-13L_Edition3 Page466
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (467,1)
2. Turn the spare tire hold-down bolt
counterclockwise.
Spare tire hold-down bolt
To secure the spare tire
Store the spare tire in the reverse order of
removal. After storing, verify that the
spare tire is stored securely.
Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
í
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
Perform the emergency flat tire repair
without removing the nail or similar sharp
object which punctured the tire.
NOTE
Your vehicle is not equipped with a spare tire.
In the event of a flat tire, use the emergency
flat tire repair kit to repair the tire temporarily.
When doing the repair, refer to the instructions
included in the emergency flat tire repair kit. If
an emergency repair was performed on a flat
tire using the emergency flat tire repair kit,
have an Authorized Mazda Dealer, repair or
replace the tire as soon as possible.
If Trouble Arises
Flat Tire
7-7íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page467
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (468,1)

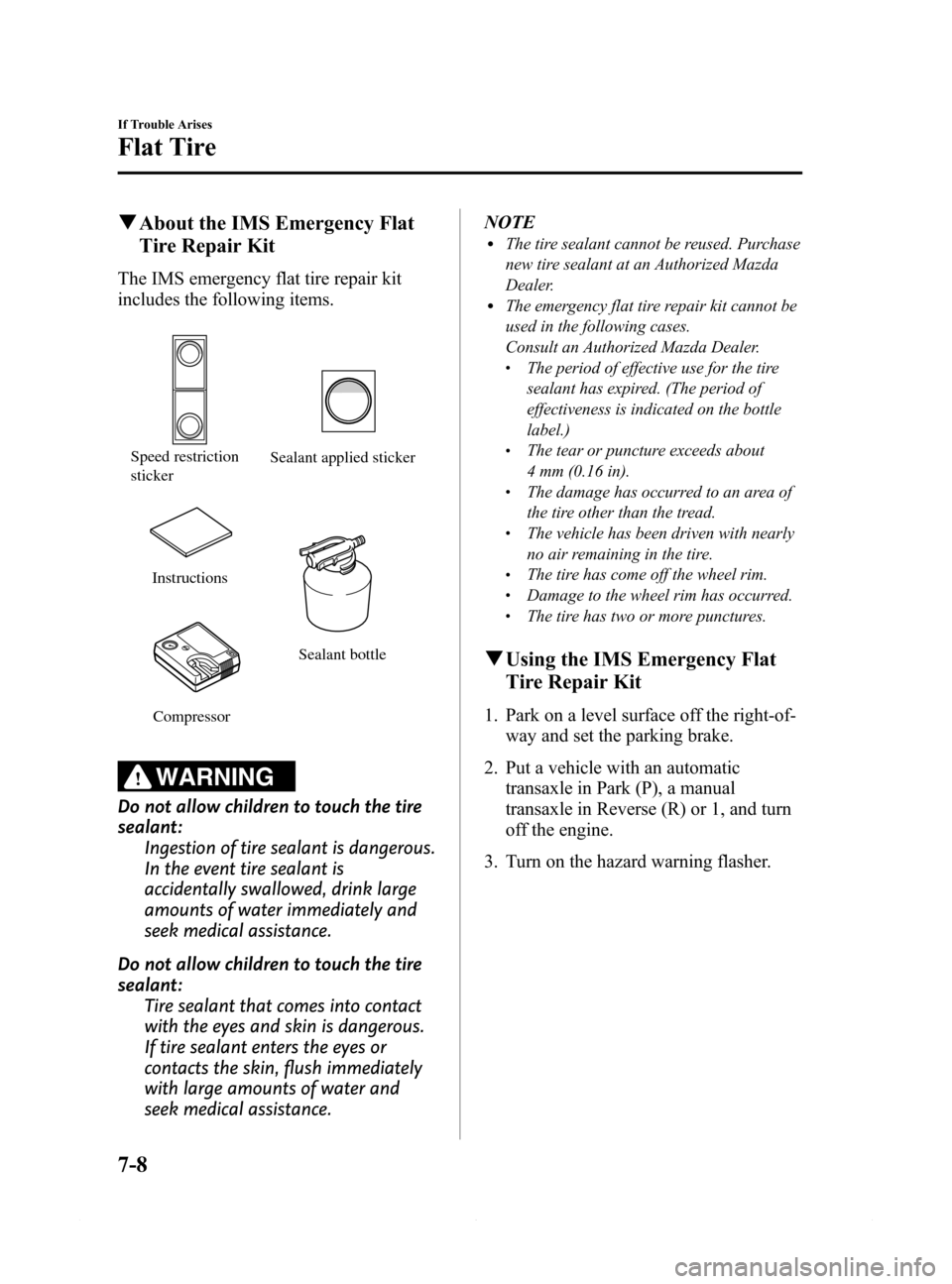

qAbout the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Sealant applied sticker
CompressorSealant bottle Speed restriction
sticker
Instructions
WARNING
Do not allow children to touch the tire
sealant:
Ingestion of tire sealant is dangerous.
In the event tire sealant is
accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance.
Do not allow children to touch the tire
sealant:
Tire sealant that comes into contact
with the eyes and skin is dangerous.
If tire sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance.NOTE
lThe tire sealant cannot be reused. Purchase
new tire sealant at an Authorized Mazda
Dealer.
lThe emergency flat tire repair kit cannot be
used in the following cases.
Consult an Authorized Mazda Dealer.
lThe period of effective use for the tire
sealant has expired. (The period of
effectiveness is indicated on the bottle
label.)
lThe tear or puncture exceeds about
4 mm (0.16 in).
lThe damage has occurred to an area of
the tire other than the tread.
lThe vehicle has been driven with nearly
no air remaining in the tire.
lThe tire has come off the wheel rim.lDamage to the wheel rim has occurred.lThe tire has two or more punctures.
qUsing the IMS Emergency Flat
Tire Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic
transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.
3. Turn on the hazard warning flasher.
7-8
If Trouble Arises
Flat Tire
Mazda6_8DQ8-EA-13L_Edition3 Page468
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (469,1)
4. Have passengers get out of the vehicle
and unload any luggage, and then
remove the emergency flat tire repair
kit.
NOTE
The tire sealant can be used at outside
temperatures down to_
30°C (_
22°F).
5. Remove the injection hose from the
compressor and insert the plug adaptor
to the sealant container orifice.
6. Remove the valve cap from the flat tire
and install the injection hose to the
valve of the flat tire securely.
Hose Valve cap Valve
7. Install the sealant container to the
compressor and press it in until the tab
clicks into place.
Ta b
If Trouble Arises
Flat Tire
7-9
Mazda6_8DQ8-EA-13L_Edition3 Page469
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (470,1)
8. Insert the compressor plug into the
interior accessory socket.
Center console
Compressor Compressor plug
CAUTION
ØBefore pulling out the compressor
plug from the electrical socket,
make sure the compressor power
switch is off.
ØThe compressor turns on and off
with the push-button switch.
9. Adhere the speed restriction sticker to
the speedometer at the location
indicated in the illustration, and the
sealant applied sticker to a flat surface
on the tire wheel.Speed restriction sticker
Sealant applied sticker
7-10
If Trouble Arises
Flat Tire
Mazda6_8DQ8-EA-13L_Edition3 Page470
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (471,1)
WARNING
Attach the speed restriction sticker in a
place where it can be viewed easily by
the driver:
ØApplying the speed restriction
sticker to the steering wheel is
dangerous as it could interfere
with the air bag deployment and
result in serious injury.
ØDo not apply the sticker to any
position other than the position
indicated in the illustration of the
speedometer.
10. Switch the ignition ON (engine
running).
11. Turn the compressor on and wait until
the sealant is injected into the tire.
After the sealant is injected into the
tire, continue waiting until the tire is
inflated to the correct air pressure.
NOTE
lCheck the tire inflation pressure label
(driver's door frame) for the correct tire
inflation pressure.
lIf the tire air pressure is not correct after a
few seconds, the tire may be seriously
damaged. Consult an Authorized Mazda
Dealer.
12. When the tire has been inflated to the
proper inflation pressure, turn the
compressor switch off and remove the
hose from the tire valve.
13. Install the tire valve cap.
14. Store the hose, removed from the
valve, in the trunk and resume driving
the vehicle.
CAUTION
ØDrive carefully to an Authorized
Mazda Dealer and keep the
vehicle speed below 80 km/h (50
mph).
ØIf the vehicle is driven over 80
km/h (50 mph), the vehicle might
begin to vibrate.
NOTE
lIf the tire is not properly inflated, the tire
pressure monitoring system warning light
will illuminate (page 4-23).
lDo not press the tire pressure monitoring
system set switch after installing the spare
tire or after using the emergency flat tire
repair kit. The switch is only to be pressed
after installing the repaired flat tire or
installing a replacement tire (page 4-23).
15. After driving the vehicle 5 km, set up
the compressor again using Step 8 of
the procedure. Turn the compressor
on and then off after a few seconds,
and check the tire air pressure. If the
tire air pressure is low, turn the
compressor on again and wait until
the tire inflates to the correct air
pressure.
CAUTION
ØIf the tire inflation pressure falls
below 130 kPa (1.3 kgf/cm2or bar,
18.9 psi), repair cannot be done
with the repair kit. Park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
ØIf the tire inflation pressure
continues to remain low, park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
If Trouble Arises
Flat Tire
7-11
Mazda6_8DQ8-EA-13L_Edition3 Page471
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (472,1)
NOTE
When checking the tire inflation pressure with
the tire pressure gauge on the compressor unit,
make sure the compressor switch is turned off.
16. The emergency flat tire repair is
completed if the tire air pressure does
not decrease. Drive the vehicle
carefully to the nearest Authorized
Mazda Dealer promptly and have the
tire replaced. Mazda recommends that
the tire be replaced with a new one. If
the tire is to be repaired and reused,
consult an Authorized Mazda Dealer.
Peel off the speed restriction sticker
after replacing the tire.
CAUTION
ØFor a tire which has undergone an
emergency flat tire repair using
the emergency flat tire repair kit,
Mazda recommends that the tire
be replaced with a new one as
soon as possible. If the tire is to be
repaired and reused, consult an
Authorized Mazda Dealer.
ØThe wheel can be reused after any
sealant adhering to it is wiped off
and carefully inspected. However,
replace the tire valve with a new
one.
qInspecting the IMS Emergency
Flat Tire Repair Kit
Inspect the emergency tire repair kit at
regular intervals.
lCheck the tire sealant period of
effective use.
lCheck the operation of the tire
compressor.NOTE
The tire sealant has a period of effective use.
Check the period of effective use indicated on
the bottle label and do not use it if it has
expired. Have the tire sealant replaced at an
Authorized Mazda Dealer before the period of
effective use has expired.
7-12
If Trouble Arises
Flat Tire
Mazda6_8DQ8-EA-13L_Edition3 Page472
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
