2014 MAZDA MODEL 6 Owners Manual (in English)

Black plate (81,1)
Advanced Keyless Entry
System
í
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your
physician if radio waves from the key
will affect the device.
The advanced keyless function allows you
to lock/unlock the doors and trunk lid, or
open the trunk lid while carrying the key
without using the key.
System malfunctions or warnings are
indicated by the following warning beeps.
lRequest switch Inoperable Warning
Beep
Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-40.
lKey Left-in-Trunk Warning Beep
Refer to Key Left-in-trunk Warning
Beep (With the advanced keyless
function) on page 7-40.
lKey Left-in-vehicle Warning Beep
Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-40.NOTE
The advanced keyless entry system functions
can be deactivated to prevent any possible
adverse effect on a user wearing a pacemaker
or other medical device. If the system is
deactivated, you will be unable to start the
engine by carrying the key. Consult an
Authorized Mazda Dealer for details. If the
advanced keyless entry system has been
deactivated, you can start the engine by
following the procedure indicated when the key
battery goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-6.
Before Driving
Advanced Keyless Entry System
3-9íSome models. Mazda6_8DQ8-EA-13L_Edition3 Page81
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (82,1)
Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
NOTE
When the battery power is low, or in places
where there are high-intensity radio waves or
noise, the operational range may become
narrower or the system may not operate. For
determining battery replacement, Refer to
Keyless Entry System on page 3-3.
qLocking, Unlocking the Doors
and the Trunk Lid
Exterior antenna
Operational range80cm (31in) 80cm (31in)
NOTE
The system may not operate if you are too
close to the windows, door handles.
qOpening the Trunk Lid
Exterior antenna
Operational range80cm (31in)
3-10
Before Driving
Advanced Keyless Entry System
Mazda6_8DQ8-EA-13L_Edition3 Page82
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (83,1)

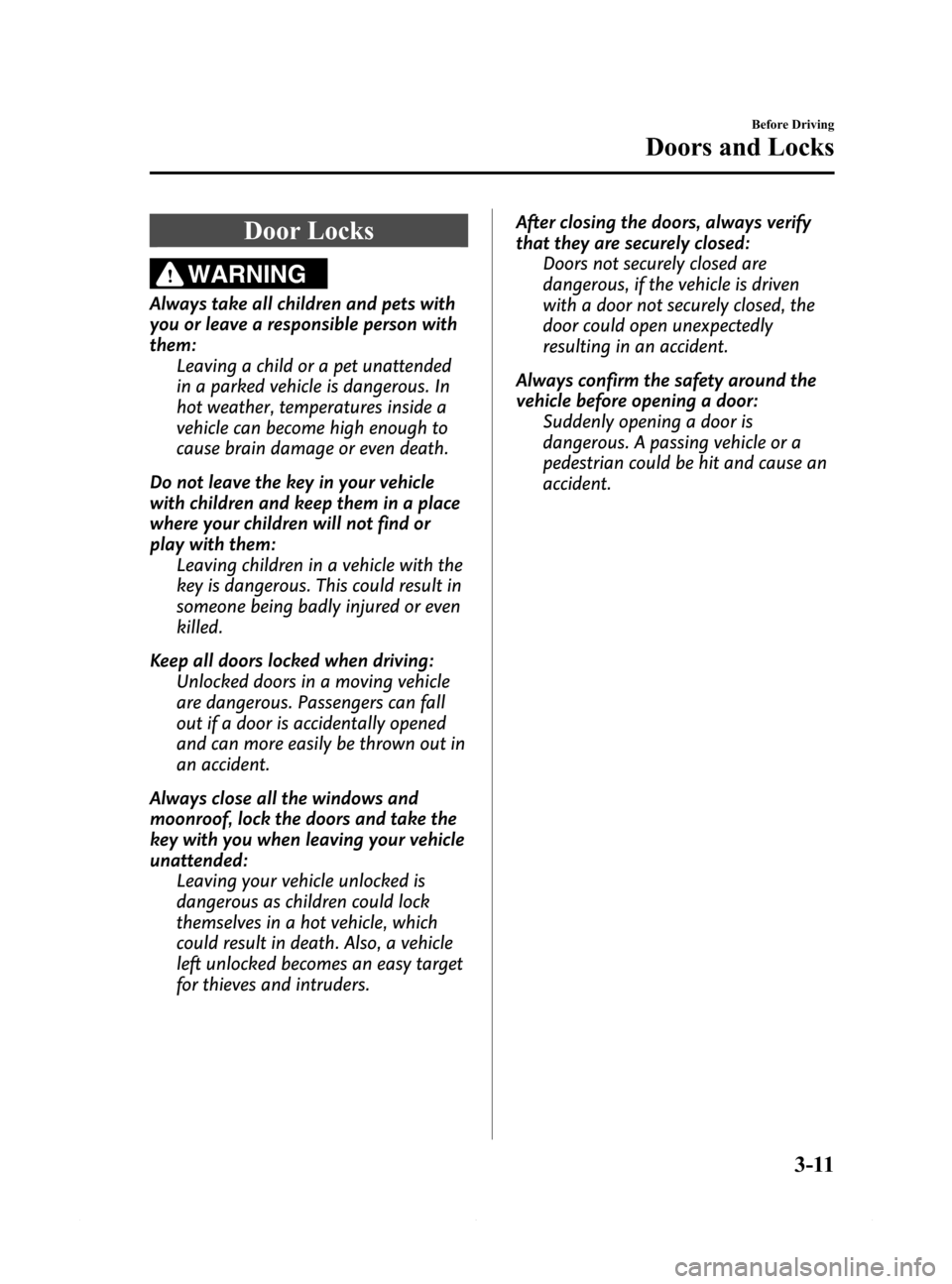

Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows and
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.After closing the doors, always verify
that they are securely closed:
Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident.
Always confirm the safety around the
vehicle before opening a door:
Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.
Before Driving
Doors and Locks
3-11
Mazda6_8DQ8-EA-13L_Edition3 Page83
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (84,1)
NOTElWhen the ignition is switched to ACC or
ON, the vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle.
All doors and the trunk lid will
automatically unlock if they are locked
using the power door locks with any door
open.
The vehicle lock-out prevention feature
does not operate while the ignition is
switched off.
When any door is opened from the outside
while the key is inside the vehicle, the
closed doors are locked. All the doors are
automatically unlocked by closing the open
door.
(With the advanced keyless function)
The beep sound is heard for about 10
seconds to notify the driver that the key has
been left in the vehicle.
(Without the advanced keyless function)
The horn sound is heard twice to notify the
driver that the key has been left in the
vehicle.
l(Door unlock (control) system with
collision detection)
This system automatically unlocks the
doors in the event the vehicle is involved in
an accident to allow passengers to get out
of the vehicle immediately and prevent
being trapped inside. While the ignition is
switched ON and in the event the vehicle
receives an impact strong enough to inflate
the air bags, all the doors are automatically
unlocked after about 6 seconds have
elapsed from the time of the accident.
The doors may not unlock depending on
how an impact is applied, the force of the
impact, and other conditions of the
accident.
If door-related systems or the battery is
malfunctioning, the doors will not unlock.
qLocking, Unlocking with Key
All doors and the trunk lid lock
automatically when the driver's door is
locked with the key.
All doors unlock when the driver's door is
unlocked and the key is held in the unlock
position for one second or longer.
Turn the key toward the front to lock,
toward the back to unlock.
LockUnlock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors. To unlock only the driver's door,
insert the key into the driver's door lock and
turn the key briefly to the unlock position and
then immediately return it to the center
position.
3-12
Before Driving
Doors and Locks
Mazda6_8DQ8-EA-13L_Edition3 Page84
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (85,1)
qLocking, Unlocking with Request
Switch (With the advanced
keyless function)
All doors and the trunk lid can be locked/
unlocked by pressing the request switch
on the front doors while the key is being
carried.
Front doors
Request switch
To lock
To lock the doors and the trunk lid, press
the request switch and the hazard warning
lights will flash once.
A beep sound will be heard once.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors, press the request
switch again within 3 seconds and two
more beep sounds will be heard.
Front passenger door request switch
To unlock all doors, press the request
switch. A beep sound will be heard twice
and the hazard warning lights will flash
twice.NOTE
lThe system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
9-9.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the
doors and the trunk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's
door, press and hold the UNLOCK button
on the key for 5 seconds or longer. The
sound of the doors locking/unlocking can
be heard.
After this, the system switches the setting
each time the UNLOCK button is pressed
(the sound of the doors locking/unlocking
can be heard).
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the trunk lid.lThe key is not operated for 10 seconds.lPress any button except the UNLOCK
button on the key.
lA request switch is pressed.lConfirm that all doors and the trunk lid are
securely locked.
For the trunk lid, move it without pressing
the electric trunk lid opener to verify that
the trunk lid has not been left ajar.
lAll doors and the trunk lid cannot be locked
when any door is open.
lIt may require a few seconds for the doors
to unlock after the request switch is
pressed.
Before Driving
Doors and Locks
3-13
Mazda6_8DQ8-EA-13L_Edition3 Page85
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (86,1)
lA beep sound is heard for confirmation
when the doors and the trunk lid are
locked/unlocked using the request switch. If
you prefer, the beep sound can be turned
off.
The volume of the beep sound can also be
changed.
Refer to Personalization Features on page
9-9.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the
doors and the trunk lid.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's
door, press and hold the LOCK button on
the key for 5 seconds or longer.
All of the doors and the trunk lid lock and
the beep sound activates at the currently set
volume. (If the beep sound is currently set
to not activate, it will not activate.) The
setting changes each time the LOCK button
on the key is pressed and the beep sound
activates at the set volume. (If the beep
sound has been set to not activate, it will
not activate.)
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the trunk lid.lThe key is not operated for 10 seconds.lPress any button except the LOCK
button on the key.
lA request switch is pressed.l(With theft-deterrent system)
The hazard warning lights flash when the
theft-deterrent system is armed or turned
off.
Refer to Theft-Deterrent System on page
3-43.
lThe setting can be changed so that the
doors and the trunk lid are locked
automatically without pressing the request
switch.
Refer to Personalization Features on page
9-9.
(Auto-lock function)
A beep sound is heard when all doors are
closed while the advanced key is being
carried. All doors and the trunk lid are
locked automatically after about three
seconds when the advanced key is out of the
operational range. Also, the hazard
warning lights flash once. (Even if the
driver is in the operational range, all doors
and the trunk lid are locked automatically
after about 30 seconds.) If you are out of
the operational range before the doors and
the trunk lid are completely closed or
another key is left in the vehicle, the auto-
lock function will not work. Always make
sure that all doors and the trunk lid are
closed and locked before leaving the
vehicle. The auto-lock function does not
close the power windows.
l(Auto re-lock function)
After unlocking with the request switch, all
doors and the trunk lid will automatically
lock if any of the following operations are
not performed within about 60 seconds. If
your vehicle has a theft-deterrent system,
the hazard warning lights will flash for
confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
9-9.
lA door or the trunk lid is opened.lThe ignition is switched to any position
other than off.
3-14
Before Driving
Doors and Locks
Mazda6_8DQ8-EA-13L_Edition3 Page86
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (87,1)

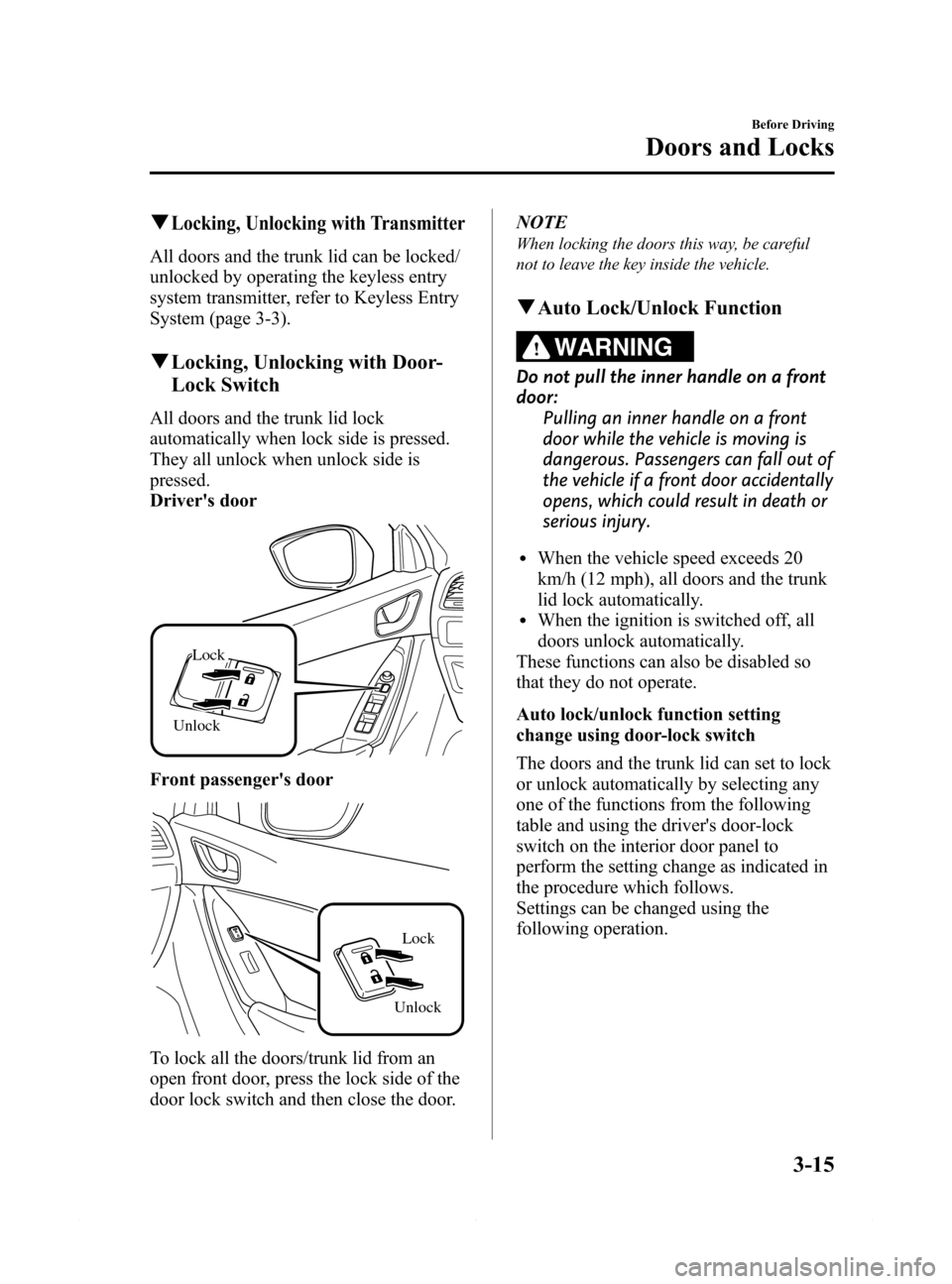

qLocking, Unlocking with Transmitter
All doors and the trunk lid can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-3).
qLocking, Unlocking with Door-
Lock Switch
All doors and the trunk lid lock
automatically when lock side is pressed.
They all unlock when unlock side is
pressed.
Driver's door
Unlock
Lock
Front passenger's door
UnlockLock
To lock all the doors/trunk lid from an
open front door, press the lock side of the
door lock switch and then close the door.NOTE
When locking the doors this way, be careful
not to leave the key inside the vehicle.
qAuto Lock/Unlock Function
WARNING
Do not pull the inner handle on a front
door:
Pulling an inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if a front door accidentally
opens, which could result in death or
serious injury.
lWhen the vehicle speed exceeds 20
km/h (12 mph), all doors and the trunk
lid lock automatically.
lWhen the ignition is switched off, all
doors unlock automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the trunk lid can set to lock
or unlock automatically by selecting any
one of the functions from the following
table and using the driver's door-lock
switch on the interior door panel to
perform the setting change as indicated in
the procedure which follows.
Settings can be changed using the
following operation.
Before Driving
Doors and Locks
3-15
Mazda6_8DQ8-EA-13L_Edition3 Page87
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (88,1)
NOTElFunction number 3 is the factory setting for
your vehicle.
lThere are only a total of five auto lock/
unlock settings available for automatic
transaxle vehicles, and three for manual
transaxle vehicles. Be sure to press the
unlock side of the driver's door-lock switch
the correct number of times according to
the selected function number. If the switch
is mistakenly pressed six times on an
automatic transaxle vehicle or four times
on a manual transaxle, the procedure will
be invalidated. If this occurs, start the
procedure from the beginning.
Function
numberFunction*1
1The auto door-lock function is
disabled.
2All the doors and the trunk lid lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
3All the doors and the trunk lid lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors unlock when the ignition
is switched from ON to Off.
4(Automatic transaxle vehicles only)
When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the trunk lid lock
automatically.
5(Automatic transaxle vehicles only)
When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the trunk lid lock
automatically.
When the shift lever is shifted to park
(P) while the ignition is switched ON,
all the doors unlock automatically.
*1 Other settings for the auto door lock function are
available at an Authorized Mazda Dealer. For
details consult an Authorized Mazda Dealer.
Refer to Personalization Features on page 9-9.
1. Safely park the vehicle. All doors must
remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the
driver's door-lock switch within 20
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
4. Referring to the auto lock/unlock
function setting table and determine the
function number for the desired setting.
Press the unlock side of the driver's
door-lock switch the same number of
times as the selected function number
(Ex. If you select function 2, press the
unlock side of the switch only 2 times).
5. Three seconds after the function setting
has been changed, a beep sound will
beep in the amount of the selected
function number. (Ex. Function
number 3 = 3 beep sounds)
3-16
Before Driving
Doors and Locks
Mazda6_8DQ8-EA-13L_Edition3 Page88
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L
