2014 MAZDA MODEL 2 Owners Manual

Black plate (17,1)
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
CAUTION
Be careful not to place your hands
and fingers around moving parts of
the rear seat when adjusting the seat
positions to prevent injury.
NOTE
When returning a rear seat to its original
position, also replace the seat belt to its
normal position. Verify that the seat belt pulls
out and retracts.
q Split-Folding Rear Seatback
The seatbacks can be folded down to
provide more space in the luggage
compartment.
To fold the seatbacks
CAUTION
Ø When operating the rear seatback
knob, make sure you support the
seatback with your hand. If the
seatback is not supported with
your hand, it will flip forward
suddenly and could cause injury to
the finger that pushes the rear
seatback knob down.
Ø Check the position of a front seat
before folding a rear seatback.
Depending on the position of a
front seat, it may not be possible
to fold a rear seatback all the way
down because it may hit the
seatback of the front seat which
could scratch or damage the front
seat. Remove the head restraint on
the rear outboard seat if
necessary.
1. Lower the head restraint all the way down (page 2-7).
2. Support the seatback with your hand.
Essential Safety Equipment
Seats
2-5
Mazda2_8DB2-EA-13G_Edition4 Page17
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (18,1)
3. Push the rear seatback knob down.
4. Secure the rear seat belt in the belt clip.
Belt clip
To return the seatbacks to the upright
position
WARNING
Always make sure the seat belts are
fully pulled out from under the
seatbacks:A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
When returning the seatback to the
upright position, make sure there is no
red indication: A rear seatback not fully returned
and locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob,
the seatback is not locked in the
upright position.
Locked position
Unlocked position
Red indicator
2-6
Essential Safety Equipment
Seats
Mazda2_8DB2-EA-13G_Edition4 Page18
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

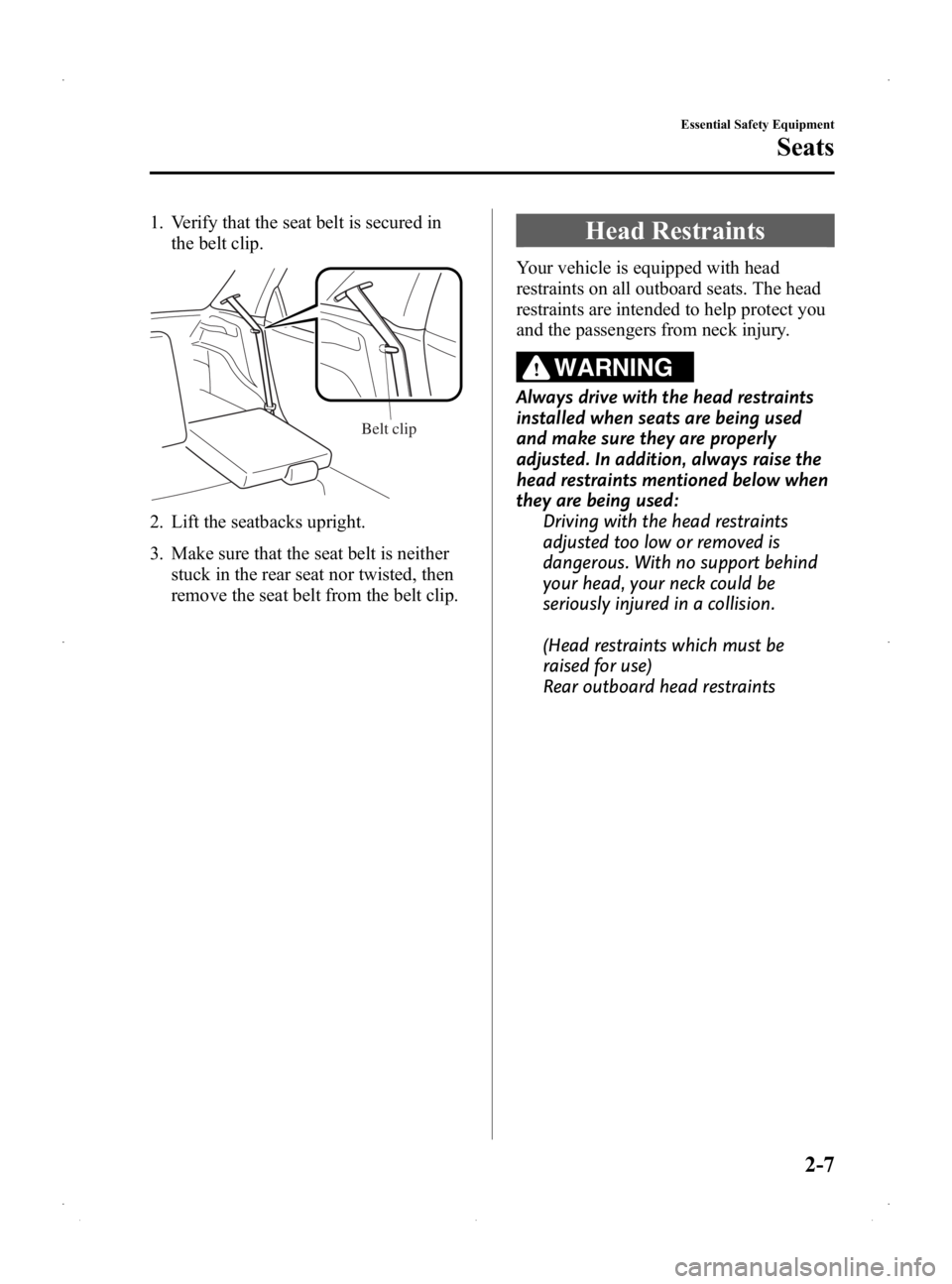

Black plate (19,1)
1. Verify that the seat belt is secured inthe belt clip.
Belt clip
2. Lift the seatbacks upright.
3. Make sure that the seat belt is neitherstuck in the rear seat nor twisted, then
remove the seat belt from the belt clip.
Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats. The head
restraints are intended to help protect you
and the passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted. In addition, always raise the
head restraints mentioned below when
they are being used: Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
(Head restraints which must be
raised for use)
Rear outboard head restraints
Essential Safety Equipment
Seats
2-7
Mazda2_8DB2-EA-13G_Edition4 Page19
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (20,1)
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the center
is even with the top of the passenger's
ears.
Front outboard seat
Rear outboard seat
Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, insert the legs
into the holes while pressing the stop-
catch.
WARNING
Always drive with the head restraints
set up when seats are being used and
make sure they are properly set up:Driving with the head restraints not
set up is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
2-8
Essential Safety Equipment
Seats
Mazda2_8DB2-EA-13G_Edition4 Page20
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (21,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
Essential Safety Equipment
Seat Belt Systems
2-9
Mazda2_8DB2-EA-13G_Edition4 Page21
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (22,1)
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts: Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.
Never use one seat belt on more than one person at a time: Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt: Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended: Always have an Authorized Mazda Dealer immediately inspect the front seat belt
pretensioners and air bags after any collision. Like the air bags, the front seat belt
pretensioners and load limiters will only function once and must be replaced after
any collision that caused them to deploy. A seat belt with an expended pretensioner
or load limiter is still better than wearing no seat belt at all; however, if the front
seat belt pretensioners and load limiters are not replaced, the risk of injury in a
collision will increase.
2-10
Essential Safety Equipment
Seat Belt Systems
Mazda2_8DB2-EA-13G_Edition4 Page22
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (23,1)
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing ”(page 8-53).
q Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
Essential Safety Equipment
Seat Belt Systems
2-11
Mazda2_8DB2-EA-13G_Edition4 Page23
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (24,1)
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-21).
2-12
Essential Safety Equipment
Seat Belt Systems
Mazda2_8DB2-EA-13G_Edition4 Page24
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G
