2014 MAZDA MODEL 2 Owners Manual

Black plate (217,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
Do not put articles in storage spaces
with no lid: Putting articles in storage spaces
with no lid is dangerous as they
could be thrown around the cabin if
the vehicle is suddenly accelerated
and cause injury depending on how
the article is stored.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
qCenter Console Tray
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Interior Comfort
Interior Equipment
6-51
Mazda2_8DB2-EA-13G_Edition4 Page217
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (218,1)
A cup or small items can be placed on the
center console tray using the center
console divider.
The center console tray is large enough to
place a small item when the center
console divider is not in use.Accessory Socket
Switch the ignition to ACC or ON.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
6-52
Interior Comfort
Interior Equipment
Mazda2_8DB2-EA-13G_Edition4 Page218
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (219,1)
CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
ØDo not insert the cigarette
lighter into the accessory
socket.
Ø Noise may occur on the audio
playback depending on the device
connected to the accessory socket.
Ø Depending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-53
Mazda2_8DB2-EA-13G_Edition4 Page219
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (220,1)
6-54
Mazda2_8DB2-EA-13G_Edition4 Page220
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (221,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-6
Overheating ................................................................................. 7-15 Overheating ............................................................................. 7-15
Emergency Starting .................................................................... 7-17 Starting a Flooded Engine ....................................................... 7-17
Jump-Starting .......................................................................... 7-18
Push-Starting ........................................................................... 7-21
Emergency Towing ..................................................................... 7-22 Towing Description ................................................................. 7-22
Tiedown Hooks
í.................................................................... 7-23
Recreational Towing ............................................................... 7-24
7-1íSome models.
Mazda2_8DB2-EA-13G_Edition4 Page221
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (222,1)

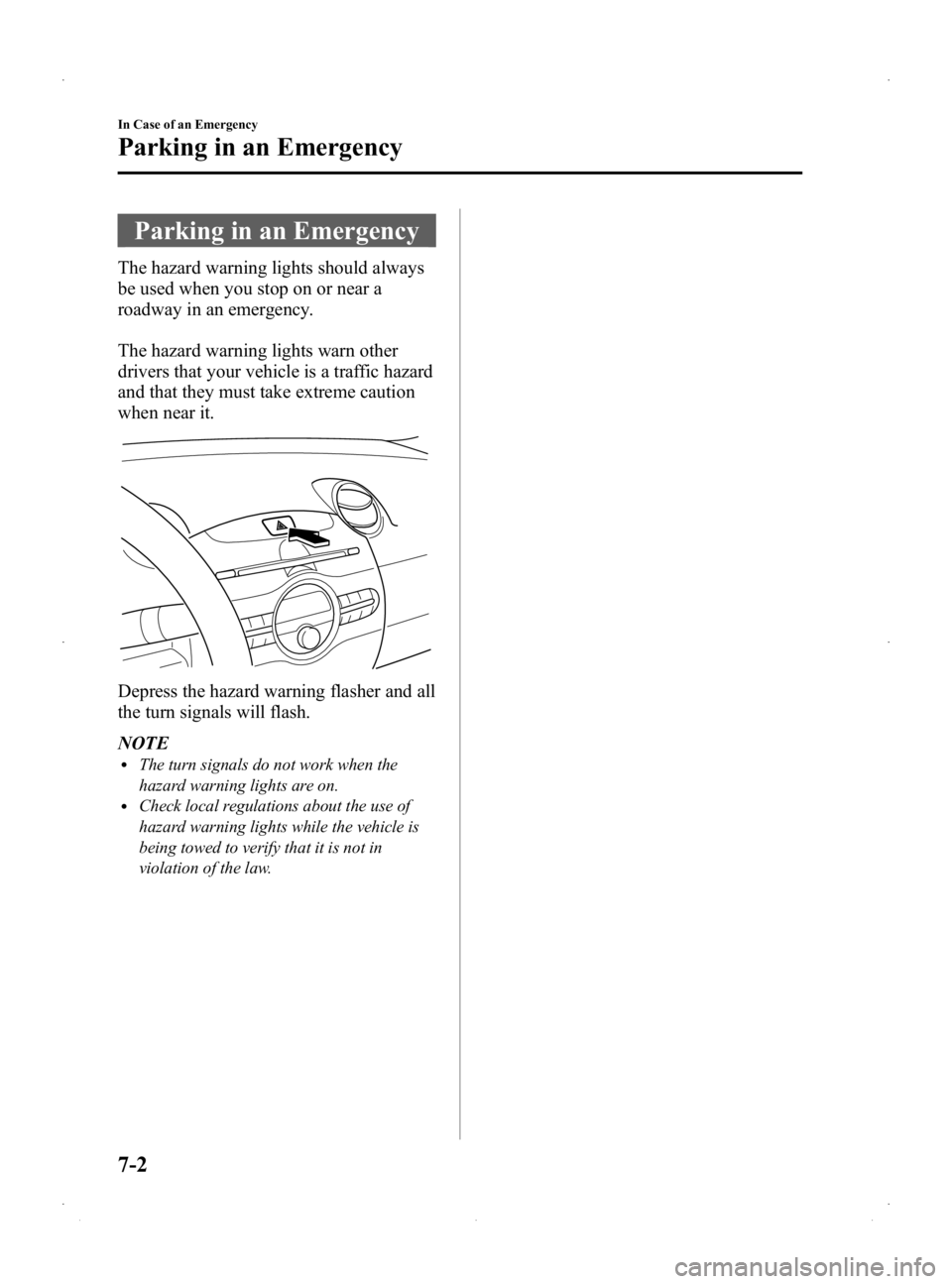

Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
Mazda2_8DB2-EA-13G_Edition4 Page222
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (223,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Jack lever
Lug wrench
Jack
Tool bag
Spare tire Flat tire belt
Tiedown eyelet
Some models.
In Case of an Emergency
Flat Tire
7-3
Mazda2_8DB2-EA-13G_Edition4 Page223
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (224,1)
qJack
To remove the jack
1. Remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing bolt
Jack screw
To secure the jack
1. Insert the wing bolt into the jack withthe jack screw pointing down and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction shown in the figure.
Wing bolt
Jack screw
3. Turn the wing bolt completely tosecure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
7-4
In Case of an Emergency
Flat Tire
Mazda2_8DB2-EA-13G_Edition4 Page224
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G
