2014 Lexus IS F Owner's Manual

456
4-3. Do-it-yourself maintenance

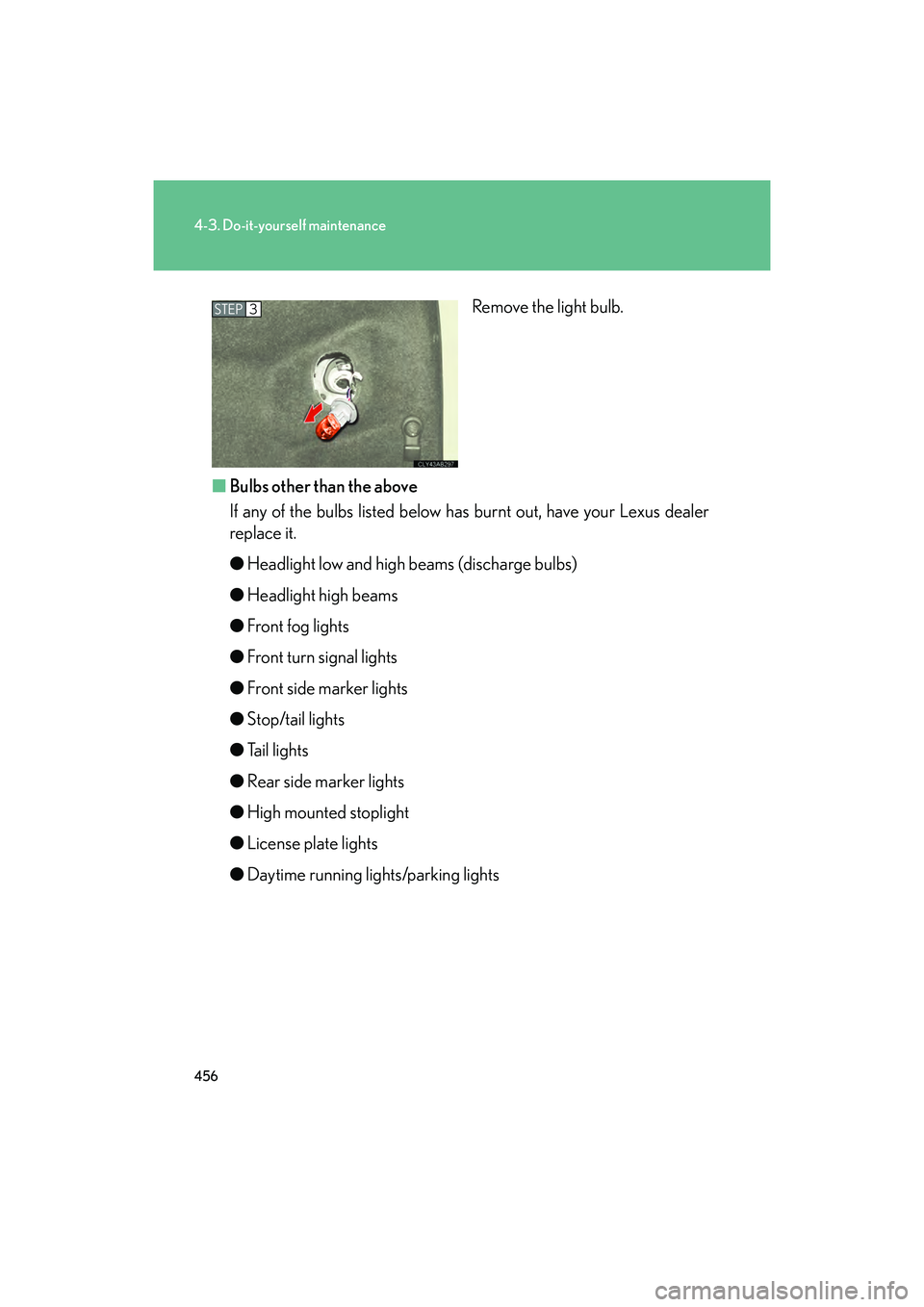

IS F_URemove the light bulb.
■ Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
● Headlight low and high beams (discharge bulbs)
● Headlight high beams
● Front fog lights
● Front turn signal lights
● Front side marker lights
● Stop/tail lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lights
● Daytime running lights/parking lights
STEP3

457
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_U

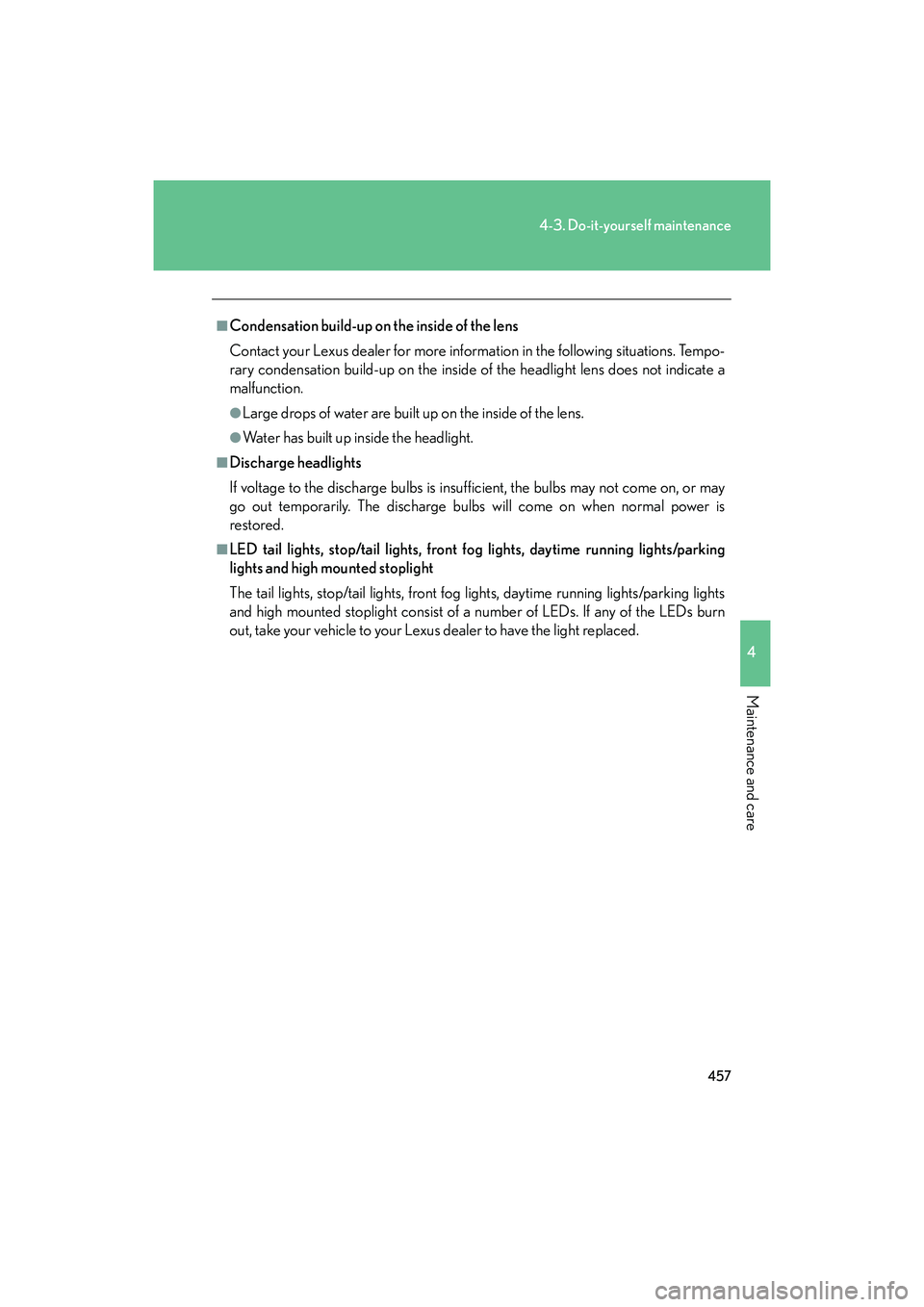

■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED tail lights, stop/tail lights, front fog lights, daytime running lights/parking
lights and high mounted stoplight
The tail lights, stop/tail lights, front fog lights, daytime running lights/parking lights
and high mounted stoplight consist of a number of LEDs. If any of the LEDs burn
out, take your vehicle to your Lexus dealer to have the light replaced.

458
4-3. Do-it-yourself maintenance
IS F_U
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■Discharge headlights
●Contact your Lexus dealer before replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result in
serious injury or death by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

When trouble arises5
459
IS F_U
5-1. Essential informationEmergency flashers............... 460
If your vehicle needs to be towed ....................................... 461
If you think something is wrong ...................................... 467
Fuel pump shut off system ..................................... 468 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ................................. 469
If a warning message is displayed................................. 479
If you have a flat tire............... 493
If the engine will not start ......................................... 502
If the shift lever cannot be shifted from P ....................... 503
If you lose your keys .............. 504
If the electronic key does not operate properly.......... 505
If the vehicle battery is discharged ............................ 508
If your vehicle overheats ....... 511
If the vehicle becomes stuck......................................... 514
If your vehicle has to be stopped in an
emergency ............................. 515

460
IS F_U
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the engine is
not running.
Use the emergency flashers if the vehicle malfunctions or is involved in an
accident.
Press the switch to flash all the
turn signal lights. To turn them
off, press the switch once again.

5
When trouble arises
461
5-1. Essential information
IS F_U
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet. This should only be attempted on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion. Towing eyelet
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
If towing from the rear, the vehicle’s front wheels and axles must be in good
condition. ( →P. 4 6 5 )
If they are damaged, use a towing dolly or flat bed truck.

462
5-1. Essential information
IS F_U
■Emergency towing procedureRelease the parking brake.
Shift the shift lever to N.
Put the “ENGINE START STOP” switch in ACCESSORY mode (engine
off) or IGNITION ON mode (engine running).
CAUTION
■Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelet and the cables or chains. Always be cautious of the
surroundings and other vehicles while towing.
●If the engine is not running, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle from the rear with four wheels on the ground. This may cause
serious damage to the transmission.
STEP1
STEP2
STEP3

5
When trouble arises
463
5-1. Essential information
IS F_U
Installing the towing eyeletRemove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut wrench.
STEP1
STEP2
STEP3
■Location of the emergency towing eyelet
→P. 4 9 3
