Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log
62
132 Months or 110,000 Miles
❑ Replace engine oil with 0W-20 oil;
replace oil filter
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
138 Months or 115,000 Miles
❑ Inspect and adjust all fluid levels
❑ Inspect engine coolant (see page 69)
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under certain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
Date: _______ Mileage: ________Date: _______ Mileage: ________
129173_text.indd 628/20/13 10:25 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log63
144 Months or 120,000 Miles
❑ Replace engine oil with 0W-20 oil; replace oil filter
❑ Replace cabin air filter
❑ Replace brake fluid
❑ Replace engine air filter
❑ Replace Smart Key battery
❑ Replace spark plugs1
❑ Inspect the following:
__ Axle shaft boots
__ Ball joints and dust covers
__ Body
__ Brake lines and hoses
__ Brake rotor thickness and runout
__ Drive belt
__ Exhaust pipes and mountings
If you drive primarily under this special operating condition, perform these
additional items:
Driving on dirt roads or on dusty roads:
❑ Tighten nuts and bolts on chassis __
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Rack-and-pinion assembly
__ Steering linkage and boots
__ Transmission for signs of leakage
__ Wiper blades
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
1Required under the terms of the Emission Control Warranty.
Date: __________________________ Mileage: __________________________
129173_text.indd 638/20/13 10:25 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log
64

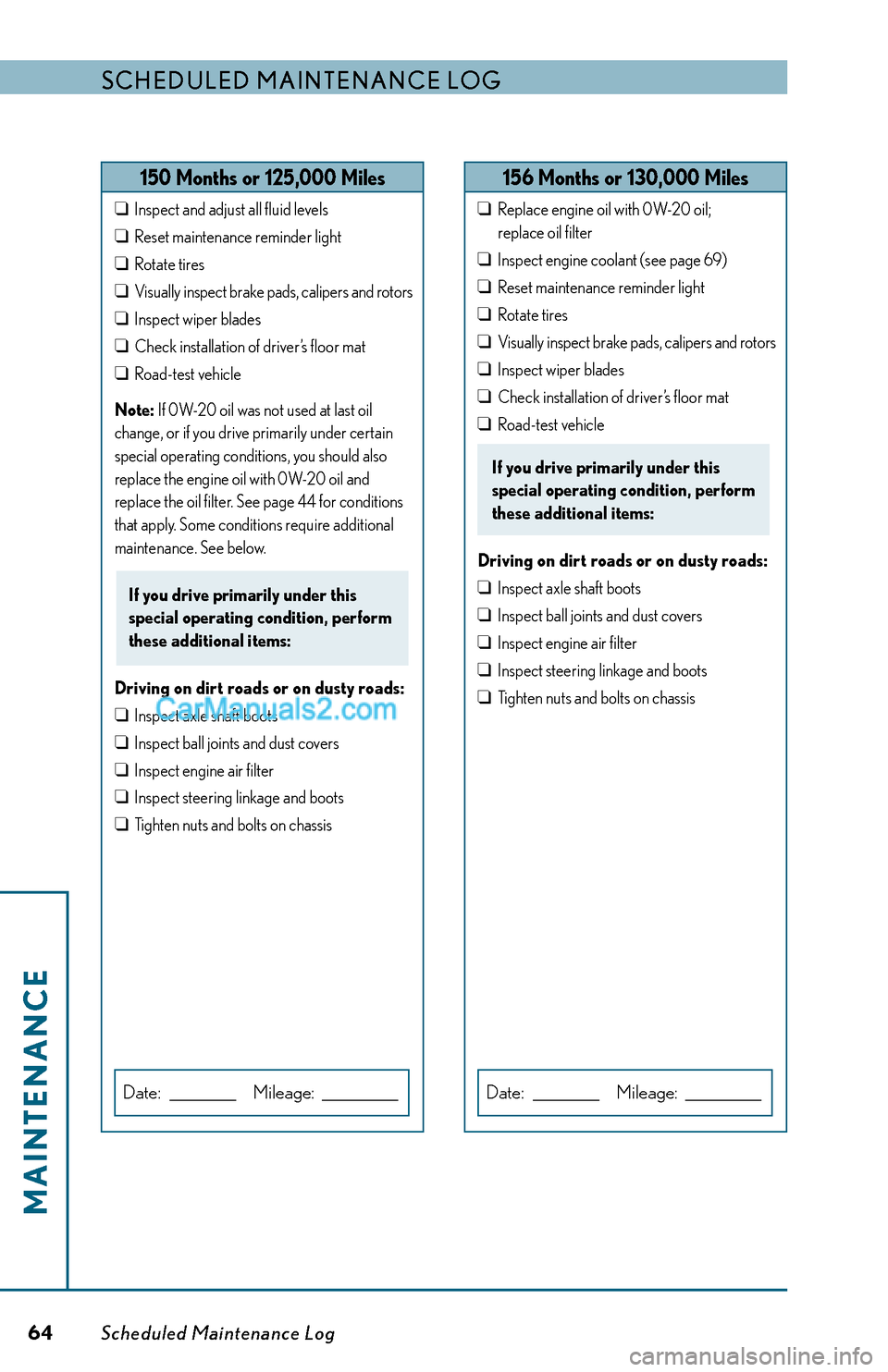

150 Months or 125,000 Miles
❑ Inspect and adjust all fluid levels
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under certain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
156 Months or 130,000 Miles
❑ Replace engine oil with 0W-20 oil;
replace oil filter
❑ Inspect engine coolant (see page 69)
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
Date: _______ Mileage: ________Date: _______ Mileage: ________
129173_text.indd 648/20/13 10:26 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log65
162 Months or 135,000 Miles
❑ Inspect and adjust all fluid levels
❑ Replace Smart Key battery
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
❑ Inspect the following:
__ Axle shaft boots
__ Ball joints and dust covers
__ Body
__ Brake lines and hoses
__ Drive belt
Note: If 0W-20 oil was not used at last oil change, or if you drive primarily under certain special operating
conditions, you should also replace the engine oil with 0W-20 oil and replace the oil filter. See page 44 for
conditions that apply. Some conditions require additional maintenance. See below.
If you drive primarily under this special operating condition, perform these
additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect engine air filter
❑ Tighten nuts and bolts on chassis __
Exhaust pipes and mountings
__ Rack-and-pinion assembly
__ Steering linkage and boots
__ Wiper blades
Date: __________________________ Mileage: __________________________
129173_text.indd 658/20/13 10:26 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log
66
168 Months or 140,000 Miles
❑ Replace engine oil with 0W-20 oil;
replace oil filter
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
174 Months or 145,000 Miles
❑ Inspect and adjust all fluid levels
❑ Inspect engine coolant (see page 69)
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under certain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
Date: _______ Mileage: ________Date: _______ Mileage: ________
129173_text.indd 668/20/13 10:26 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log67
180 Months or 150,000 Miles
❑ Replace engine oil with 0W-20 oil; replace oil filter
❑ Replace cabin air filter
❑ Replace brake fluid
❑ Replace engine air filter
❑ Replace engine coolant (see page 69)
❑ Replace Smart Key battery
❑ Reset maintenance reminder light
❑ Inspect the following:
__ Axle shaft boots
__ Ball joints and dust covers
__ Body
__ Brake lines and hoses
__ Brake rotor thickness and runout
__ Drive belt
__ Exhaust pipes and mountings
If you drive primarily under this special operating condition, perform these
additional items:
Driving on dirt roads or on dusty roads:
❑ Tighten nuts and bolts on chassis __
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Rack-and-pinion assembly
__ Steering linkage and boots
__ Transmission for signs of leakage
__ Wiper blades
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Date: __________________________ Mileage: __________________________
129173_text.indd 678/20/13 10:26 PM

Explanation of MaintEnancE itEMs
MAINTENANCE
Scheduled Maintenance Log
70
Engine Oil and Oil Filter
Replace the oil filter and drain and
refill the engine oil at specified
intervals. SAE 0W-20 oil is the best
choice for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 may be used; however, it
must be replaced with SAE 0W-20
at the next oil change. See your
Lexus dealer for oil specifically
formulated for your vehicle’s engine.
Your vehicle is equipped with a
replaceable oil-filter element and
oil-filter cap O-ring; replace both
at each oil change. For instructions
on how to reset the reminder light,
refer to your Owner’s Manual.
note: If you do the majority of
your driving under any of the
special operating conditions
indicated on page 44, you should
replace the engine oil and oil filter
every six months or 5,000 miles,
regardless of the oil used or the
certification of the vehicle.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes,
muffler and hangers for cracks,
deterioration and damage. Start the
engine and listen carefully for any
exhaust leakage. Tighten connections
and replace parts as necessary. Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion,
damage, cracks, and loose or leaking
connections. Tighten connections
and replace parts as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterio
ration
and damage and replace if necessary.
Nuts and Bolts on Chassis
Check that tightness of the seat-
mounting bolts and front/rear
suspension-member retaining bolts
matches torque measurements
specified in the Repair Manual.
Rack-and-Pinion Assembly
Inspect the rack-and-pinion assembly
for signs of leakage, damage and
loose electrical connections. Tighten
connections and if you discover any
leakage or damage, have it repaired
immediately by a qualified technician.
Road Test
While driving the vehicle, check
for proper operation of engine,
transmission, brakes and steering.
Also check the parking brake, and
check for ab normal noise or vibration
from any part of the vehicle.
