DIMENSIONS
ENGINE
ItemTheta 2.0 Theta 2.4Nu 2.0
Displacement
cc (cu. in) 1,998 (121.9) 2,359 (143.95)1,999 (121.98)
Bore x Stroke
mm (in.)86x86 (3.39x3.39) 88x97 (3.46x3.82)81x97 (3.18x3.82)
Firing order1-3-4-2 1-3-4-21-3-4-2
No. of cylinders4, in-line 4, in-line4, in-line
Itemsmm (in)
Overall length4,885 (192.3)
Overall width1,865 (73.4)
Overall height1,475 (58.1)
Front tread
205/65R161,614 (63.5)
215/55R171,602 (63.0)
235/45R181,597 (62.8)
Rear tread
205/65R161,621 (63.8)
215/55R171,609 (63.3)
235/45R181,604 (63.1)
Wheelbase2,805 (110.4)

8-3
8
Specifications & Consumer information
BULB WATTAGE
Light Bulb Bulb type Wattage
Front
Headlamps
Low H7LL 55
Low/High D3S 35
High 9005HL+ 60
Turn signal lamps PY21W 21
Position lampsType ALED LEDType B
Daytime running light LED LED
Fog lamps H8 35
Static bending lamps H7LL 55
Rear
Rear combination lamp
Stop lamps P21/5W 21
Stop/
Tail lamps
Type A P21/5W 21
Type B LED LED
Tail lamps
Type A 5W 5
Type B P21/5W 5
Type C LED LED
Turn signal lamps PY21W 21
Back up lamps W16 16
High mounted stop lamp LED LED
Interior
Luggage lamp FESTOON 10
Map lampwith sunroof LED LED
without sunroof W10W 10
Room lamp FESTOON 10

8-4
Specifications & Consumer information
TIRES AND WHEELS
Item Tire sizeWheel
size
Inflation pressure, bar (kPa, psi)Wheel lug nut
torque
kg•m (lb•ft, N•m)
Normal load *1Maximum load
Front Rear Front Rear
Full size tire
205/65R16 6.5JX16 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34)
9~11
(65~79, 88~107)
215/55R17 7.0JX17 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34)
235/45R18 7.5JX18 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34)
Compact spare tire
(if equipped)
T125/80D164.0TX164.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
T135/80D174.0TX174.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
*1 :Normal load :Up to 3 persons
AIR CONDITIONING SYSTEM
ItemsWeight of Volume Classification
Refrigerant
g (oz.)
Theta 2.0T-GDI550 ± 25g (19.5 ± 0.8)
R-134aTheta 2.4MPI
650 ± 25g (22.9 ± 0.8)GDI
Nu 2.0MPI
Compressor lubricant
g (oz.) 100 ± 10 (3.52 ± 3.5)PA G ( F D 4 6 X G )
Contact an authorized HYUNDAI dealer for more details.

8-5
8
Specifications & Consumer information

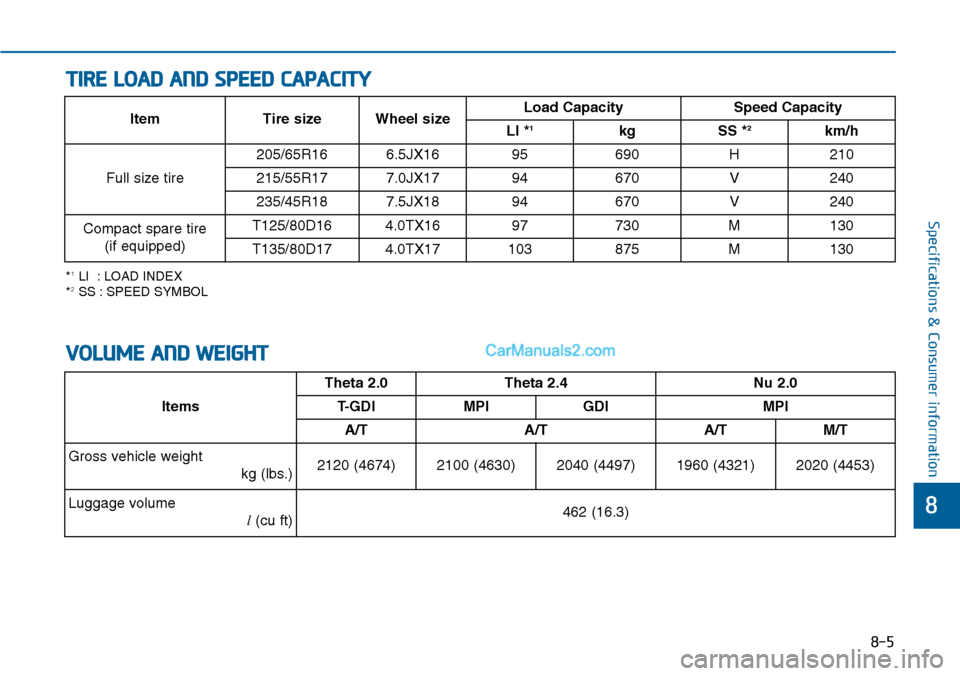

TIRE LOAD AND SPEED CAPACITY
*1LI : LOAD INDEX*2SS : SPEED SYMBOL
Item Tire size Wheel sizeLoad Capacity Speed Capacity
LI *1kg SS *2km/h
Full size tire
205/65R16 6.5JX16 95 690 H 210
215/55R17 7.0JX17 94 670 V 240
235/45R187.5JX1894670V240
Compact spare tire
(if equipped)
T125/80D164.0TX1697730M130
T135/80D174.0TX17103875M130
VOLUME AND WEIGHT
Items
Theta 2.0Theta 2.4Nu 2.0
T-GDIMPIGDIMPI
A/TA/TA/TM/T
Gross vehicle weight
kg (lbs.)2120 (4674)2100 (4630)2040 (4497)1960 (4321)2020 (4453)
Luggage volume
l(cu ft)462 (16.3)

8-6
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVo l u m e C l a s s i f i c a t i o n
Engine oil *1*2
(drain and refill)
Recommends
Theta 2.0 T-GDI4.8l(5.1 US qt.)ACEA A5 *3or above
Theta 2.4MPIFor Middle East4.8l(5.1 US qt.)API Service SM *4, ILSAC GF-4 or above
ACEA A5 *3Except Middle East4.7l(4.9 US qt.)
GDI4.8l(5.1 US qt.)ACEA A5 *3or above
Nu 2.0 MPI4.0l(4.2 US qt.)API SM *4 & ILSAC GF-4 or above
Automatic transaxle fluid7.1l(7.5 US qt.)
MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine
AT F & S P - I V
Manual transaxle fluid1.9l(2.0 US qt.)API GL-4, SAE 75W/85
Coolant
Theta 2.0T- G D I9.7 l(10.2 US qt.)
Mixture of antifreeze and water
(Ethylene glycol base coolant
for aluminum radiator)
Theta 2.4GDI7.1 l(7.5 US qt.)
MPI7.4 l(7.8 US qt.)
Nu 2.0 MPIA/T6.5 l(6.8 US qt.)
M/T6.6 l(7 US qt.)

8-7
8
Specifications & Consumer information*1:Refer to the recommended SAE viscosity numbers on the next page.
*2:Engine oils labeled Energy Conserving Oil are now available.Along with other additional benefits, they contribute to fuel economy by reducingthe amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’stime, they can offer significant cost and energy savings.
*3:If the ACEA A5 engine oil is not available in your country, you are able to use ILSAC GF-4 (or above) or API SM (or above).
*4:If the API service SM engine oil is not available in your country, you are able to use API service SL.

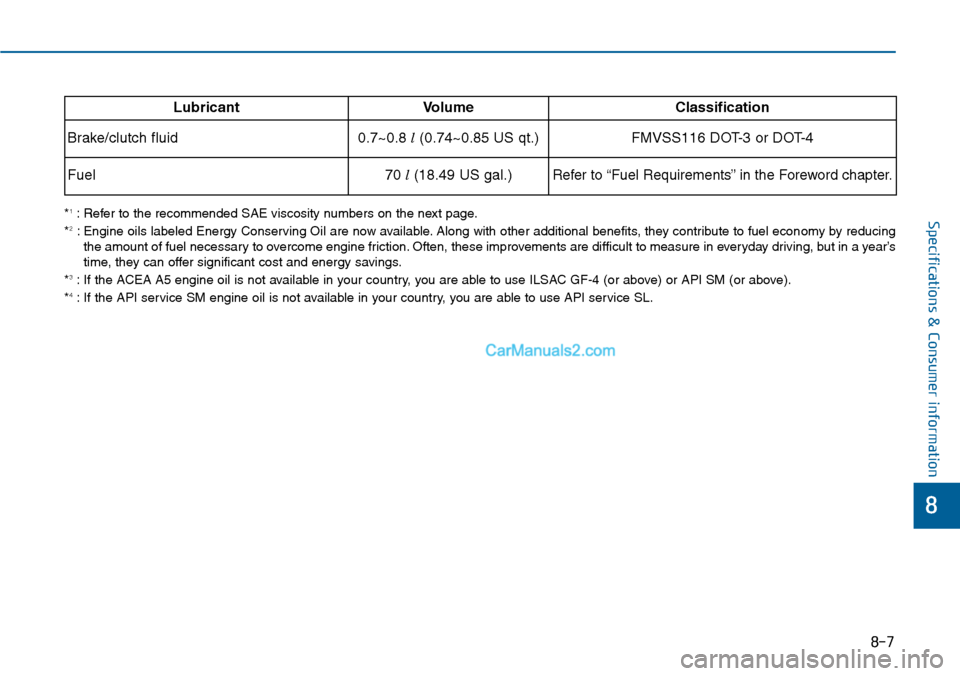

Lubricant Volume Classification
Brake/clutch fluid0.7~0.8 l(0.74~0.85 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel70 l(18.49 US gal.)Refer to “Fuel Requirements” in the Foreword chapter.

8-8
Specifications & Consumer information

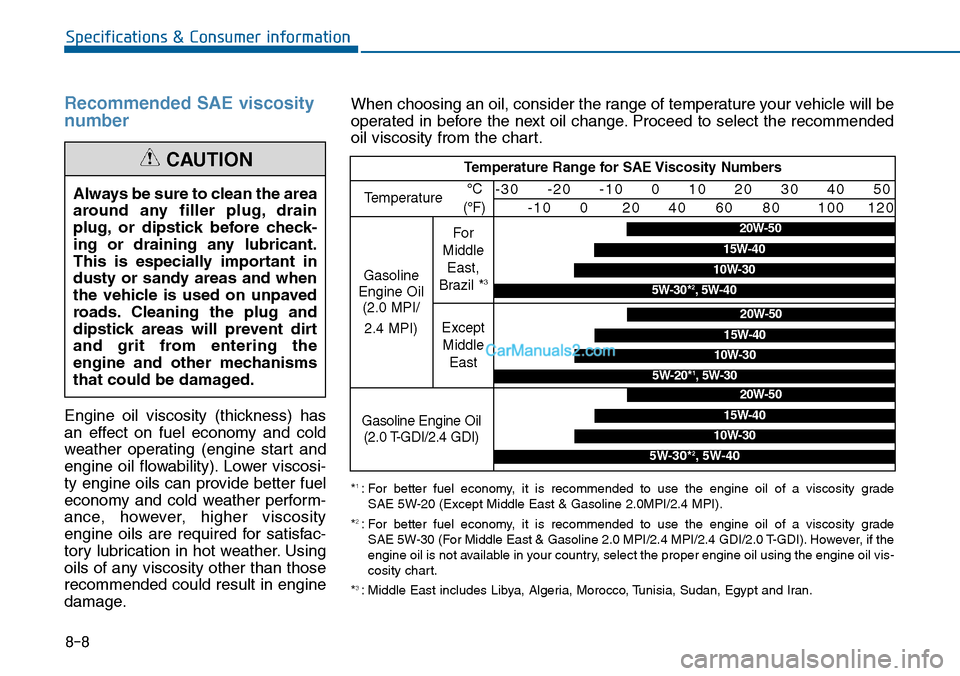

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage.
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTIONTemperature Range for SAE Viscosity Numbers
Temperature
Gasoline Engine Oil(2.0 MPI/
2.4 MPI)
°C
(°F)
-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
*1 :For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-20 (Except Middle East & Gasoline 2.0MPI/2.4 MPI).
*2 :For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-30 (For Middle East & Gasoline 2.0 MPI/2.4 MPI/2.4 GDI/2.0 T-GDI). However, if theengine oil is not available in your country, select the proper engine oil using the engine oil vis-cosity chart.
*3:Middle East includes Libya, Algeria, Morocco, Tunisia, Sudan, Egypt and Iran.
20W-50
10W-30
15W-40
5W-30*2,5W-40
Gasoline Engine Oil(2.0 T-GDI/2.4 GDI)
For
Middle
East,
Brazil *3
20W-50
10W-30
15W-40
5W-20*1,5W-30
Except
Middle
East
20W-50
10W-30
15W-40
5W-30*2,5W-40
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.

8-9
8
Specifications & Consumer information

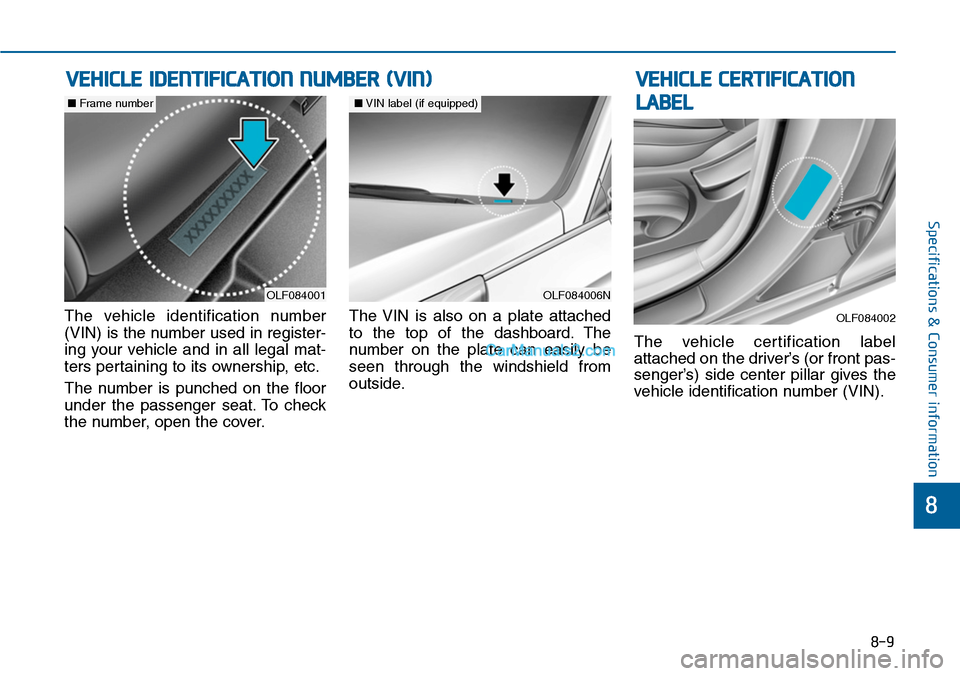

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.
The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s (or front pas-
senger’s) side center pillar gives the
vehicle identification number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)VEHICLE CERTIFICATION
LABEL
OLF084006N
■VIN label (if equipped)
OLF084001
■Frame number
OLF084002
