2014 Hyundai Sonata Owner's Manual

2-44
Safety system of your vehicle

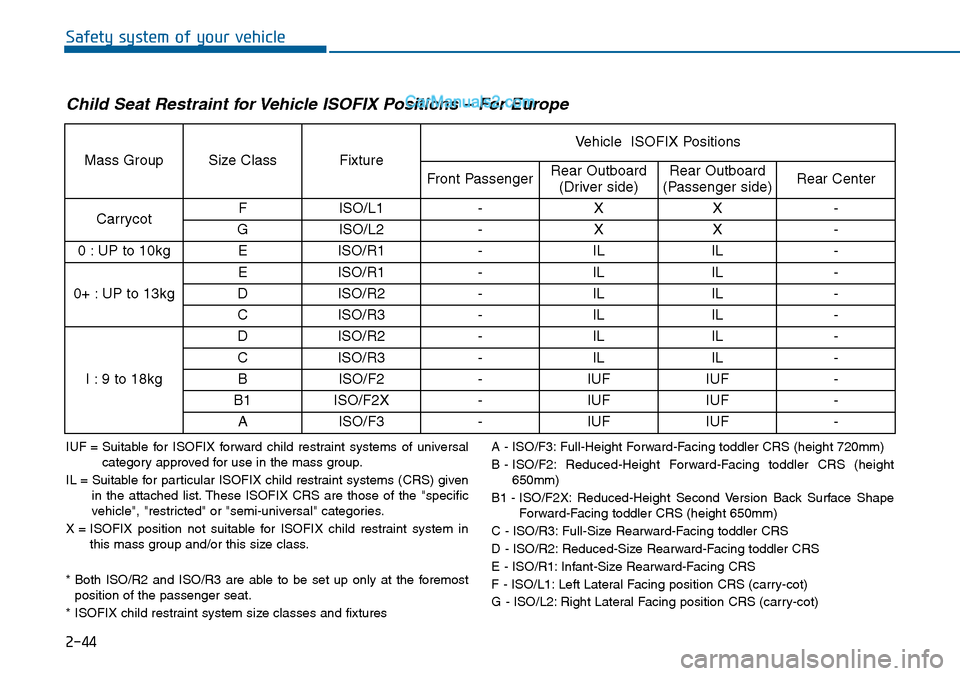

Child Seat Restraint for Vehicle ISOFIX Positions – For Europe
IUF = Suitable for ISOFIX forward child restraint systems of universalcategory approved for use in the mass group.
IL = Suitable for particular ISOFIX child restraint systems (CRS) givenin the attached list. These ISOFIX CRS are those of the "specificvehicle", "restricted" or "semi-universal" categories.
X = ISOFIX position not suitable for ISOFIX child restraint system inthis mass group and/or this size class.
* Both ISO/R2 and ISO/R3 are able to be set up only at the foremostposition of the passenger seat.
* ISOFIX child restraint system size classes and fixtures
A - ISO/F3: Full-Height Forward-Facing toddler CRS (height 720mm)
B - ISO/F2: Reduced-Height Forward-Facing toddler CRS (height650mm)
B1 - ISO/F2X: Reduced-Height Second Version Back Surface ShapeForward-Facing toddler CRS (height 650mm)
C - ISO/R3: Full-Size Rearward-Facing toddler CRS
D - ISO/R2: Reduced-Size Rearward-Facing toddler CRS
E - ISO/R1: Infant-Size Rearward-Facing CRS
F - ISO/L1: Left Lateral Facing position CRS (carry-cot)
G - ISO/L2: Right Lateral Facing position CRS (carry-cot)
Mass Group Size Class Fixture
Ve h i c l e I S O F I X Po s i t i o n s
Front PassengerRear Outboard(Driver side)Rear Outboard(Passenger side)Rear Center
CarrycotFISO/L1 - X X -
GISO/L2 - X X -
0 : UP to 10kg E ISO/R1 - IL IL -
0+ : UP to 13kg
EISO/R1 - IL IL -
DISO/R2 - IL IL -
CISO/R3 - IL IL -
I : 9 to 18kg
DISO/R2 - IL IL -
CISO/R3 - IL IL -
BISO/F2 - IUF IUF -
B1 ISO/F2X - IUF IUF -
AISO/F3 - IUF IUF -

2-45
Safety system of your vehicle
2

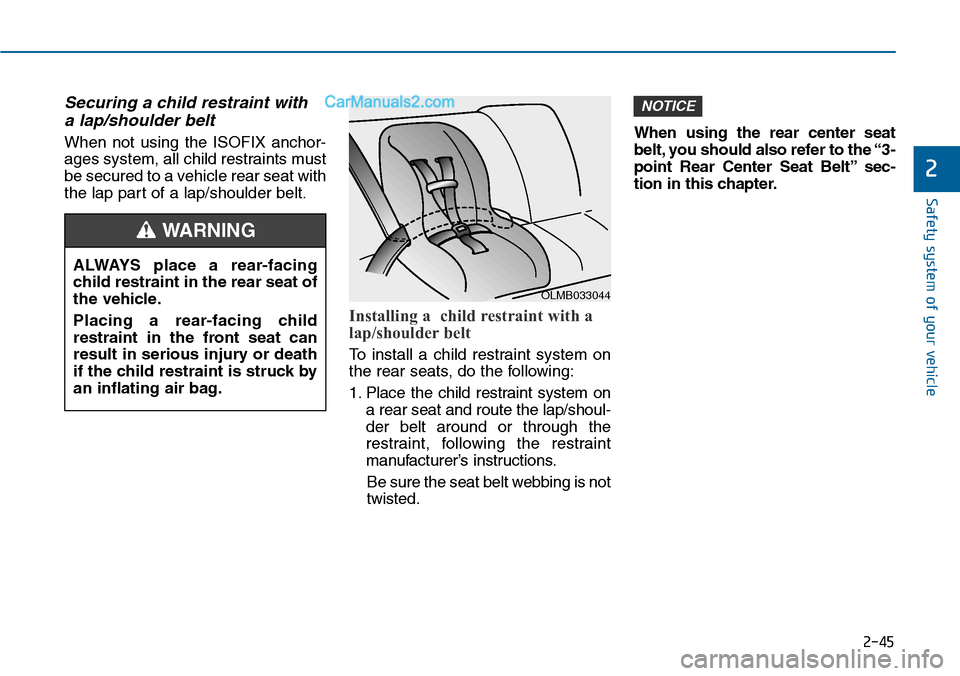

Securing a child restraint with
a lap/shoulder belt
When not using the ISOFIX anchor-
ages system, all child restraints must
be secured to a vehicle rear seat with
the lap part of a lap/shoulder belt.
Installing a child restraint with a
lap/shoulder belt
To install a child restraint system on
the rear seats, do the following:
1. Place the child restraint system on
a rear seat and route the lap/shoul-
der belt around or through the
restraint, following the restraint
manufacturer’s instructions.
Be sure the seat belt webbing is not
twisted.
When using the rear center seat
belt, you should also refer to the “3-
point Rear Center Seat Belt” sec-
tion in this chapter.
NOTICE
ALWAYS place a rear-facing
child restraint in the rear seat of
the vehicle.
Placing a rear-facing child
restraint in the front seat can
result in serious injury or death
if the child restraint is struck by
an inflating air bag.
WARNING
OLMB033044

2-46
Safety system of your vehicle

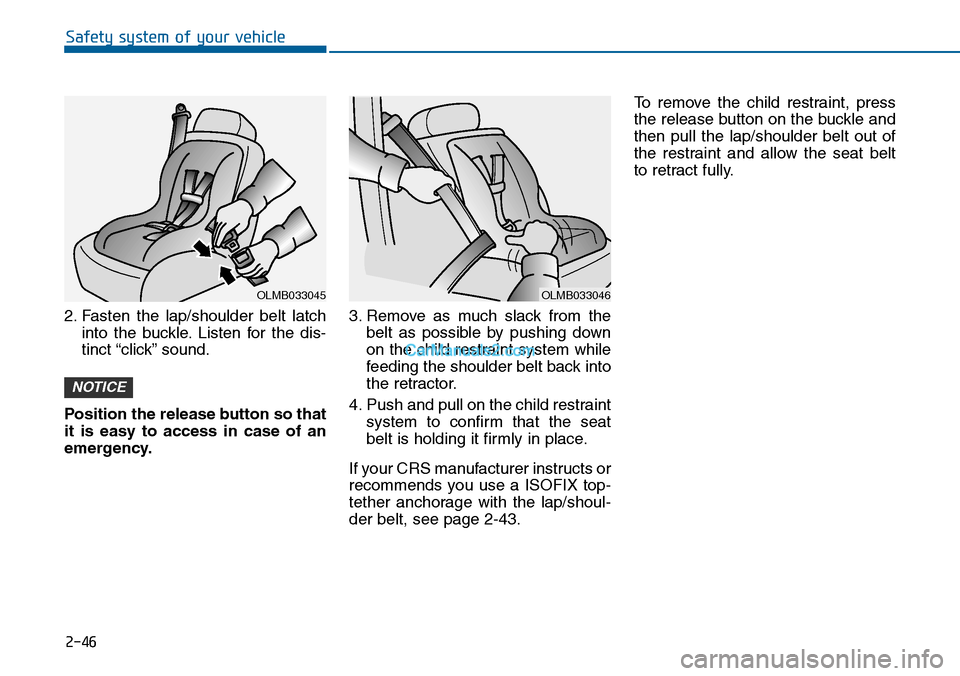

2. Fasten the lap/shoulder belt latch
into the buckle. Listen for the dis-
tinct “click” sound.
Position the release button so that
it is easy to access in case of an
emergency.
3. Remove as much slack from the
belt as possible by pushing down
on the child restraint system while
feeding the shoulder belt back into
the retractor.
4. Push and pull on the child restraint
system to confirm that the seat
belt is holding it firmly in place.
If your CRS manufacturer instructs or
recommends you use a ISOFIX top-
tether anchorage with the lap/shoul-
der belt, see page 2-43.
To remove the child restraint, press
the release button on the buckle and
then pull the lap/shoulder belt out of
the restraint and allow the seat belt
to retract fully.
NOTICE
OLMB033045OLMB033046

2-47
Safety system of your vehicle
2

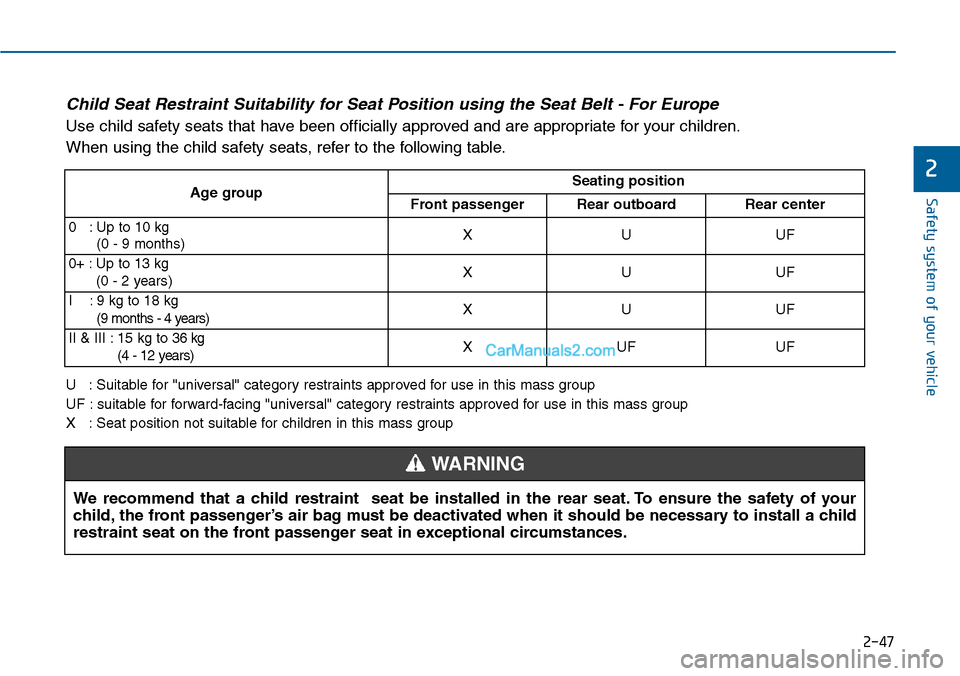

Child Seat Restraint Suitability for Seat Position using the Seat Belt - For Europe
Use child safety seats that have been officially approved and are appropriate for your children.
When using the child safety seats, refer to the following table.
U:Suitable for "universal" category restraints approved for use in this mass group
UF : suitable for forward-facing "universal" category restraints approved for use in this mass group
X:Seat position not suitable for children in this mass group
Age groupSeating position
Front passengerRear outboardRear center
0 : Up to 10 kg
(0 - 9 months)XUUF
0+ : Up to 13 kg
(0 - 2 years)XUUF
I : 9 kg to 18 kg
(9 months - 4 years)XUUF
II & III : 15 kg to 36 kg
(4 - 12 years)XUFUF
We recommend that a child restraint seat be installed in the rear seat. To ensure the safety of your
child, the front passenger’s air bag must be deactivated when it should be necessary to install a child
restraint seat on the front passenger seat in exceptional circumstances.
WARNING

2-48
Safety system of your vehicle
Seating position
Front 2nd row
Left Right Left Center Right
Universal
(5 Points)
Group 0+ Maxi Cosi Cabriofix B _ _ _ N/A Pass Pass Exempt Pass
Group I
Roemer King
(Belt mounted)B _ _ _ N/A Pass Pass Exempt Pass
Roemer Duo Plus _ I _ S N/A Exempt Pass Exempt Pass
Semi-
Universal
(5 Points)
Group 0+
Maxi Cosi Cabriofix
plus Easybase2 B _ L _ N/A Pass Pass Exempt Pass
Maxi Cosi Cabriofix
plus Easyfix _ I L _ N/A Exempt Pass Exempt Pass
Group 0+/I HTS iZi Kid X3 _ I L _ N/A Exempt Pass Exempt Pass
Group IMaxi Cosi Pearl
plus Familyfix_ I L _ N/A Exempt Pass Exempt Pass
OEM
(2 Points)
Q1.5 U/SUCRS MAKE,
MODELB I L S N/A Exempt Pass Exempt Pass
Q3 U/SUCRS MAKE,
MODELB I L S N/A Exempt Pass Exempt Pass

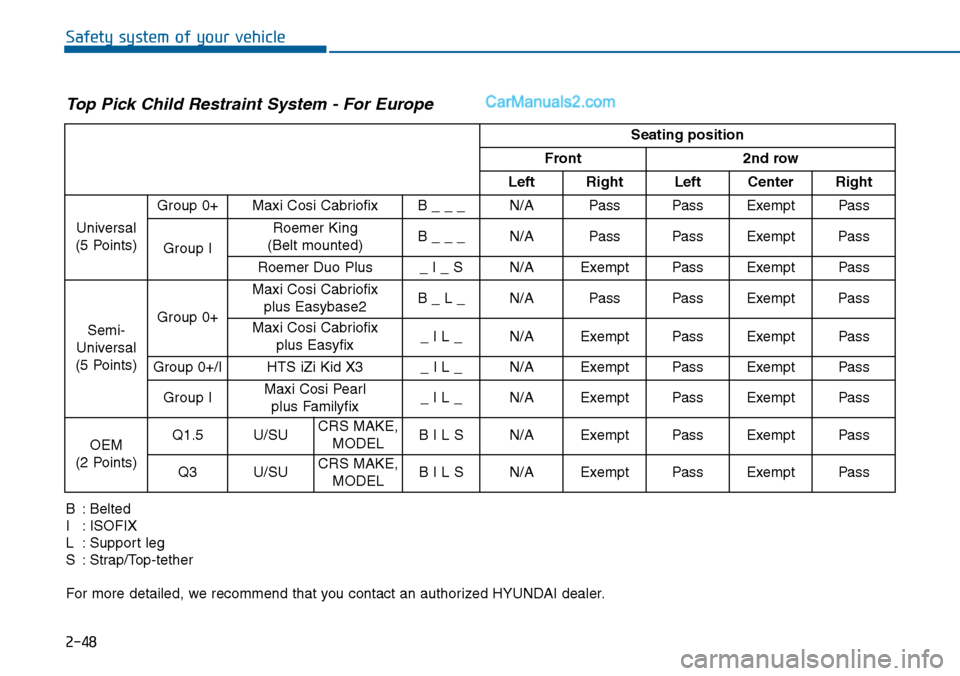

Top Pick Child Restraint System - For Europe
B:Belted
I:ISOFIX
L:Support leg
S:Strap/Top-tether
For more detailed, we recommend that you contact an authorized HYUNDAI dealer.

2-49
Safety system of your vehicle
2
AIR BAG - SUPPLEMENTAL RESTRAINT SYSTEM
OLF034038LThe actual air bags in the vehicle may differ from the illustration.
1. Driver’s front air bag
2. Passenger’s front air bag
3. Side air bag
4. Curtain air bag

2-50
Safety system of your vehicle

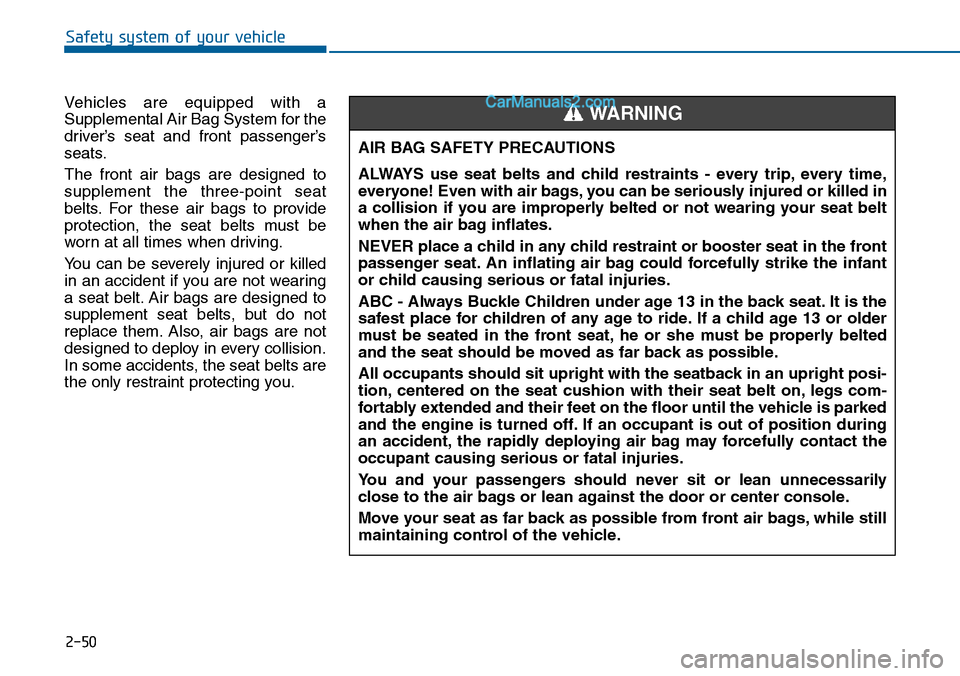

Ve h i c l e s a r e e q u i p p e d w i t h a
Supplemental Air Bag System for the
driver’s seat and front passenger’s
seats.
The front air bags are designed to
supplement the three-point seat
belts. For these air bags to provide
protection, the seat belts must be
worn at all times when driving.
Yo u c a n b e s e v e r e l y i n j u r e d o r k i l l e d
in an accident if you are not wearing
a seat belt. Air bags are designed to
supplement seat belts, but do not
replace them. Also, air bags are not
designed to deploy in every collision.
In some accidents, the seat belts are
the only restraint protecting you.
AIR BAG SAFETY PRECAUTIONS
ALWAYS use seat belts and child restraints - every trip, every time,
everyone! Even with air bags, you can be seriously injured or killed in
a collision if you are improperly belted or not wearing your seat belt
when the air bag inflates.
NEVER place a child in any child restraint or booster seat in the front
passenger seat. An inflating air bag could forcefully strike the infant
or child causing serious or fatal injuries.
ABC - Always Buckle Children under age 13 in the back seat. It is the
safest place for children of any age to ride. If a child age 13 or older
must be seated in the front seat, he or she must be properly belted
and the seat should be moved as far back as possible.
All occupants should sit upright with the seatback in an upright posi-
tion, centered on the seat cushion with their seat belt on, legs com-
fortably extended and their feet on the floor until the vehicle is parked
and the engine is turned off. If an occupant is out of position during
an accident, the rapidly deploying air bag may forcefully contact the
occupant causing serious or fatal injuries.
Yo u a n d y o u r p a s s e n g e r s s h o u l d n e v e r s i t o r l e a n u n n e c e s s a r i l y
close to the air bags or lean against the door or center console.
Move your seat as far back as possible from front air bags, while still
maintaining control of the vehicle.
WARNING

2-51
Safety system of your vehicle
2

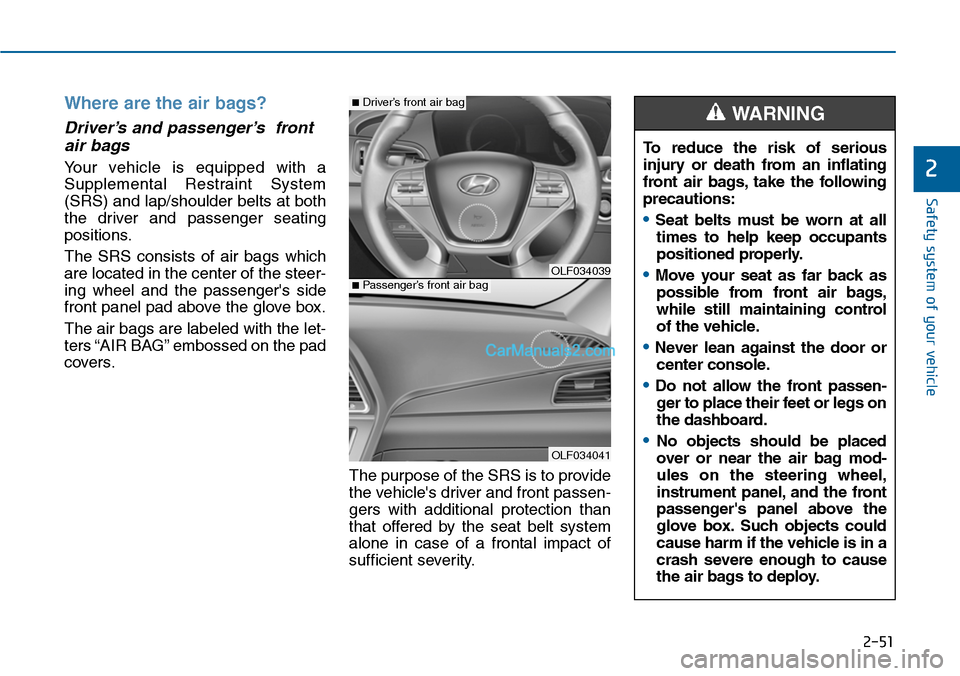

Where are the air bags?
Driver’s and passenger’s front
air bags
Yo u r v e h i c l e i s e q u i p p e d w i t h a
Supplemental Restraint System
(SRS) and lap/shoulder belts at both
the driver and passenger seating
positions.
The SRS consists of air bags which
are located in the center of the steer-
ing wheel and the passenger's side
front panel pad above the glove box.
The air bags are labeled with the let-
ters “AIR BAG” embossed on the pad
covers.
The purpose of the SRS is to provide
the vehicle's driver and front passen-
gers with additional protection than
that offered by the seat belt system
alone in case of a frontal impact of
sufficient severity.
To r e d u c e t h e r i s k o f s e r i o u s
injury or death from an inflating
front air bags, take the following
precautions:
•Seat belts must be worn at all
times to help keep occupants
positioned properly.
•Move your seat as far back as
possible from front air bags,
while still maintaining control
of the vehicle.
•Never lean against the door or
center console.
•Do not allow the front passen-
ger to place their feet or legs on
the dashboard.
•No objects should be placed
over or near the air bag mod-
ules on the steering wheel,
instrument panel, and the front
passenger's panel above the
glove box. Such objects could
cause harm if the vehicle is in a
crash severe enough to cause
the air bags to deploy.
WARNING
OLF034039
OLF034041
■Passenger’s front air bag
■Driver’s front air bag
