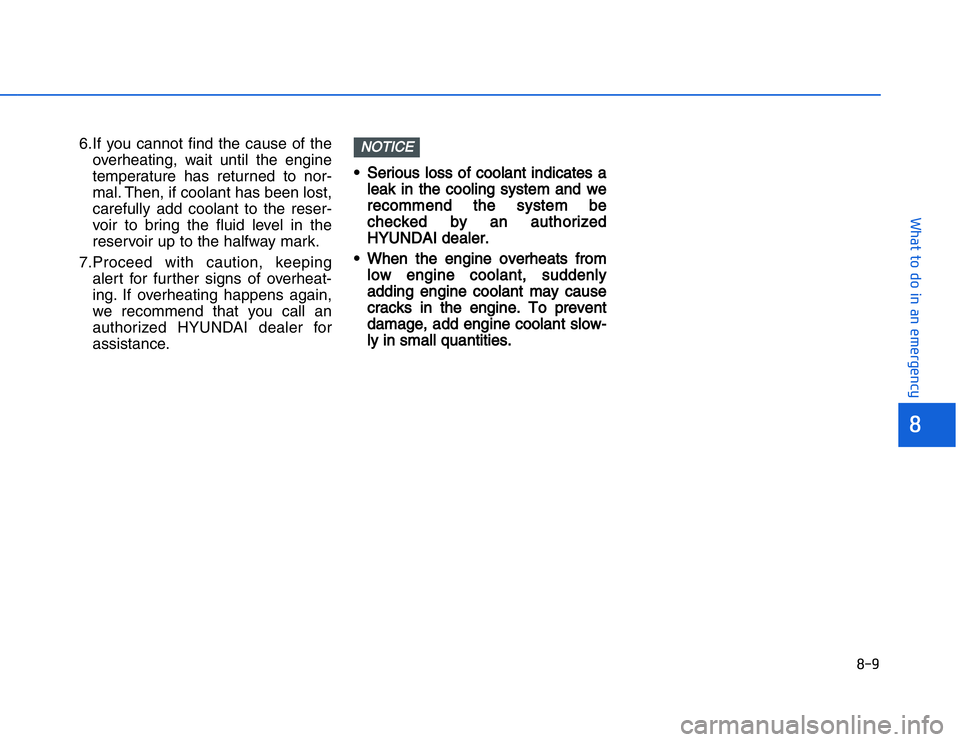

6.If you cannot find the cause of theoverheating, wait until the engine
temperature has returned to nor-
mal. Then, if coolant has been lost,
carefully add coolant to the reser-
voir to bring the fluid level in the
reservoir up to the halfway mark.
7.Proceed with caution, keeping alert for further signs of overheat-
ing. If overheating happens again,
we recommend that you call an
authorized HYUNDAI dealer for
assistance. •
•
Serious loss of coolant indicates a
leak in the cooling system and we
recommend the system be
checked b y an authorized
HYUNDAI dealer.
• When the engine overheats from low engine coolant, suddenly
adding engin e coolant may cause
cracks in the engine. To prevent
damage, add engine coolant slow-
ly in small quanti ties.NOTICE
!
$#'#"'"' %'$%'&&&%

!
$#'#"'"' %'$%'&&&%
If it is hard to loosen the tire hold-
down wing bolt by hand, you can
loosen it easily using the wheel lug
nut wrench.
1. Put the wrench (1) inside of the tire hold-down wing bolt.
2. Turn the tire hold-down wing bolt counterclockwise with the wrench.
CChanging tires A vehicle can slip or roll off of a
jack causing serious injury or
death to you or those nearby.
Take th e following safety precau-
tions:•
Do not get under a vehicle that
is supported by a jack.
•
NEVER attempt to change a tire
in the lane of traffic. ALWAYS
move the vehicle completely off
the road o n level, firm ground
away from traffic before trying to
change a tire. If you cannot find
a level, firm place off the road,
call a towing service for assis-
tance.
•
Be sure to use the jack provided
with the vehicle.
(Continued)
(Continued)•
ALWAYS place the jack on the
designated jacking positions on
the vehicle and NEVER on the
bumpers or any other part of the
vehicle for jacking support.
•
Do not start or run the engine
while the vehicle is on the jack.
•
Do not allow anyone to remain
in the vehicle while it is on the
jack.
•
Keep children away from the
road and the vehicle.
WARNING
OIB067022

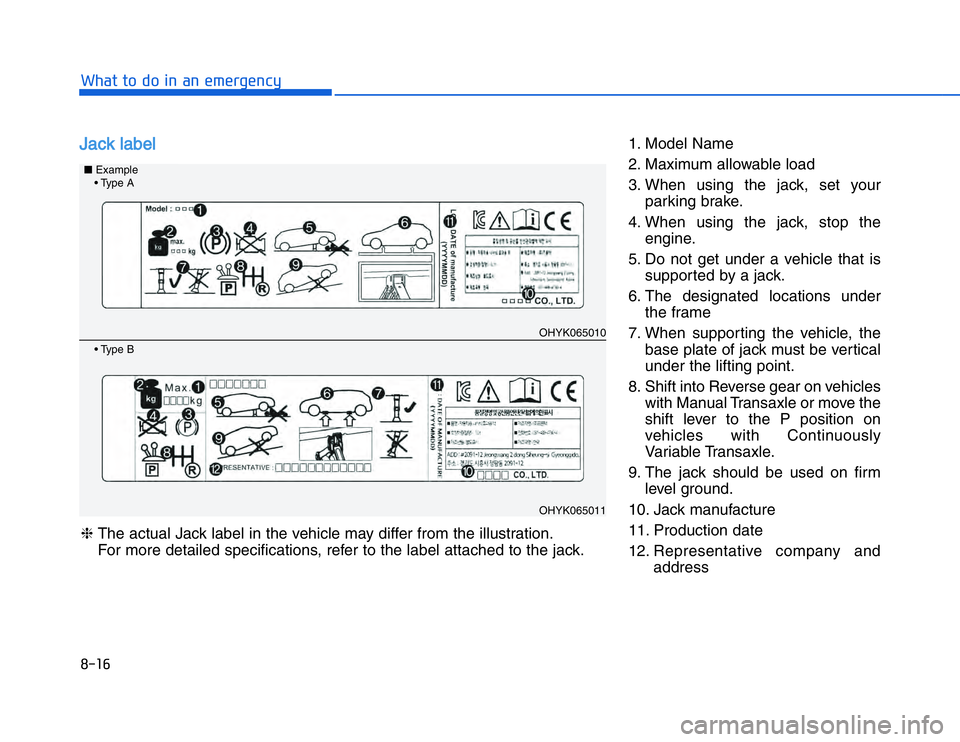

!$#'#"'"' %'$%'&&&%JJack label
1. Model Name
2. Maximum allowable load
3. When using the jack, set yourparking brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle that is supported by a jack.
6. The designated locations under the frame
7. When supporting the vehicle, the base plate of jack must be vertical
under the lifting point.
8. Shift into Reverse gear on vehicles with Manual Transaxle or move the
shift lever to the P position on
vehicles with Continuously
Variable Transaxle.
9. The jack should be used on firm level ground.
10. Jack manufacture
11. Production date
12. Representative company and address
OHYK065010OHYK065011
• Type A■Example• Type B
❈ The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.

1.+
,204/3424-3
$$"!"$# $"#
OIB074056
■

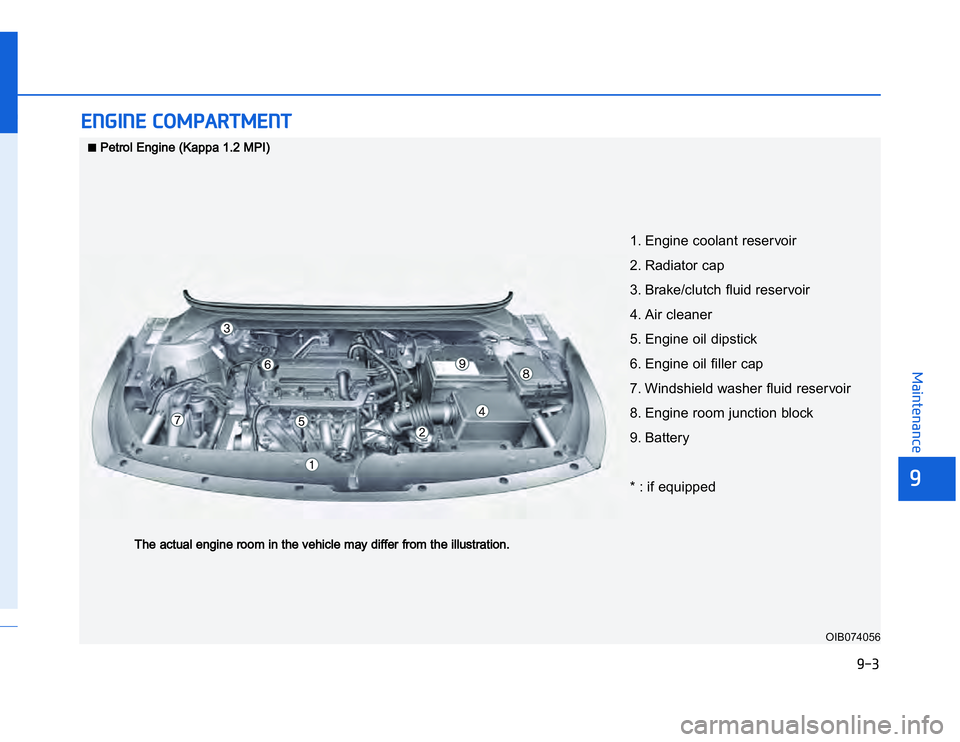

Petrol Engine (Kappa 1.2 MPI)
The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Engine room junction block
9. Battery
* : if equipped

1.),204/3424-3
OIB074001
■■

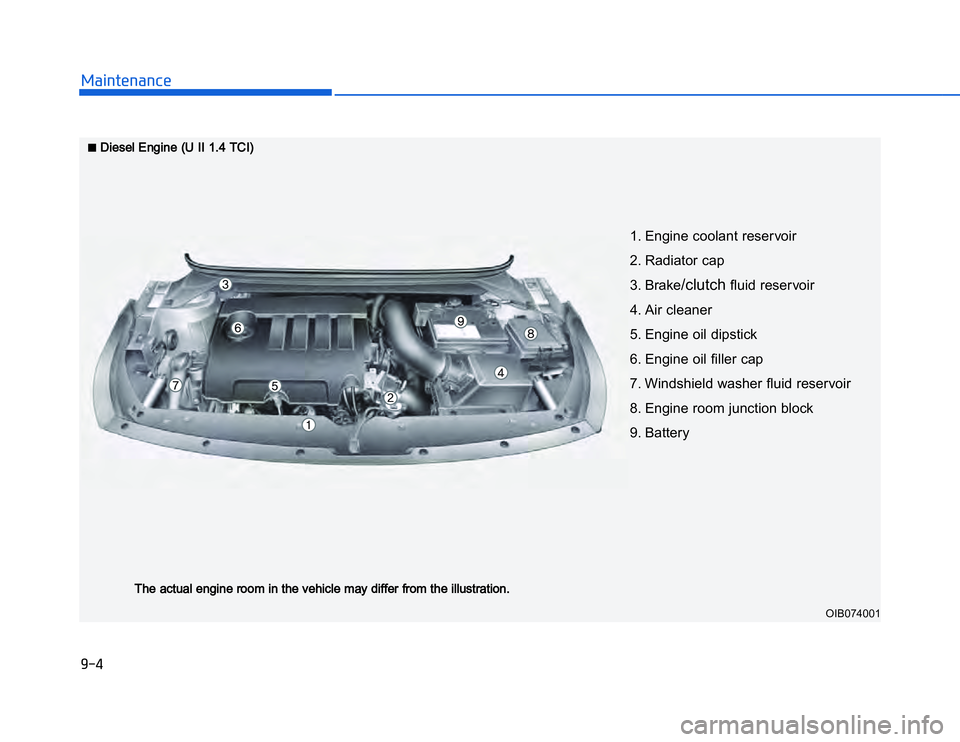

Diesel Engine (U II 1.4 TCI)The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir
2. Radiator cap
3. Brake
/clutch
fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Engine room junction block
9. Battery

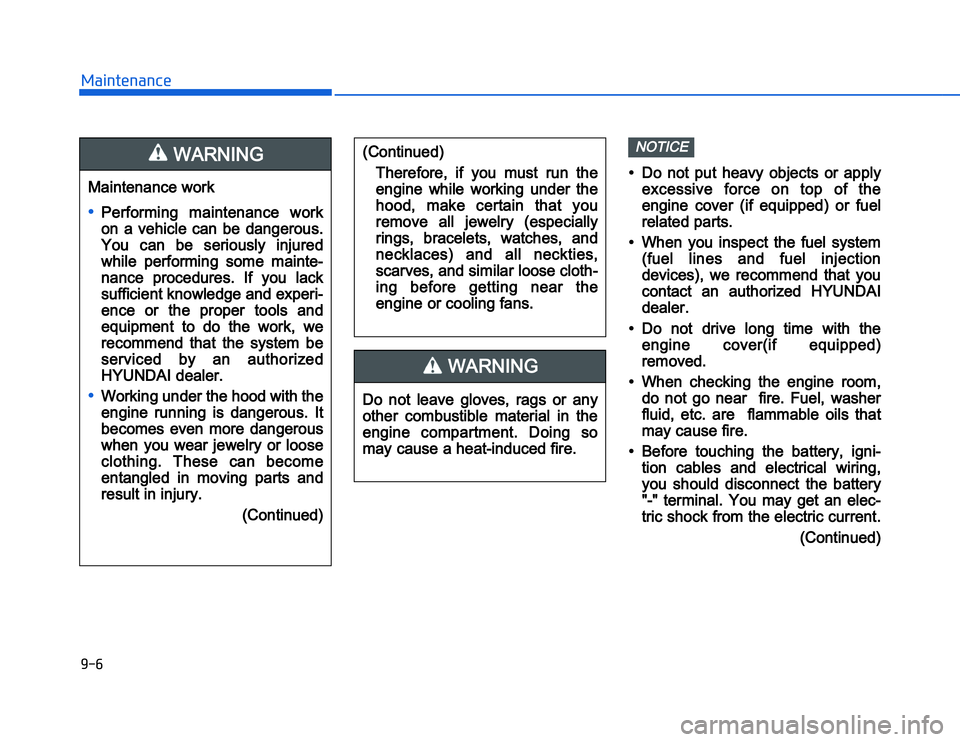

1.#,204/3424-3•
•Do not put heavy objects or apply
excessive force on top of the
engine cover (if equipped) or fuel
rela ted parts.
• When you inspect the fuel system (fuel lines and fuel injection
devices), we recommend that you
contact an authorized HYUNDAI
dealer.
• Do not drive long time with the engine cover(if equipped)
rem oved.
• When checking the engine room, do not go near fire. Fuel, washer
fluid, etc. are flammable oil s that
may cause fire.
• Before touching the battery, igni- tion cables and electrical wiring,
you should disconnect the battery
"-" terminal. You may get an elec-
tric shock from the electric current.
(Continued)NOTICE
Maintenance work•
Performing maintenance work
on a vehicle can be dangerous.
You can be seriously injured
while performing some mainte-
nance procedures. If you lack
sufficient knowledge and experi-
ence or the proper tools an d
equipment to do the work, we
recommend that the system be
serviced by an authorized
HYUNDAI dealer.
•
Working under the hood with the
engine running is dangerous. It
becomes even more dangerous
when you wea r jewelry or loose
clothing. These can become
entangled in moving parts and
result in injury.
(Continued)
WARNING
(Continued)Therefore, if you must run the
engine while working under the
hood, make certain that you
rem ove all jewelry (especially
rings, bracelets, watches, and
necklaces) and all neckties,
scarves, and sim ilar loose cloth-
ing before getting near the
engine or cooling fans.Do not leave gloves, rags or any
other combustible material in the
engine compartment. Doing so
may caus e a heat-induced fire.
WARNING

1.$
,204/3424-3
Diesel Engine
Never work on injection system
with engine running or within 30
seconds after shutting of f engine.
High-pressure pump, rail, injectors
and high-pressure pipes are sub-
ject to high pressure eve n after
the engine stopped. The fuel jet
produced by fuel leaks may cause
serious injury, if it touches the
body. People using pacemakers
should not move more than 30cm
closer to the ECU or wiring har-
ness wi thin the engine room while
engine is running, since the high
currents in the electronic engine
control s ystem produce consider-
able magnetic fields.
WARNING
(Continued)
• When you remove the interior trim cover with a flat head (-) driver, be
careful not to dama ge the cover.
• Be careful when you replace and clean bulbs to avoid burns or elec-
trical shock.
Engine compartment precautions
(Diesel engine)• The injector operates at high volt-
age (maximum 200v). Therefore,
the following accidents may occur.
- Direct contact with the injector orinjector wiring may cause electric
shock or damage your muscle or
nerve system.
- The electromagnetic wave from the operating injector may cause
the artificial heart pacemaker to
malfunction.
• Follow the safety tips provided below, when you are checking the
engine room while the engine is
running.
- Do not touch the injector, injectorwirings, and the engine computer
while the engine is running.
- Do not remove the injector con- nector while the engine is run-
ning.
- People using pacemakers must not go near the engine while the
engine is starting or running.

"$# !"$" "$#The following lists are vehicle checks
and inspections that should be per-
formed at the frequencies indicated
to help ensure safe, dependable
operation of your vehicle.
Any adverse conditions should be
brought to the attention of your deal-
er as soon as possible.
These Owner Maintenance Checks
are generally not covered by war-
ranties and you may be charged for
labor, parts and lubricants used.
Owner maintenance schedule When you stop for fuel:• Check the engine oil level.
• Check the coolant level in coolant
reservoir.
• Check the windshield washer fluid level.
• Look for low or under-inflated tires.
• Check the radiator and condenser. Check if the front of the radiator
and condenser are clean and not
blocked with leaves, dirt or insects
etc.
If any of the above parts areextremely dirty or you are not sure
of their condition, we recommend
that you contact an authorized
HYUNDAI dealer.
While operating your vehicle:• Note any changes in the sound of the exhaust or any smell of
exhaust fumes in the vehicle.
• Check for vibrations in the steering wheel. Notice any increased steer-
ing effort or looseness in the steer-
ing wheel, or change in its straight-
ahead position.
• Notice if your vehicle constantly turns slightly or "pulls" to one side
when traveling on smooth, level
road.
• When stopping, listen and check for unusual sounds, pulling to one
side, increased brake pedal travel
or "hard-to-push" brake pedal.
• If any slipping or changes in the operation of your transaxle occurs,
check the transaxle fluid level.
• Check Continuously Variable Transaxle P (Park) function.
• Check the parking brake.
• Check for fluid leaks under your vehicle (water dripping from the air
conditioning system during or after
use is normal).
1.',204/3424-3
Be careful when checking your
engine coolant level when the
engine is hot. Scalding hot coolant
and stea m may blow out under
pressure. This could cause burns
or other serious injury.
WARNING
