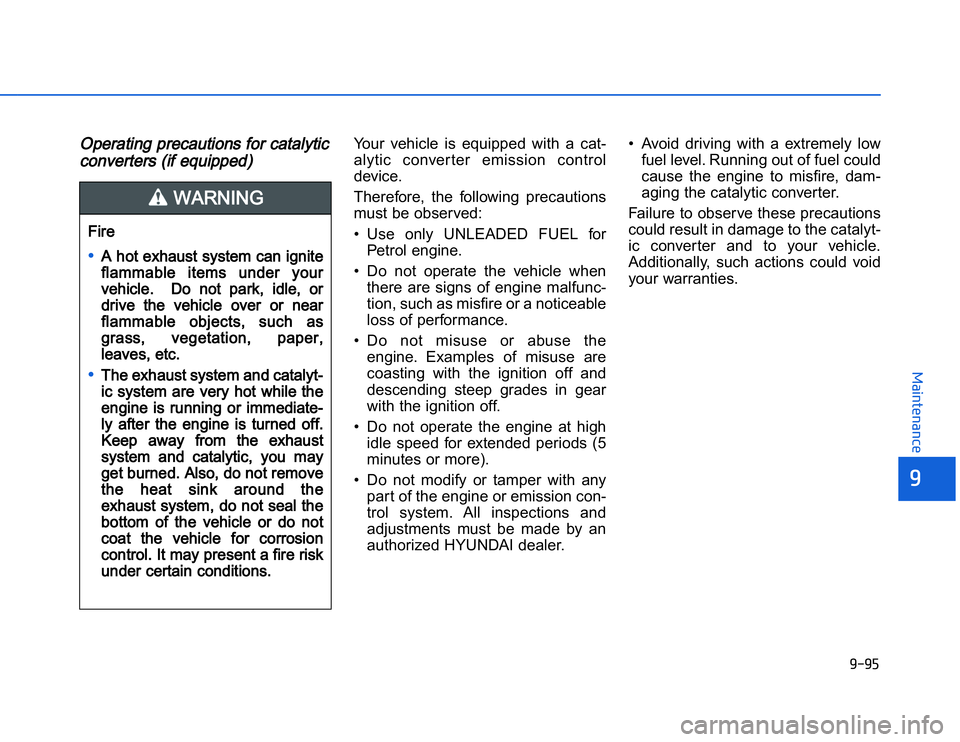

OOperating precautions for catalytic
converters (if equipped)
Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
• Use only UNLEADED FUEL for
Petrol engine.
• Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
• Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
• Do not operate the engine at high idle speed for extended periods (5
minutes or more).
• Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer. • Avoid driving with a extremely low
fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter.
Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Fire•
A hot exhaust system can ignite
flammable items under your
vehicle. Do not park, idle, or
drive the veh icle over or near
flammable objects, such as
grass, vegetation, paper,
leaves, etc.
•
The exhaust system and catalyt-
ic system are very hot while the
engine is running or immediate-
ly afte r the engine is turned off.
Keep away from the exhaust
system and catalytic, you may
get burned. Also, do not remove
the heat sink around the
exhaust system, do not seal the
bottom of the vehicle or do not
coa t the vehicle for corrosion
control. It may present a fire risk
under certain conditions.
WARNING

!
10
+'-"-'($-),%**),%#+&*-,")&#($-),
%)")'!)!# %(&'$&'!&&($()

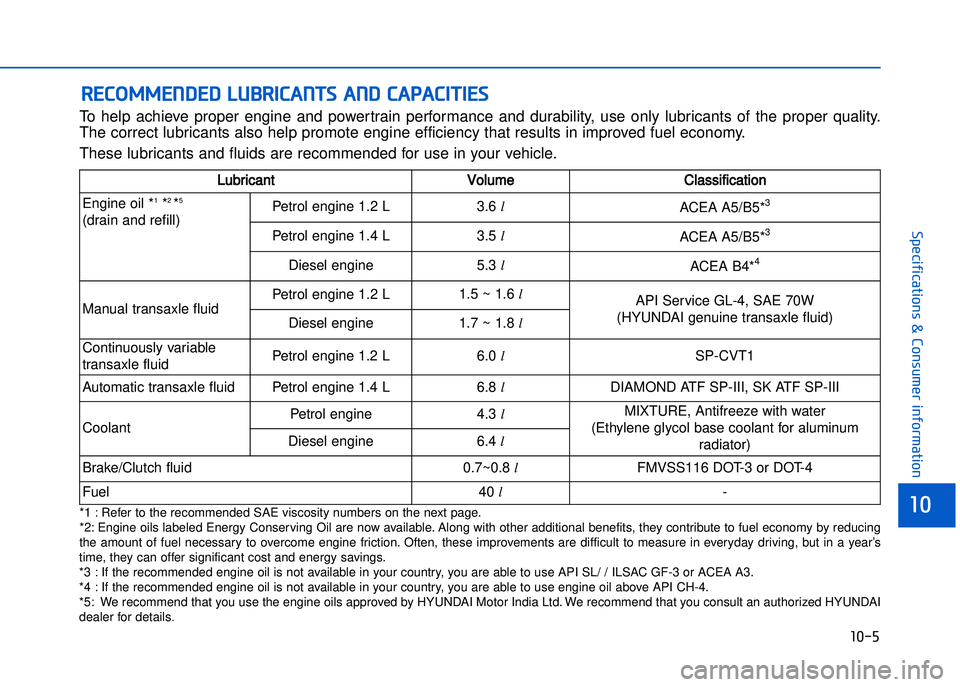

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *
\f*2 *5
(drain and refill) Petrol engine \f.2 L
3.6
l
ACEA A5/B5*
3
Petrol engine \f.4 L 3.5
l
ACEA A5/B5*3
Diesel engine5.3 lACEA B4*4
Manual transaxle fluid Petrol engine \f.2 L
\f.5 ~ \f.6
l
API Service GL\b4, SAE 70W
(HYUNDAI genuine transaxle fluid)
Diesel engine \f.7 ~ \f.8
l
Continuously variable
transaxle fluid Petrol engine \f.2 L
6.0
l
SP\bCVT\f
Automatic transaxle fluid Petrol engine \f.4 L 6.8
l
DIAMOND ATF SP\bIII, SK ATF SP\bIII
Coolant Petrol engine
4.3
l MIXTURE, Antifreeze with water
(Ethylene glycol base coolant for aluminum radiator)
Diesel engine
6.4
l
Brake/Clutch fluid 0.7~0.8
l
FMVSS\f\f6 DOT\b3 or DOT\b4
Fuel 40
l
\b
*\f : Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*3 : If the recommended engine oil is not available in your country, you are able to use API SL/ / ILSAC GF\b3 or ACEA A3.
*4 : If the recommended engine oil is not available in your country, you are able to use engine oil above API CH\b4.
*5: We recommend that you use the engine oils approved by HYUNDAI Motor India Ltd. We recommend that you consult an authorized HYUNDAI
dealer for details
.

!
+'-"-'($-),%**),%#+&*-,")&#($-),
Recommended SAE viscosity
numberEngine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi\b
ty engine oils can provide better fuel
economy and cold weather perform\b
ance, however, higher viscosity
engine oils are required for satisfac\b
tory lubrication in hot weather. Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change. Proceed to select the rec\b
ommended oil viscosity from the
chart.
Always be sure to clean the area
around any filler plug, drain plug,
or dipstick before checking or
draining any lubricant. This is
especially important in dusty or
sandy areas and when the vehicle
is used on unpaved roads.
Cleaning the plug and dipstick
areas will prevent dirt and grit from
entering the engine and other
mechanisms that could be dam\b
aged.
CAUTION
Temperature Range for SAE Viscosity Numbers
Temperature
°C
(°F)\b 3 0 \b 2 0 \b \f 0 0 \f 0 2 0 3 0 4 0 5 0 \b \f 0 0 2 0 4 0 6 0 8 0 \f 0 0 \f 2 0
Diesel
Engine Oil
5W\b30
\f5W\b40
\f0W\b30
0W\b30
Petrol
Engine Oil *\f
20W\b50
\f0W\b30
\f5W\b40
OW\b30, 5W\b30, 5W\b40
*\f : For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W\b30 (ACEA A5/B5). However, if the engine oil is not available in your coun\btry, select the proper engine oil using the engine oil viscosity chart.
