Tire chains
Since the sidewalls of radial tires are
thinner than other types of tires\b they
may be damaged by mounting some
types of tire chains on them.
Therefore\b the use of snow tires is
recommended instead of tire chains.
Do not mount tire chains on vehicles
equipped with aluminum wheels; if
unavoidable use a wire type chain. If
tire chains must be used\b use gen
uine HYUNDAI parts and install the
tire chain after reviewing the instruc
tions provided with the tire chains.
Damage to your vehicle caused by
improper tire chain use is not cov
ered by your vehicle manufacturer’s
warranty.
Information
• Install tire chains on the front tires\bIt should be noted that installing tire
chains on the tires will provide a
greater driving force, but will not
prevent side skids\b
• Do not install tire chains without first checking local and municipal
regulations for possible restrictions
against their use\b
Chain Installation
When installing tire chains\b follow the
manufacturer's instructions and
mount them as tightly possible. Drive
slowly (less than 3\f km/h (2\f mph))
with chains installed. If you hear the
chains contacting the body or chas
sis\b stop and tighten them. If they still
make contact\b slow down until the
noise stops. Remove the tire chains
as soon as you begin driving on
cleared roads.
When mounting snow chains\b park
the vehicle on level ground away
from traffic. Turn on the vehicle
Hazard Warning Flasher and place a
triangular emergency warning device
behind the vehicle (if available).
Always place the shift lever in neu
tral\b apply the parking brake and turn
off the engine before installing snow
chains.
i
OIB\f57\f11
The use of tire chains may
adversely affect vehicle handling:
•Drive less than 3\f km/h (2\f
mph) or the chain manufactur
er’s recommended speed limit\b
whichever is lower.
•Drive carefully and avoid
bumps\b holes\b sharp turns\b and
other road hazards\b which may
cause the vehicle to bounce.
•Avoid sharp turns or locked
wheel braking.
WARNING
!-0,0*&."'$-.,/#0%(/
+)

To keep locks from freezing
To keep the locks from freezing\b
squirt an approved deicer fluid or
glycerine into the key opening. If a
lock is covered with ice\b squirt it with
an approved deicing fluid to remove
the ice. If the lock is frozen internally\b
you may be able to thaw it out by
using a heated key. Handle the heat
ed key with care to avoid injury.
Use approved window washerantifreeze in system
To keep the water in the window
washer system from freezing\b add an
approved window washer antifreeze
solution in accordance with instruc
tions on the container. Window wash
er antifreeze is available from an
authorized HYUNDAI dealer and
most auto parts outlets. Do not use
engine coolant or other types of anti
freeze as these may damage the
paint finish.
Don't let your parking brake freeze
Under some conditions your parking
brake can freeze in the engaged
position. This is most likely to hap
pen when there is an accumulation
of snow or ice around or near the
rear brakes or if the brakes are wet.
If there is a risk the parking brake
may freeze\b apply it only temporarily
while you put the shift lever in P (for
Automatic Transaxle/Continuously
Variable Transaxle) or in first or
reverse gear (for Manual Transaxle)
and block the rear wheels so the
vehicle cannot roll. Then release the
parking brake.
Don't let ice and snow accumulate underneath
Under some conditions\b snow and
ice can build up under the fenders
and interfere with the steering. When
driving in severe winter conditions
where this may happen\b you should
periodically check underneath the
car to be sure the movement of the
front wheels and the steering com
ponents is not obstructed.
Carry emergency equipment
Depending on the severity of the
weather\b you should carry appropri
ate emergency equipment. Some of
the items you may want to carry
include tire chains\b tow straps or
chains\b flashlight\b emergency flares\b
sand\b shovel\b jumper cables\b window
scraper\b gloves\b ground cloth\b cover
alls\b blanket\b etc.
Don't place foreign objects or materials in the engine compartment
Placement of foreign objects or
materials which prevent cooling of
the engine\b in the engine compart
ment\b may cause a failure or com
bustion. The manufacturer is not
responsible for the damage caused
by such placement.
!-0,0*&."'$-.,/#0%(/
+)

IIf the engine stalls while driving• Reduce your speed gradually,
keeping a straight line. Move cau-
tiously off the road to a safe place.
• Turn on your hazard warning flash- er.
• Try to start the engine again. If your vehicle will not start, we recom-
mend that you contact an author-
ized HYUNDAI dealer.If the engine stalls at a cross-
road or crossing If the engine stalls at a crossroad or
crossing, if safe to do so, move the
shift lever to the N (Neutral) position
and then push the vehicle to a safe
location.
• If your vehicle has a manual transaxle not equipped with a igni-
tion lock switch, the vehicle can
move forward by shifting to the
2(second) or 3(third) gear and then
turning the starter without depress-
ing the clutch pedal.
If you have a flat tire while driv-
ing If a tire goes flat while you are driv-
ing:
• Take your foot off the accelerator
pedal and let the vehicle slow
down while driving straight ahead.
Do not apply the brakes immedi-
ately or attempt to pull off the road
as this may cause loss of vehicle
control resulting in an accident.
When the vehicle has slowed to
such a speed that it is safe to do
so, brake carefully and pull off the
road. Drive off the road as far as
possible and park on firm, level
ground. If you are on a divided
highway, do not park in the median
area between the two traffic lanes.
• When the vehicle is stopped, press the hazard warning flasher button,
move the shift lever into P (Park,
for Continuously Variable Transaxle
vehicle) or neutral (for Manual
Transaxle vehicle), apply the park-
ing brake, and place the ignition
switch in the LOCK/OFF position. • Have all passengers get out of the
vehicle. Be sure they all get out on
the side of the vehicle that is away
from traffic.
• When changing a flat tire, follow the instructions provided later in
this chapter.
$#"%"#%% %#
$% $$#
!

$#'#"'"' %'$%'&&&%

$$!%%#$#%
$#!!" !If the engine doesn't turn over or
turns over slowly • Be sure the shift lever is in N
(Neutral) or P (Park) if it is a
Continuously Variable Transaxle
vehicle. The engine starts only
when the shift lever is in N
(Neutral) or P (Park).
• Check the battery connections to be sure they are clean and tight.
• Turn on the interior light. If the light dims or goes out when you operate
the starter, the battery is drained.
Do not push or pull the vehicle to
start it. This could cause damage to
your vehicle. See instructions for "Jump Starting"
provided in this chapter.
If the engine turns over normally but doesn't start • Check the fuel level and add fuel if
necessary.
If the engine still does not start, we
recommend that you call an author-
ized HYUNDAI dealer for assistance.
!$#'#"'"' %'$%'&&&%Push or pull starting the vehicle
may cause the catalytic converter
to overload which can lead to
damage to the emission control
system.
WARNING

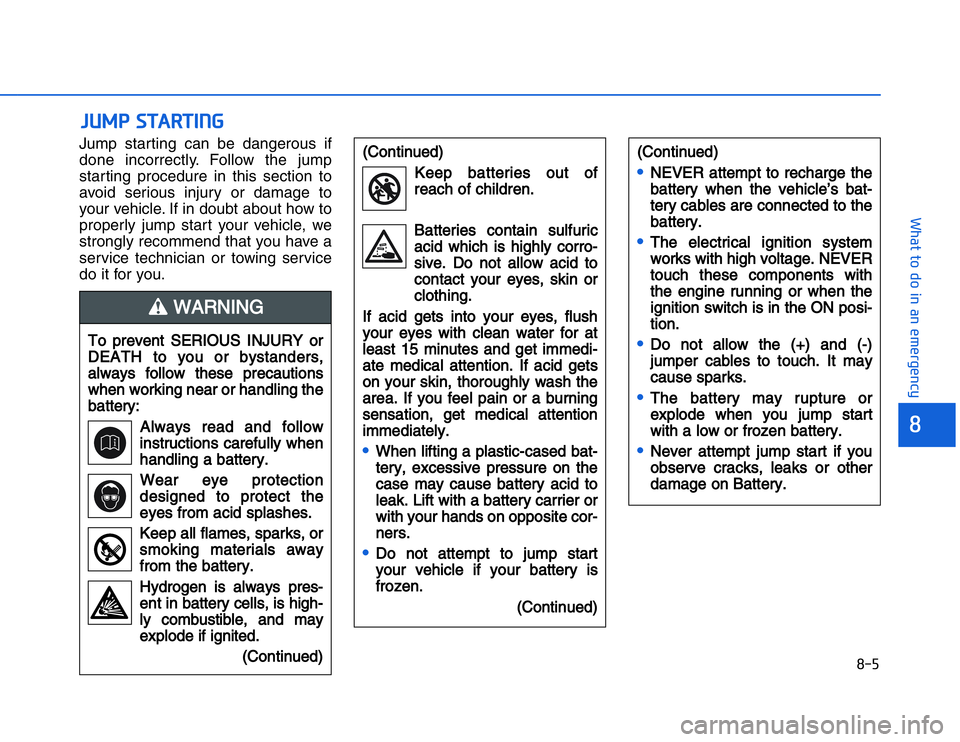

Jump starting can be dangerous if
done incorrectly. Follow the jump
starting procedure in this section to
avoid serious injury or damage to
your vehicle. If in doubt about how to
properly jump start your vehicle, we
strongly recommend that you have a
service technician or towing service
do it for you.!" !$#
!
$#'#"'"' %'$%'&&&%
To prevent SERIOUS INJURY or
DEATH to you or bystanders,
always follow these precautions
when working ne ar or handling the
battery:
Always read and follow
instructions carefully when
handling a battery.
Wear e ye protection
designed to protect the
eyes from acid splashes.
Keep all flames, sparks, or
smoking materi als away
from the battery.
Hydrogen is always pres-
ent in battery cells, is high-
ly combustible, and ma y
explode if ignited.
(Continued)
(Continued)
Keep batteries out of
reach of children.
Batteries contain sulfuric
acid which is highly corro-
sive. Do not allow acid to
contact your eyes, skin or
clothing.
If acid gets into your eyes, flush
your eyes with clean water for at
least 15 minutes and get immedi-
ate medical attention. If acid gets
on yo ur skin, thoroughly wash the
area. If you feel pain or a burning
sensation, get medical attention
immedi ately.•
When lifting a plastic-cased bat-
tery, excessive pressure on the
case may cause battery acid to
leak. L ift with a battery carrier or
with your hands on opposite cor-
ners.
•
Do not attempt to jump start
your vehicle if your battery is
frozen.
(Continued)
WARNING
(Continued)•
NEVER attempt to recharge the
battery when the vehicle’s bat-
tery cables are connected to the
battery.
•
The electrical ignition system
works with high voltage. NEVER
touch these components with
the engine run ning or when the
ignition switch is in the ON posi-
tion.
•
Do not allow the (+) and (-)
jumper cables to touch. It may
cause sparks.
•
The battery may rupture or
explode when you jump start
with a low or frozen battery.
•
Never attempt jump start if you
observe cracks, leaks or other
damage on Battery.

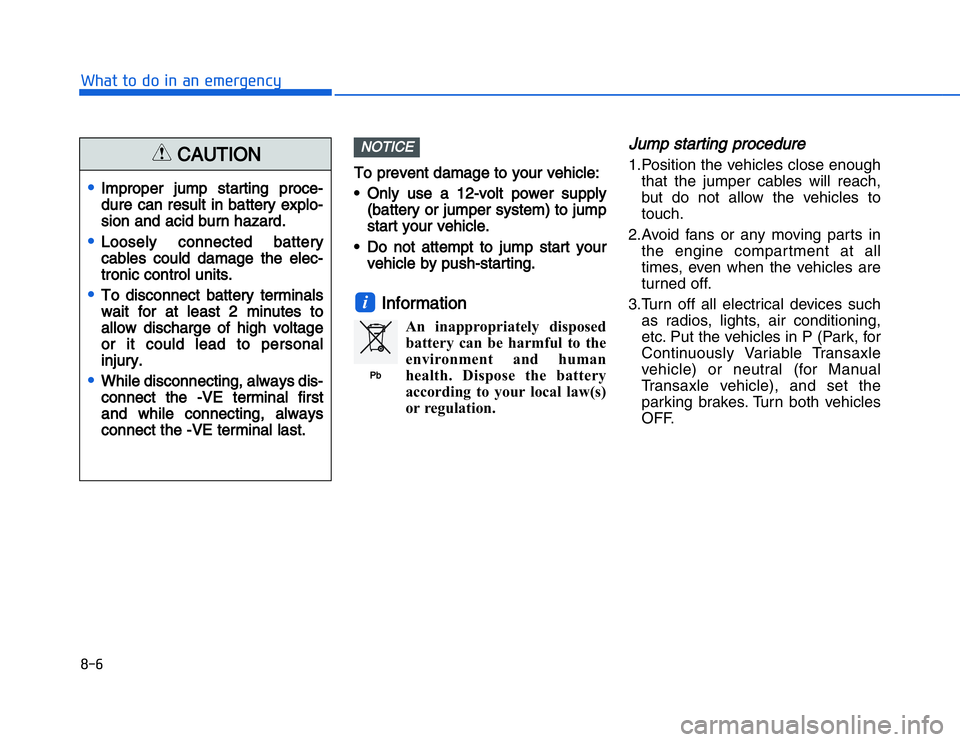

TTo prevent damage to your vehicle:
• Only use a 12-volt power supply (battery or jumper system) to jump
s tart your vehicle.
• Do not attempt to jump start your vehicle by push-starting.
Information
An inappropriately disposedbattery can be harmful to the
environment and human
health. Dispose the battery
according to your local law(s)
or regulation.
Jump starting procedure 1.Position the vehicles close enough that the jumper cables will reach,
but do not allow the vehicles to
touch.
2.Avoid fans or any moving parts in the engine compartment at all
times, even when the vehicles are
turned off.
3.Turn off all electrical devices such as radios, lights, air conditioning,
etc. Put the vehicles in P (Park, for
Continuously Variable Transaxle
vehicle) or neutral (for Manual
Transaxle vehicle), and set the
parking brakes. Turn both vehicles
OFF.
iNOTICE
!$#'#"'"' %'$%'&&&%
Pb
•
Improper jump starting proce-
dure can result in battery explo-
sion and acid burn hazard.
•
Loosely connected battery
cables could damage the elec-
tronic control units.
•
To disconnect battery terminals
wait for at least 2 minutes to
allow discharge of high voltage
or it cou ld lead to personal
injury.
•
While disconnecting, always dis-
connect the -VE terminal first
and while connecting, always
connect the -VE terminal last.
CAUTION

4.Connect the jumper cables in theexact sequence shown in the illus-
tration. First connect one jumper
cable to the red, positive (+)
jumper terminal of your vehicle (1).
5.Connect the other end of the jumper cable to the red, positive
(+) battery/jumper terminal of the
assisting vehicle (2).
6.Connect the second jumper cable to the black, negative (-)
battery/chassis ground of the
assisting vehicle (3). 7.Connect the other end of the sec-
ond jumper cable to the black, neg-
ative (-) chassis ground of your
vehicle (4).
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over
the battery when making connec-
tions.
8.Start the engine of the assisting vehicle and let it run at approxi-
mately 2,000 rpm for a few min-
utes. Then start your vehicle.
If your vehicle will not start after a
few attempts, it probably requires
servicing. In this event please seek
qualified assistance. If the cause of
your battery discharging is not
apparent, we recommend that your
vehicle be checked by an authorized
HYUNDAI dealer. Disconnect the jumper cables in the
exact reverse order you connected
them:
1.Disconnect the jumper cable from
the black, negative (-) chassis
ground of your vehicle (4).
2.Disconnect the other end of the jumper cable from the black, nega-
tive (-) battery/chassis ground of
the assisting vehicle (3).
3.Disconnect the second jumper cable from the red, positive (+) bat-
tery/jumper terminal of the assist-
ing vehicle (2).
4.Disconnect the other end of the jumper cable from the red, positive
(+) jumper terminal of your vehicle
(1).
!
$#'#"'"' %'$%'&&&%
OLMB063002/Q
Jumper Terminal
Jumper Cables
Booster Battery
(-)
(+) (+)
(-)
Never connect Jumper Cable
directly to the negative (-) terminal
of discharged Battery (Your
Vehicle Bat tery), or an Explosion
may occur.
WARNING

If your temperature gauge indicates
overheating, you experience a loss
of power, or hear loud pinging or
knocking, the engine may be over-
heating. If this happens, you should:
1.Pull off the road and stop as soonas it is safe to do so.
2.Place the shift lever in P (Park, for Continuously Variable Transaxle
vehicle) or neutral (for Manual
Transaxle vehicle) and set the
parking brake. If the air condition-
ing is ON, turn it OFF.
3.If engine coolant is running out under the vehicle or steam is com-
ing out from the hood, stop the
engine. Do not open the hood until
the coolant has stopped running or
the steaming has stopped. If there
is no visible loss of engine coolant
and no steam, leave the engine
running and check to be sure the
engine cooling fan is operating. If
the fan is not running, turn the
engine off. 4.Check for coolant leaking from the
radiator, hoses or under the vehi-
cle. (If the air conditioning had
been in use, it is normal for cold
water to be draining from it when
you stop.)
5.If engine coolant is leaking out, stop the engine immediately and
we recommend that you call an
authorized HYUNDAI dealer for
assistance.$$ !%%#$#%% %"!!!$#'#"'"' %'$%'&&&%
While the engine is run-
ning, keep hands,
clothing and tools away
from the moving parts
such as the cool ing fan
and drive belt to pre-
vent serious injury.WARNING
NEVER remove the
radiator cap or the
drain plug while the
engine and radiator are
hot. Hot coolant and
ste am may blow out under pres-
sure, causing serious injury.
Turn the engine off and wait until
the engine cools down. Use
extreme care when removing the
radiator cap. Wrap a thick towel
around it, and turn it c ounterclock-
wise slowly to the first stop. Step
back while the pressure is
released from the cooling sy stem.
When you are sure all the pres-
sure has been released, press
down on the cap, using a thick
towel, and continue turning coun-
terclockwise to remove it.WARNING
