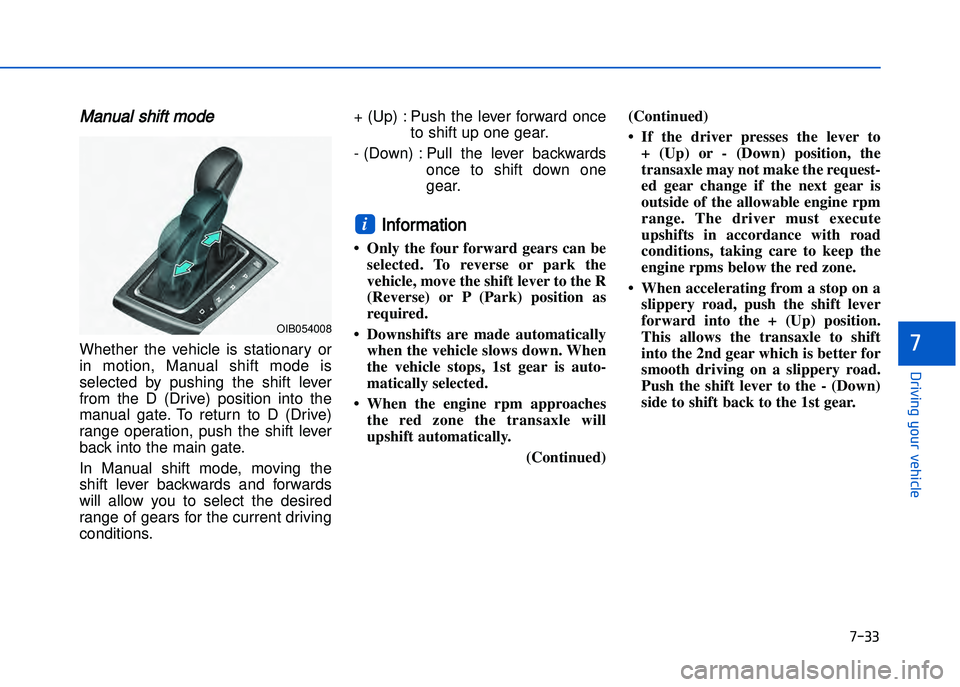

Manual shift mode
Whether the vehicle is stationary or
in motion\b Manual shift mode is
selected by pushing the shift lever
from the D (Drive) position into the
manual gate. To return to D (Drive)
range operation\b push the shift lever
back into the main gate.
In Manual shift mode\b moving the
shift lever backwards and forwards
will allow you to select the desired
range of gears for the current driving
conditions. + (Up) : Push the lever forward once
to shift up one gear.
(Down) : Pull the lever backwards once to shift down one
gear.
Information
• Only the four forward gears can beselected\b To reverse or park the
vehicle, move the shift lever to the R
(Reverse) or P (Park) position as
required\b
• Downshifts are made automatically when the vehicle slows down\b When
the vehicle stops, 1st gear is auto
matically selected\b
• When the engine rpm approaches the red zone the transaxle will
upshift automatically\b
(Continued)(Continued)
• If the driver presses the lever to
+ (Up) or (Down) position, the
transaxle may not make the request
ed gear change if the next gear is
outside of the allowable engine rpm
range\b The driver must execute
upshifts in accordance with road
conditions, taking care to keep the
engine rpms below the red zone\b
• When accelerating from a stop on a slippery road, push the shift lever
forward into the + (Up) position\b
This allows the transaxle to shift
into the \fnd gear which is better for
smooth driving on a slippery road\b
Push the shift lever to the (Down)
side to shift back to the 1st gear\b
i
OIB\f54\f\f8

+)
!-0,0*&."'$-.,/#0%(/

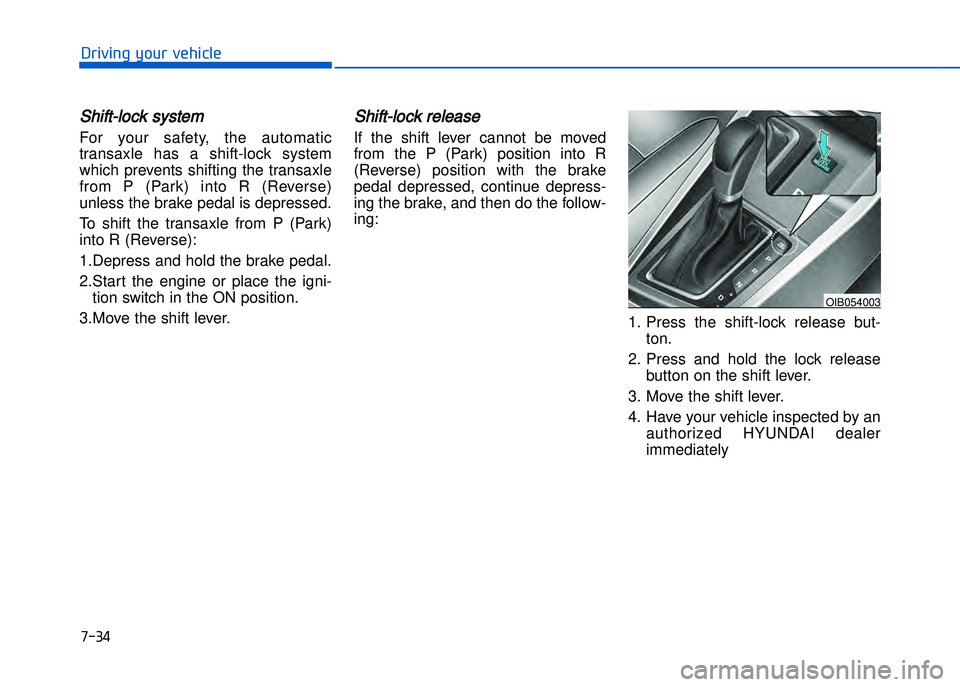

Shiftlock system
For your safety\b the automatic
transaxle has a shiftlock system
which prevents shifting the transaxle
from P (Park) into R (Reverse)
unless the brake pedal is depressed.
To shift the transaxle from P (Park)
into R (Reverse):
1.Depress and hold the brake pedal.
2.Start the engine or place the ignition switch in the ON position.
3.Move the shift lever.
Shiftlock release
If the shift lever cannot be moved
from the P (Park) position into R
(Reverse) position with the brake
pedal depressed\b continue depress
ing the brake\b and then do the follow
ing:
1. Press the shiftlock release button.
2. Press and hold the lock release button on the shift lever.
3. Move the shift lever.
4. Have your vehicle inspected by an authorized HYUNDAI dealer
immediately
OIB\f54\f\f3

+)
!-0,0*&."'$-.,/#0%(/

Parking
Always come to a complete stop and
continue to depress the brake pedal.
Move the shift lever into the P (Park)
position\b apply the parking brake\b
and place the ignition switch in the
LOCK/OFF position. Take the Key
with you when exiting the vehicle.
Good driving practices
• Never move the shift lever from P(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.
• Never move the shift lever into P (Park) when the vehicle is in
motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).
• Do not move the shift lever to N (Neutral) when driving. Doing so
may result in an accident because
of a loss of engine braking and the
transaxle could be damaged.
• Do not drive with your foot resting on the brake pedal. Even light\b but
consistent pedal pressure can
result in the brakes overheating\b
brake wear and possibly even
brake failure.
• Depressing both accelerator and brake pedals at the same time can
trigger logic for engine power
reduction to assure vehicle decel
eration. Vehicle acceleration willresume after the brake pedal is
released. • When driving in Manual shift mode\b
slow down before shifting to a
lower gear. Otherwise\b the lower
gear may not be engaged if the
engine rpms are outside of the
allowable range.
• Always apply the parking brake when leaving the vehicle. Do not
depend on placing the transmis
sion in P (Park) to keep the vehicle
from moving.
• Exercise extreme caution when driving on a slippery surface. Be
especially careful when braking\b
accelerating or shifting gears. On a
slippery surface\b an abrupt change
in vehicle speed can cause the
drive wheels to lose traction and
may cause loss of vehicle control
resulting in an accident
• Optimum vehicle performance and economy is obtained by smoothly
depressing and releasing the
accelerator.
When you stay in the vehicle with
the engine running\b be careful not
to depress the accelerator pedal
for a long period of time. The
engine or exhaust system may
overheat and start a fire.
The exhaust gas and the exhaust
system are very hot. Keep away
from the exhaust system compo
nents.
Do not stop or park over flamma
ble materials\b such as dry grass\b
paper or leaves. They may ignite
and cause a fire.
WARNING

+) +
!-0,0*&."'$-.,/#0%(/

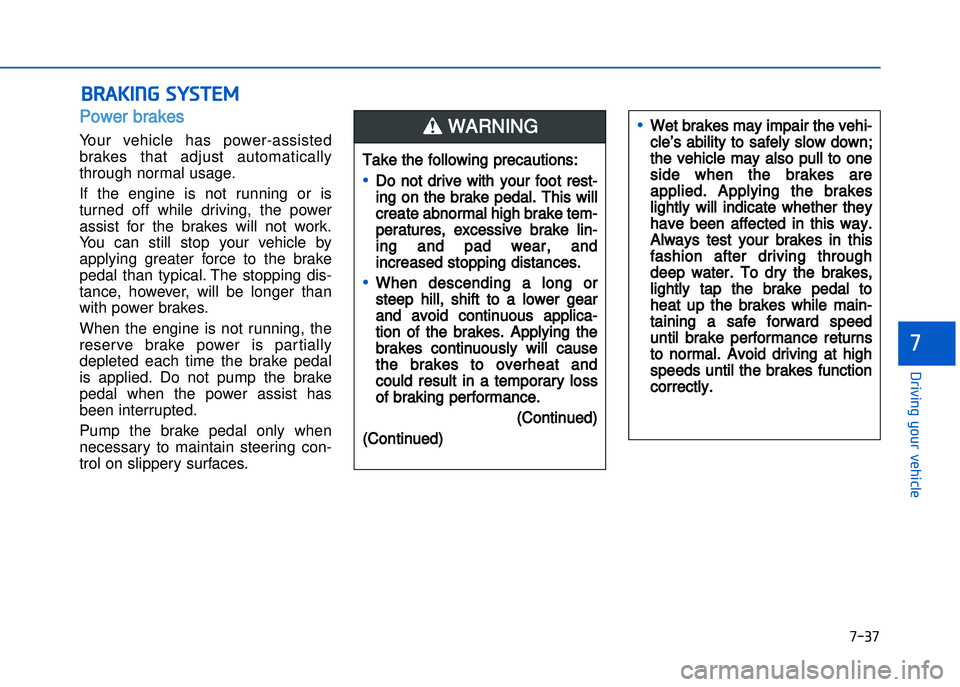

Power brakes
Your vehicle has powerassisted
brakes that adjust automatically
through normal usage.
If the engine is not running or is
turned off while driving\b the power
assist for the brakes will not work.
You can still stop your vehicle by
applying greater force to the brake
pedal than typical. The stopping dis
tance\b however\b will be longer than
with power brakes.
When the engine is not running\b the
reser ve brake power is par tially
depleted each time the brake pedal
is applied. Do not pump the brake
pedal when the power assist has
been interrupted.
Pump the brake pedal only when
necessary to maintain steering con
trol on slippery surfaces.
#%(&
""$'

Take the following precautions:
•Do not drive with your foot rest
ing on the brake pedal. This will
create abnormal high brake tem
peratures\b excessive brake lin
ing and pad wear\b and
increased stopping distances.
•When descending a long or
steep hill\b shift to a lower gear
and avoid continuous applica
tion of the brakes. Applying the
brakes continuously will cause
the brakes to overheat and
could result in a temporary
loss
of braking performance.
(Continued)
(Continued)
•Wet brakes may impair the vehi
cle’s ability to safely slow down;
the vehicle may also pull to one
side when the brakes are
applied. Applying the brakes
lightly will indicate whether they
have been affected in this way.
Always test your brakes in this
fashion after driving through
deep water. To dry the brakes\b
lightly tap the brake pedal to
heat up the brakes while main
taining a safe forward speed
until brak
e performance returns
to normal. Avoid driving at high
speeds until the brakes function
correctly.
WARNING

+)
!-0,0*&."'$-.,/#0%(/Check the Parking
Brake Warning Light by
placing the ignition
switch to the ON posi
tion (do not start the
engine).
This light will be illuminated when the
parking brake is applied with the igni
tion switch in the START or ON posi
tion.
Before driving\b be sure the parking
brake is released and the Brake
Warning Light is OFF. If the Parking Brake Warning Light
remains on after the parking brake is
released while engine is running\b
there may be a malfunction in the
brake system. Immediate attention is
necessary.
If at all possible\b cease driving the
vehicle immediately. If that is not pos
sible\b use extreme caution while
operating the vehicle and only con
tinue to drive the vehicle until you
can reach a safe location.
Antilock Brake System (ABS) (if
equipped)
WK23
<
 )
E7::
<=B
>@3D3 2C3
B=
7;>@=>3@
=@
2/<53@=CA
2@7D7<5
;/<3CD3@A

D3<
B6=C56
D3671:3
1=@=D32
2C@7<5
3;3@53<1G
0@/97<5\b
/:E/GA
;/7<
B/7<
/
A/43
27AB/<13
03BE33<
G=C
/<2
=0831BA
/63/2
=4
G=C

,3671:3
A>332A
A6=C:2
/:E/GA
03
@32C132
2C@7<5
3FB@3;3
@=/2
1=<27B7=
*63
0@/97<5
27AB/<13
4=@
1/@A
3?C7>>32
E7B6
)
;/G
03
:=<53@
B6/<
4=@
B6=A3
E7B6=CB
B63A3
AGA
B3;A


7<
B63
4=::=E7<5
@=/2
1=<27
B7=
= (% %

+)
!-0,0*&."'$-.,/#0%(/

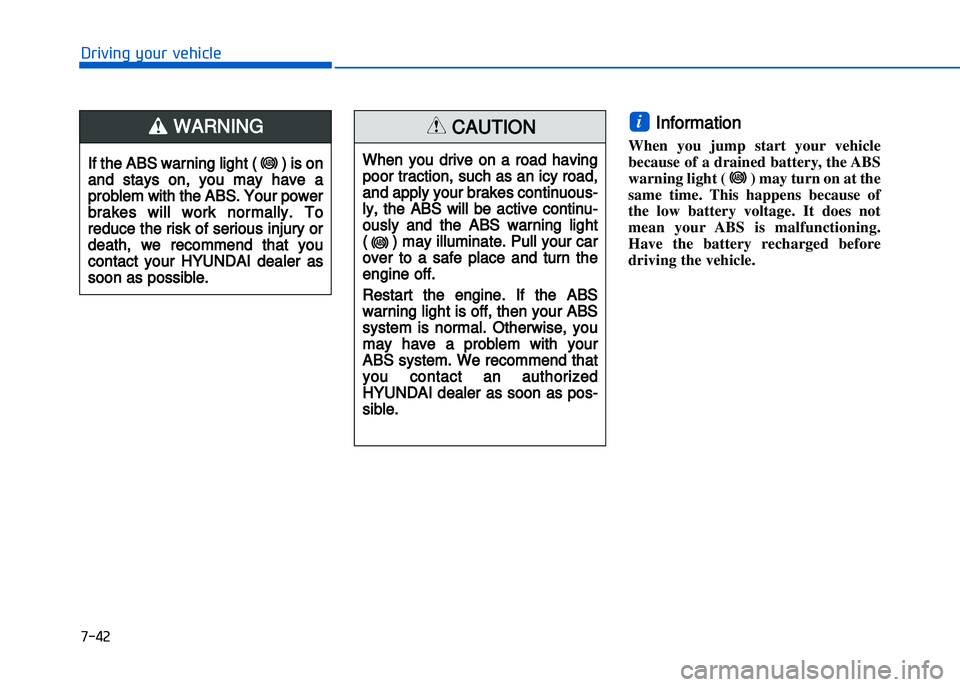

Information
When you jump start your vehicle
because of a drained battery, the ABS
warning light ( ) may turn on at the
same time\b This happens because of
the low battery voltage\b It does not
mean your ABS is malfunctioning\b
Have the battery recharged before
driving the vehicle\b
i
If the ABS warning light ( ) is on
and stays on\b you may have a
problem with the ABS. Your power
brakes will work normally. To
reduce the risk of serious injury or
death\b we recommend that you
contact your HYUNDAI dealer as
soon as possible.
WARNING
When you drive on a road having
poor traction\b such as an icy road\b
and apply your brakes continuous
ly\b the ABS will be active continu
ously and the ABS warning light
( ) may illuminate. Pull your car
over to a safe place and turn the
engine off.
Restart the engine. If the ABS
warning light is off\b then your ABS
system is normal. Otherwise\b you
may have a problem with your
ABS system. We recommend that
you contact an authorized
HYUNDAI dealer as
soon as pos
sible.
CAUTION

+)
!-0,0*&."'$-.,/#0%(/
"'(%!

#(V(&
 &
($( &"

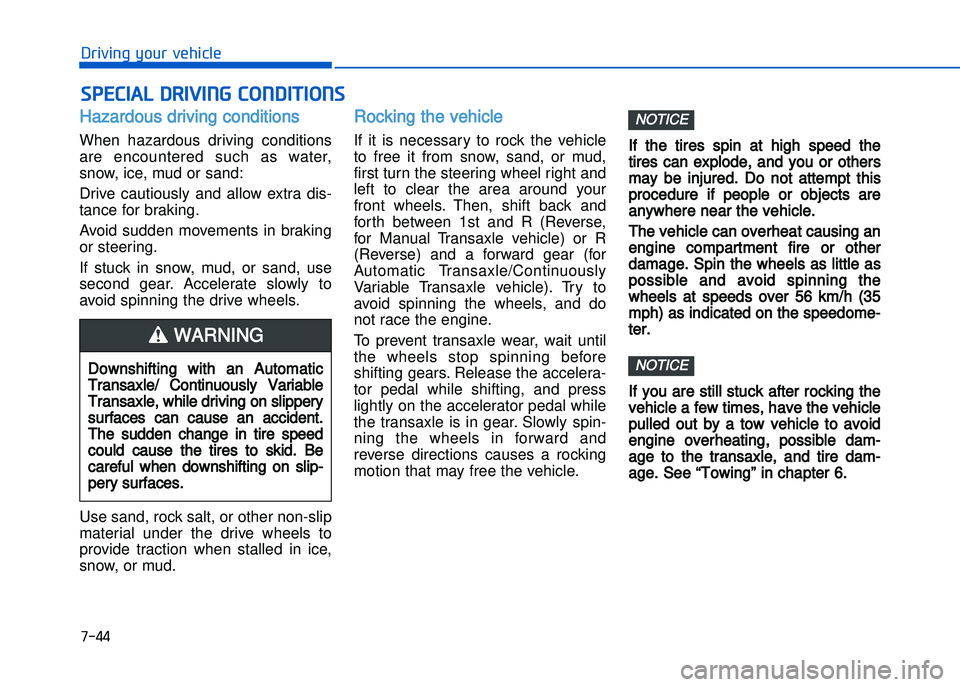

Hazardous driving conditions
When hazardous driving conditions
are encountered such as water\b
snow\b ice\b mud or sand:
Drive cautiously and allow extra dis
tance for braking.
Avoid sudden movements in braking
or steering.
If stuck in snow\b mud\b or sand\b use
second gear. Accelerate slowly to
avoid spinning the drive wheels.
Use sand\b rock salt\b or other nonslip
material under the drive wheels to
provide traction when stalled in ice\b
snow\b or mud.
Rocking the vehicle
If it is necessary to rock the vehicle
to free it from snow\b sand\b or mud\b
first turn the steering wheel right and
left to clear the area around your
front wheels. Then\b shift back and
forth between 1st and R (Reverse\b
for Manual Transaxle vehicle) or R
(Reverse) and a forward gear (for
Automatic Transaxle/Continuously
Variable Transaxle vehicle). Try to
avoid spinning the wheels\b and do
not race the engine.
To prevent transaxle wear\b wait until
the wheels stop spinning before
shifting gears. Release the accelera
tor pedal while shifting\b and press
lightly on the accelerator pedal while
the transaxle is in gear. Slowly spin
ning the wheels in forward and
reverse directions causes a rocking
motion that may free the vehicle. If the tires spin at high speed the
tires can explode\b and you or others
may be injured. Do not attempt this
procedure if people or objects are
anywhere near the vehicle.
The vehicle can overheat causing an
engine compartment fire or other
damage. Spin the wheels as little as
possible and avoid spinning the
wheels at speeds over 5
6 k
m/h (35
mph) as indicated on the speedome
ter.
If you are still stuck after rocking the
vehicle a few times\b have the vehicle
pulled out by a tow vehicle to avoid
engine overheating\b possible dam
age to the transaxle\b and tire dam
age. See “Towing” in chapter 6.
NOTICE
NOTICE
Downshifting with an Automatic
Transaxle/ Continuously Variable
Transaxle\b while driving on slippery
surfaces can cause an accident.
The sudden change in tire speed
could cause the tires to skid. Be
careful when downshifting on slip
pery surfaces.
WARNING

Snow or icy conditions
You need to keep sufficient distance
between your vehicle and the vehicle
in front of you.
Apply the brakes gently. Speeding\b
rapid acceleration\b sudden brake
applications\b and sharp turns are
potentially very hazardous practices.
During deceleration\b use engine
braking to the fullest extent. Sudden
brake applications on snowy or icy
roads may cause skids to occur.
To drive your vehicle in deep snow\b it
may be necessary to use snow tires
or to install tire chains on your tires.
Always carry emergency equipment.
Some of the items you may want to
carry include tire chains\b tow straps
or chains\b a flashlight\b emergency
flares\b sand\b a shovel\b jumper cables\b
a window scraper\b gloves\b ground
cloth\b coveralls\b a blanket\b etc.
Snow tires
If you mount snow tires on your vehi
cle\b make sure to use radial tires of
the same size and load range as the
original tires. Mount snow tires on all
four wheels to balance your vehicle’s
handling in all weather conditions.
The traction provided by snow tires
on dry roads may not be as high as
your vehicle's original equipmenttires. Check with the tire dealer for
maximum speed recommendations.
Information
Do not install studded tires without
first checking local and municipal reg
ulations for possible restrictions
against their use\b
i
W(&$'#

#(V(&
Snow tires should be equivalent in
size and type to the vehicle's stan
dard tires. Otherwise\b the safety
and handling of your vehicle may
be adversely affected.
WARNING

!-0,0*&."'$-.,/#0%(/
+)+
