2014 Hyundai Equus Owner's Manual

Maintenance
56 7

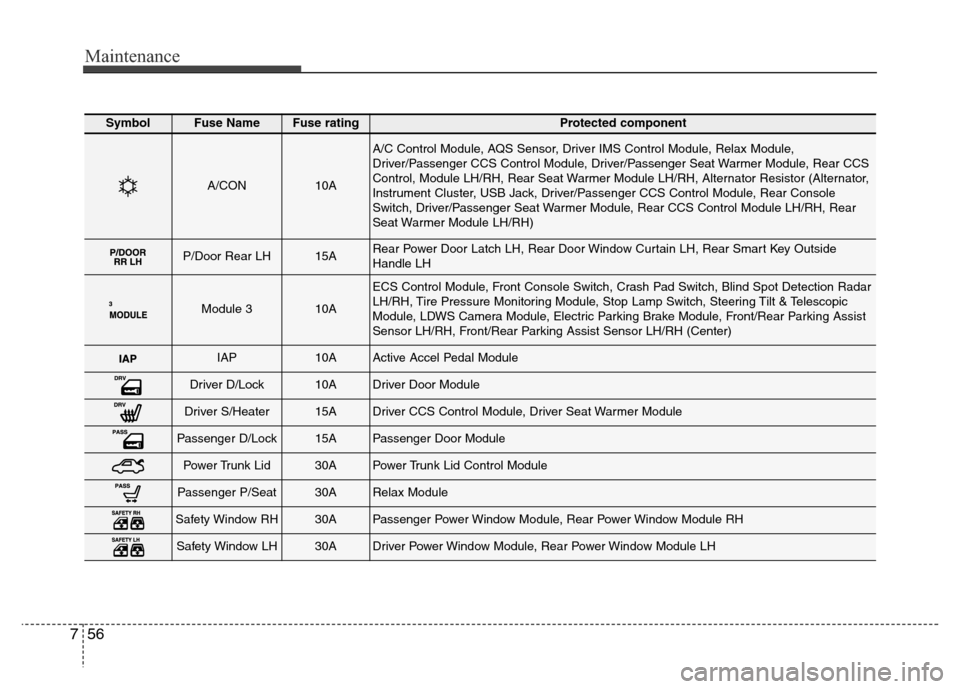

SymbolFuse NameFuse ratingProtected component
A/CON10A
A/C Control Module, AQS Sensor, Driver IMS Control Module, Relax Module,
Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module, Rear CCS
Control, Module LH/RH, Rear Seat Warmer Module LH/RH, Alternator Resistor (Alternator,
Instrument Cluster, USB Jack, Driver/Passenger CCS Control Module, Rear Console
Switch, Driver/Passenger Seat Warmer Module, Rear CCS Control Module LH/RH, Rear
Seat Warmer Module LH/RH)
P/Door Rear LH15ARear Power Door Latch LH, Rear Door Window Curtain LH, Rear Smart Key Outside
Handle LH
Module 310A
ECS Control Module, Front Console Switch, Crash Pad Switch, Blind Spot Detection Radar
LH/RH, Tire Pressure Monitoring Module, Stop Lamp Switch, Steering Tilt & Telescopic
Module, LDWS Camera Module, Electric Parking Brake Module, Front/Rear Parking Assist
Sensor LH/RH, Front/Rear Parking Assist Sensor LH/RH (Center)
IAP10AActive Accel Pedal Module
Driver D/Lock10ADriver Door Module
Driver S/Heater15ADriver CCS Control Module, Driver Seat Warmer Module
Passenger D/Lock15APassenger Door Module
Power Trunk Lid30APower Trunk Lid Control Module
Passenger P/Seat30ARelax Module
Safety Window RH30APassenger Power Window Module, Rear Power Window Module RH
Safety Window LH30ADriver Power Window Module, Rear Power Window Module LH

757
Maintenance
Instrument fuse panel (Passenger’s side)
OVI073160L
OBH071027

Maintenance
58 7

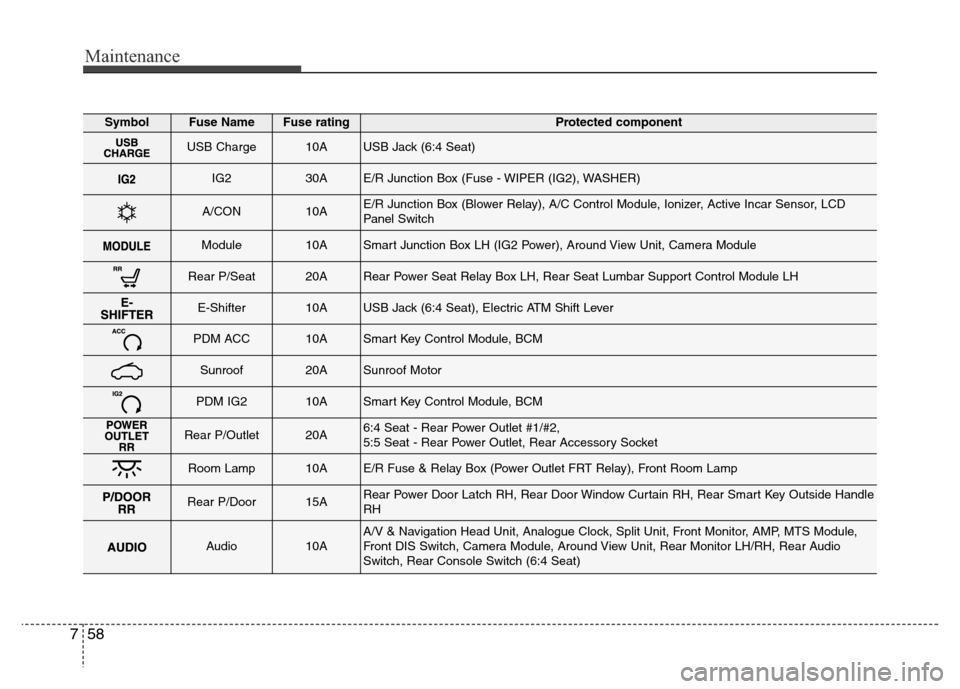

SymbolFuse NameFuse ratingProtected component
USB Charge10AUSB Jack (6:4 Seat)
IG230AE/R Junction Box (Fuse - WIPER (IG2), WASHER)
A/CON10AE/R Junction Box (Blower Relay), A/C Control Module, Ionizer, Active Incar Sensor, LCD
Panel Switch
Module10ASmart Junction Box LH (IG2 Power), Around View Unit, Camera Module
Rear P/Seat20ARear Power Seat Relay Box LH, Rear Seat Lumbar Support Control Module LH
E-Shifter10AUSB Jack (6:4 Seat), Electric ATM Shift Lever
PDM ACC10ASmart Key Control Module, BCM
Sunroof20ASunroof Motor
PDM IG210ASmart Key Control Module, BCM
Rear P/Outlet20A6:4 Seat - Rear Power Outlet #1/#2,
5:5 Seat - Rear Power Outlet, Rear Accessory Socket
Room Lamp10AE/R Fuse & Relay Box (Power Outlet FRT Relay), Front Room Lamp
Rear P/Door15ARear Power Door Latch RH, Rear Door Window Curtain RH, Rear Smart Key Outside Handle
RH
Audio10AA/V & Navigation Head Unit, Analogue Clock, Split Unit, Front Monitor, AMP, MTS Module,
Front DIS Switch, Camera Module, Around View Unit, Rear Monitor LH/RH, Rear Audio
Switch, Rear Console Switch (6:4 Seat)

759
Maintenance
SymbolFuse NameFuse ratingProtected component
Rear L/Support15ARear Power Seat Relay Box RH, Rear Seat Lumbar Support Control Module RH
Passenger
S/Heat15APassenger CCS Control Module, Passenger Seat Warmer Module
Steering
W/Heated15AClock Spring (Steering Wheel Remote Control - Steering Wheel Heated Module)
Cool Box15ACool Box, Rear Console Swtich, Rear Seat Lumbar Support Control Module RH
Passenger
P/Door15APassenger Power Door Latch, Passenger Power Seat Switch, Passenger Smart Key Outside
Handle
Rear RH
S/Heat15ARear CCS Control Module RH, Rear Seat Warmer Module RH

Maintenance
60 7

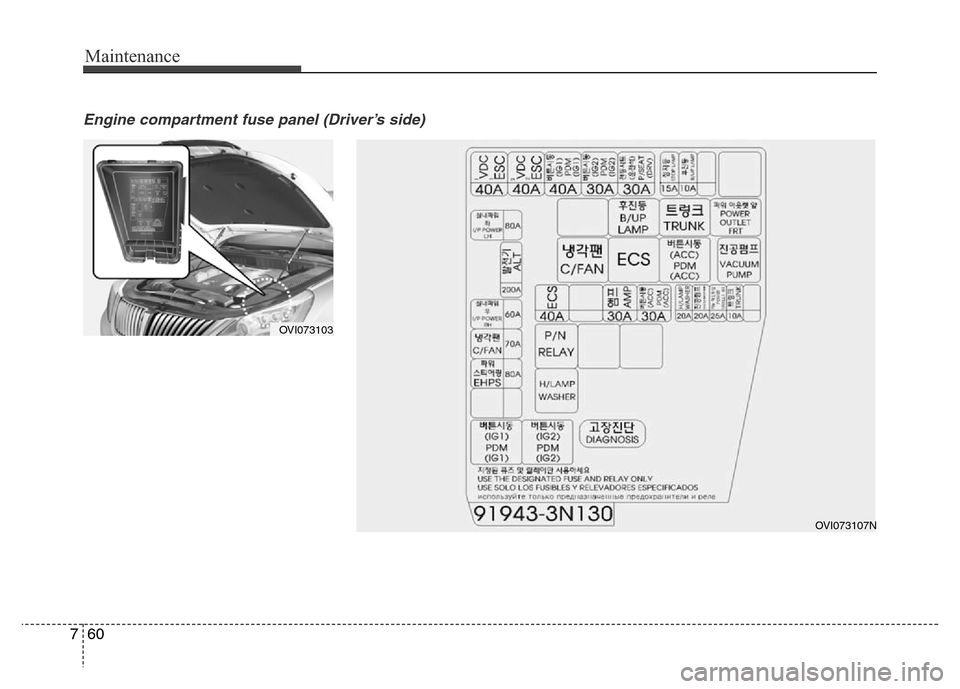

Engine compartment fuse panel (Driver’s side)
OVI073103
OVI073107N

761
Maintenance

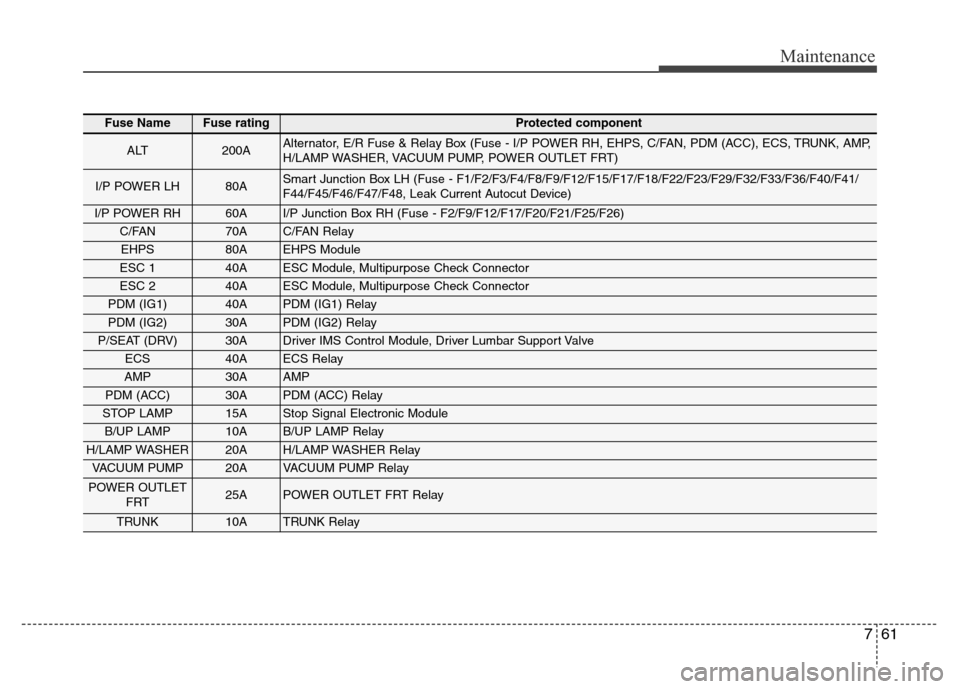

Fuse NameFuse ratingProtected component
ALT200AAlternator, E/R Fuse & Relay Box (Fuse - I/P POWER RH, EHPS, C/FAN, PDM (ACC), ECS, TRUNK, AMP,
H/LAMP WASHER, VACUUM PUMP, POWER OUTLET FRT)
I/P POWER LH80ASmart Junction Box LH (Fuse - F1/F2/F3/F4/F8/F9/F12/F15/F17/F18/F22/F23/F29/F32/F33/F36/F40/F41/
F44/F45/F46/F47/F48, Leak Current Autocut Device)
I/P POWER RH60AI/P Junction Box RH (Fuse - F2/F9/F12/F17/F20/F21/F25/F26)
C/FAN70AC/FAN Relay
EHPS80AEHPS Module
ESC 140AESC Module, Multipurpose Check Connector
ESC 240AESC Module, Multipurpose Check Connector
PDM (IG1)40APDM (IG1) Relay
PDM (IG2)30APDM (IG2) Relay
P/SEAT (DRV)30ADriver IMS Control Module, Driver Lumbar Support Valve
ECS40AECS Relay
AMP30AAMP
PDM (ACC)30APDM (ACC) Relay
STOP LAMP15AStop Signal Electronic Module
B/UP LAMP10AB/UP LAMP Relay
H/LAMP WASHER20AH/LAMP WASHER Relay
VACUUM PUMP20AVACUUM PUMP Relay
POWER OUTLET
FRT25APOWER OUTLET FRT Relay
TRUNK10ATRUNK Relay

Maintenance
62 7

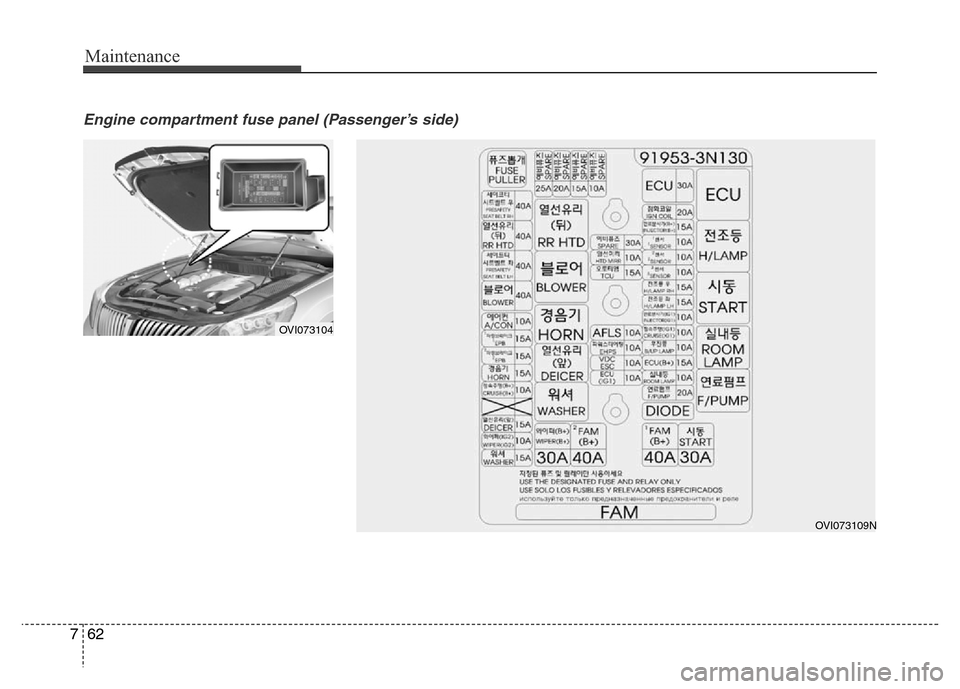

Engine compartment fuse panel (Passenger’s side)
OVI073104
OVI073109N

763
Maintenance
Fuse NameFuse ratingProtected component
WIPER (B+)30AElectronic Control Wiper Module
FAM 2 (B+)40AFA M
FAM 1 (B+)40AFA M
START30AStart Relay
WASHER15AWasher Relay
WIPER (IG2)10AElectronic Control Wiper Module
DEICER15ADeicer Relay
CRUISE (B+)10AH/Lamp Relay, Smart Cruise Control Module
HORN15AHorn Relay
EPB 215AElectric Parking Brake Module
EPB 115AElectric Parking Brake Module
A/CON10AA/C Control Module
BLOWER40ABlower Relay
PRESAFETY
SEAT BELT LH40ADriver Pre-Safe Seat Belt
RR HTD40ARR HTD Relay
PRESAFETY
SEAT BELT RH40APassenger Pre-Safe Seat Belt
ECU (IG1)10AECM, Alternator (G8BE)
ESC10AESC Module, E/R Fuse & Relay Box (Multipurpose Check Connector)
EHPS10AEHPS Module
AFLS10AHead Lamp LH/RH
TCU15ATCM, Transmission Range Switch, Transmission Park Position Sensor & Switch
HTD MIRR10ADriver/Passenger Power Outside Mirror
F/PUMP20AF/Pump Relay
