2014 Hyundai Equus Owner's Manual

Features of your vehicle
80 4
Sunroof Open (if equipped)
• This warning message illuminates
if you turn off the engine when the
sunroof is open.
Window Open
This warning message illuminates if
you turn off the engine when any
window is open.
Check fuse "BRAKE SWITCH"
• This warning message illuminates
if the brake switch fuse is discon-
nected.
• It means that you should replace
the fuse with a new one. If that is
not possible, you can start the
engine by pressing the Engine
Start/Stop Button for 10 seconds in
the ACC position.
OVIEDI3938OVIEDI3939OVIEDI3940

481
Features of your vehicle
Turn on "FUSE SWITCH"
• This warning message illuminates
if the fuse switch under the steer-
ing wheel is OFF.
• It means that you should turn the
fuse switch on.
❈For more details, refer to “Fuses”
in chapter 7.
Low Tire Pressure
• This warning message illuminates
if the tire pressure is low with the
Engine/Start Button in ON position.
❈For more details, refer to "Tire
Pressure Monitoring System
(TPMS)" in chapter 6.
Check Fuel Cap
• This warning message illuminates
if the fuel filler cap is opened or is
not tightened securely. Tighten the
fuel filler cap securely.
OVIEDI3941OVIEDI3943OVIEDI3944

Features of your vehicle
82 4
Check Power System
• This warning message illuminates
if the battery voltage is abnormally
low, or the battery has poor per-
formance. We recommend that the
vehicle be inspected by an author-
ized HYUNDAI dealer.
Low Washer Fluid
• This warning message illuminates
on the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
• It means that you should refill the
washer fluid.
Check BSD System (if equipped)
• This warning message illuminates
if there is a malfunction with the
Blind Spot Detection (BSD) sys-
tem. And the light on the BSD
switch will turn off and the BSD
system will be automatically deac-
tivated. We recommend that the
vehicle be inspected by an author-
ized HYUNDAI dealer.
❈For more details, refer to "Blind
Spot Detection (BSD) System" in
chapter 5.
OVIEDI3945OVIEDI3946OVIEDI3947

483
Features of your vehicle

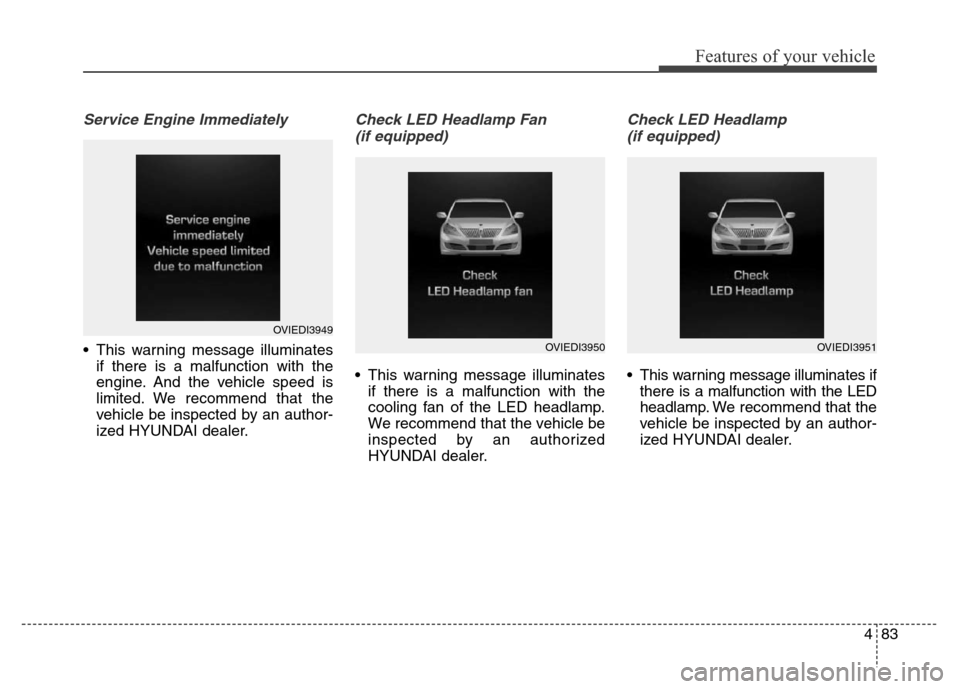

Service Engine Immediately
• This warning message illuminates
if there is a malfunction with the
engine. And the vehicle speed is
limited. We recommend that the
vehicle be inspected by an author-
ized HYUNDAI dealer.
Check LED Headlamp Fan
(if equipped)
• This warning message illuminates
if there is a malfunction with the
cooling fan of the LED headlamp.
We recommend that the vehicle be
inspected by an authorized
HYUNDAI dealer.
Check LED Headlamp
(if equipped)
• This warning message illuminates if
there is a malfunction with the LED
headlamp. We recommend that the
vehicle be inspected by an author-
ized HYUNDAI dealer.
OVIEDI3949
OVIEDI3950OVIEDI3951

Features of your vehicle
84 4
Check PSB
• This warning message illuminates
if there is a malfunction with the
Pre-safe Seat Belt (PSB) system.
We recommend that the vehicle be
inspected by an authorized
HYUNDAI dealer.
❈For more details, refer to "Seat
Belt" in chapter 3.
Check ECS (if equipped)
• This warning message illuminates
if there is a malfunction with the
Electronic Controlled Suspension
(ECS) system. We recommend that
the vehicle be inspected by an
authorized HYUNDAI dealer.
❈For more details, refer to
"Electronic Controlled Suspension
(ECS)" in chapter 5.
✽NOTICE - ECS Warning
Message
When there is a malfunction with
the Electronic Stability Control
(ESC), the Electronic Controlled
Suspension (ECS) warning message
may illuminate as well as the
Electronic Stability Control (ESC)
Indicator Light.
OVIEDI3952OVIEDI3953

485
Features of your vehicle
Check SCC System (if equipped)
• This warning message illuminates
if there is a malfunction with the
advanced smart cruise control sys-
tem. We recommend that the vehi-
cle be inspected by an authorized
HYUNDAI dealer.
❈For more details, refer to
"Advanced Smart Cruise Control
System" in chapter 5.
Check SCC Radar (if equipped)
• This warning message illuminates
if the radar of the advanced smart
cruise control system or its cover is
stained. Remove the stains with a
soft cloth.
❈For more details, refer to
"Advanced Smart Cruise Control
System" in chapter 5.
CAUTION - ECS Warning
Message
• If the Electronic Controlled
Suspension (ECS) Warning
Message illuminates when
there is no air in the suspen-
sion, the vehicle height will be
very low. In this case, do not
drive the vehicle to protect it
from the projections on the
surface of the ground. We rec-
ommend that the vehicle be
inspected by an authorized
HYUNDAI dealer.
• When towing the vehicle, you
should follow the instruction
in "Electronic Controlled
Suspension (ECS)" of chapter
5.
OVIEDI3954OVIEDI3955

Features of your vehicle
86 4
Overview
Description
The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
✽NOTICE
Some driving information stored in
the trip computer (for example
Average Vehicle Speed) resets if the
battery is disconnected.
Trip Modes
• Type A : To change the trip mode,
press the or button.
• Type B : To change the trip mode,
rotate the haptic switch.
❈For more details, refer to "LCD
Display control" in this chapter
TRIP COMPUTER
• Tripmeter [A]
• Average Vehicle Speed [A]
• Elapsed Time [A]
TRIP A
• Tripmeter [B]
• Average Vehicle Speed [B]
• Elapsed Time [B]
TRIP B
• Distance To Empty
• Average Fuel Economy
• Instant Fuel Economy
FUEL ECONOMY

487
Features of your vehicle

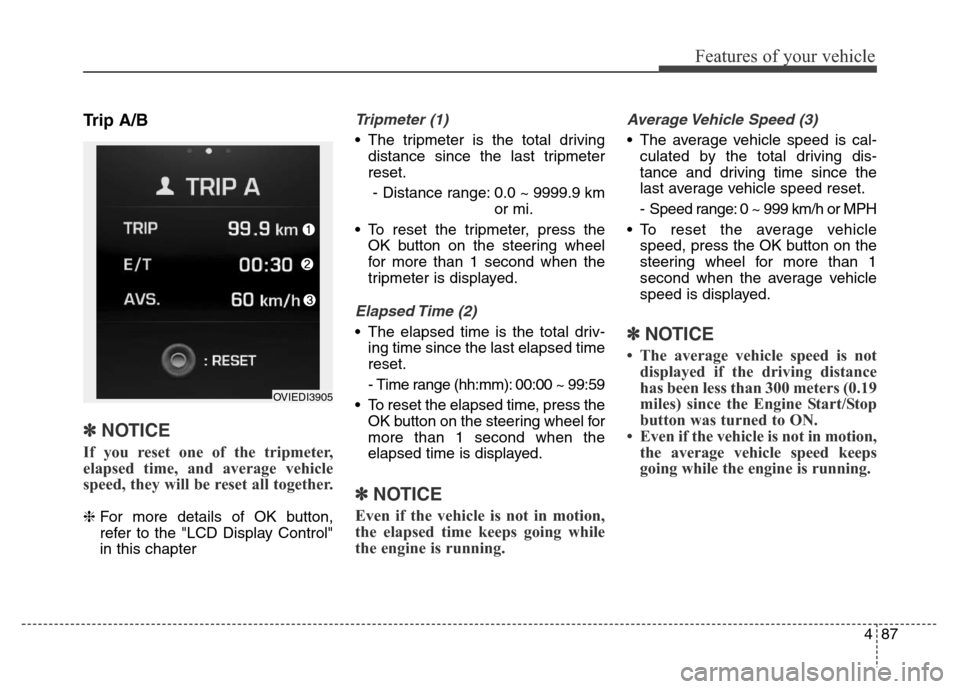

Trip A/B
✽NOTICE
If you reset one of the tripmeter,
elapsed time, and average vehicle
speed, they will be reset all together.
❈For more details of OK button,
refer to the "LCD Display Control"
in this chapter
Tripmeter (1)
• The tripmeter is the total driving
distance since the last tripmeter
reset.
- Distance range: 0.0 ~ 9999.9 km
or mi.
• To reset the tripmeter, press the
OK button on the steering wheel
for more than 1 second when the
tripmeter is displayed.
Elapsed Time (2)
• The elapsed time is the total driv-
ing time since the last elapsed time
reset.
- Time range (hh:mm): 00:00 ~ 99:59
• To reset the elapsed time, press the
OK button on the steering wheel for
more than 1 second when the
elapsed time is displayed.
✽NOTICE
Even if the vehicle is not in motion,
the elapsed time keeps going while
the engine is running.
Average Vehicle Speed (3)
• The average vehicle speed is cal-
culated by the total driving dis-
tance and driving time since the
last average vehicle speed reset.
- Speed range: 0 ~ 999 km/h or MPH
• To reset the average vehicle
speed, press the OK button on the
steering wheel for more than 1
second when the average vehicle
speed is displayed.
✽NOTICE
• The average vehicle speed is not
displayed if the driving distance
has been less than 300 meters (0.19
miles) since the Engine Start/Stop
button was turned to ON.
• Even if the vehicle is not in motion,
the average vehicle speed keeps
going while the engine is running.
OVIEDI3905
