2014 HONDA PILOT Owners Manual

464
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: 4WD models
*3: LX models with 4WD
*4: Except LX models with 4WD
ModelHonda Pilot
No. of Passengers:
Front 2
Second 3
Third 3
Total
8Weights:Gross Vehicle Weight
Rating U.S.: 5,953 lbs (2,700 kg)*1
6,096 lbs (2,765 kg)*2
Canada: 2,700 kg*1
2,765 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,921 lbs (1,325 kg)Canada: 1,325 kgGross Axle Weight
Rating (Rear)U.S.: 3,197 lbs (1,450 kg)*1
3,251 lbs (1,475 kg)*3
3,362 lbs (1,525 kg)*4
Canada: 1,450 kg*1
1,525 kg*2
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity21.2 – 22.9 oz (600 – 650 g)Lubricant TypeND-OIL8
■ Engine Specifications
■ Fuel
■ Ba
ttery
■Wa
sher Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGKDILZKR7A11G
Fuel:TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 21.0 US gal (79.5 ℓ)
Capacity/Type60AH(5)/72AH(20)
Tank CapacityU.S.: 4.2 US qt (4.0 ℓ)
Canada: 6.9 US qt (6.5 ℓ)
■Light Bulbs
*5: Not available on all models
Headlights (Low Beam)55W (H11)
Headlights (High Beam)60 W (HB3)Daytime Running Lights60 W (HB3)
Fog Lights*555W (H11)Front Turn Signal/Parking Lights28/8W (Amber)
Side Turn Signal Lights 
(on Door Mirrors)
*5 LED
Front Side Marker Lights3CP
Rear Side Marker Lights5WBrake/Taillights21/5W
Back-Up Lights18WRear Turn Signal/Taillights21/5W
High-Mount Brake Light5WRear License Plate Light5W
Interior Lights Map Lights (Front) 8W
Map Lights (Rear) 4CP
Door Courtesy Lights 2CP
Console Compartment
Light 1.4W
Glove Box Light 1.4W
Foot Light LED
Cargo Area Light 8W
Vanity Mirror Lights 1.4W

465
uu Specifications u 

Information
■Brake Fluid
■Automatic Transmission Fluid
*1: 2WD models
*2: 4WD models
■Rear Differential Fluid *
■Transfer Assembly Fluid *
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.2 US qt (3.1 ℓ)
*1
3.6 US qt (3.4 ℓ)*2
SpecifiedHonda VTM-4 Differential Fluid
Capacity Change2.79 US qt (2.64 ℓ)
SpecifiedHYPOID GEAR OIL API GL4 or GL5 
SAE75W-85 (SAE90 CAN BE USED)
Capacity Change0.45 US qt (0.43 ℓ)
■Engine Oil
■ En
gine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change
4.2 US qt (4.0 ℓ)
Change
includi
ng
filter 4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio50/50 with distilled water
Capacity1.98 US gal (7.5 ℓ) 
(change including the remaining 
0.198 US gal (0.75 ℓ) in the reserve tank)
■ Tire
*3: U.S. LX
*4: Except U.S. LX
Regular
SizeP235/65R/17 103T*3
P235/60R/18 102T*4
Pressure 
psi (kPa [kgf/cm2])
Front31 (210 [2.1])*3
35 (240 [2.4])*4
Rear33 (230 [2.3])*3
35 (240 [2.4])*4
Compact
Spare Size
T165/80D17 104M
Pressure 
psi (kPa [kgf/cm
2])60 (420 [4.2])
Wheel SizeRegular17 x 7.5J*3
18 x 7.5J*4
Compact Spare17 x 4T
* Not available on all models

466
Information
Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licen sing and insuring your vehicle. See the
image below for the VIN locations.
Engine Number and Transmission Number
See the image below for the locations of your vehicle's engine number and
transmission number.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Automatic Transmission Number

467Continued


Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following
two conditions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex p
ressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Immobilizer System
Parking Sensor System
Remote Transmitter
Tire Pressure Monitoring System (TPMS)
Rear Entertainment System Remote Control
Models with Parking Sensor System
Models with Rear Entertainment System

468
uu Devices that Emit Radio Waves u
Information
This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1 ) this device may not cause interference,
and (2) this device must accept any inte rference, including interference that may
cause undesired operation of the device.

469


Information

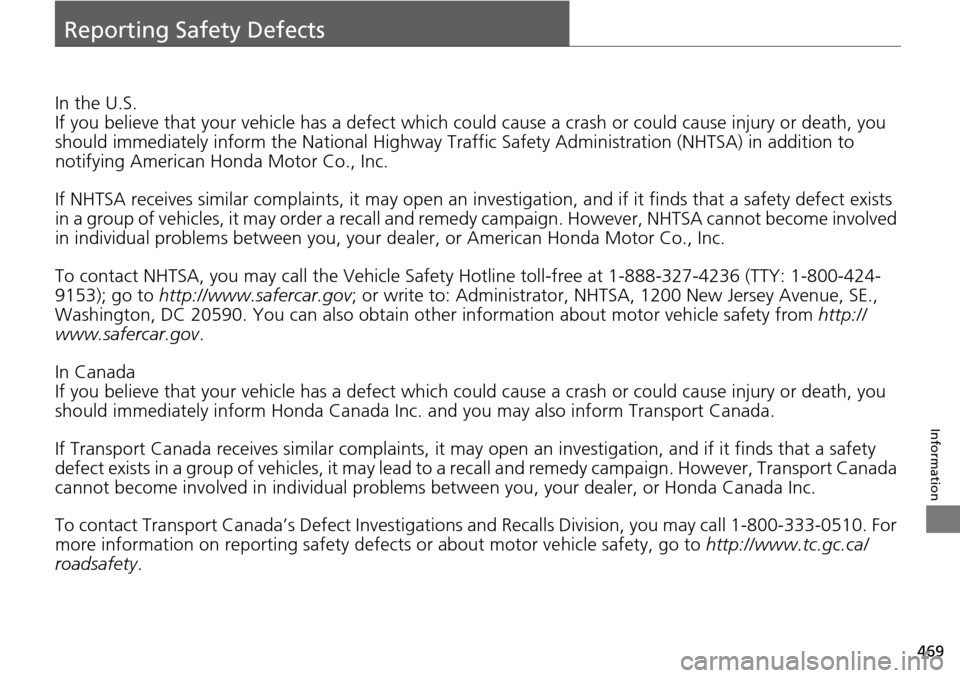

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could c
ause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Admi nistration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an invest
igation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and reme dy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hot
line toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which could c
ause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may ope
n an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations an
d Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defe cts or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .

470
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if yo
ur vehicle's emissions components
are working properly.
The codes may not be read properly if testi ng is
performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn
the ignition switch to ON (w
, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the
vehicle for retesting by doing the following:
1. F
ill the gas tank to approximately 3/4 full.
2.Park t
he vehicle and leave the engine off for 6 hours or more.
3.Make sure the a
mbient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start
the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the
vehicle in (P
. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let
the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.

471
uu Emissions Testing u Testing of Readiness Codes

Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D
. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (V ehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic
for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the
vehicle and leave the engine off for 30 minutes.
