2014 HONDA PILOT Owners Manual

152

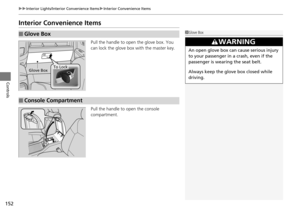

uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Controls
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key.
Pull the handle to open
the console
compartment.
■Glove Box1 Glove Box
3 WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove BoxTo Lock
■Console Compartment

153
uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Continued
Controls

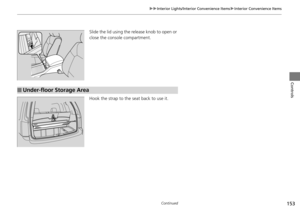

Slide the lid using the release knob to open or
close the console compartment.
Hook the strap to the seat back to use it.
■Under-floor Storage Area

uu Interior Lights/Interior Convenience Items u Interior Convenience Items
154
Controls
Pull the lever and lift the lid to open the
compartment.
■Front seat beverage holders
Are located in the console between the front
seats.
■Storage Compartment
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.

155
uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Continued
Controls

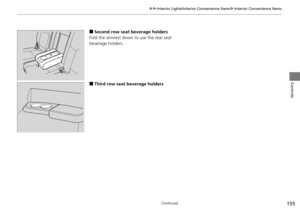

■Second row seat beverage holders
Fold the armrest down to use the rear seat
beverage hol
ders.
■Third row seat beverage holders

uu Interior Lights/Interior Convenience Items u Interior Convenience Items
156
Controls
The accessory power sockets can be used wh en the ignition switch is in ACCESSORY
(q
or ON (w
.
■Accessory power socket (instrument
panel)
Open the cover to use it.
■Accessory power socket (console
compartment)
Open the console lid and the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 120
watts or less (10 amps).
To prevent battery drain, only use the power socket
with the engine running.
When each socket is bei ng used simultaneously, the
combined power rating of the accessories should not
exceed 120 watts (10 amps).

157
uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Continued
Controls
■Accessory power socket (back of the
console compartment)
Open the cover to use it.
■Accessory power socket (cargo area)
Open the cover to use it.

uu Interior Lights/Interior Convenience Items u Interior Convenience Items
158
Controls

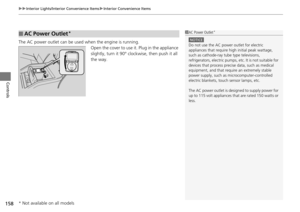

The AC power outlet can be used when the engine is running.
Open the cover to use it. Plug in the appliance
slightly, turn it 90° clockwise, then push it all
the way.
■AC Power Outlet *1AC Power Outlet *
NOTICE
Do not use the AC power outlet for electric
appliances that require high initial peak wattage,
such as cathode-ray tube type televisions,
refrigerators, electric pumps, etc. It is not suitable for
devices that process precis e data, such as medical
equipment, and that require an extremely stable
power supply, such as microcomputer-controlled
electric blankets, touc h sensor lamps, etc.
The AC power outlet is desi gned to supply power for
up to 115 volt appliances that are rated 150 watts or
less.
* Not available on all models

Continued159
uu Interior Lights/Interior Convenience Items u Interior Convenience Items
Controls

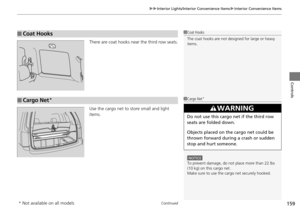

There are coat hooks near the third row seats.
Use the cargo net to store small and light
items.
■Coat Hooks1Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
■Cargo Net *1Cargo Net *
NOTICE
To prevent damage, do not place more than 22 lbs
(10 kg) on this cargo net.
Make sure to use the cargo net securely hooked.
3 WARNING
Do not use this cargo net if the third row
seats are folded down.
Objects placed on the cargo net could be
thrown forward during a crash or sudden
stop and hurt someone.
* Not available on all models
