2014 HONDA CIVIC COUPE CNG Owners Manual

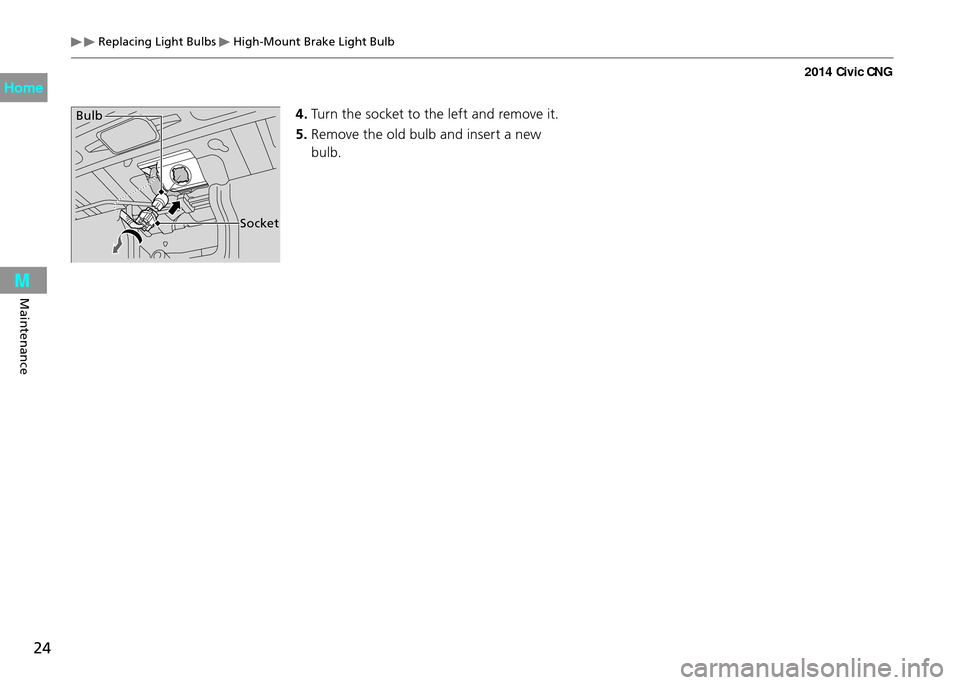

24
Maintenance
Replacing Light Bulbs High-Mount Brake Light Bulb
4. Turn the socket to the left and remove it.
5. Remove the old bulb and insert a new
bulb.Bulb
Socket

2014 Civic CNG

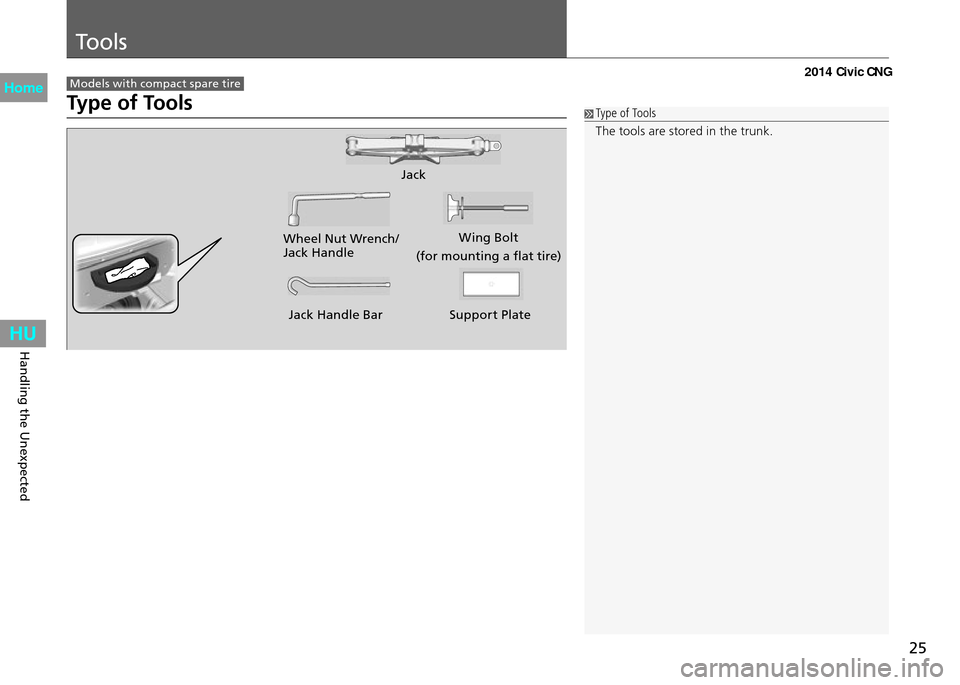

25
Tools
Handling the Unexpected
Type of Tools
The tools are stored in the trunk.
Models with compact spare tire
Type of Tools
Jack Handle BarJack
Wing Bolt
(for mounting a flat tire)
Support Plate
Wheel Nut Wrench/
Jack Handle

2014 Civic CNG

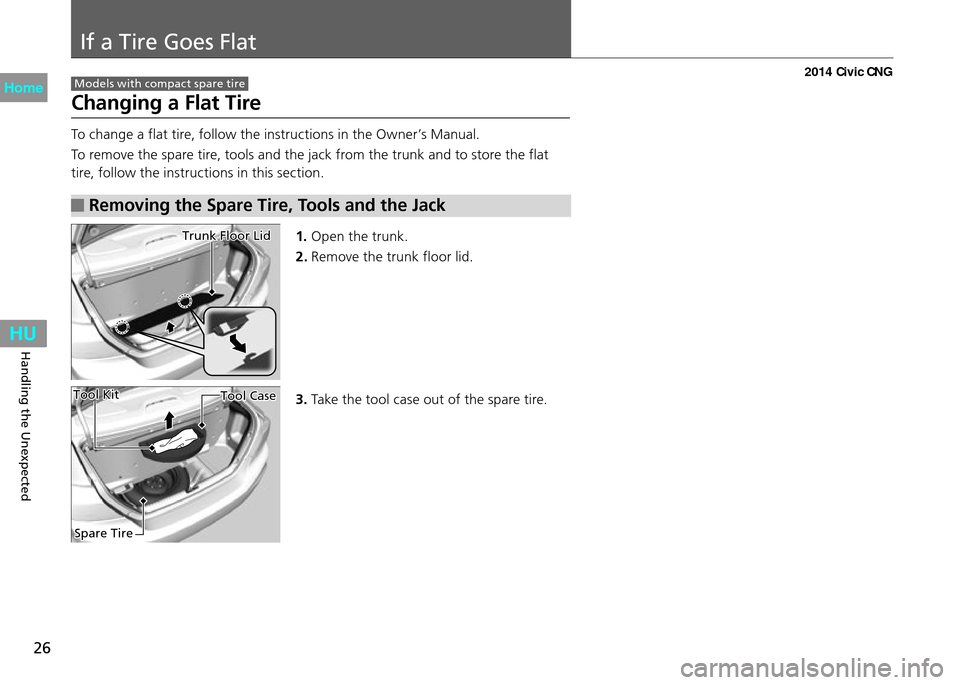

If a Tire Goes Flat
26
Handling the Unexpected
To change a flat tire, follow the instructions in the Owner’s Manual.
To remove the spare tire, tools and the jack from the trunk and to store the flat
tire, follow the instructions in this section.
Removing the Spare Tire, Tools and the Jack
Trunk Floor Lid
Tool KitTool Case
Spare Tire
1. Open the trunk.
2. Remove the trunk floor lid.
3. Take the tool case out of the spare tire.
Models with compact spare tire
Changing a Flat Tire

2014 Civic CNG

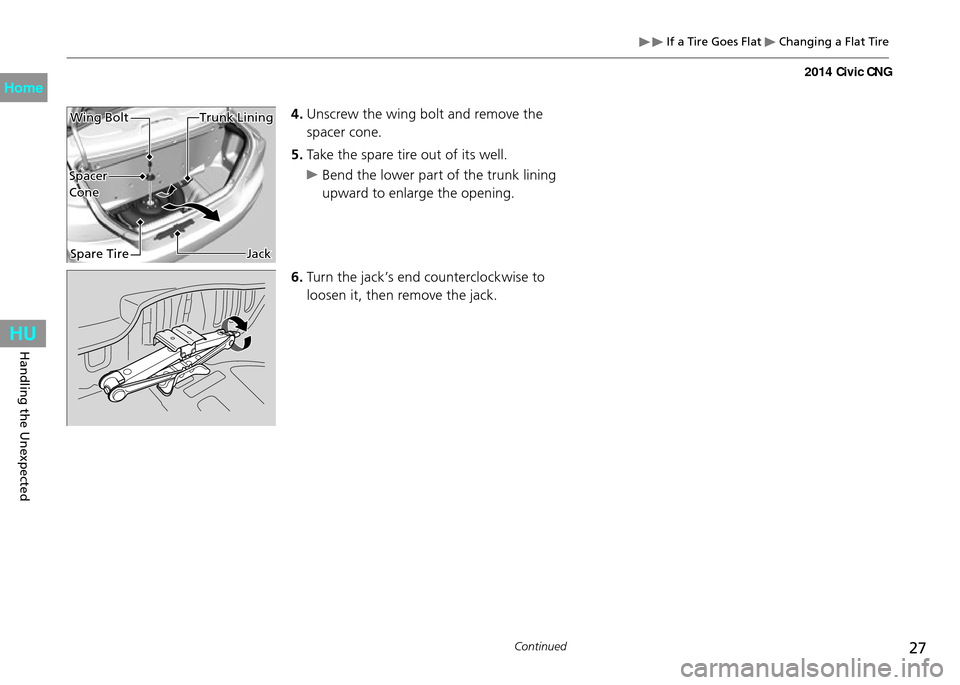

27Continued
Handling the Unexpected
If a Tire Goes Flat Changing a Flat Tire
4. Unscrew the wing bolt and remove the
spacer cone.
5. Take the spare tire out of its well.
Bend the lower part of the trunk lining
upward to enlarge the opening.
6. Turn the jack’s end counterclockwise to
loosen it, then remove the jack.
Wing Bolt
Jack
Spacer
Cone
Spare Tire
Trunk Lining

2014 Civic CNG

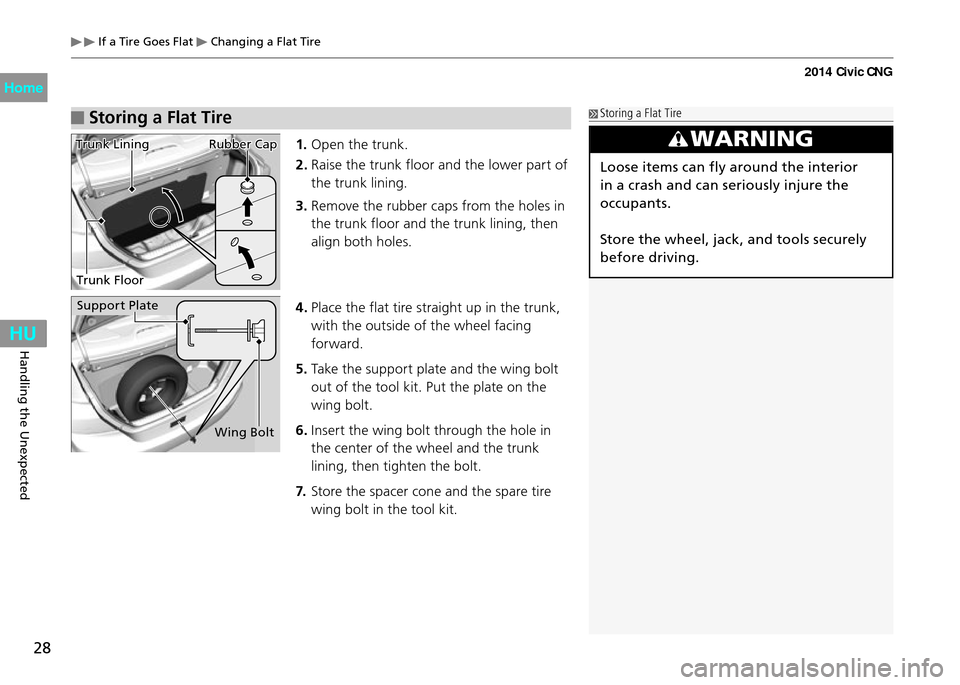

28
Handling the Unexpected
If a Tire Goes Flat Changing a Flat Tire
Storing a Flat Tire
WARNING
Loose items can fly around the interior
in a crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Storing a Flat Tire
1. Open the trunk.
2. Raise the trunk floor and the lower part of
the trunk lining.
3. Remove the rubber caps from the holes in
the trunk floor and the trunk lining, then
align both holes.
4. Place the flat tire straight up in the trunk,
with the outside of the wheel facing
forward.
5. Take the support plate and the wing bolt
out of the tool kit. Put the plate on the
wing bolt.
6. Insert the wing bolt through the hole in
the center of the wheel and the trunk
lining, then tighten the bolt.
7. Store the spacer cone and the spare tire
wing bolt in the tool kit.Trunk LiningRubber Cap
Trunk Floor
Support Plate
Wing Bolt

2014 Civic CNG

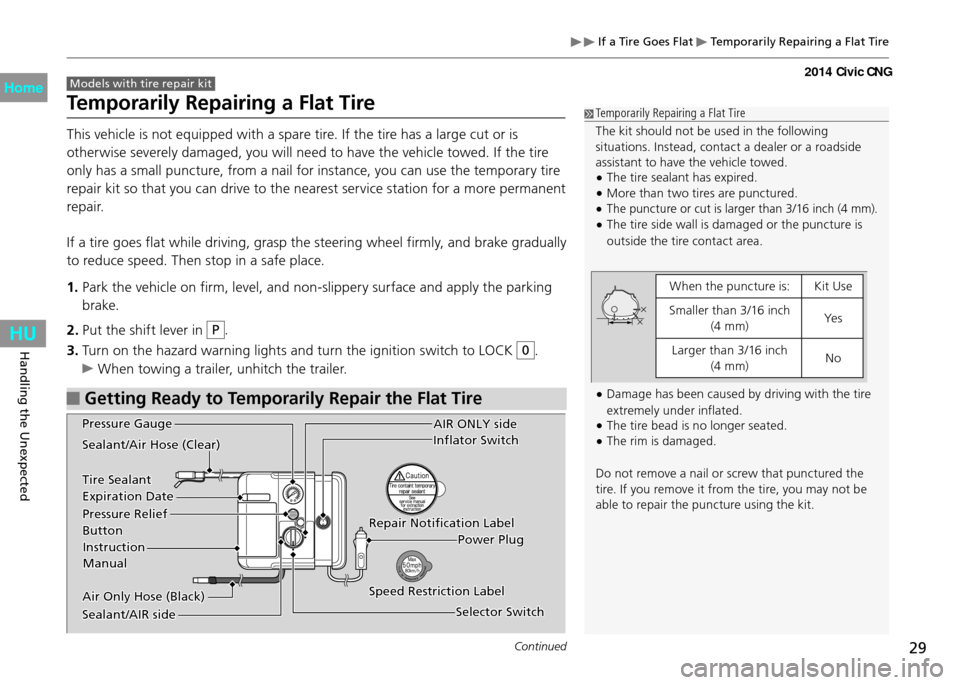

29Continued
Handling the Unexpected
If a Tire Goes Flat Temporarily Repairing a Flat Tire
Models with tire repair kit
Temporarily Repairing a Flat Tire
This vehicle is not equipped with a spare tire. If the tire has a large cut or is
otherwise severely damaged, you will need to have the vehicle towed. If the tire
only has a small puncture, from a nail for instance, you can use the temporary tire
repair kit so that you can drive to the nearest service station for a more permanent
repair.

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on firm, level, and non-slippery surface and apply the parking
brake.
2. Put the shift lever in
P.
3. Turn on the hazard warning lights and turn the ignition switch to LOCK
0.
When towing a trailer, unhitch the trailer.
Getting Ready to Temporarily Repair the Flat Tire
AIR ONLY side
Inflator Switch
Repair Notification Label
Power Plug
Speed Restriction Label
Selector Switch
Pressure Gauge
Sealant/Air Hose (Clear)
Tire Sealant
Expiration Date
Pressure Relief
Button
Instruction
Manual
Air Only Hose (Black)
Sealant/AIR side
Temporarily Repairing a Flat Tire
The kit should not be used in the following
situations. Instead, contact a dealer or a roadside
assistant to have the vehicle towed.
The tire sealant has expired.

•More than two tires are punctured.
•The puncture or cut is larger than 3/16 inch (4 mm).
•The tire side wall is damaged or the puncture is
•outside the tire contact area.
When the puncture is: Kit Use
Smaller than 3/16 inch (4 mm) Ye s
Larger than 3/16 inch (4 mm) No
Damage has been caused by driving with the tire

•extremely under inflated.
The tire bead is no longer seated.

•The rim is damaged.
•
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.

2014 Civic CNG

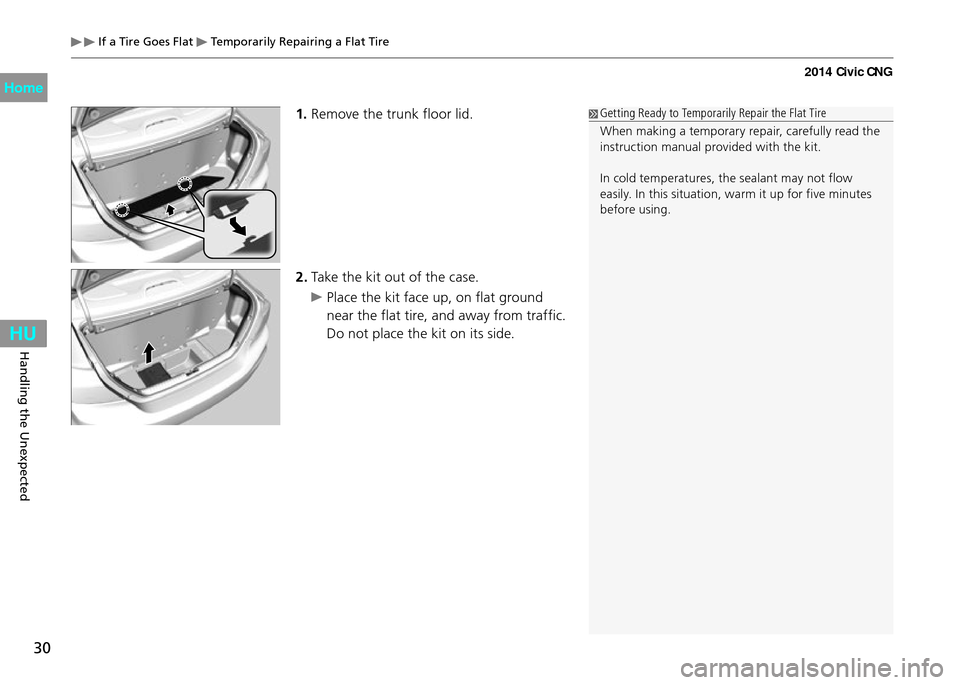

30
Handling the Unexpected
If a Tire Goes Flat Temporarily Repairing a Flat Tire
1. Remove the trunk floor lid.
2. Take the kit out of the case.
Place the kit face up, on flat ground
near the flat tire, and away from traffic.
Do not place the kit on its side.
Getting Ready to Temporarily Repair the Flat Tire
When making a temporary repair, carefully read the
instruction manual provided with the kit.
In cold temperatures, the sealant may not flow
easily. In this situation, warm it up for five minutes
before using.

2014 Civic CNG

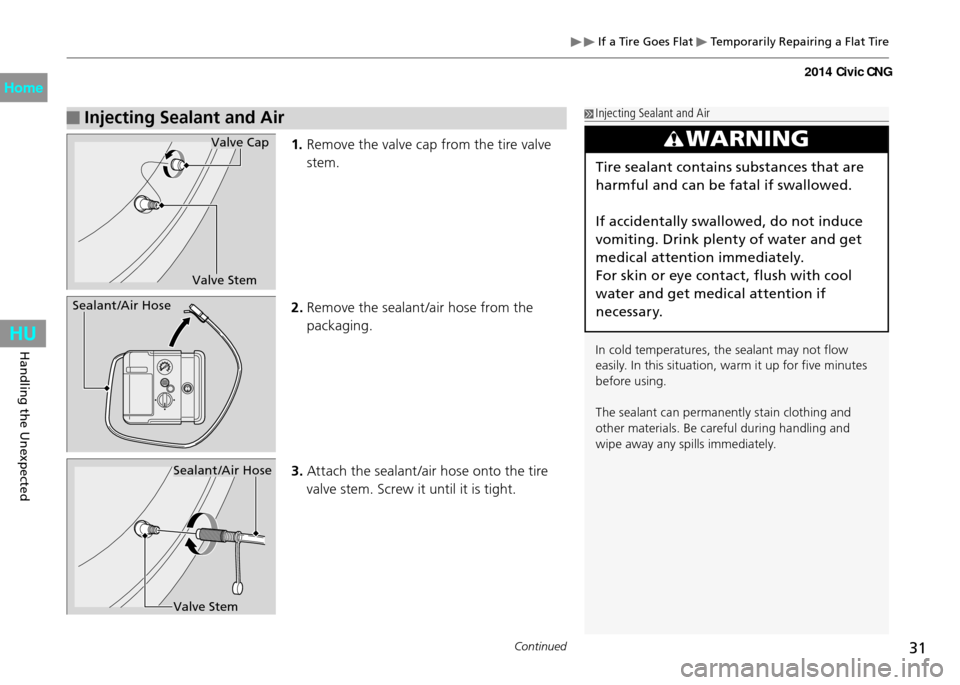

31Continued
Handling the Unexpected
If a Tire Goes Flat Temporarily Repairing a Flat Tire
Injecting Sealant and Air
1. Remove the valve cap from the tire valve
stem.
2. Remove the sealant /air hose from the
packaging.
3. Attach the sealant /air hose onto the tire
valve stem. Screw it until it is tight.
Valve Stem
Valve Cap
Sealant /Air Hose
Sealant /Air Hose
Valve Stem
Injecting Sealant and Air
WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
In cold temperatures, the sealant may not flow
easily. In this situation, warm it up for five minutes
before using.
The sealant can permanently stain clothing and
other materials. Be careful during handling and
wipe away any spills immediately.
