Handling the Unexpected
Fuses Fuse Locations
Circuit ProtectedAmps
1 EPS
70 A
− (40 A)
ABS/ VSA Motor 30 A ABS/ VSA FSR 30 A − (30 A)
Main Fuse 100 A
2 IG Main
50 A
Fuse Box Main 60 A
Fuse Box Main 2 60 A Headlight Main 30 A − (30 A)
Rear Defogger 30 A − (30 A)
Blower 40 A
− (30 A)
Sub Fan Motor 20 A
Main Fan Motor 20 A
3 − −
4 Left Headlight Low Beam 15 A
5 ST MG 7.5 A
6 Right Headlight Low Beam 15 A
7 − −
8 − −
9 − −
10 − −
Circuit Protected Amps
11 Oil Level 7.5 A
12 Fog Lights
*(20 A)
13 Driver's Power Seat (Sliding)*(20 A)
14 Hazard 10 A
15 FI Sub 15 A
16 IG Coil 15 A
17 Stop 15 A
18 Horn 10 A
19 Premium Amp
*(20 A)
20 INJ (15 A)
21 IGP 15 A
22 DBW 15 A
23 H/L LO 20 A
24 Driver's Power Seat
(Reclining)
*(20 A)
25 MG Clutch 7.5 A
26 − −
27 SMALL 20 A
28 Interior Lights 7.5 A
29 Back Up 10 A
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
0 and
check to see if any applicable fuse is
blown.
Engine Compartment Fuse Box
Located near the brake fluid reservoir.
Push the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Circuit protected and fuse rating
* Not available on all models
Ta b

2014 Civic CNG

41
Handling the Unexpected
Fuses Fuse Locations

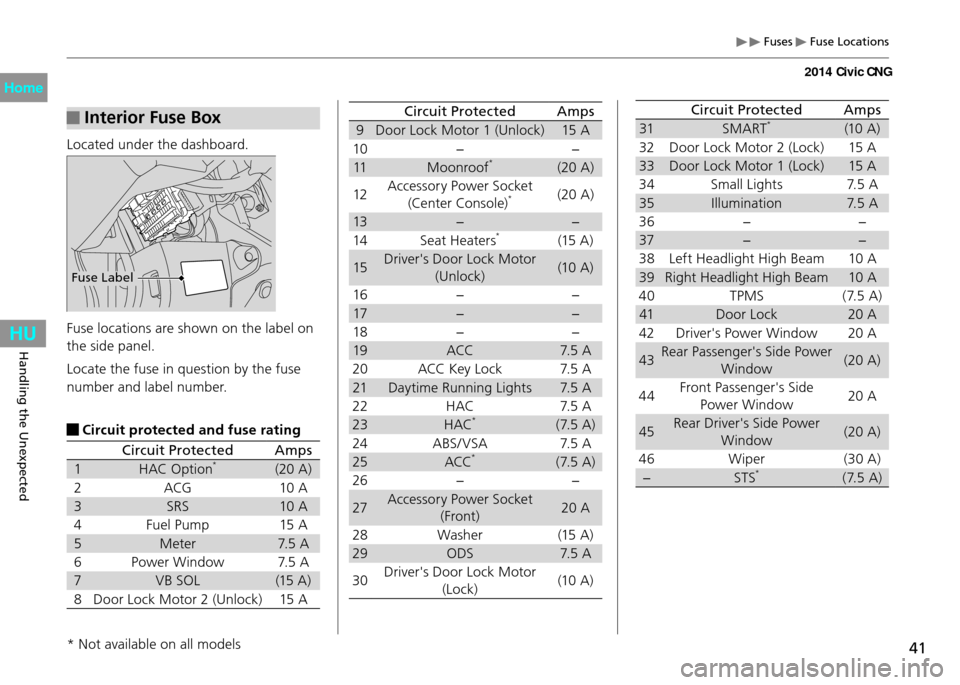

Interior Fuse BoxCircuit ProtectedAmps
9 Door Lock Motor 1 (Unlock) 15 A
10 − −
11 Moonroof
*(20 A)
12 Accessory Power Socket
(Center Console)
*(20 A)
13 − −
14 Seat Heaters
*(15 A)
15 Driver's Door Lock Motor
(Unlock) (10 A)
16 − −
17 − −
18 − −
19 ACC 7.5 A
20 ACC Key Lock 7.5 A
21 Daytime Running Lights 7.5 A
22 HAC 7.5 A
23 HAC
*(7.5 A)
24 ABS/ VSA 7.5 A
25 ACC
*(7.5 A)
26 − −
27 Accessory Power Socket
(Front) 20 A
28 Washer (15 A)
29 ODS 7.5 A
30 Driver's Door Lock Motor
(Lock) (10 A)
Circuit Protected
Amps
31 SMART*(10 A)
32 Door Lock Motor 2 (Lock) 15 A
33 Door Lock Motor 1 (Lock) 15 A
34 Small Lights 7.5 A
35 Illumination 7.5 A
36 − −
37 − −
38 Left Headlight High Beam 10 A
39 Right Headlight High Beam 10 A
40 TPMS (7.5 A)
41 Door Lock 20 A
42 Driver's Power Window 20 A
43 Rear Passenger's Side Power
Window (20 A)
44 Front Passenger's Side
Power Window 20 A
45 Rear Driver's Side Power
Window (20 A)
46 Wiper (30 A)
− STS
*(7.5 A)
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
Circuit protected and fuse rating
Circuit Protected
Amps
1 HAC Option*(20 A)
2 ACG 10 A
3 SRS 10 A
4 Fuel Pump 15 A
5 Meter 7.5 A
6 Power Window 7.5 A
7 VB SOL (15 A)
8 Door Lock Motor 2 (Unlock) 15 A
* Not available on all models
Fuse Label

2014 Civic CNG

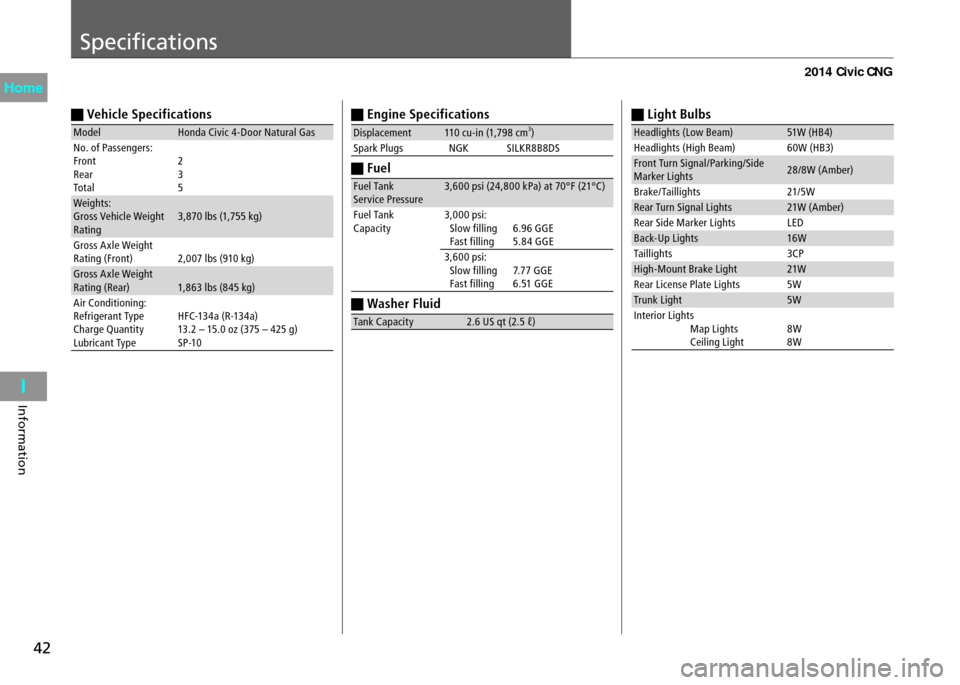

Specifications
42
Information
Vehicle Specifications
ModelHonda Civic 4-Door Natural Gas
No. of Passengers:
Front
Rear
Total 2
3
5
Weights:
Gross Vehicle Weight
Rating 3,870 lbs (1,755 kg)
Gross A xle Weight
Rating (Front) 2,007 lbs (910 kg)
Gross A xle Weight
Rating (Rear) 1,863 lbs (845 kg)
Air Conditioning:
Refrigerant Type
Charge Quantity
Lubricant Type HFC-134a (R-134a)
13.2 – 15.0 oz (375 – 425 g)
SP-10
Engine Specifications
Displacement
110 cu-in (1,798 cm3)
Spark Plugs NGKSILKR8B8DS
Fuel
Fuel Tank
Service Pressure 3,600 psi (24,800 kPa) at 70°F (21°C)
Fuel Tank
Capacity 3,000 psi:
Slow filling
Fast filling
6.96 GGE
5.84 GGE
3,600 psi:
Slow filling
Fast filling
7.77 GGE
6.51 GGE
Washer Fluid
Tank Capacity 2.6 US qt (2.5 ℓ)
Light Bulbs
Headlights (Low Beam) 51W (HB4)
Headlights (High Beam) 60W (HB3)
Front Turn Signal/Parking/Side
Marker Lights
28/8W (Amber)
Brake/Taillights 21/ 5W
Rear Turn Signal Lights 21W (Amber)
Rear Side Marker Lights LED
Back-Up Lights 16 W
Taillights 3CP
High-Mount Brake Light 21W
Rear License Plate Lights 5W
Trunk Light 5W
Interior Lights
Map Lights
Ceiling Light 8W
8W

2014 Civic CNG

Specifications
43
Information
Brake Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
Automatic Transmission Fluid
Specified Honda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.5 US qt (2.4 ℓ)
Engine Oil
Recommended • Genuine Honda Motor Oil 0W-20
• API Premium-grade 0W-20
detergent oil
Capacity Change
3.7 US qt (3.5 ℓ)
Change
including
filter 3.9 US qt (3.7 ℓ)
Engine Coolant
Specified
Honda Long-Life Antifreeze/Coolant
Ty pe2
Ratio 50/50 with distilled water
Capacity 1.45 US gal (5.50 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
Tire
RegularSize
P195/65R15 89H
Pressure
psi (kPa[kgf/cm2]) 30 (210 [2.1])
Compact
Spare
*1
Size T135/80D15 99M
Pressure
psi (kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel Size Regular
15 x 6J
Compact Spare
*115 x 4T
*1: Models with compact spare tire

2014 Civic CNG

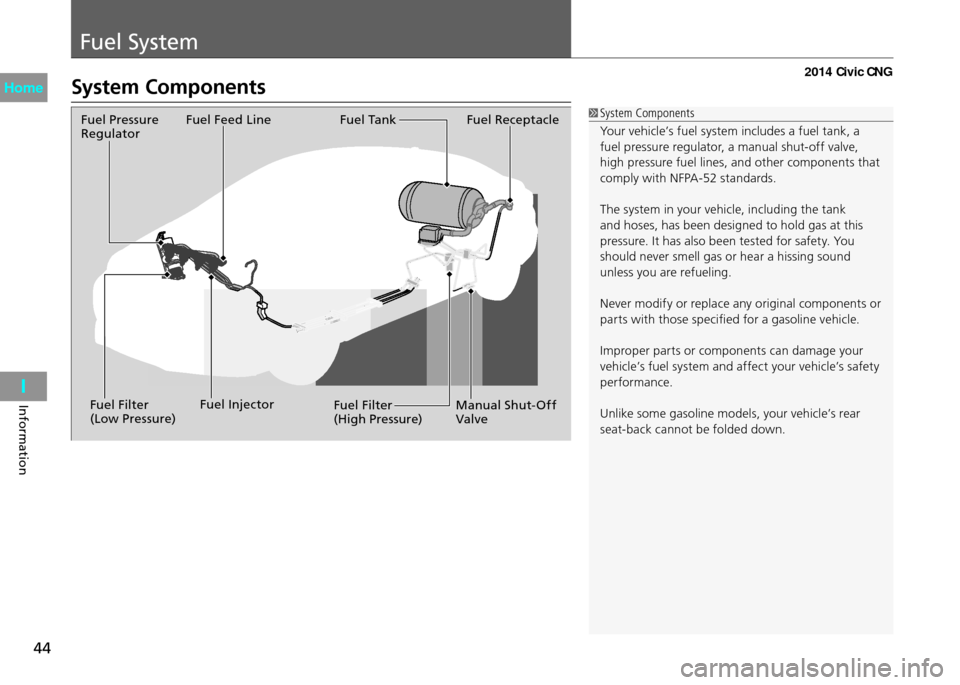

Fuel System
44
Information
System Components
Fuel Feed Line
Fuel Pressure
Regulator Fuel Tank
Fuel Receptacle
Fuel Filter
(Low Pressure) Fuel Injector
Fuel Filter
(High Pressure) Manual Shut-Off
Valve System Components
Your vehicle’s fuel system includes a fuel tank, a
fuel pressure regulator, a manual shut-off valve,
high pressure fuel lines, and other components that
comply with NFPA-52 standards.
The system in your vehicle, including the tank
and hoses, has been designed to hold gas at this
pressure. It has also been tested for safety. You
should never smell gas or hear a hissing sound
unless you are refueling.
Never modify or replace any original components or
parts with those specified for a gasoline vehicle.
Improper parts or components can damage your
vehicle’s fuel system and affect your vehicle’s safety
performance.
Unlike some gasoline models, your vehicle’s rear
seat-back cannot be folded down.

2014 Civic CNG

45

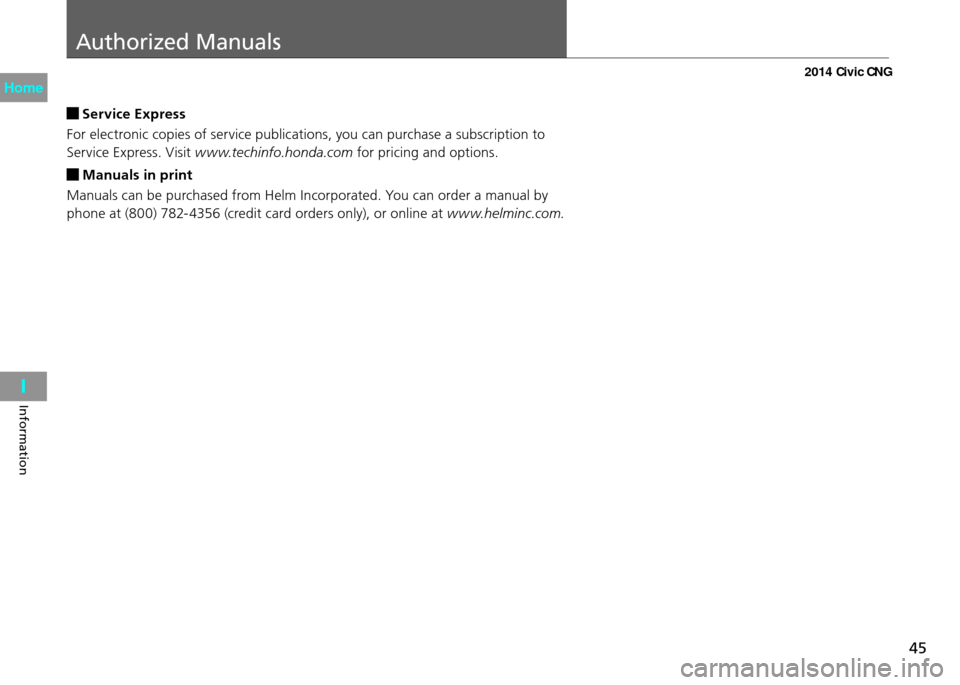

Authorized Manuals
Information
Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
Manuals in print
Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at (800) 782-4356 (credit card orders only), or online at www.helminc.com.
