2014 HONDA ACCORD HYBRID Owners Manual

336
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
HFL Menus
The power mode must be in ACCESSORY or ON to use HFL. ■Phone Settings screen
1.Press the SETTINGS button.
1. Press and hold the DISP button.
2. Rotate to select Phone Settings, then
press .
1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to the system while the vehicle is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
Models with one display
Models with two displays
All models
Pair a phone to the system.
Replace a previously paired phone with a
new phone.
Connect
Phone *1
Bluetooth
Device List
Add Bluetooth Device
Edit PIN
(Existing entry list)
DisconnectConnect a phone to the system.
Disconnect a paired phone from the system.

*1: (Existing
entry list) *1

Replace This
Device
Delete This
DeviceDelete a previously paired phone.Create a security PIN for a paired phone.
Add
Bluetooth Device
Appears only when a phone is connected to HFL.
Pair a phone to the system.
Main MenuTable of Contents

337
uuBluetooth® HandsFreeLink ®uHFL Menus
Continued
Features
Select a phone number from the call
history to store as a speed dial number.
Manual Input

New Entry Import from
Call History
Import from
Phonebook
Enter a phone number to store as a
speed dial number.
Delete all of the previously stored speed dial number.
*2: Models with two displays
Select a phone number from the
phonebook to store as a speed dial number.
EditEdit a previously stored speed dial number. ● Change a number.
● Create or delete a voice tag.
Delete
Delete a previously stored speed dial number.
(Existing
entry list)
Delete All
Edit Speed Dial *1
Set calls to automatically transfer from your phone to HFL when you enter the vehicle.
Auto Transfer

Auto Answer
Ring Tone
Set whether to automatically answer an incoming call after about four
seconds.
Select the ring tone.
Automatic Phone Sync
*1
Use Contact Photo*2
Set phonebook data to be automatically imported when a phone is paired to HFL.
Display a caller’s picture on an incoming call screen.
Phone
*1: Appears only when a phone is connected to HFL.
Main MenuTable of Contents

338
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
*1: Appears only when a phone is connected to HFL. Turn the text message/e-mail function on and off.
Select Account
*Select a mail or text message account.
New Text Message Alert *2
New Text/Email Alert *3
Message Auto Reading
Select whether a pop-up alert comes on the screen when HFL
receives a new text message/e-mail.
Sets the system to automatically read an incoming text message/e-mail.
Text Message
*1, *2
Text/Email *1, *3
Default
Enable Text Message
*2
Enable Text/Email *3
Cancel/Reset all customized items in the
Phone Settings group as default.
*2: Models with one display
*3: Models with two displays
* Not available on all models
Main MenuTable of Contents

339
uuBluetooth® HandsFreeLink ®uHFL Menus
Continued
Features
■Phone screen
1.Press the PHONE button.
2. Press the MENU button to display the
menu items.
1. Press the DISP button.
2. Rotate to select Phone, then press .
Models with one display
Models with two displays
Display the last 20 outgoing, incoming and missed calls.
Select a phone number from the call history to store as a
speed dial number.
Call
History *1
Speed Dial
*1
All
Manual Input
Dialed
ReceivedDisplay the last 20 outgoing calls.
Display the last 20 incoming calls.
New Entry
Import from
Call History
Import from
PhonebookSelect a phone number from the phonebook to store as a
speed dial number.Enter a phone number to store as a speed dial number.
More Speed Dials
Display another paired phone’s speed dial list.
*1: Appears only when a phone is connected to HFL.
MissedDisplay the last 20 missed calls.
Dial
*1

Redial *1Enter a phone number to dial.
Redial the last number dialed in the phone’s history.
(Existing entry list)
Dial the selected number in the speed dial list.
Main MenuTable of Contents

340
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
See the previous message.
Text Message
*1, *2
Text/Email *1, *3
Read/Stop
Select Account *

Previous Message
Next MessageSee the next message.System reads received message aloud, or
stop message from being read.
Phonebook
*1
Display the paired phone’s phonebook.
Message is read aloud.

Reply
Call
Reply to a received message using one of
six fixed phrases.
Make a call to the sender.
Select a message
and press .
Select a mail or text message account.
*1: Appears only when a phone is connected to HFL.
*2: Models with one display
*3: Models with two displays
* Not available on all models
Main MenuTable of Contents

Continued341
uuBluetooth® HandsFreeLink ®uHFL Menus
Features

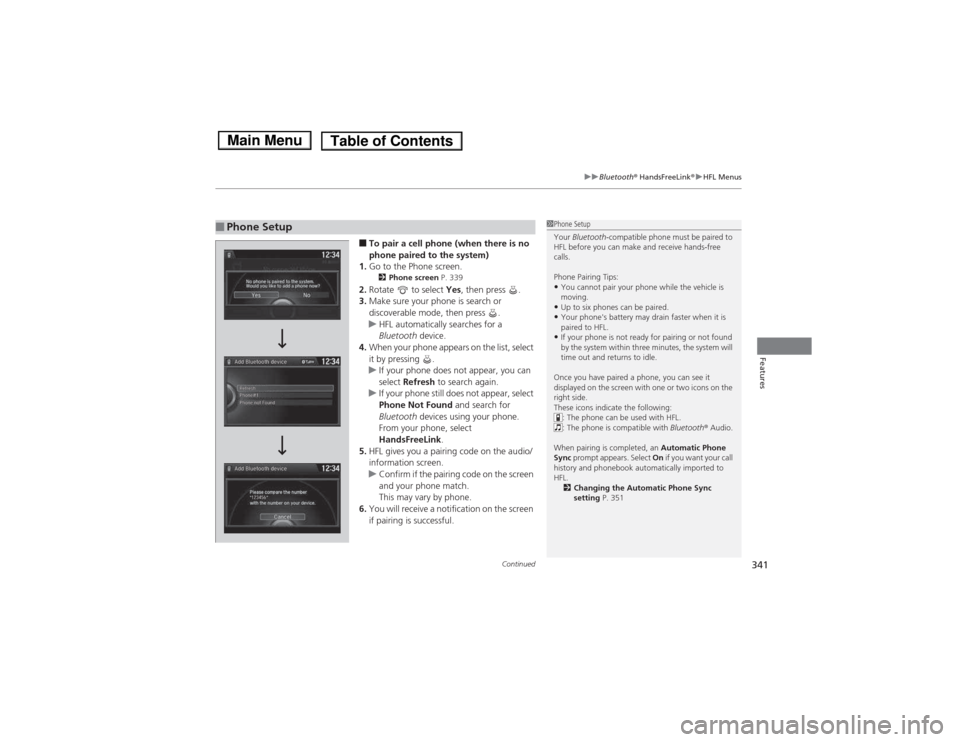

■To pair a cell phone (when there is no
phone paired to the system)
1. Go to the Phone screen.
2 Phone screen P. 339
2. Rotate to select Yes, then press .
3. Make sure your phone is search or
discoverable mode, then press .
uHFL automatically searches for a
Bluetooth device.
4. When your phone appears on the list, select
it by pressing .
uIf your phone does not appear, you can
select Refresh to search again.
uIf your phone still does not appear, select
Phone Not Found and search for
Bluetooth devices using your phone.
From your phone, select
HandsFreeLink .
5. HFL gives you a pairing code on the audio/
information screen.
uConfirm if the pairing code on the screen
and your phone match.
This may vary by phone.
6. You will receive a notification on the screen
if pairing is successful.
■Phone Setup1Phone Setup
Your Bluetooth -compatible phone must be paired to
HFL before you can make and receive hands-free calls.
Phone Pairing Tips: • You cannot pair your phone while the vehicle is
moving.
• Up to six phones can be paired.
• Your phone's battery may drain faster when it is
paired to HFL.
• If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and returns to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the
right side.
These icons indicate the following: : The phone can be used with HFL.
: The phone is compatible with Bluetooth® Audio.
When pairing is completed, an Automatic Phone
Sync prompt appears. Select On if you want your call
history and phonebook automatically imported to HFL.
2 Changing the Automatic Phone Sync setting P. 351
Main MenuTable of Contents

342
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
■To pair a cell phone (when a phone has
already been paired to the system)
1. Go to the Phone Settings screen.
2 Phone Settings screen P. 336
2. Rotate to select Connect Phone, then
press .
uRepeat the procedure to select Add
Bluetooth Device .
3. Make sure your phone is in search or
discoverable mode, then press .
uHFL automatically searches for a
Bluetooth device.
4. When your phone appears on the list, select
it by pressing .
uIf your phone does not appear, you can select Refresh to search again.
uIf your phone still does not appear, select
Phone Not Found and search for
Bluetooth devices using your phone.
From your phone, select
HandsFreeLink .
5. HFL gives you a pairing code on the audio/ information screen.
uConfirm if the pairing code on the screen
and your phone match.
This may vary by phone.
6. You will receive a notification on the screen
if pairing is successful.
Main MenuTable of Contents

Continued343
uuBluetooth® HandsFreeLink ®uHFL Menus
Features
■To change the pairing code setting
1. Press the SETTINGS button.
1. Press and hold the DISP button.
2. Rotate to select System Settings, then
press .
uRepeat the procedure to select
Bluetooth , then Edit Pairing Code .
3. Rotate to select Fixed or Random ,
then press .
1To change the pairing code setting
The pairing code may be six or four digits depending
on your phone.
The default pairing code is 0000 until you change the
setting.
To create your own, select Fixed, and delete the
current code, then enter a new one.
For a randomly generated pairing code each time you
pair a phone, select Random.
Edit Pairing Code
Models with one display
Models with two displays
All models
Main MenuTable of Contents
