2014 FORD FUSION (AMERICAS) fuse box

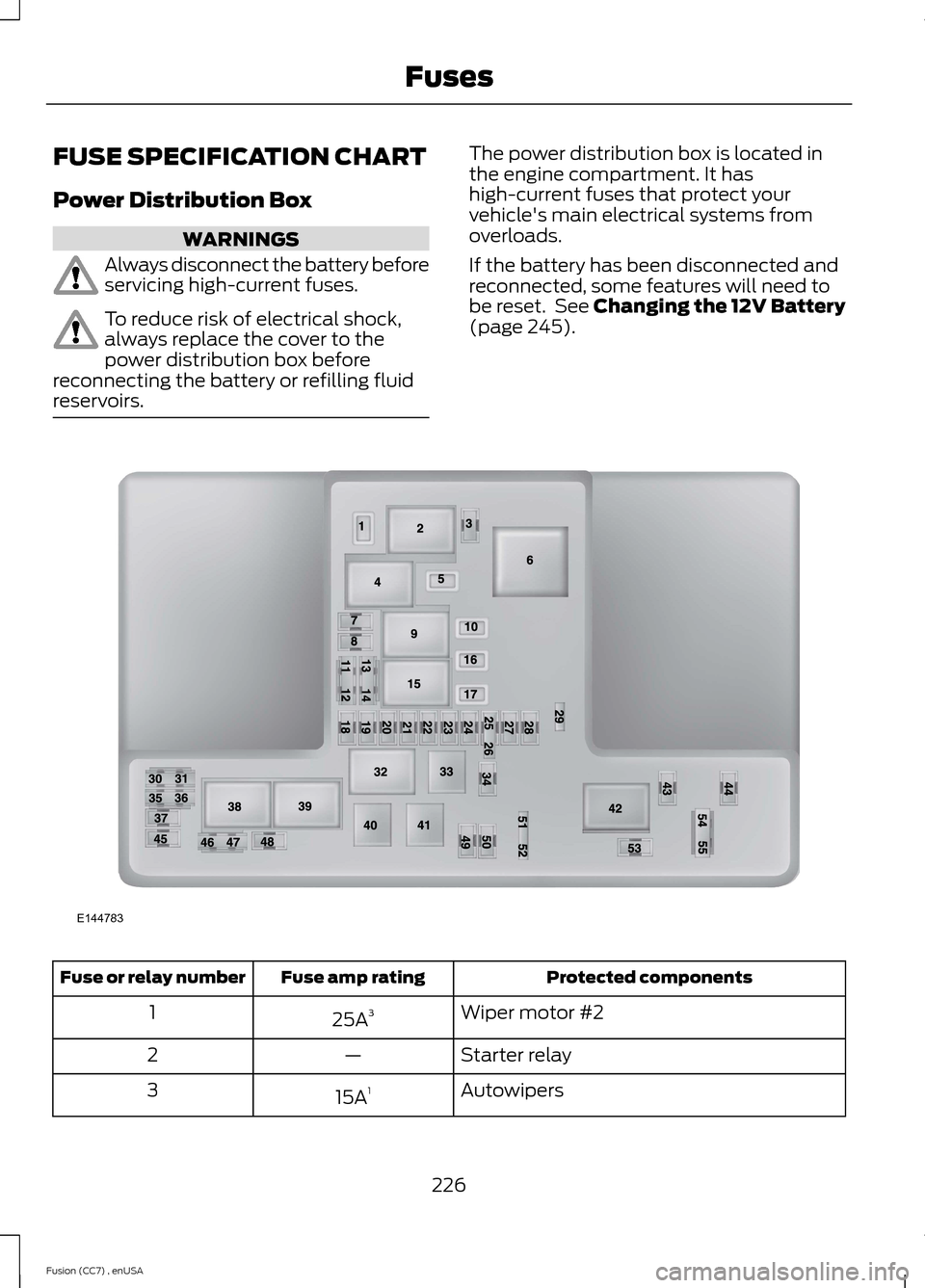

FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery beforeservicing high-current fuses.
To reduce risk of electrical shock,always replace the cover to thepower distribution box beforereconnecting the battery or refilling fluidreservoirs.
The power distribution box is located inthe engine compartment. It hashigh-current fuses that protect yourvehicle's main electrical systems fromoverloads.
If the battery has been disconnected andreconnected, some features will need tobe reset. See Changing the 12V Battery(page 245).
Protected componentsFuse amp ratingFuse or relay number
Wiper motor #225A31
Starter relay—2
Autowipers15A13
226Fusion (CC7) , enUSAFusesE144783

Protected componentsFuse amp ratingFuse or relay number
Mass air flow monitor5A149
Not used—50
Not used—51
Not used—52
Power seats10A153
Not used—54
Not used—55
1Micro fuse2Dual micro fuse3M-type fuse
Power Distribution Box - Bottom
There are fuses located on the bottom ofthe fuse box. To access the bottom of thefuse box, do the following:
1.Release the two latches, located onboth sides of the fuse box.
229Fusion (CC7) , enUSAFusesE145983

2.Raise the inboard side of the fuse boxfrom the cradle.
3.Move the fuse box toward the centerof the engine compartment.
4.Pivot the outboard side of the fuse boxto access the bottom side.
Protected componentsFuse amp ratingFuse or relay number
Fuel pump feed30A156
Not used—57
Not used—58
500W Electronic fan 330A159
500W Electronic fan 130A160
Not used—61
Body control module 150A262
500W Electronic fan 220A163
230Fusion (CC7) , enUSAFusesE144949

Protected componentsFuse amp ratingFuse or relay number
Lighting (ambient, glove box, vanity, dome,trunk)10A11
Memory seats, Lumbar, Power mirror7.5A12
Driver door unlock20A13
Not used (spare)5A14
Subwoofer amplifier20A15
Not used (spare)10A26
Not used (spare)10A27
Not used (spare)10A28
Not used (spare)10A29
Keypad5A210
Not used5A211
Climate control, Gear shift7.5A212
Steering wheel column, Cluster, Datalinklogic7.5A213
Not used10A214
Datalink/Gateway module10A215
Not used (spare)15A116
Not used (spare)5A217
Ignition, Push button stop/start5A218
Passenger airbag disabled indicator,Transmission range5A219
Not used (spare)5A220
Humidity and in–car temperature5A221
233Fusion (CC7) , enUSAFuses
