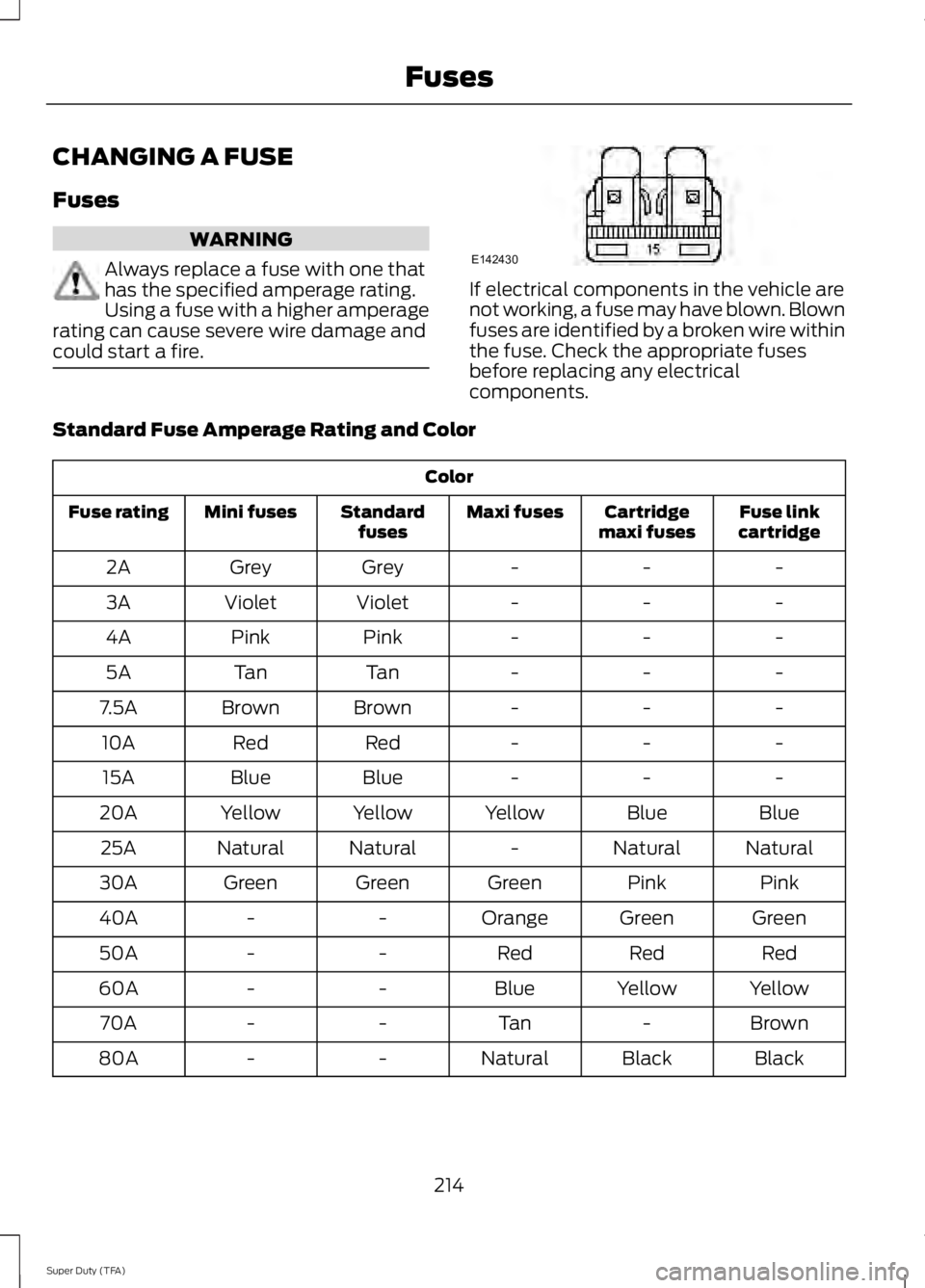

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one thathas the specified amperage rating.Using a fuse with a higher amperagerating can cause severe wire damage andcould start a fire.
If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fusesbefore replacing any electricalcomponents.
Standard Fuse Amperage Rating and Color
Color
Fuse linkcartridgeCartridgemaxi fusesMaxi fusesStandardfusesMini fusesFuse rating
---GreyGrey2A
---VioletViolet3A
---PinkPink4A
---TanTan5A
---BrownBrown7.5A
---RedRed10A
---BlueBlue15A
BlueBlueYellowYellowYellow20A
NaturalNatural-NaturalNatural25A
PinkPinkGreenGreenGreen30A
GreenGreenOrange--40A
RedRedRed--50A
YellowYellowBlue--60A
Brown-Tan--70A
BlackBlackNatural--80A
214
Super Duty (TFA)
FusesE142430
Page 218 of 460
FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery beforeservicing high current fuses.
To reduce risk of electrical shock,always replace the cover to thepower distribution box beforereconnecting the battery or refilling fluidreservoirs.
The power distribution box is located inthe engine compartment. It hashigh-current fuses that protect yourvehicle's main electrical systems fromoverloads.
If you disconnect and reconnect thebattery, you will need to reset somefeatures. See Changing the 12V Battery(page 235).
Protected componentsFuse amp ratingFuse or relay number
Blower motorRelay1
Not used—2
Urea heaters (diesel engine)Relay3
Not used—4
Rear window defroster, Heated mirrorsRelay5
Not used—6
Rear window defroster, Heated mirrors50A*7
Passenger seat30A*8
Driver seat30A*9
Not used—10
Not used—11
215
Super Duty (TFA)
FusesE163101
Page 219 of 460
Protected componentsFuse amp ratingFuse or relay number
Driver smart window motor30A*12
Not used—13
Not used—14
Fuel pump (diesel engine)Diode15
Not used—16
Heated mirror15A**17
Not used—18
Not used—19
Not used—20
Not used—21
Trailer tow electric brake30A*22
Blower motor40A*23
Not used—24
Wipers30A*25
Trailer tow park lamps30A*26
Urea heaters (diesel engine)25A*27
Buss bar—28
Trailer tow park lampsRelay29
A/C clutchRelay30
WipersRelay31
Not used—32
Vehicle power 115A**33
Vehicle power 2 (diesel engine)15A**34
Vehicle power 2 (gas engine)20A**
Vehicle power 310A**35
Vehicle power 4 (diesel engine)15A**36
Vehicle power 4 (gas engine)20A**
216
Super Duty (TFA)
Fuses
Page 220 of 460

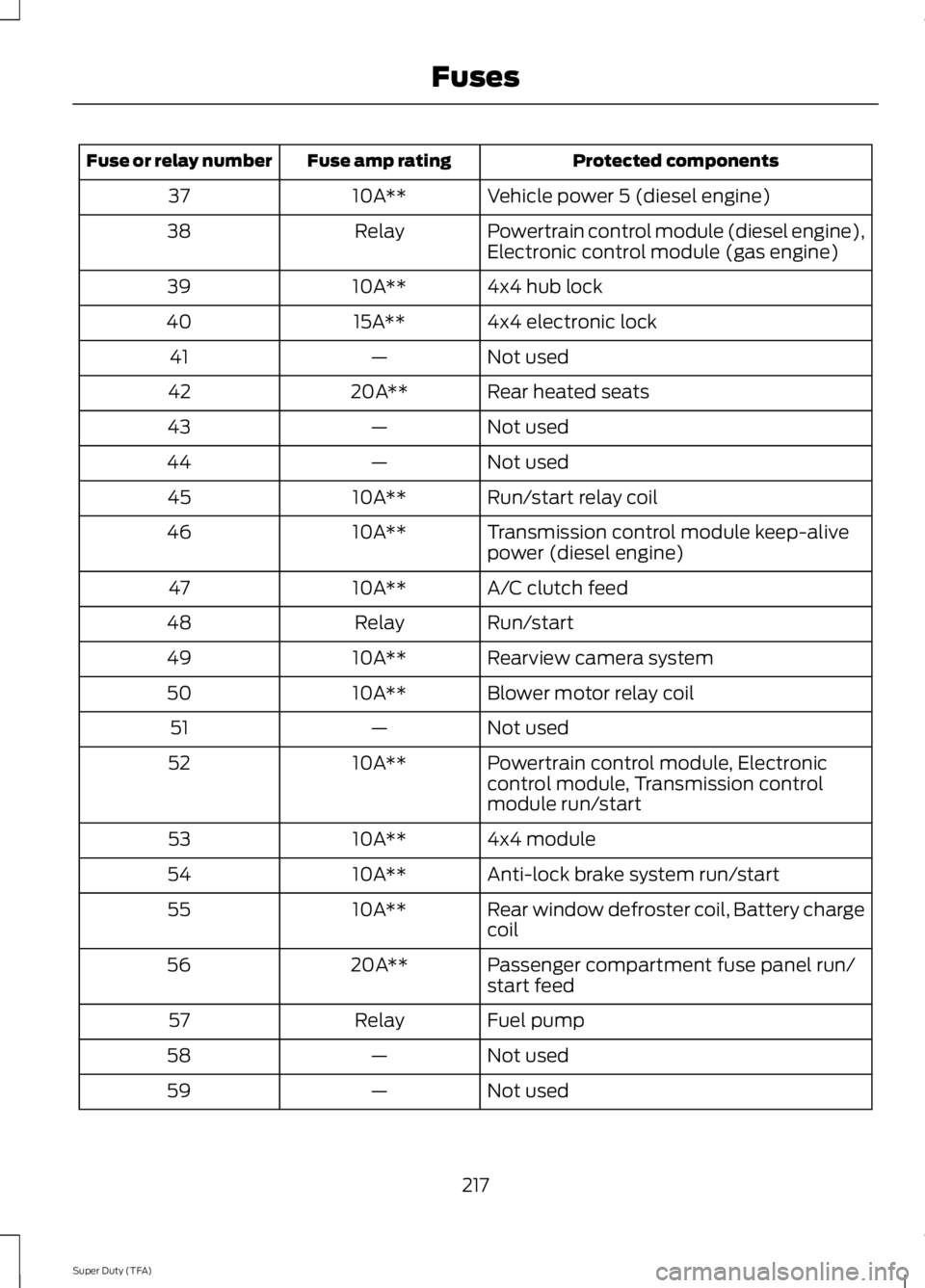

Protected componentsFuse amp ratingFuse or relay number
Vehicle power 5 (diesel engine)10A**37
Powertrain control module (diesel engine),Electronic control module (gas engine)Relay38
4x4 hub lock10A**39
4x4 electronic lock15A**40
Not used—41
Rear heated seats20A**42
Not used—43
Not used—44
Run/start relay coil10A**45
Transmission control module keep-alivepower (diesel engine)10A**46
A/C clutch feed10A**47
Run/startRelay48
Rearview camera system10A**49
Blower motor relay coil10A**50
Not used—51
Powertrain control module, Electroniccontrol module, Transmission controlmodule run/start
10A**52
4x4 module10A**53
Anti-lock brake system run/start10A**54
Rear window defroster coil, Battery chargecoil10A**55
Passenger compartment fuse panel run/start feed20A**56
Fuel pumpRelay57
Not used—58
Not used—59
217
Super Duty (TFA)
Fuses
Page 221 of 460
Protected componentsFuse amp ratingFuse or relay number
Not used—60
Not used—61
Not used—62
Not used—63
Not used—64
Not used—65
Fuel pump20A**66
Not used—67
Fuel pump relay coil10A**68
Not used—69
Trailer tow backup lamp10A**70
Canister vent (gas engine)10A**71
Powertrain control module, Electroniccontrol module relay coil feed keep-alivepower
10A**72
Not used—73
Trailer tow left-hand stop/turnRelay74
Trailer tow right-hand stop/turnRelay75
Trailer tow backup lampRelay76
Not used—77
Not used—78
Not used—79
Not used—80
Not used—81
Auxiliary power point #220A*82
Auxiliary power point #120A*83
4x4 shift motor30A*84
Heated/cooled seats30A*85
218
Super Duty (TFA)
Fuses
Page 222 of 460
Protected componentsFuse amp ratingFuse or relay number
Anti-lock brake system coil feed25A*86
Auxiliary power point #520A*87
Auxiliary power point #620A*88
Starter motor40A*89
Trailer tow battery charge25A*90
Not used—91
Auxiliary power point #420A*92
Auxiliary power point #320A*93
Auxiliary switch #125A*94
Auxiliary switch #225A*95
Anti-lock brake system pump50A*96
Inverter40A*97
Not used—98
Instrument panel power inverter40A*99
Trailer tow turn signals25A*100
StarterRelay101
Trailer tow battery chargeRelay102
Not used—103
Not used—104
Not used—105
Not used—106
Not used—107
*Cartridge fuses
**Mini fuses
219
Super Duty (TFA)
Fuses
Page 223 of 460
Passenger Compartment FusePanel
The fuse panel is in the passenger footwell.Remove the panel cover to access thefuses.
Pull the fuse panel cover toward you toremove it. When the clips of the paneldisengage, let the panel fall easily.
Use the provided fuse puller tool to removea fuse. It is on the fuse panel cover.
Protected componentsFuse amp ratingFuse or relay number
Not used (spare)30A1
Auxiliary switch relay #415A2
Passenger smart window motor30A3
Interior lights, Hood lamp10A4
Moonroof20A5
Driver seat module5A6
Driver seat switch, Driver lumbar motor7.5A7
Power mirror switch10A8
220
Super Duty (TFA)
FusesE163102
Page 224 of 460

Protected componentsFuse amp ratingFuse or relay number
Auxiliary switch relay #310A9
Run/accessory relay, Customer accessfeed10A10
Instrument cluster10A11
Interior lighting, Lighted running boardlamps15A12
Right turn signals and brake lamps, Righttrailer tow stop turn relay15A13
Left turn signals and brake lamps, Lefttrailer tow stop turn relay15A14
High-mounted stop lamps, Backup lamps,Trailer tow backup relay, Reverse signalinterior mirror
15A15
Right low beam headlamp10A16
Left low beam headlamp10A17
Keypad illumination, Passive anti-thefttransceiver, Powertrain control module,Brake shift interlock
10A18
Subwoofer, Amplifier20A19
Power door locks20A20
Brake on/off switch10A21
Horn20A22
Not used (spare)15A23
Steering wheel control module, Diagnosticconnector, Power fold mirror relay, Remotekeyless entry, Electronic finish panel
15A24
Not used (spare)15A25
Steering wheel control module5A26
Not used (spare)20A27
Ignition switch15A28
SYNC, GPS module, Radio faceplate20A29
221
Super Duty (TFA)
Fuses
