Unit of measurement
(Setting the unit of measurement)
With this function it is possible to set the units
through three submenus: "Distances",
"Consumption" and "Temperature".
To set the desired measurement unit, proceed as
follows:
❒press button
briefly. The display will show the
three submenus;
❒press buttonor
to scroll through the
three submenus;
❒once you have selected the submenu to be
changed, press the button
briefly;
❒if the "Distances" submenu is selected and button
is pressed briefly, the display shows "km" or
"mi" depending on the previous setting;
❒press
or
to make your choice;
❒if the "Consumption" submenu is selected and
button
is pressed briefly, the display shows
"km/l", "l/100km" or "mpg" depending on
the previous setting. If the measurement unit set
for "Distances" is "km", the display allows the
measurement unit ("km/l" or "l/100km") for
Consumption to be set. If the measurement unit
set for "Distances" is "mi", the display will show
Consumption in "mpg";
❒pressor
to make your choice;❒if the "Temperature" submenu is selected and
button
is pressed briefly, the display shows "°C"
or "°F" depending on the previous setting;
❒pressor
to make your choice;
Once the required settings are made, briefly press
button
to go back to the submenu screen or hold
the button down to return to the main menu screen
without storing.
Hold down the
button again to return to the
standard screen or to the main menu according to
the menu items where you are in.
Language (Language selection)
Display messages can be set to be shown in different
languages: Italian, German, English, Spanish, French,
Portuguese, Polish, Dutch, Turkish (the list varies
according to the market).
To set the desired language, proceed as follows:
❒press buttonbriefly. The “language” set
previously flashes on the display;
❒press
or
to make your choice;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
17GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

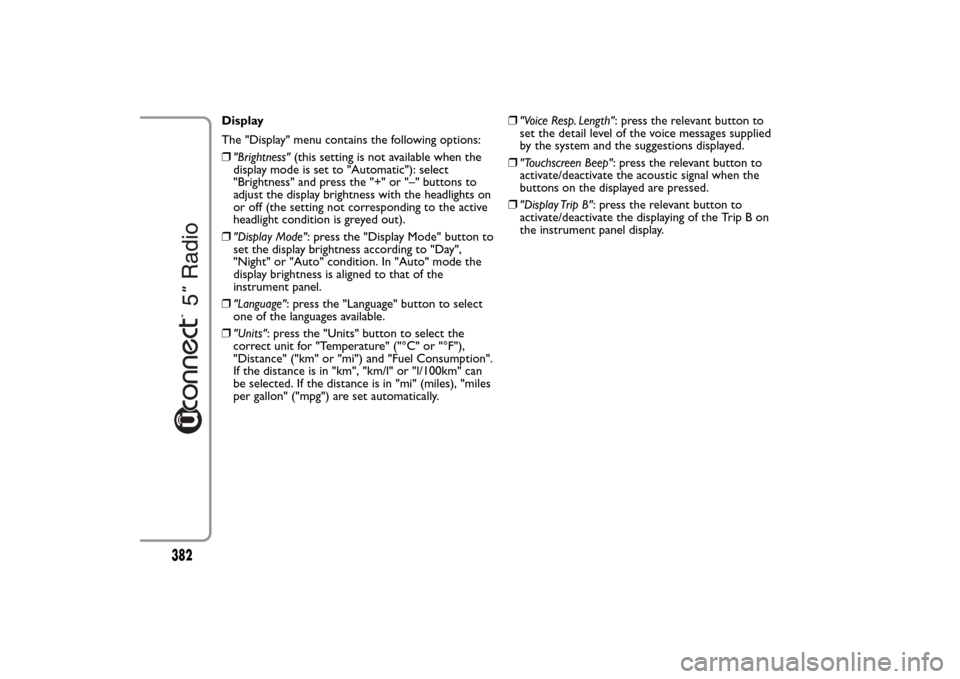

Display
The "Display" menu contains the following options:
❒"Brightness"(this setting is not available when the
display mode is set to "Automatic"): select
"Brightness" and press the "+" or "–" buttons to
adjust the display brightness with the headlights on
or off (the setting not corresponding to the active
headlight condition is greyed out).
❒"Display Mode": press the "Display Mode" button to
set the display brightness according to "Day",
"Night" or "Auto" condition. In "Auto" mode the
display brightness is aligned to that of the
instrument panel.
❒"Language": press the "Language" button to select
one of the languages available.
❒"Units": press the "Units" button to select the
correct unit for "Temperature" ("°C" or "°F"),
"Distance" ("km" or "mi") and "Fuel Consumption".
If the distance is in "km", "km/l" or "l/100km" can
be selected. If the distance is in "mi" (miles), "miles
per gallon" ("mpg") are set automatically.❒"Voice Resp. Length": press the relevant button to
set the detail level of the voice messages supplied
by the system and the suggestions displayed.
❒"Touchscreen Beep": press the relevant button to
activate/deactivate the acoustic signal when the
buttons on the displayed are pressed.
❒"Display Trip B": press the relevant button to
activate/deactivate the displaying of the Trip B on
the instrument panel display.
382
