2014 FIAT 500L LIVING window

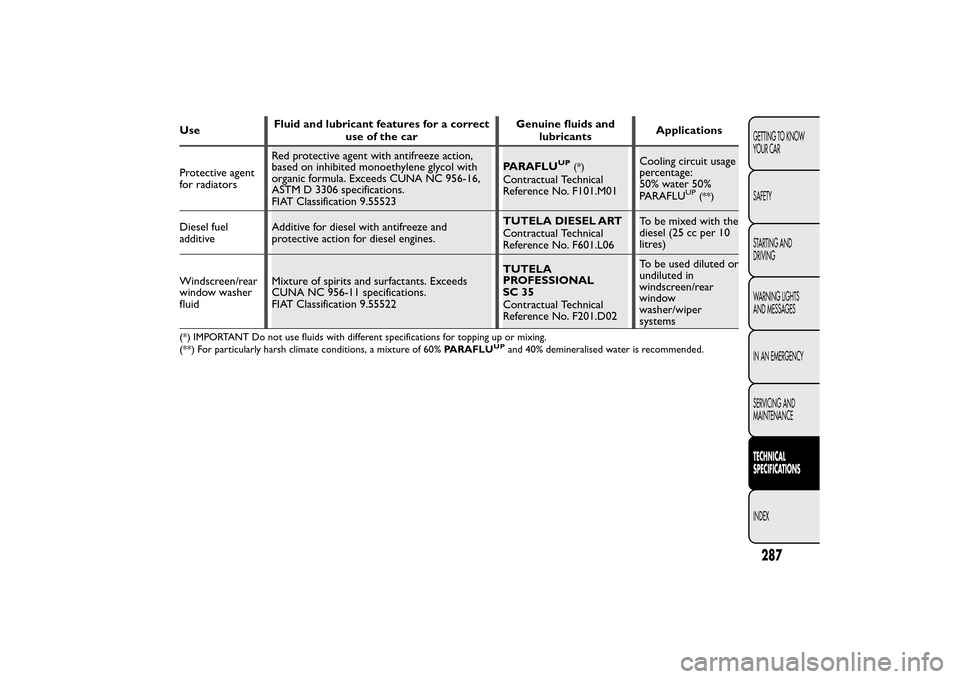

UseFluid and lubricant features for a correct
use of the carGenuine fluids and
lubricantsApplications
Protective agent
for radiatorsRed protective agent with antifreeze action,
based on inhibited monoethylene glycol with
organic formula. Exceeds CUNA NC 956-16,
ASTM D 3306 specifications.
FIAT Classification 9.55523PARAFLU
UP
(*)
Contractual Technical
Reference No. F101.M01Cooling circuit usage
percentage:
50% water 50%
PARAFLU
UP
(**)
Diesel fuel
additiveAdditive for diesel with antifreeze and
protective action for diesel engines.TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with the
diesel (25 cc per 10
litres)
Windscreen/rear
window washer
fluidMixture of spirits and surfactants. Exceeds
CUNA NC 956-11 specifications.
FIAT Classification 9.55522TUTELA
PROFESSIONAL
SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in
windscreen/rear
window
washer/wiper
systems(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**) For particularly harsh climate conditions, a mixture of 60%PARAFLU
UP
and 40% demineralised water is recommended.
287GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different
versions.1. Adjustable air diffusers 2. Upper glove compartment (for versions/markets, where provided the compartment may be
conditioned) 3. Passenger front airbag 4. Adjustable and directable centre air diffusers 5. Fixed upper air vent 6. Radio
controls on the steering wheel (for versions/markets, where provided) 7. Exterior light control lever 8. Instrument panel
9. Windscreen wiper/rear window wiper/trip computer control lever 10. Ignition switch 11. Driver front airbag 12. Cruise
Control/Speed Limiter lever (for versions/markets, where provided) 13.UConnect™ (for versions/markets, where
provided) or radio system setup 14. USB port/AUX socket (for versions/markets, where provided)
15. Heating/ventilation system or manual climate control (for versions/markets, where provided) or automatic dual zone
climate control (for versions/markets, where provided) 16. Control buttons 17. Lower glove compartment 18. Oddment
compartment
fig. 1
F0Y0185
295
RIGHT HAND DRIVE VERSIONS

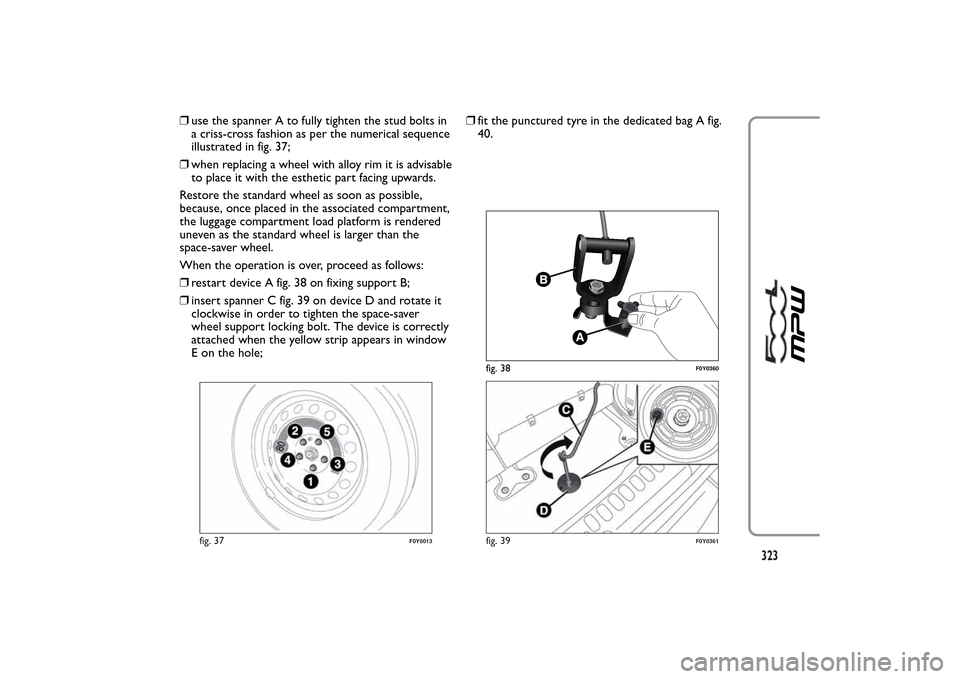

❒use the spanner A to fully tighten the stud bolts in
a criss-cross fashion as per the numerical sequence
illustrated in fig. 37;
❒when replacing a wheel with alloy rim it is advisable
to place it with the esthetic part facing upwards.
Restore the standard wheel as soon as possible,
because, once placed in the associated compartment,
the luggage compartment load platform is rendered
uneven as the standard wheel is larger than the
space-saver wheel.
When the operation is over, proceed as follows:
❒restart device A fig. 38 on fixing support B;
❒insert spanner C fig. 39 on device D and rotate it
clockwise in order to tighten the space-saver
wheel support locking bolt. The device is correctly
attached when the yellow strip appears in window
E on the hole;❒fit the punctured tyre in the dedicated bag A fig.
40.
fig. 37
F0Y0013
fig. 38
F0Y0360
fig. 39
F0Y0361
323

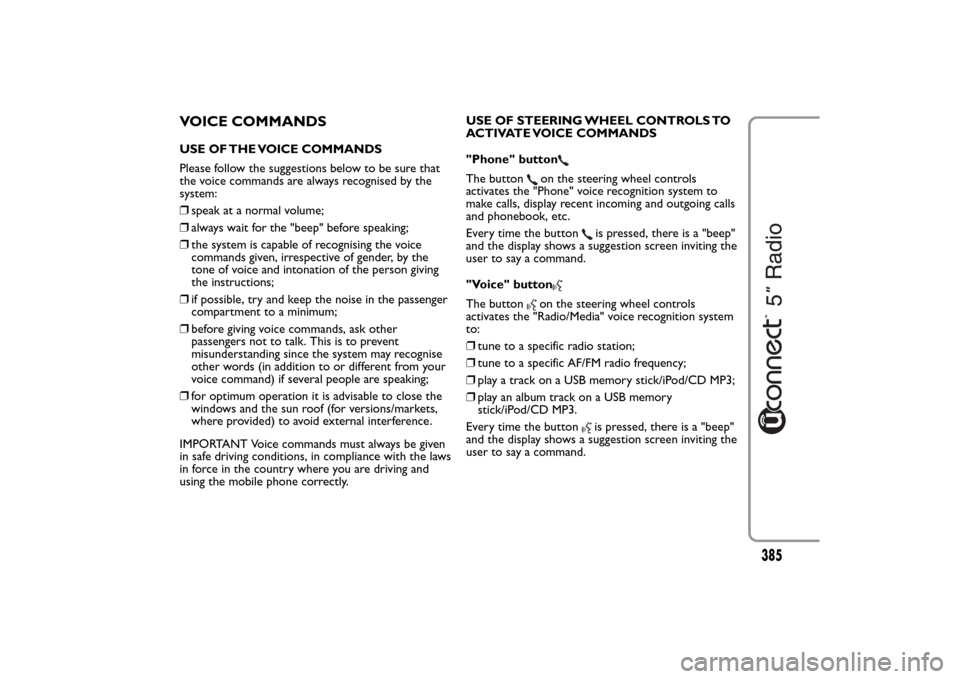

VOICE COMMANDSUSE OF THE VOICE COMMANDS
Please follow the suggestions below to be sure that
the voice commands are always recognised by the
system:
❒speak at a normal volume;
❒always wait for the "beep" before speaking;
❒the system is capable of recognising the voice
commands given, irrespective of gender, by the
tone of voice and intonation of the person giving
the instructions;
❒if possible, try and keep the noise in the passenger
compartment to a minimum;
❒before giving voice commands, ask other
passengers not to talk. This is to prevent
misunderstanding since the system may recognise
other words (in addition to or different from your
voice command) if several people are speaking;
❒for optimum operation it is advisable to close the
windows and the sun roof (for versions/markets,
where provided) to avoid external interference.
IMPORTANT Voice commands must always be given
in safe driving conditions, in compliance with the laws
in force in the country where you are driving and
using the mobile phone correctly.USE OF STEERING WHEEL CONTROLS TO
ACTIVATE VOICE COMMANDS
"Phone" button
The button
on the steering wheel controls
activates the "Phone" voice recognition system to
make calls, display recent incoming and outgoing calls
and phonebook, etc.
Every time the button
is pressed, there is a "beep"
and the display shows a suggestion screen inviting the
user to say a command.
"Voice" button
The button
on the steering wheel controls
activates the "Radio/Media" voice recognition system
to:
❒tune to a specific radio station;
❒tune to a specific AF/FM radio frequency;
❒play a track on a USB memory stick/iPod/CD MP3;
❒play an album track on a USB memory
stick/iPod/CD MP3.
Every time the button
is pressed, there is a "beep"
and the display shows a suggestion screen inviting the
user to say a command.
385

INDEX
3rd brake light (changing
bulbs) .......................................... 219A
BS .............................................. 110
ABS (system)............................... 110
Accessories purchased by
the owner .................................. 132
Additional heater ........................ 61
Airbag ........................................... 161
– Deactivation of front
passenger airbag and side
bag ........................................... 163
– window bag............................ 164
Airbags
– Front airbags ......................... 161
Air cleaner ................................... 252
ASR system ................................. 113
Automatic dual zone climate
control system .......................... 52
Battery (charge) ........................ 233
Battery ......................................... 253
– advice for extending
lifetime .................................... 253
– replacement ........................... 253
Body versions ............................. 265
Bodywork– body codes ............................ 265
– maintenance .......................... 260
– protection from
atmospheric agents.............. 259
– warranty ................................. 259
Bonnet .......................................... 106
Brake (mechanical wear
detection system) .................... 254
Brakes ........................................... 269
– brake fluid level..................... 251
Bulb replacement
– exterior lights ....................... 212
– interior lights......................... 221
Car dimensions ......................... 278"Cargo Magic Space" ................ 102Carrying children safely ........... 147
– Carrying children safely ...... 147
– child restraint systems ........ 156
– "Isofix" child restraint
system setup ......................... 154
Central air diffusers ................... 41
Changing a wheel ....................... 197
Checking
levels .......... 245-246-247-248-249
Child restraint systems
(compliance for use) ............... 152Cigar lighter ................................. 83
City Brake Control -
"Collision Mitigation"
System ........................................ 121
Cleaning and maintenance
– bodywork ............................... 259
– car interior............................. 261
– engine compartment ........... 261
– front headlights ..................... 261
– Leather parts......................... 262
– Plastic and coated parts...... 262
– seats ........................................ 262
– windows ................................. 261
Climate control ........................... 41
– Passenger compartment
air diffusers ............................. 42
Climatic comfort......................... 42
Clutch ........................................... 268
CO2 emissions ........................... 290
Conditions of use ...................... 175
Control panel and
instruments ................................ 4
controls ......................................... 93
Controls........................................ 76
“Cornering lights” ..................... 64Cruise Control ........................... 69
408GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

D
ashboard ................................... 3
Daytime running lights
(DRL)
– "Daytime Running Lights".... 62
Diesel filter .................................. 252
Dipped beam headlights
– control ..................................... 62
Dipped headlights
– control ..................................... 62
Direction indicators
– control ..................................... 64
Display ........................................... 7
– Control buttons .................... 10
Doors ............................................ 89
– Door lock/unlock .................. 89
DPF (particulate filter) ............. 140
Driving style ................................ 174
DRLs (Daytime Running
Lights) .......................................... 62
DST (steering corrector)
(system) ..................................... 115
DST system (steering
corrector) .................................. 115
Dualdrive (electric power
steering) ..................................... 128
Dualdrive electric power
steering ...................................... 128Dusk sensor ................................. 63
Electric sun roof ........................ 87
Electric windows......................... 93
Engine codes ............................... 265
Engine compartment
– washing ................................... 261
Engine coolant temperature
indicator...................................... 6
Engine
– engine cooling system
fluid level ................................ 251
– technical specifications........ 266
Engine oil
– consumption.......................... 250
– level check ............................. 250
– specifications ......................... 285
Environment protection........... 140
EOBD (system) .......................... 128
ESC (system)............................... 112
External lights .............................. 62
Extinguisher ................................. 84Fiat CODE (system) ................. 24
Fiat CODE system ..................... 24
Filling the tank ............................ 136
Fitting "Universal" child
restraint system ....................... 149Fixed glass roof ........................... 85
Fixed rear light clusters
(changing bulbs)........................ 218
Fix&Go Automatic Kit ............. 203
Fluids and lubricants
(specifications).......................... 285
Follow Me Home (device) ........ 64
Front roof light
– bulb replacement.................. 221
Fuel consumption ...................... 288
Fuel level gauge ........................... 6
Fuse boxes (location)................ 227
Fuses
– Dashboard fuse box ............ 228
– Engine compartment fuse
box........................................... 227
– fuse list.................................... 230
– Luggage compartment
fuse box .................................. 229
– replacing fuses ....................... 225
G
earbox (use of ) ...................... 172
Gear Shift Indicator
(system) ...................................... 10
Glasses holder ............................. 84
Glove compartment light
– bulb replacement.................. 224
409GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX

– control ..................................... 63
Maintenance and care
– scheduled servicing plan ..... 239
Manual climate control
system ......................................... 47
Menu items................................... 12
MSR system ................................. 111
MSR (system) .............................. 111
Multifunction display .................. 7N
umber plate lights (bulb
replacement)............................. 220
O
n board instruments
– engine coolant
temperature indicator.......... 6
– multifunction display............. 4
On-board instruments
– On-board instruments ......... 4
On board instruments
– reconfigurable
multifunction display............. 5
Parking......................................... 171
Parking sensors .......................... 133
Particulate filter (DPF) ............. 140
Performance (top speed) ......... 280
Pollen filter .................................. 252
Power sockets ............................. 82Power supply............................... 268
Preparation to install a
portable navigation system.... 130
Pretensioners .............................. 143
Protecting the environment .... 140
Radiofrequency remote
control: ministerial
approvals.................................... 292
Radio setup system ................... 130
Rain sensor................................... 66
Raising the car ............................ 234
Rear armrest ................................ 36
Rear camera ................................ 125
Rear light clusters ...................... 217
Rear roof light
– bulb replacement.................. 222
Rear seat surveillance
mirror .......................................... 84
Rear view mirrors ....................... 39
Rear window washer jets......... 259
Rear window washer
– rear window washer fluid
level ......................................... 251
Rear window washer/wiper ..... 68
Rear window wiper
– blade replacement ................ 258
– blades ...................................... 256– level check .... 246-247-248-249
Reconfigurable multifunction
display .......................................... 8
Refuelling...................................... 283
Refuelling the car ....................... 136
Replacing fuses............................ 225
Rev counter.................................. 6
Rim Protector............................. 277
Roof lights .................................... 73
– courtesy lights........................ 75
– front roof light ....................... 73
– glove compartment light ..... 76
– luggage compartment
roof light.................................. 75
– rear roof light ......................... 74
Roof rack/ski rack ...................... 108
Safety ........................................... 141
– carrying children safely........ 147
– "Isofix" child restraint
system (fitting) ...................... 154
– seat belts ................................ 141
Saving fuel .................................... 173
SBR system .................................. 142
Scheduled Servicing Plan .......... 239
Seat belts
– load limiters ........................... 144
411GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX

– maintenance .......................... 146
– pretensioners ........................ 143
– SBR system ............................ 142
– using the seat belts .............. 141
Seats............................................... 30
– Adjusting the seats ............... 30
Servicing and care ...................... 238
– heavy-duty use of the car ... 244
– periodic checks ..................... 244
– scheduled servicing .............. 238
Setup menu .................................. 11
Side airbags (side airbag -
window airbag) ......................... 164
Side air diffusers .......................... 41
Side bag)....................................... 164
Snow chains................................. 181
Sound system (wiring) .............. 130
Speed Limiter............................... 71
Speedometer ............................... 6
Starting the engine ............ 168-196
Start&Stop system..................... 117
Steering ........................................ 270
Steering lock ................................ 30
Steering Wheel ........................... 38
Steering wheel stalks– left stalk................................... 62
Storage compartments .............. 80
Storing the car ............................ 181
Sun visors ..................................... 83
Suspension ................................... 269
Table ............................................. 35
Technical data ............................. 263
The keys ........................................ 25
Top speed .................................... 280
Towing the car............................ 235
Towing trailers ............................ 175
Traction Plus system ................. 116
Transmission ............................... 268
TRIP button ................................. 23
Trip Computer
– TRIP button ............................ 23
– Trip Computer....................... 20
– Trip Computer
parameters.............................. 21
Tyres
– correct tyre reading............. 271
– Fix&Go Automatic (kit)...... 203
– inflation pressures ................ 276
– Rim Protector tyres............. 277
Tyres - maintenance .................. 255
"Universal" child restraint
system fitting ............................ 156U
pper air diffusers .................... 41
Using the gearbox...................... 172
W
arning lights and
messages .................................... 182
Weights and loads...................... 281
Wheel geometry........................ 271
Wheel rims
– correct reading of the
rim code ................................. 272
– Rim Protector ....................... 277
– rims and tyres ....................... 271
– wheels and tyres................... 255
Wheels and tyres
– changing a wheel .................. 197
– Fix&Go Automatic (kit)...... 203
– tyre inflation pressure ......... 276
– Wheels and tyres ................. 255
Wheels and tyres provided ..... 273
Wheels ......................................... 271
Window airbag ........................... 164
Window cleaning ........................ 65
Windows (cleaning) .................. 261
Windscreen washer
412GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
