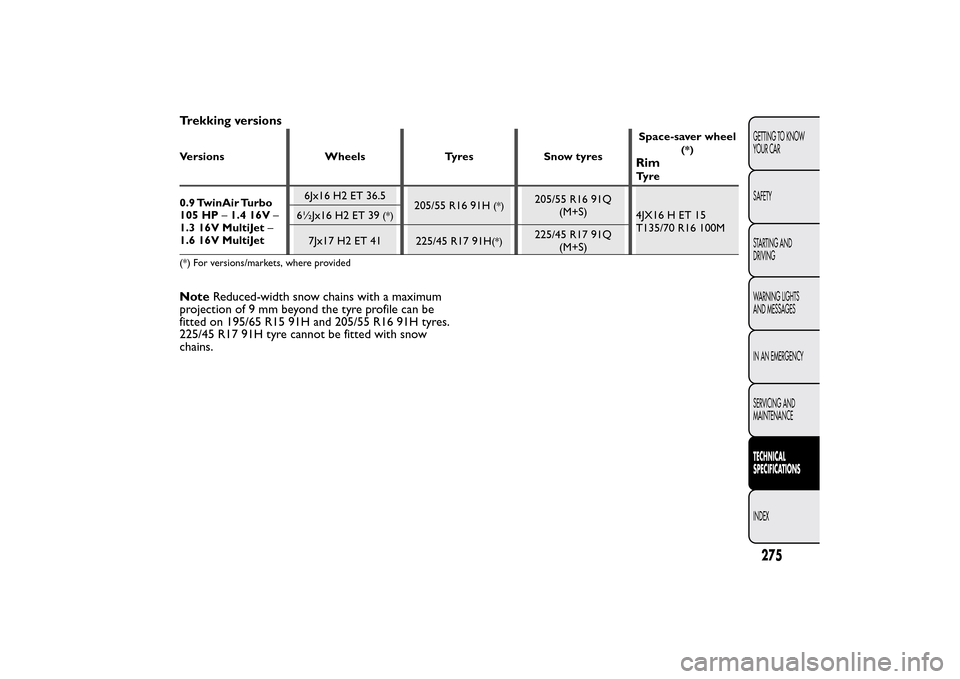

Trekking versionsVersions Wheels Tyres Snow tyresSpace-saver wheel
(*)
RimTy r e
0.9 TwinAir Turbo
105 HP–1.4 16V–
1.3 16V MultiJet–
1.6 16V MultiJet6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
(*) For versions/markets, where providedNoteReduced-width snow chains with a maximum
projection of 9 mm beyond the tyre profile can be
fitted on 195/65 R15 91H and 205/55 R16 91H tyres.
225/45 R17 91H tyre cannot be fitted with snow
chains.
275GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

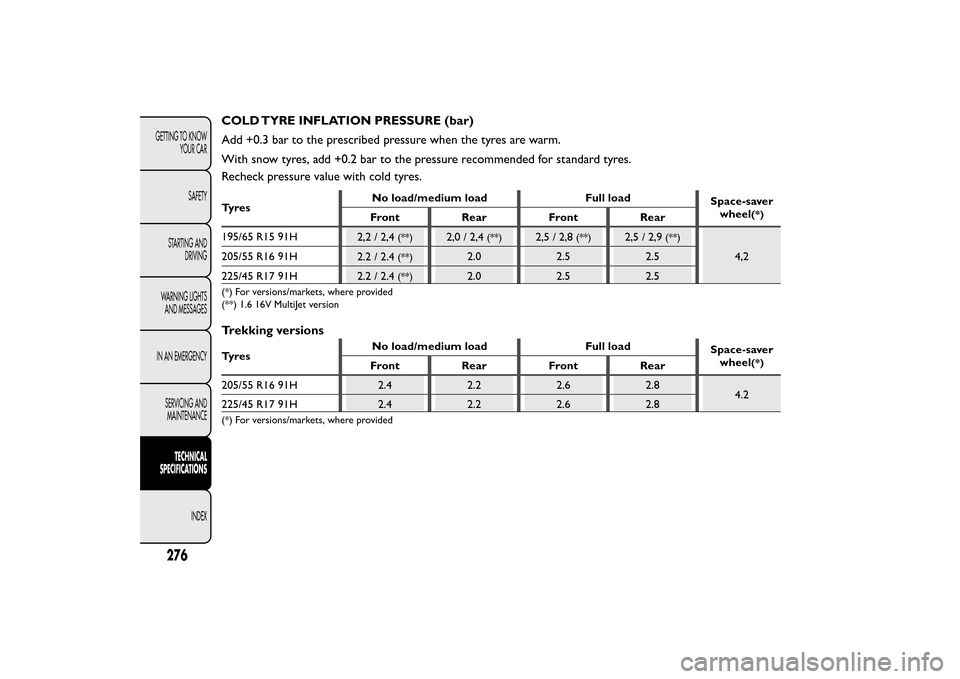

COLD TYRE INFLATION PRESSURE (bar)
Add +0.3 bar to the prescribed pressure when the tyres are warm.
With snow tyres, add +0.2 bar to the pressure recommended for standard tyres.
Recheck pressure value with cold tyres.Ty r e sNo load/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/65 R15 91H
2,2 / 2,4
(**)
2,0 / 2,4
(**)
2,5 / 2,8
(**)
2,5 / 2,9
(**)
4,2 205/55 R16 91H
2.2 / 2.4
(**)
2.0 2.5 2.5
225/45 R17 91H
2.2 / 2.4
(**)
2.0 2.5 2.5
(*) For versions/markets, where provided
(**) 1.6 16V MultiJet versionTrekking versionsTy r e sNo load/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
205/55 R16 91H 2.4 2.2 2.6 2.8
4.2
225/45 R17 91H 2.4 2.2 2.6 2.8
(*) For versions/markets, where provided
276GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

RIM PROTECTOR TYRES
WARNING
DO NOT fit wheel hub caps when using
integral hub caps fixed (with springs)
to the steel rim and after sale tyres provided
with Rim Protector (fig. 225). Use of unsuitable
tyres and hub caps may cause sudden loss of
tyre pressure.
fig. 225
F0Y0005
277GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

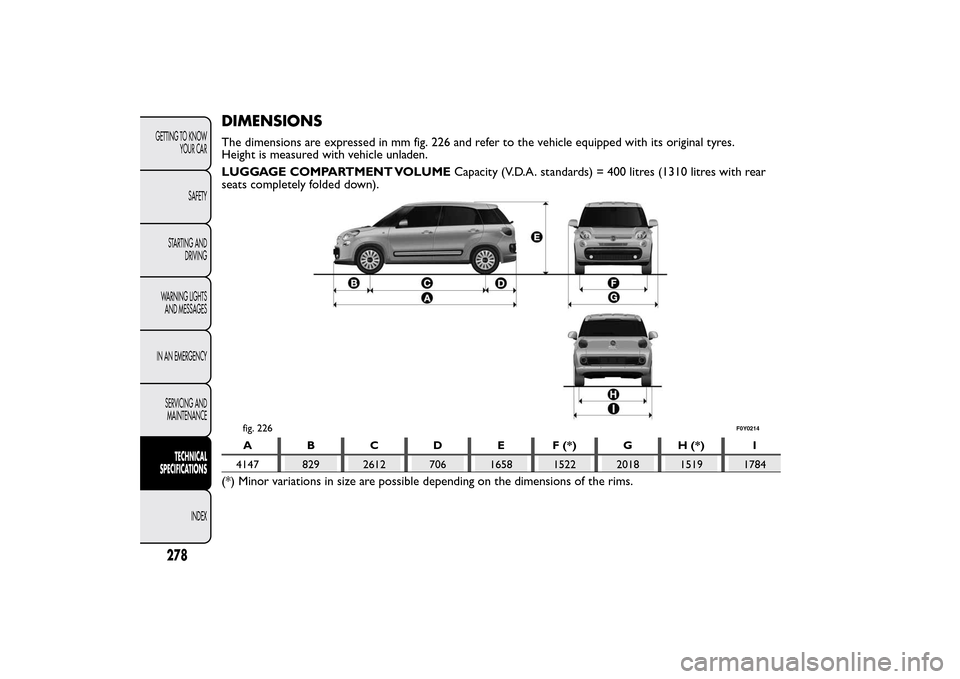

DIMENSIONSThe dimensions are expressed in mm fig. 226 and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.
LUGGAGE COMPARTMENT VOLUMECapacity (V.D.A. standards) = 400 litres (1310 litres with rear
seats completely folded down).
A B C D E F (*) G H (*) I
4147 829 2612 706 1658 1522 2018 1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
fig. 226
F0Y0214
278GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

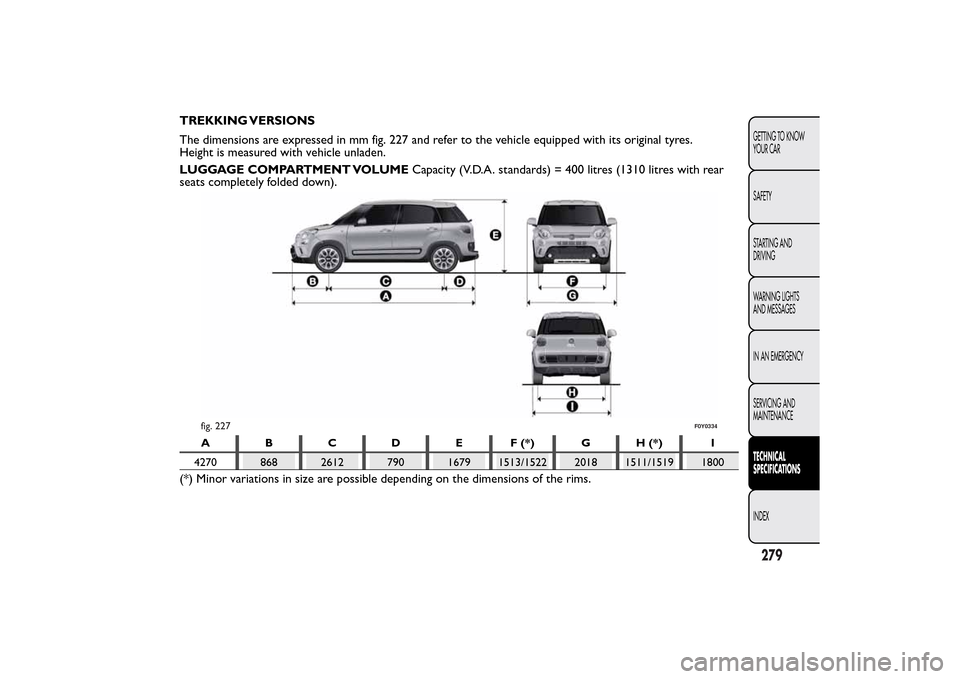

TREKKING VERSIONS
The dimensions are expressed in mm fig. 227 and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.
LUGGAGE COMPARTMENT VOLUMECapacity (V.D.A. standards) = 400 litres (1310 litres with rear
seats completely folded down).
A B C D E F (*) G H (*) I
4270 868 2612 790 1679 1513/1522 2018 1511/1519 1800
(*) Minor variations in size are possible depending on the dimensions of the rims.
fig. 227
F0Y0334
279GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

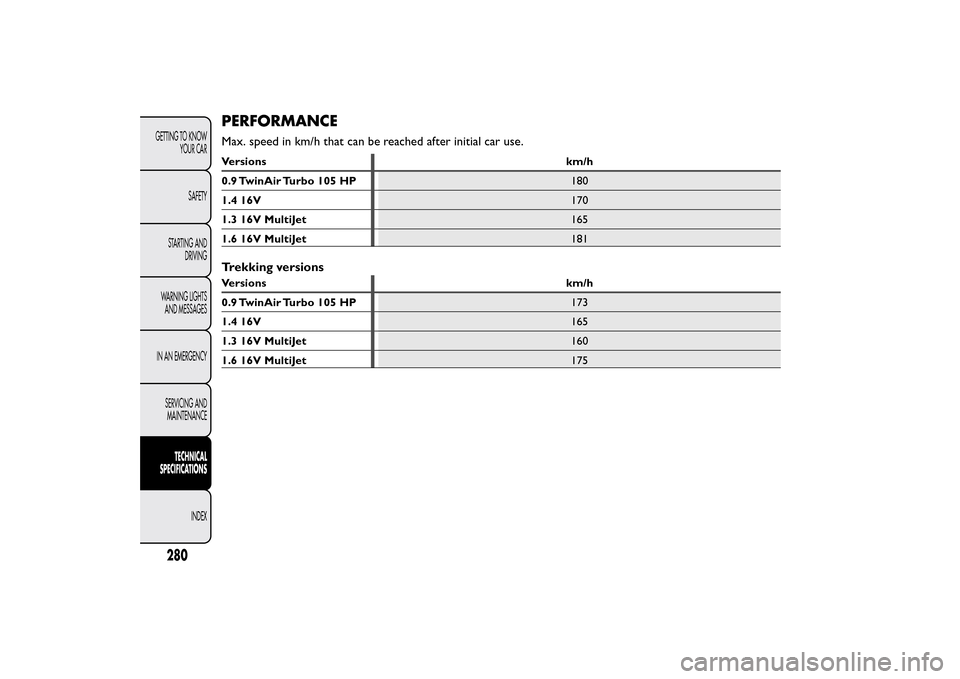

PERFORMANCEMax. speed in km/h that can be reached after initial car use.Versions km/h
0.9 TwinAir Turbo 105 HP180
1.4 16V170
1.3 16V MultiJet165
1.6 16V MultiJet181Trekking versionsVersions km/h
0.9 TwinAir Turbo 105 HP173
1.4 16V165
1.3 16V MultiJet160
1.6 16V MultiJet175
280GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

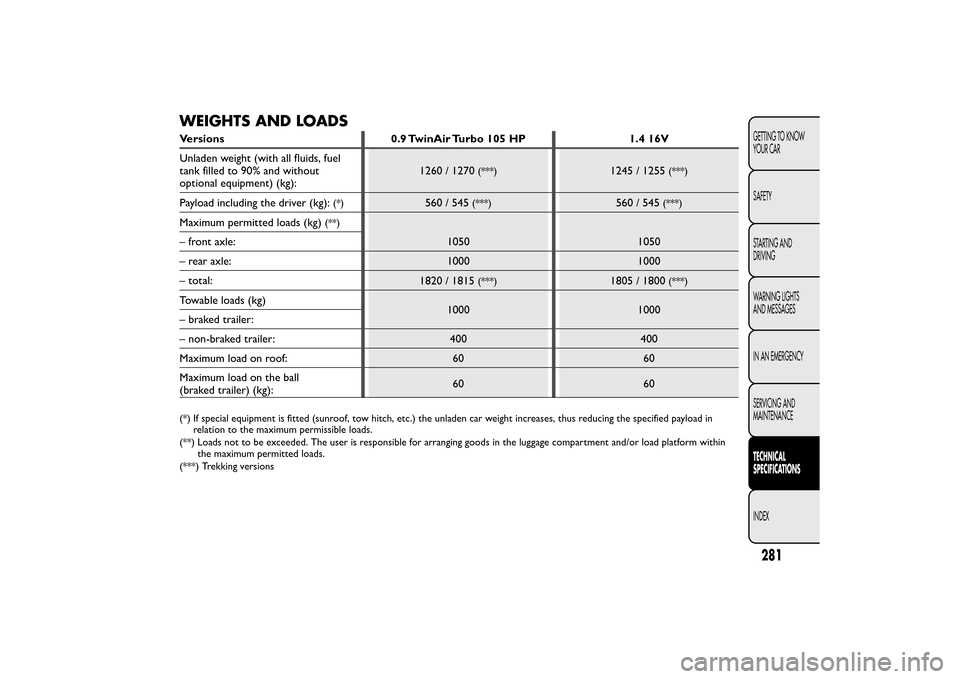

WEIGHTS AND LOADSVersions 0.9 TwinAir Turbo 105 HP 1.4 16V
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment) (kg):1260 / 1270
(***)
1245 / 1255
(***)
Payload including the driver (kg):
(*)
560 / 545
(***)
560 / 545
(***)
Maximum permitted loads (kg)
(**)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1820 / 1815
(***)
1805 / 1800
(***)
Towable loads (kg)
1000 1000
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on the ball
(braked trailer) (kg):60 60(***) Trekking versions (*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permissible loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
281GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

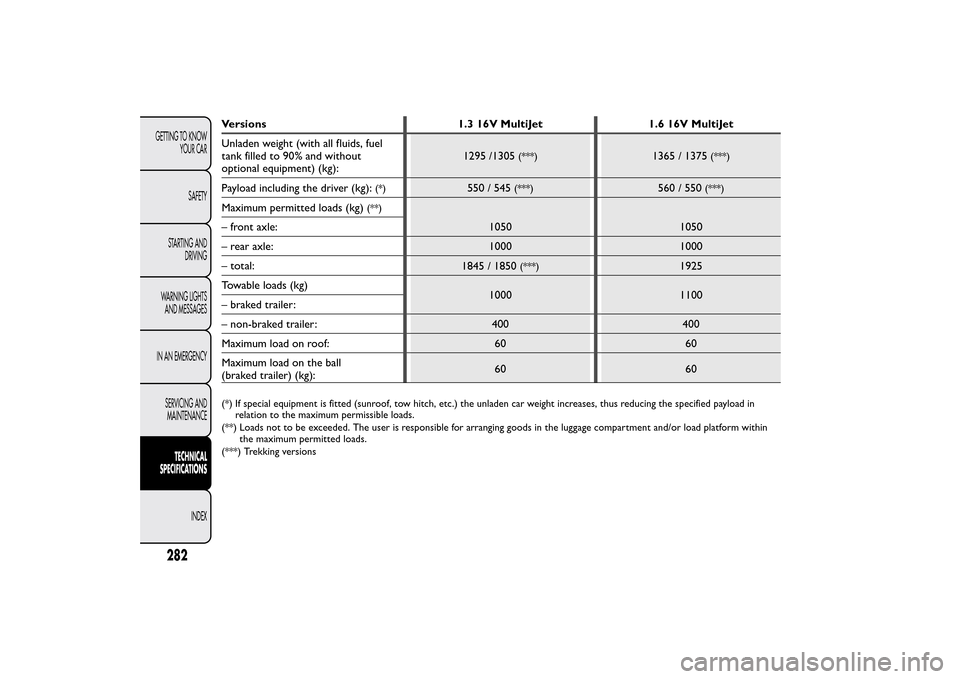

Versions 1.3 16V MultiJet 1.6 16V MultiJet
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment) (kg):1295 /1305
(***)
1365 / 1375
(***)
Payload including the driver (kg):
(*)
550 / 545
(***)
560 / 550
(***)
Maximum permitted loads (kg)
(**)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1845 / 1850
(***)
1925
Towable loads (kg)
1000 1100
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on the ball
(braked trailer) (kg):60 60
(***) Trekking versions (*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permissible loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
