2014 DODGE CHARGER SRT Owners Manual

Cavity Cartridge FuseMini-FuseDescription
1 – – Fuse – Spare
2 40 Amp Green –Radiator Fan #1
3 50 Amp Red –Power Steering #1
4 30 Amp Pink – Starter
5 40 Amp Green –Anti-Lock Brakes
6 25 Amp Natural –Anti-Lock Brakes
7 – – Fuse – Spare
8 – – Fuse – Spare
9 –20 Amp Yellow All-Wheel Drive Module – If Equipped
10 –10 Amp Red Security
11 –20 Amp Yellow Horns
12 –10 Amp Red Air Conditioning Clutch
13 – – Fuse – Spare
14 – – Fuse – Spare
15 –25 Amp Natural Transmission
7
MAINTAINING YOUR VEHICLE 543

Cavity Cartridge FuseMini-FuseDescription
16 – – Fuse – Spare
18 50 Amp Red –Radiator Fan #2
19 50 Amp Red –Power Steering #2
20 30 Amp Pink – Wiper Motor
21 30 Amp Pink –Headlamp Washers
22 – – Fuse – Spare
23 – – Fuse – Spare
24 – – Fuse – Spare
28 –25 Amp Natural Fuel Pump
29 –15 Amp Blue Transmission Shifter
30 – – Fuse – Spare
31 –25 Amp Natural Engine Module
32 – – Fuse – Spare
33 – – Fuse – Spare
34 –25 Amp Natural Powertrain #1
544 MAINTAINING YOUR VEHICLE

Cavity Cartridge FuseMini-FuseDescription
35 –20 Amp Yellow Powertrain #2
36 –10 Amp Red Anti-Lock Brake Module
37 –10 Amp Red Engine Controller/Rad Fan Relays
38 –10 Amp Red Airbag Module
39 –10 Amp Red Power Steering Module/AC Clutch Relay
48 –10 Amp Red AWD Module/Front Axle Disconnect
49 – – Fuse – Spare
50 – – Fuse – Spare
51 –20 Amp Yellow Vacuum Pump
52 – – Fuse – Spare
53 – – Fuse – Spare
7
MAINTAINING YOUR VEHICLE 545

Rear Power Distribution Center (Fuses)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
Rear Power Distribution Center
546 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Mini-FuseDescription
2 60 Amp Yellow – Front PDC Feed #1
3 – – Fuse – Spare
4 60 Amp Yellow – Front PDC Feed #2
5 30 Amp Pink – Sunroof
6 40 Amp Green – Exterior Lighting #1
7 40 Amp Green – Exterior Lighting #2
8 30 Amp Pink – Interior Lighting/Washer Pump
9 30 Amp Pink – Power Locks
10 30 Amp Pink – Driver Door
11 30 Amp Pink – Passenger Door
12 –20 Amp Yellow Cigar Lighters, Instrument Panel & Power Outlet Console
Rear
15 40 Amp Green – HVAC Blower
16 – – Fuse – Spare
17 – – Fuse – Spare
7
MAINTAINING YOUR VEHICLE 547

Cavity Cartridge Fuse Mini-FuseDescription
18 –20 Amp Yellow Active Dampening Module
19 – – Fuse – Spare
20 – – Fuse – Spare
21 – – Fuse – Spare
22 – – Fuse – Spare
23 –10 Amp Red Fuel Door/Diagnostic Port
24 –15 Amp Blue Radio Screen
25 –10 Amp Red Tire Pressure Monitor
26 – – Fuse – Spare
27 –25 Amp Natural Amplifier
31 –25 Amp Natural Power Seats
32 –15 Amp Blue HVAC Module/Cluster
33 –15 Amp Blue Ignition Switch/Wireless Module
34 –10 Amp Red Steering Column Module/Clock
35 –10 Amp Red Battery Sensor
548 MAINTAINING YOUR VEHICLE

Cavity Cartridge Fuse Mini-FuseDescription
36 – – Fuse – Spare
37 –15 Amp Blue Radio
38 –20 Amp Yellow Power Outlet Inside Arm Rest
40 – – Fuse – Spare
41 – – Fuse – Spare
42 30 Amp Pink – Rear Defrost
43 –25 Amp Natural Rear Heated Seats/Steering Wheel
44 –10 Amp Red Park Assist/Blind Spot/Camera
45 –15 Amp Blue Cluster/Rearview Mirror/Compass
46 –10 Amp Red Adaptive Cruise Control
47 –10 Amp Red Adaptive Front Lighting
48 –20 Amp Yellow Active Suspension
7
MAINTAINING YOUR VEHICLE 549

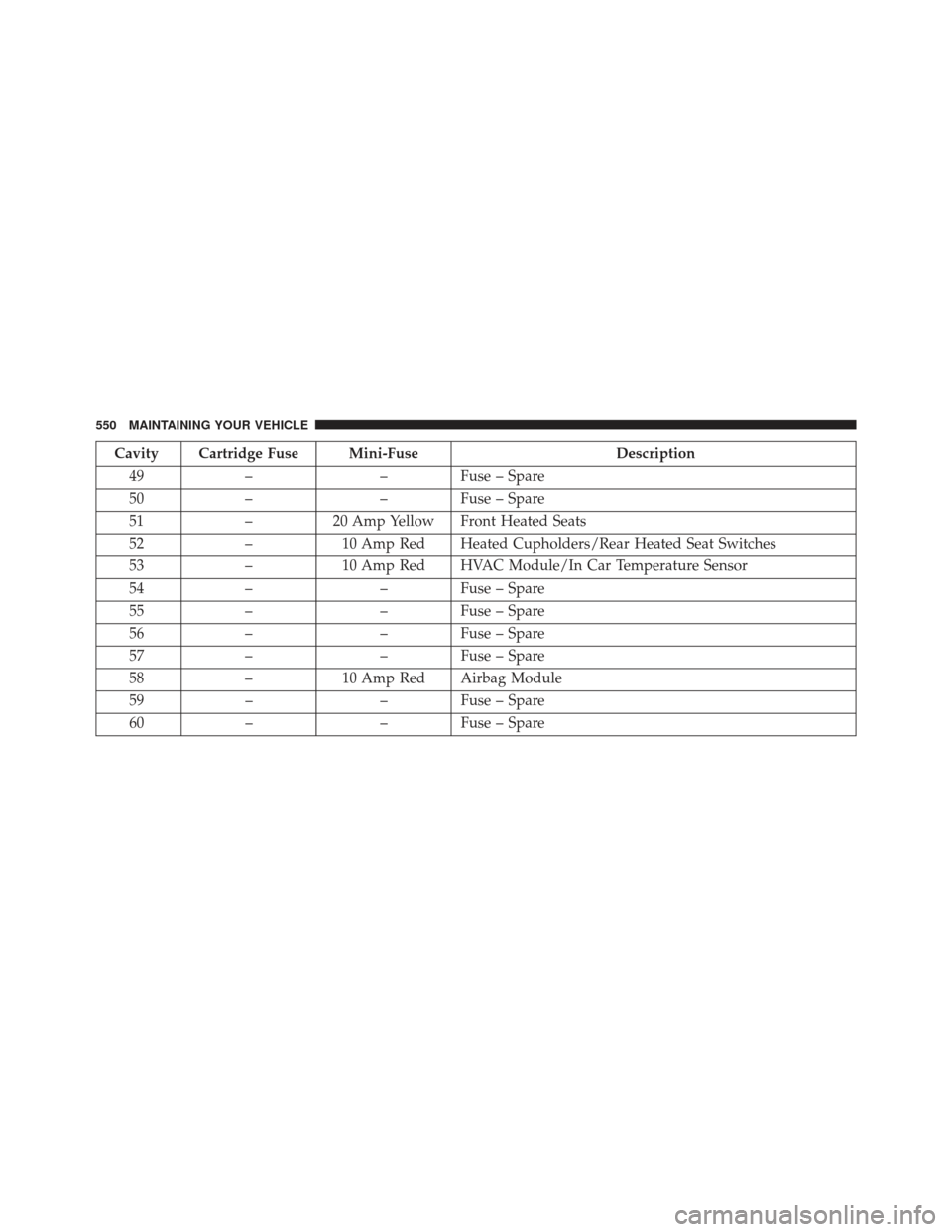

Cavity Cartridge Fuse Mini-FuseDescription
49 – – Fuse – Spare
50 – – Fuse – Spare
51 –20 Amp Yellow Front Heated Seats
52 –10 Amp Red Heated Cupholders/Rear Heated Seat Switches
53 –10 Amp Red HVAC Module/In Car Temperature Sensor
54 – – Fuse – Spare
55 – – Fuse – Spare
56 – – Fuse – Spare
57 – – Fuse – Spare
58 –10 Amp Red Airbag Module
59 – – Fuse – Spare
60 – – Fuse – Spare
550 MAINTAINING YOUR VEHICLE
