2014 CITROEN DS3 CABRIO DAG Handbook (in English)

119Visibility








Interior mood lighting The dimmed passenger compar tment lighting improves visibility in the vehicle when the lightis poor.


Switching on
At night, the illumination of footwells and thecentral dashboard storage compar tment comes
on automatically when the sidelamps areswitched on.
Switching off
The interior mood lighting switches off automatically when the sidelamps areswitched off.
It can be switched off manually using the instrument panel lighting rheostat button. ) With the lighting on, press several times on
the left hand button of the instrument panel
to progressively reduce the dashboard lighting level. ) Press again to reduce the lighting level
to the minimum and switch off the interior
mood lighting.

This comes on automatically when the boot is opened and goes off automatically when the boot is closed.




Boot lamp
The lighting time varies according to the circumstances:


- when the ignition is off, approximately ten minutes, -in energy economy mode, approximatelythirty seconds,-when the engine is running, no limit.

006
Fittings
The section describes the various interior fittings, the glove box, thecentral armrest for storage, the Jack socket or USB por t for connecting a por table player, the mats for protecting the carpet, as well as the various
boot fittings.

Interior fi ttings
1.Sun visorr(see details on the following page) 2.Illuminatedglove box(see details on the following page)
3.Door pocket4.Upper storage compar tment5.
Lower storage compar tment with
non-slip mat6.USB port/ auxiliar y socket (see details on the following pages)
7.12 V accessory socket(see details on following pages)8.Centre armrest with storage(see details on the following page)
or
Cup / bottle holder

Fittings
Component which protects against sunlightfrom the front or the side, also equipped with an
illuminated courtesy mirror.)With the ignition on, raise the concealingflap; the mirror is lit automatically.
This sun visor is also equipped with a ticket
holder.









Sun visor









Illuminated glove
box
This can be used to hold a water bottle.
Its lid has a location for storing the vehicle'shandbook pack.) To open the glove box, raise the handle.
It is lit when the lid is opened.
It houses the front passen
ger's airbag deactivation switch A.It provides access to the ventilation nozzle B , distributing the same air as the vents in the passenger compartment.









Centre armrest


Storage
)
For access to the closed storage box, lift
the lever to open the lid.) For access to the open storage box below
the armrest, lift the complete armrest
t
owards the rear.
These can be used for por table devices (mobile
phone, MP3 player...) which can be connected
to the USB por t / auxiliary socket or chargedfrom the 12 V socket in the centre console.
Comfor t and storage system for the driver andfront passenger.

Auxiliary socket
The auxiliary socket is located in the " AUX" box on the centre console.
It permits the connection of a por table device,such as a digital audio player of the iPod ®type,
to listen to your music files using the vehicle'sspeakers.














USB Player
For more information on the use of this equipment, refer to the "Audio system" or "eMyWay" section.
When it is in use, the por table devicecharges automatically.
The U
SB por t is located in the "AU X "box on
the centre console.
It permits the connection of a por table device,
such as a digital audio player of the iPod®
generation 5 and later type or USB memory
stick type.
It reads the audio file formats (mp3, ogg,
wma, wav...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio equipmentcontrol panel and display them on the
multifunction screen.

F
or more information on the use of thisequipment, refer to the "Audio system" section.






12 V accessory
socket
)To connect a 12 V accessory (max power:
120 W), lift the cover and connect asuitable adaptor.
The management of the files is doneusing your por table device.

Fittings








Mats Removable carpet protection.
When
fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.

Fitting Removal
To remove the mat on the driver's side: )
move the seat as far back as possible,
)
unclip the fixings,)
remove the mat.

Refitting
To refit the mat on the driver's side: )
position the mat correctly,)
refit the fixings by pressing,)
check that the mat is secured correctly.


To avoid any risk of jamming of the pedals:


- only use mats which are suitedto the fixings already present in the vehicle; these fixings must beused,

- never fit one mat on top of another.
The use of mats not approved byCITROËN may inter fere with access tothe pedals and hinder the operation of the cruise control / speed limiter.

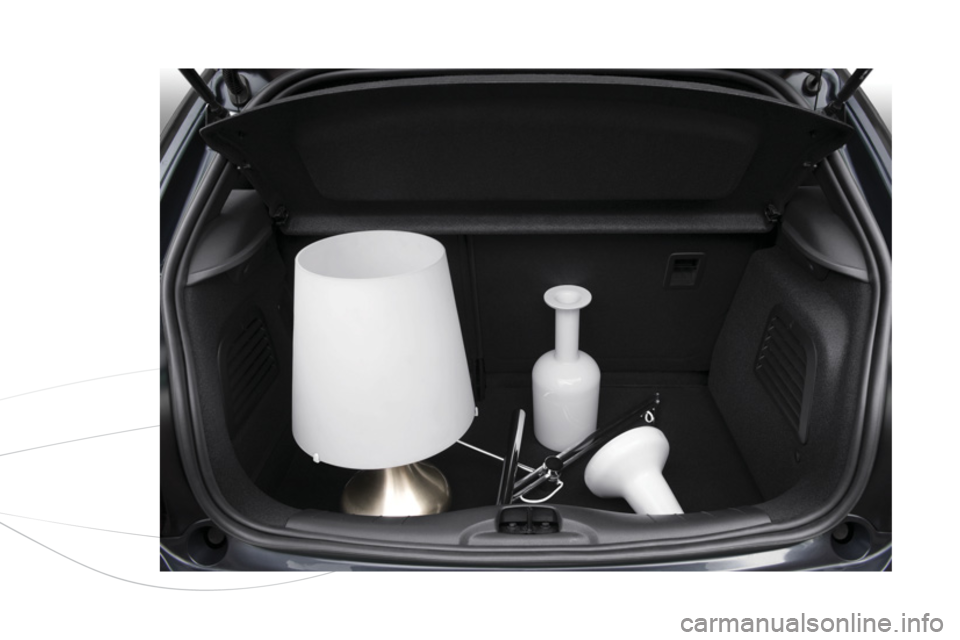

1.Rear parcel shelff(see the following page for details) 2.Retaining strap3.Location for Hi- Fi amplifier
4.Stowing rings5.Storage box (version equipped with a
temporary puncture repair kit)(see the following page for details) or
Tool box (version equipped with a spare
wheel)(refer to the "Changing a wheel" section)












Boot fi ttings
