11Access

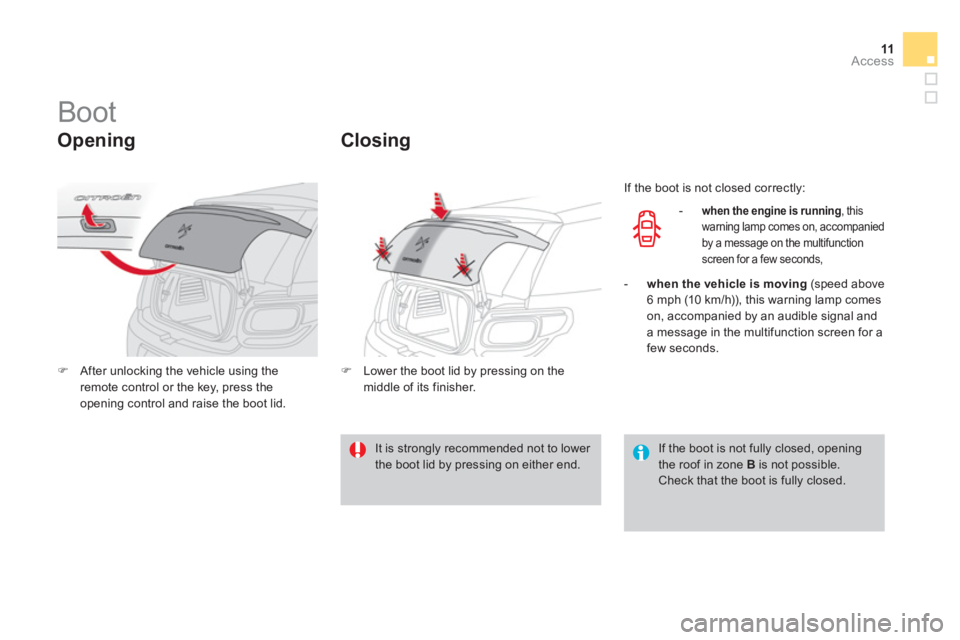

Boot


Opening



)
After unlocking the vehicle using the
remote control or the key, press the
opening control and raise the boot lid.



Closing



)
Lower the boot lid by pressing on the
middle of its finisher.
If the boot is not closed correctly:


-

when the engine is running
, this
warning lamp comes on, accompanied
by a message on the multifunction
screen for a few seconds,

- when the vehicle is moving
(speed above
6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message in the multifunction screen for a
few seconds.


It is strongly recommended not to lower
the boot lid by pressing on either end.


If the boot is not fully closed, opening
the roof in zone B
is not possible.
Check that the boot is fully closed.

12Access

If the roof is carrying out an opening operation in zone B
, an action on the boot opening
control causes the roof to close. The boot will be released when the roof reaches
position 2
. You can then raise the boot lid.


Conditions for opening the boot with the roof in zone B


To avoid inter ference between the boot and the roof in zone B, opening the boot depends
on the position of the roof.


If the roof is carrying out a closing operation in zone B
, an action on the boot opening
control has no effect on the roof operation, but the boot will only be released once the roof
has reached position 2
. You can then raise the boot lid.

During an opening or closing operation of the roof in zone B
following an "anti-panic"
function, the boot opening control is inhibited. It will work again once the roof has reached
position 2
or position 3
.

If the roof is position 3
, an action on the boot opening control causes the closing of the
roof to position 2
. When the roof has reached this position, the boot lid will be released.
You can then raise the boot lid.

13Access
System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.

Unlocking







Emergency release


)
Insert a small screwdriver into hole A
of
each lateral latch to unlock the boot.


)
Fold back the rear seat to gain access to
the two latches, from inside the boot.

Before opening the boot, ensure that
the roof is not in zone B
.

14Fittings

The rear shelf is fixed
.






Rear shelf


Before opening the roof completely,
check that no object has been left on
the shelf.
When the roof is fully open, the rear
screen rests on the shelf. Do not place
any object on the screen.

15Practical information





























Changing a bulb



1.
3D LED sidelamps (LEDs).


2.
LED brake lamps / sidelamps (LEDs).


3.
LED lateral sidelamps (LEDs).


4.
Direction indicators (PY21W amber)


5.
Foglamp, offside (H21W red)

Reversing lamp, nearside (H21W).



Access to the bulbs



)
Open the boot.

)
Remove the access flap from the
corresponding side trim panel.

)
Unscrew the butter fly nut securing the
lamp unit.

)
Unclip the lamp unit connector.

)
Extract the lamp unit carefully pulling it in
line towards the outside.


Changing direction indicator (4)
and foglamp or reversing
lamp (5) bulbs


)
Turn the bulb a quarter turn and change it.



Changing LED sidelamps and
brake lamps (LEDs)
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.



3D rear lamps

To refit, carry out these operations in reverse
order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle. Amber or red bulbs, such as those
for the direction indicators and rear
foglamp, must be replaced by bulbs of
the same rating and colour.

16Practical information
Changing a fuse



)
To unclip the upper boot trim, pull it down, starting on the left.

)
Remove the trim by tipping it downwards.

)
Change the fuses.
To reassemble, carry out these operations in reverse order, starting at the back of the boot.


Fuse under the bonnet
(maxi-fuse)

Fuse N°

Rating

Functions


-

20 A
Soft top roof

-

20 A
Soft top roof

If the roof is in zone B
when a fuse fails, it is then not possible to open the boot. To be able to open the boot and proceed with fuse replacement,
first close the roof manually from inside the boot (by folding the rear seats).

There are three fuses for the soft top roof.


Fuses under the rear shelf


Fuse N°

Rating

Functions


MF08

40 A
Soft top roof
The maxi-fuses provide additional protection
for the electrical systems. All work on the
maxi-fuses must be carried out by a CITROËN
dealer or a qualified workshop.

17Practical information

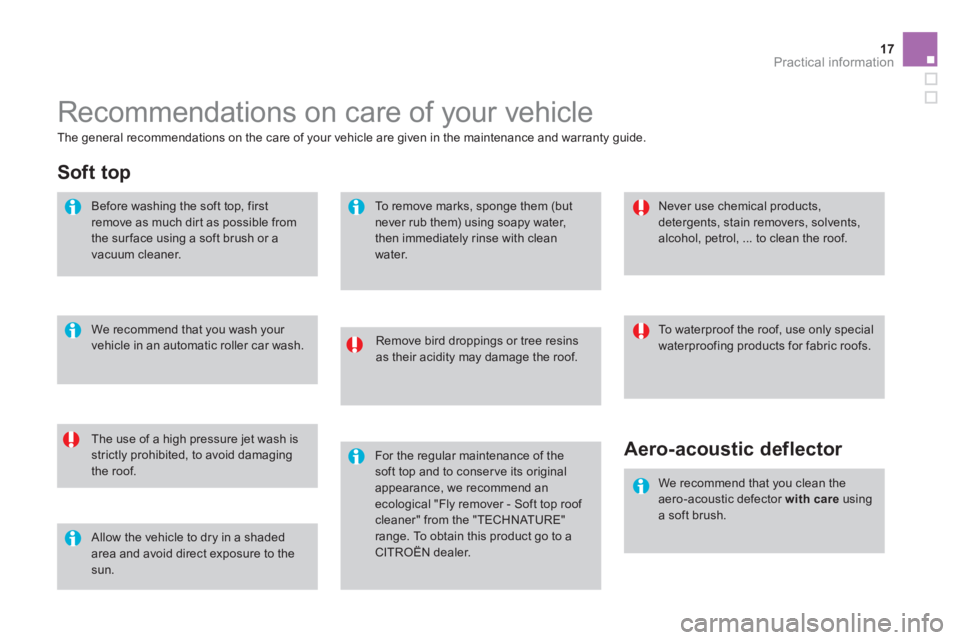

Recommendations on care of your vehicle


Remove bird droppings or tree resins
as their acidity may damage the roof.

The use of a high pressure jet wash is
strictly prohibited, to avoid damaging
the roof.
Never use chemical products,
detergents, stain removers, solvents,
alcohol, petrol, ... to clean the roof.
The general recommendations on the care of your vehicle are given in the maintenance and warranty guide.

Allow the vehicle to dry in a shaded
area and avoid direct exposure to the
sun.
We recommend that you wash your
vehicle in an automatic roller car wash.
To remove marks, sponge them (but
never rub them) using soapy water,
then immediately rinse with clean
water.

To waterproof the roof, use only special
waterproofing products for fabric roofs.



Soft top


Before washing the soft top, first
remove as much dirt as possible from
the sur face using a soft brush or a
vacuum cleaner.

For the regular maintenance of the
soft top and to conser ve its original
appearance, we recommend an
ecological "Fly remover - Soft top roof
cleaner" from the "TECHNATURE"
range. To obtain this product go to a
CITROËN dealer.


Aero-acoustic deflector


We recommend that you clean the
aero-acoustic defector with care
using
a soft brush.

18Te c h n i c a l d a t a

MODELS:



ENGINES AND GEARBOXES



Model codes:


SB...


HMZ0



5FS0



5FS9



5FV8


5FN8 *



PETROL ENGINES


VTi 82



VTi 120



THP 155


THP 150 *


Cubic capacity (cc)
1 199
1 598
1 598
Bore x stroke (mm)
75 x 90.5
77 x 85.8
77 x 85.8
Max power: EU standard (kW)
60
88
115
11 0 *

Max power engine speed (rpm)
5 750
6 000
6 000
Max torque: EU standard (Nm)
11 8
160
240
Max torque engine speed (rpm)
2 750
4 250
1 400
Fuel
Unleaded
Unleaded
Unleaded
Catalytic conver ter

yes
yes
yes

GEARBOX

Manual
(5-speed)
Manual
(5-speed)
Automatic
(4-speed)
Manual
(6-speed)

OIL CAPACITIES (in litres)



Engine (with filter replacement)
3.25
4.25
4.25

* For Belgium.
