Page 123 of 368
121
4
Driving
Stop & Start (Auto Stop & Go) function
Operation
Going into engine STOP mode
The "AS &G"
warning lamp comes on in
the instrument panel or the instrument
panel screen and the engine goes into
standby after a few seconds:
- with a manual gearbox
, with the vehicle
stationary and your foot on the brake, when
you put the gear lever into neutral and
release the clutch pedal.
Never refuel with the engine in STOP
mode; you must switch off the ignition
with the key or the START/STOP
button.
When the engine is stopped
automatically, the operation of certain
vehicle systems, such as for example,
braking, power steering... are modified.
Ta k e c a r e
.
Special cases: STOP mode not
available
STOP mode is not invoked when:
- the driver's seat belt is not fastened,
- the bonnet is open,
- the vehicle has not exceeded 3 mph
(5 km/h) since the last engine start,
- the vehicle has restarted less than
10 seconds ago,
- the engine is needed to maintain a
comfortable temperature in the passenger
compartment,
- demisting is active,
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
- the "AS &G"
warning lamp is
flashing in the instrument panel.
This operation is per fectly normal.
The Stop & Start (Auto Stop & Go) function puts the engine temporarily into standby during stops in the traffic (red lights, traffic jams, or other...).
The engine restarts automatically as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Start (Auto Stop & Go) function reduces fuel consumption and exhaust emissions as well as the noise level when
stationary.
Page 124 of 368
122
Driving
Going into engine START mode
The "AS &G"
warning lamp goes off
and the engine starts automatically:
- with a manual gearbox
, when you fully
depress the clutch pedal.
For safety reasons or to ensure smooth
operation, START mode is invoked
automatically when:
Special cases: START invoked
automatically
- the speed of the vehicle exceeds 2 mph
(3 km/h),
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
If the system has been deactivated in
STOP mode, the engine will not start. At any time, press the "AS &G O FF "
switch to
deactivate the system.
Deactivation
In this case the "AS &G"
warning lamp
flashes for few seconds, then goes off.
This operation is per fectly normal.
This is confirmed by the "AS &G O FF "
warning lamp coming on in the instrument
panel or instrument panel screen.
Page 126 of 368
124
Driving
Four wheel drive system
System which permits the selection of a transmission mode in relation to the driving conditions.
Three transmission modes are available and can be selected manually by the driver in accordance with his requirements.
You can change transmission mode when
stationary or while driving.
The transmission mode can be selected by
turning the control A
.
Selecting the transmission
mode
4WD AUTO (position 1)
The vehicle operates with four wheel drive and
provides optimum traction for all levels of grip.
This is the vehicle's normal and regular
operating mode, the distribution of the torque
between the front and rear axles is controlled
automatically.
The distribution favours the front wheels,
the transfer of torque to the rear wheels is
managed electronically by the control unit
in relation to the level of grip, so providing
optimum road holding.
4WD LOCK (position 2)
The vehicle operates with four wheel drive in
this mode also.
It is recommended when grip is particularly
poor or difficult (sand, mud, slopes, ...).
2WD (position 3)
The vehicle operates with front two wheel drive.
This is suitable for use on a tarmac roads or
where the driver considers that there is no risk
of loss of grip (dry road).
Display in the instrument panel
The transmission mode is displayed in the
form of an intermittent display in the instrument
panel screen when the transmission mode is
selected. The selection of this mode is
recommended when the level of grip
permits.
Page 127 of 368
125
4
Driving
As the engine torque is applied to all
four wheels, the condition of the tyres
has a considerable impact on the
per formance of the vehicle.
Ensure that all four tyres are in good
condition.
Avoid driving the vehicle in sandy or
muddy areas or in other areas in which
the wheels could spin.
Spinning the wheels places the
transmission components under
pressure and could cause a serious
malfunction.
Do not drive the vehicle through deep
water.
Avoid driving over excessively uneven
terrain (risk of scraping under the body
or of grounding on crossing a bridge).
Operating faults
If the selected transmission mode display
flashes, the vehicle switches automatically to
front "2WD"
transmission mode.
It is then no longer possible to select the
transmission mode using the control A
.
If the message "SLOW DOWN" is displayed on
the instrument panel, let the transmission cool
down then wait for the display to clear before
setting off again.
If "4WD" and "LOCK" are displayed alternately
and if "SERVICE REQUIRED" is displayed in
the instrument panel, the system has failed and
the safety system has been activated.
Contact a CITROËN dealer or a qualified
workshop without delay.
Have your vehicle towed on a
flatbed.
The vehicle must not be towed with the
front or rear wheels on the ground even
if it is in front "2WD" (2 wheel drive)
mode.
If the replacement of a tyre is
necessary on 4-wheel drive versions,
it is recommended that all four tyres be
replaced at the same time, ensuring
that the same make, model and size is
used on all wheels.
This is because using tyres of different
sizes, structure or rate of wear could
damage transmission components.
Page 128 of 368
126
Driving
Cruise control
System which automatically maintains the vehicle speed at the value programmed by the driver, without any action on the accelerator pedal.
The cruise control is switched on
manually:
the vehicle speed must be at least 25 mph
(40 km/h) and second gear or higher must be
engaged in the case of a manual gearbox.
The cruise control is switched off
manually, by
an action on the brake or clutch pedal or if the
ASC system is triggered.
The programmed speed can be exceeded
temporarily by pressing the accelerator pedal.
The cruise control cannot, in any
circumstances, take the place of the
need to comply with speed limits or of the
vigilance and responsibility of the driver. The controls of this system are grouped
together on the steering wheel.
1.
"ON/OFF"
button: activation / deactivation
of the cruise control mode.
2.
"COAST SET"
button: store a driving
speed and decrease the cruising speed.
3.
"ACC R ES "
button: increase the cruising
speed and recall the stored speed.
4.
"CANCEL"
button: stop control of the
vehicle's speed.
Steering mounted controls
When you press button 1
, the "CRUISE"
indicator comes on in the instrument panel.
Display in the instrument panel
Programming
)
Press button 1
.
)
Set the programmed speed by
accelerating to the required speed, then
press button 2 "COAST SET"
.
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.

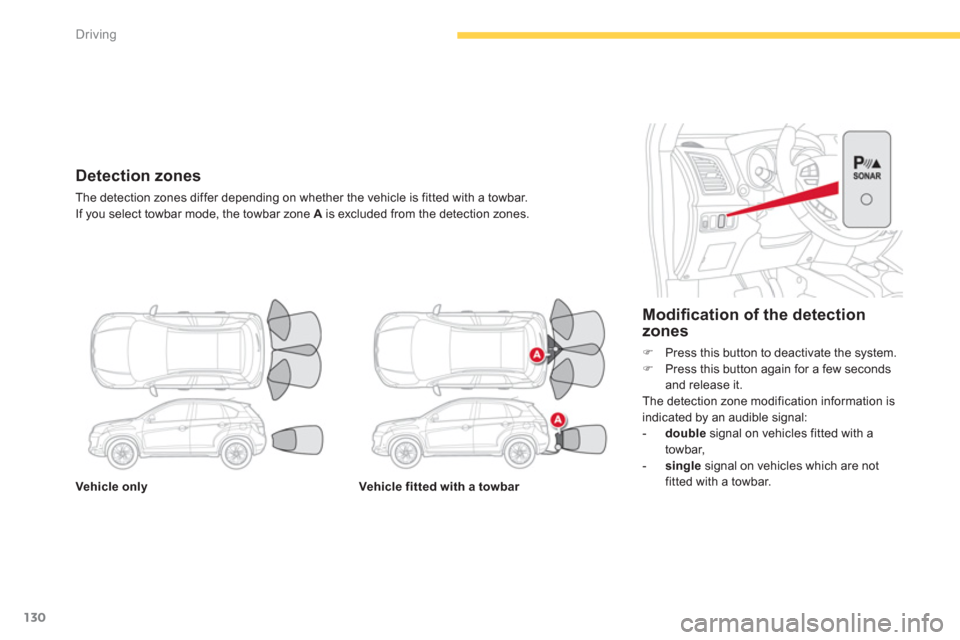

Page 132 of 368
130
Driving
Vehicle only
Vehicle fitted with a towbar
Modifi cation of the detection
zones
)
Press this button to deactivate the system.
)
Press this button again for a few seconds
and release it.
The detection zone modification information is
indicated by an audible signal:
- double
signal on vehicles fitted with a
towbar,
- single
signal on vehicles which are not
fitted with a towbar.
Detection zones
The detection zones differ depending on whether the vehicle is fitted with a towbar.
If you select towbar mode, the towbar zone A
is excluded from the detection zones.
Page 137 of 368
135
5
Visibility
Model with a rear foglamp only
rear foglamp
Rotate and release the ring C
:
)
for wards a first time to switch on the front
foglamps,
)
for wards a second time to switch on the
rear foglamp,
)
rear wards a first time to switch off the rear
foglamp,
)
rear wards a second time to switch of the
front foglamps.
In good or rainy weather, both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers.
Do not forget to switch off the front
foglamps and the rear foglamps when
they are no longer necessary.
Model with front foglamps and
a rear foglamp
Foglamp selection ring
.
They operate if at least the sidelamps are on.
)
To switch on the rear foglamp, turn the
ring C
for wards.
)
To switch off the rear foglamp, turn the
ring C
rearwards.
front and rear foglamps
Lighting on reminder
An audible signal when the driver's door
is opened warns the driver if the vehicle
lighting is on, with the ignition off.
Switching off the lighting stops the
audible signal.
Page 139 of 368
137
5
Visibility
Switching off
The manual guide-me-home lighting switches
off immediately if you.
- flash the headlamps again,
- place the lighting control stalk in another
position,
- switch the ignition on (or select "ON" mode
for vehicle with the "Keyless Entry and
Starting" system).
Manual guide-me-home
lighting
Switching on
)
Place the lighting control stalk in the
"OFF" position, or "AUTO" for vehicles that
have it.
)
Place the ignition switch on "LOCK" and
remove the key (or select "OFF" mode for
vehicles that have the "Keyless Entry and
Starting" system).
)
Within one minute after switching off the
ignition, "flash" the headlamps using the
lighting control stalk.
The headlamps come on for around
30 seconds.
)
A further "headlamp flash" within
60 seconds of switching the ignition to OFF
(or selection of "OFF" mode for vehicles
with the "Keyless Entry and Starting"
system) reactivates the function for a
further 30 seconds.
Temporarily keeping the dipped beam headlamps
on after the vehicle's ignition has been switched
off makes the exit of the vehicle's occupants easier
when the light is poor.
