2014 Citroen C3 PICASSO RHD Owner's Manual

167

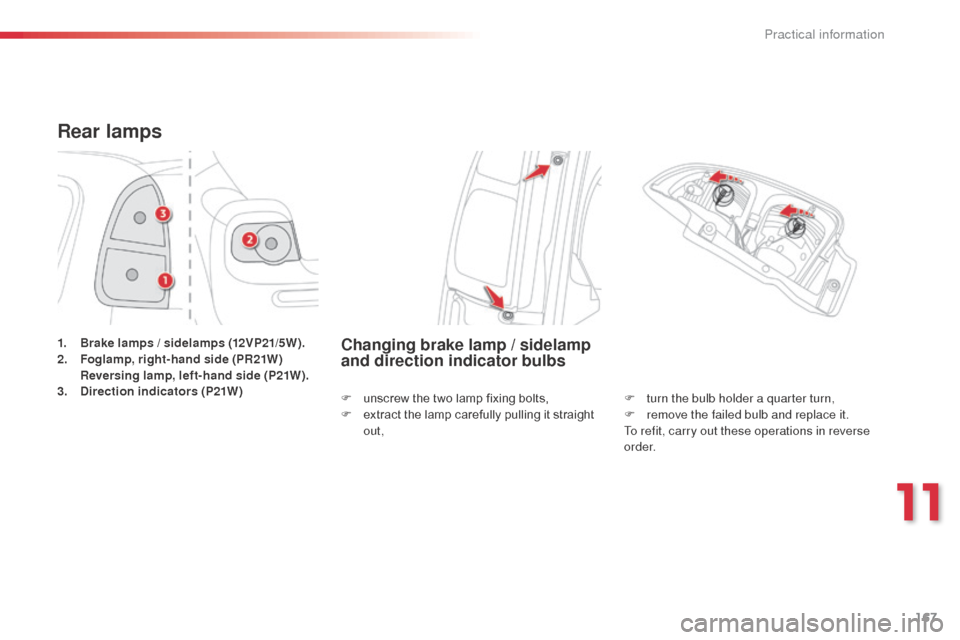

Rear lamps
1. Brake lamps / sidelamps (12VP21/5W).
2. Foglamp, right-hand side (PR21W)
R

eversing lamp, left-hand side (P21W).
3.
D

irection indicators (P21W)Changing brake lamp / sidelamp
and direction indicator bulbs
F turn the bulb holder a quarter turn,
F r emove the failed bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
F
u
nscrew the two lamp fixing bolts,
F
e
xtract the lamp carefully pulling it straight
out,
11
Practical information

168
Changing foglamp / reversing
lamp bulbs
F open the boot,
F p ress on the tabs using 2 screwdrivers,
F

d
isconnect the lamp connector,
F

t
urn the bulb holder by a quarter turn,
F

r
emove the bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
Changing the third brake lamp
bulbs (4 W5W bulbs)
F open the boot,
F r emove the two plugs located on the boot
inner panel,
F

p
ress on the body of the lamp with 2
screwdrivers to remove it from its housing,
F

t
urn the corresponding bulb-holder a
quarter turn,
F

p
ull the bulb out and replace it.
To refit, carry out these operations in reverse
o r d e r.
Changing the number plate lamp
bulbs (W5W)
F insert a thin screwdriver into one of the lens' exterior holes,
F

p
ush it outwards to unclip.
F

r
emove the lens.
F

p
ull the bulb out and replace it.
To refit, carry out these operations in reverse
o r d e r.
Practical information

169
Interior lighting
Interior lamps (1 / W5W)
detach the cover of the interior lamp 1 with a
thin screwdriver, close to the button, to access
the faulty bulb.
Map reading lamps (2 / W5W)
detach the cover of the interior lamp. To
access the faulty bulb, detach the partition for
the reading lamp 2 concerned, as necessary.
Footwell lamps (W5W)
Unclip the cover using a thin screwdriver to
access the faulty bulb.
Front courtesy lamp mood
lighting LED
For the replacement of the LEd, contact a
CITROËN dealer or a qualified workshop.
11
Practical information

170
Torch (Krypton 3.6V)
F open the tab.
F P ush with a flat screwdriver in the hole
under the tab and recover the bulb unit.
F
o
p
en the bulb unit fully to change the bulb.
Door mirror lamps (W5W)
Unclip the cover using a thin screwdriver to
access the faulty bulb.
Boot lamps (W5W)
Detach the unit by pushing it rear wards.
Practical information

171
Changing a fuseProcedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
The extraction tweezer and the spare fuse
storage compartment are installed on the back
of the dashboard fusebox cover.
For access to them:
F
O
pen the glove box,
F

u
nclip the fuse access cover by pulling on
the side,
F

r
emove the cover completely,
F

r
emove the tweezer.
Changing a fuse
before changing a fuse, the cause of the failure
must be identified and rectified.
F
I
dentify the failed fuse by checking the
condition of its filament.
F

U
se the special tweezer to extract the fuse
from its housing.
F

A
lways replace the faulty fuse with a fuse
of the same rating.
F

C
heck that the number marked on the
fusebox, the rating marked on the fuse and
the following tables all agree. Good
FailedCITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITR
oËn

and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
be

fore installing other electrical
equipment or accessories on your
vehicle, contact a CITR
oËn

dealer or a
qualified workshop.
Access to the tools
11
Practical information

172
Dashboard fuses
The fusebox is located in the glove box.
Access to the fuses
F refer to the paragraph "access to the tools".
Fuse tables
Fuse N°Rating Functions
FH36 5 ATrailer relay unit.
FH37 15 ATrailer accessories socket supply.
FH38 20 A
na

vigation.
FH39 -
no

t used.
FH40 30 ATrailer relay unit.
Fuse N° Rating Functions
F1 15 ARear wiper.
F2 -
no

t used.
F3 5 A
ai

rbags and pretensioners control unit.
F4 10 ASteering wheel angle sensor, air conditioning, clutch switch,
particle filter pump, diagnostic socket, air flow meter.
F5 30 AElectric windows panel, passenger's electric window control,
front electric windows motor.
F6 30 ARear electric windows motor and driver's electric window motor.
F7 5 ACourtesy and front map reading lamps, torch, rear reading
lamps.
Practical information

173
Fuse N°Rating Functions
F8 20 AMultifunction screen, audio system, navigation radio.
F9 30 AAudio system (fitted as an option), 12 V socket.
F10 15 ASteering mounted controls.
F11 15 AIgnition, diagnostic socket.
F12 15 ARain / sunshine sensor, trailer relay unit.
F13 5 AMain stop switch, engine relay unit.
F14 15 AParking sensors control unit, seat belt unfastened warning
lamp, airbag control unit, instrument panel, air conditioning,
USB Box.
F15 30 ALocking.
F16 -
no

t used.
F17 40 ARear screen and door mirrors demist/defrost.
SH -P
aR

C shunt.
11
Practical information

174
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand side).
Access to the fuses
F Unclip the cover.
F C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to guarantee the sealing of the
fuse box.
All work on the fusebox located on
the battery must be carried out by
a CITR
oËn

dealer or a qualified
workshop.
Practical information
