Rear vi ew camer a coverage area
The rearview camera shows you the a rea be­
hind your vehicle in the navigation system dis­
p lay. This area roughly corresponds to the
area in¢
fig . 90 and (!)¢ fig. 91. Orientation
lines and colored surfaces are projected in the
area shown, which can help you with parking
and maneuvering. Objects that are located in
an area that is not captured by the camera @
¢
fig. 91 and that are closer to the bumper
will not appear on the nav igation system dis ­
p lay.
We recommend that you practice park ing with
the rearview camera in a traffic-free location
or pa rking lot to become familiar w ith the sys­
tem, the o rientation l ines, and their function.
There should be sufficient light and good
weather conditions when doing so.
I n the nav igat io n system disp lay, objects or
veh icles appear closer or fu rther away if:
Objects or vehicles appear closer or farther
away in the navigation system if:
- you are driving in reverse gear from a level
surface onto an incline, or a downward
slope,
- you are driving in reverse gear toward pro-
truding objects.
The accuracy of the orientation lines and blue
surfaces dimin ishes if:
- the rearview camera does not provide a reli­ able image, for examp le, in poor visibility
cond itions or if the lens is dirty,
- the image on the screen is not visible due to
sun g lare and reflect ion .
Caring f or the re arvi ew cam era len s
The rearview camera is located i n the center
of the vehicle above the rear license plate bra cket. In o rder for the rearview camera to
f u nction properly, the came ra lens must be
kept clean and free of snow and ice .
- Dampen the lens with a househo ld alcoho l­
based glass cleane r, and clean the lens with
a dry cloth.
Par king system 85
- Remove snow with a hand br ush and ice
preferably with a de-icing spray ¢(D .
A WARNING
-The parking system cannot replace the
driver's attention. The driver alone is re­
sponsib le for parking and similar driving
maneuvers.
- Sensors have blind spots in wh ich objects
can not be detected. Pay spec ia l attent ion
to small children and an imals because
the sensors cannot always detect them.
- Always keep your eyes on the vehicle's
sur ro undings, us ing the rearv iew mirro r
as well.
- Do not allow yourself to be distracted from traffic by the rearv iew camera pic­
tures in the navigat ion system display.
- If the position and the installation angle
of the camera has changed, for example,
after a rear end collision, do not conti nue
to use the system for safety reasons.
Have it checked by an au thori zed A ud i
dea ler or other q ualified workshop .
(D Note
-Low obstacles a lready s ignaled by a
wa rni ng can disappear from the system's
detect ion range as they are app roached
and wi ll not continue to be signaled. Ob­
jects such as barrier chains, trailer d raw
bars, narrow painted vertica l poles or
fences may not be detected by the sys­ tem, posing risk of damage.
- Never use warm or hot water to remove snow or ice from the rearv iew camera
lens because the lens could crack.
- Never use products that are abrasive when clean ing the lens.
-

150 Intellig ent technolog y
Snow chain s
Where t ire cha ins are mandatory on certain
roads, this normally a lso applies to vehicles
with a LL-wheel drive
¢ page 204, Snow
chains .
Replacing wheels /t ir es
Vehicles with all-wheel drive must a lways
have tires of the same size. Also avoid t ires
with different tread depths. For details see
page
¢ page 199, New tires and replacing
tires and wheels.
Off -Ro ad dri ving?
Your Aud i does not have enough ground clear­
ance to be used as an off -road veh icle .
It is
therefore best to avoid rough tracks and un ­
even terrain as much as possible . Also refer to
¢ page 153.
A WARNING
-Always adjust your driving to road and
traffic conditions. Do not let the extra
safety afforded by all-wheel drive tempt
yo u into taking extra risks.
- Although the all-wheel dr ive is very ef­
fective, always remember that braking
capacity is limited by t ire traction . You
should the refore not dr ive at excessive
speeds on icy or slippery road su rfaces.
- On wet road surfaces, be careful not to
dr ive too fast because the front wheels
cou ld beg in to s lide on top of the w ater
(aquaplaning) .
If this should occ ur, you
will have no warning from a sudden in ­
crease in engine speed as with a front­
wheel drive vehicle. A lways drive at
speeds wh ich are suited to the road con­
ditions. -risk of crash.
Energy management
Starting ability is optimized
Energy management controls the distribution
of electrical energy and thus optimizes the
availability of electrical energy for starting the engine.
If a vehicle with a conventional energy system
is not driven for a long per iod of t ime, the bat­
tery is discharged by idling current consumers
(e .g. immobilize r). In certa in circumstances it
can resu lt in the re be ing insufficient energy
available to start the engine.
Intelligent energy management in your vehi­
cl e ha ndles the distribution of e lectr ica l ene r­
gy . Start ing ability is ma rkedly improved and
the life of the battery is extended .
Bas ica lly, energy management consists of
b att ery diagn osis, idlin g current manage ­
m ent
and dynamic en erg y manag em ent .
Battery di agnosis
Battery diagnosis continuously determines
the state of the battery. Sensors determine
battery voltage, battery cu rrent and battery
tempe rature. This determines the current
state o f charge and the power of t he battery .
Idling current m anagem ent
Idling current management reduces energy
consumption while the vehicle is standing .
With the ig nition sw itched off, it controls the
energy supply to the various electri ca l compo ­
nents. Da ta from ba ttery diagnos is is cons id ­
ered.
Depend ing on the batte ry's state of cha rge,
individual cons ume rs a re g radually turned off
to prevent excessive discharge of the battery
and th us maintain starting capability.
Dynamic energy manag ement
While the vehicle is being d riven, dynamic en­
ergy ma nagement distr ibutes the energy gen­
era ted a ccord ing to t he needs of the individ u-
al components .
It regula tes consumption, so
t h at more electrical energy is not being used ..,.

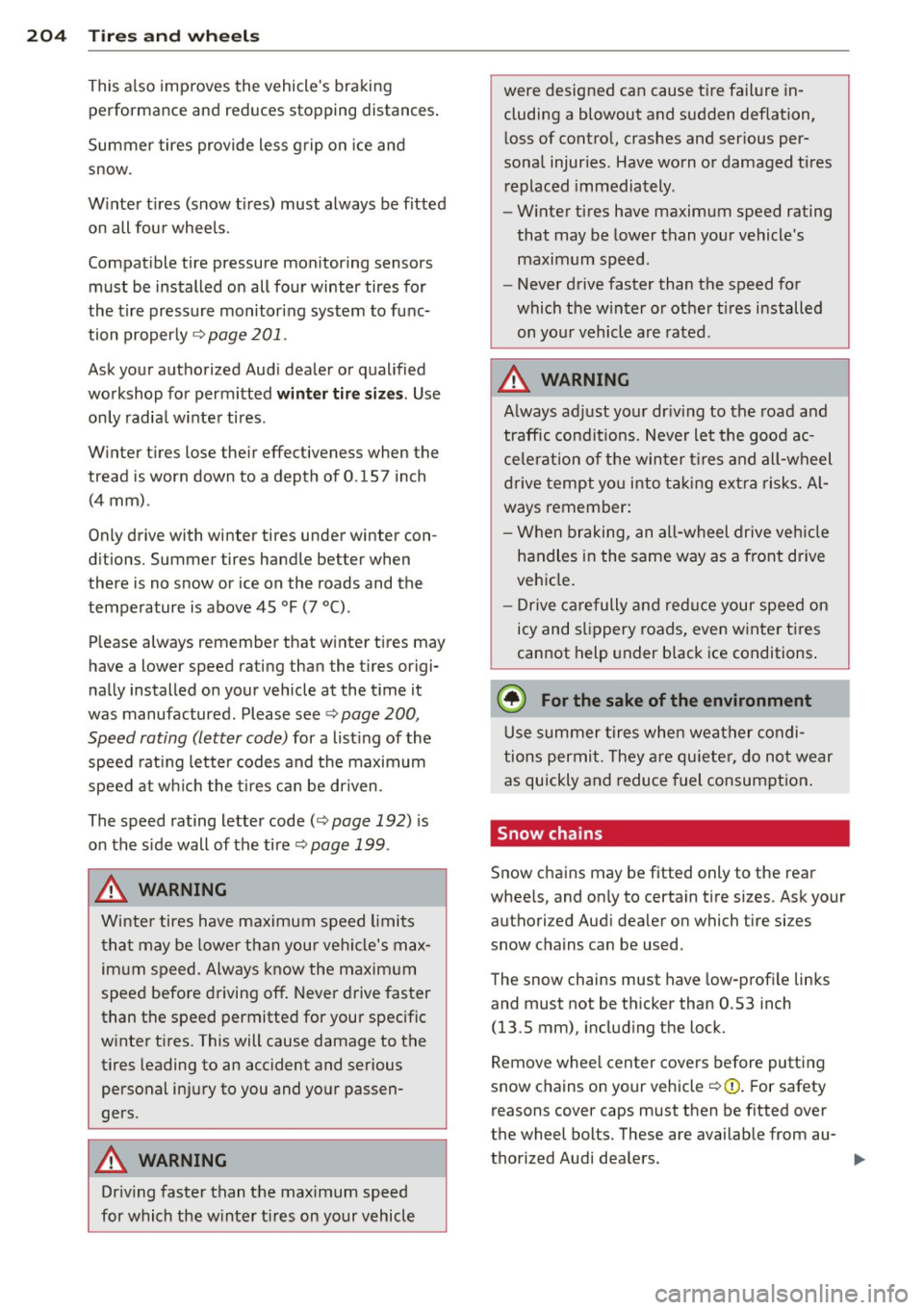

204 Tire s and wheel s
This also improves the vehicle's braking
performance and reduces stopping distances .
Summer tires provide less g rip on ice and
snow.
W inter t ires (snow t ires) must always be fitted
on all four wheels.
Compat ible tire pressure mon itoring sensors
must be installed on all four winter tires for
the tire pressure monitor ing system to func­
tion properly ~
page 201 .
Ask your authorized Aud i dea le r or qualified
workshop for permitted
wint er tire sizes. Use
on ly radia l wi nte r tires .
W inter t ires lose the ir effectiveness when the
tread is worn down to a depth of 0 .157 inch
(4 mm).
Only drive with winter tires under winter con­
d itions. Summer tires handle better when
there is no snow or ice on the roads and the
temperature is above 45 °F (7 °C).
Please always remember that w inter t ires may
have a lower speed rating than the t ires origi­
na lly installed on your vehicle at the t ime it
was manufactured. Please see~
page 200,
Speed rating (letter code)
for a List ing of the
speed rat ing letter codes and the maximum
speed at wh ic h t he t ires ca n be dr iven .
The speed rating letter code
( ~ page 192) is
on the s ide wall of the tire~
page 199 .
A WARNING
Winter tires have maximum s peed limits
th at may be lowe r than you r vehi cle's m ax­
im um speed. Always know the maxim um
speed befo re d riving off . Never d rive faster
than the speed permitted for your specific
w inte r tires. This will cause damage to the
tires leading to an accident and serious
personal in jury to you and yo ur passen­
gers.
A WARNING
Dr iv ing faster than the maximum speed
for which the w inter t ires on your vehicle
-
were designed can cause t ire fail ure in­
cluding a blowout and sudden deflation,
l oss of contro l, crashes and ser ious per­
sona l injuries. Have worn o r damaged tires
r eplaced immediately .
- W inter tires have maximum speed rating
that may be lower than yo ur vehicle 's
maximum speed.
- Never d rive faster than the speed for
which the w in ter or othe r tires installed
on yo ur vehicle a re rated .
A WARNING
-Always ad just your dr iv ing to the road and
traffic condit ions . Never let the good ac­
ce ler ation o f the w in ter t ires and a ll-wheel
d rive tempt yo u into t aking extra risks. Al­
ways remember:
- W hen braking, an all-wheel drive veh icle
handles in the same way as a front drive
vehicle .
- D rive c arefully and redu ce your spee d on
icy and slippery roads, even w inter t ires
cannot help under black ice conditions .
@ For the sake of the environment
Use summer tires when weather condi­
tions permi t. T hey are qu iete r, do no t wear
as quickly and reduce fuel consumpt ion .
Snow chains
Snow chains may be fitted only to the rear
whee ls, and on ly to certain tire sizes . Ask your
authori zed Aud i dea ler on which tire si zes
snow chains ca n be used .
The snow chains must have low -profi le links
and must not be th icker than 0.53 inch
(13 .5 mm), includ ing the lock.
Remove whee l center covers before putt ing
snow c hains on your vehicle
~ CD . For safety
reasons cover caps must then be f itted over
the wheel bolts. These are available from au­
thorized Audi dea le rs.

A WARNING ,~
Using the wrong snow chains for your vehi­
cle or installing them incorrectly can in ­
crease the risk of loss of control leading to
serious personal injury.
- Snow chains are available in different sizes. Always make sure to follow the in­structions provided by the snow chain
manufacturer .
- When driving with snow chains, never
drive faster than the speed permitted for
your specific snow chains.
- Always observe local regulations .
(D Note
-Remove snow chains before driving on
roads not covered with snow to avoid
damaging tires and wearing the snow
chains down unnecessarily.
- Snow chains, which come into direct con­
tact with the wheel rim, can scratch or
damage it . Therefore, make sure that the
snow chains are suitably covered. Check
the position of the snow chains after
driving a few yards and correct if neces­
sary. Follow the instructions from the
snow chain manufacturer when doing so.
@ Tips
Where snow chains are mandatory oncer­
tain roads, this normally also applies to
vehicles with all-wheel drive.
Wheel bolts
Wheel bolts must always be tightened to the
correct torque.
The design of wheel bolts is matched to the
factory installed rims. If different rims are fit­
ted, the correct wheel bolts with the right length and correctly shaped bolt heads must
be used. This ensures that wheels are fitted
securely and that the brake system functions
correctly .
Tires and wheels 205
In certain circumstances, you may not use
wheel bolts from a different vehicle -even if it
is the same model
r:!> page 229.
A WARNING
Improperly tightened or maintained wheel
bolts can become loose causing loss of
control, a collision and serious personal in­
jury.
- Always keep the wheel bolts and the
threads in the wheel hubs clean so the
wheel bolts can turn easily and be prop­ erly tightened.
- Never grease or oil the wheel bolts and
the threads in the wheel hubs . They can
become loose while driving if greased or
oiled, even if tightened to the specified
torque.
- Only use wheel bolts that belong to the
rim being installed.
- Never use different wheels bolts on your
vehicle.
-Always maintain the correct tightening
torque for the wheel bolts to reduce the
risk of a wheel loss. If the tightening tor­
que of the wheel bolts is too low, they
can loosen and come out when the vehi­
cle is moving. If the tightening torque is
too high, the wheel bolts and threads can be damaged and the wheel can be­
come loose.
(D Note
The specified torque for the wheel bolts is
90 ft lb (120 Nm) with a tolerance of ± 7 .4
ft lb(± 10 Nm). Torque wheel bolts diago­
nally. After changing a wheel, the torque
must be checked as soon as possible with a
torque wrench -preferably by an author­
ized Audi dealer or qualified workshop.
Low aspect ratio tires
Your Audi is factory-equipped with low aspect
ratio tires. These tires have been thoroughly
tested and been selected specifically for your model for their superb performance, road feel .,.
•
•

208 Tire s and whee ls
- The tire pressure monitoring system
helps the driver to keep an eye on tire
pressures. But the driver st ill has the re­
sponsibility for maintaining the correct
tire pressure.
- Tire pressure must only be adjusted
when the temperature of the tires is
about the same as ambient air tempera­
ture.
- When tires are replaced, the sensors and
valves should not be exchanged . The
valve core, nut, valve sealing and seal
washer (rep lacement kit) needs to be re­
placed. If necessary, the valve and the
whee l electronics have to be rep laced.
- The tire pressure monitoring system on
your Audi was calibrated us ing tires w ith
"RO" identification. We recommend us­
ing these tires.
- If you should put different whee ls and
ti res on yo ur vehicle (e.g. w inter wheels
and tires), yo u m ust be certain that the
whee ls and tires are compatible with the
tire pressure monitoring system . Other­
wise the system w ill reg ister a ma lf u nc­
tion and a fault message will be d is­
played . For more information, contact
your authorized Audi dealer .
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions ~
page 230 .
Programming a new set of tires
Applies to vehicles: with tire pressure monitoring system
When driving with a new set of ti res, you can
program them to the t ire pressure monitoring
system using the menu disp lay.
"'Turn the ign ition on .
"' Select the menu :
Set > Tir e pr essu re >
Wheel cha ng e.
"'Confirm that you wo uld like to begin the
programming process. The message
Wh eel
s en sors a re being in it ia lised. Thi s ma y ta ke
a fe w minut es ...
appears in the instrument
clus te r disp lay. You can switch between programmed tire sets
at any time without r einitializing the system .
(D Tips
-If the programm ing process was no t
completed s uccessfully, the message
Wheel senso rs could not be init ialised
appears in the disp lay and the 119;~, in­
dicator light turns on. If this happens,
repeat the procedure.
- Do not store the tire pressure if there are snow chains on the tire.
' TPMS Tire pressure monitoring system
malfunction
A malfunction can have various causes .
If the (Bl warning light in the instrument clus­
ter flashes for app roximate ly one minute and
then remains cont inuously illumin ated and
additionally the
lliiff1 symbol appears in the
display, the tire pressure monitor ing system is
not availab le . The text
Ti re pre ssure! S ystem
malfun ction
appears in the d isplay. This can
have various ca uses .
- A wheel sensor or other component may
have fai led.
- Dur ing init ialization the system has detect ­
ed more than 4 wheels on the vehicle, for
examp le w hile d riving next to anothe r ca r
w ith a t ire press ure monitoring system.
- Aud i rep lacement parts were not used .
- If snow cha ins are be ing used, system func -
tion can be compromised due to the sh ield­
ing prope rties of the chains.
- The tire pressure mon itoring system may
not be ava ilab le because of a radio malfunc­
tion.
- Transm itters w ith the same frequency, such
as radio headphones in the vehicle o r radio
equipment, can cause a temporary disrup­
t ion of the system through excessive elec ­
tromagnetic fie lds .
- Eliminate the interference if yo u can and
then proceed as fo llows: T urn off the eng ine
for 20 minutes . Then drive another 10 mi ­
nutes .
If the warning light comes on again, ll-

238 Index
Special considerations for pregnant
women .... ................ ..... . 108
Unfasten ing . ............. ... .... . 108
Warning/indicator light ...... .. .... . 103
Why YOU MUST wear them . .. .. .... . 103
Worn properly . . . . . . . . . . . . . . . . . . . . 105
Safety belt warning light ........ .... . . 14
Safety compliance sticker . .. .. .. .. .. . 223
Safety equipment . . . . . . . . . . . . . . . . . . . . 93
Safety features for occupant restraint and
protection . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Safety guidelines
Seat adjustment . ....... .. .. .. .. .. .. 57
Safety instructions For using child safety seats ..... .. .. .
For using safety belts ..... .. .. .. .. .
Monitoring the Advanced Airbag Sys­
tem
. .. .. .... ............. .. .... .
Seat adjustmen t 135
105
123
Driver 's seat .......... .... ... .. .. .. 57
Front passenger's seat . . . . . . . . . . . . . . . 58
Front seats . .............. ... .. ... . 57
H ead restraints . . . . . . . . . . . . . . . . . . . . 96
Power seats . . . . . . . . . . . . . . . . . . . . . . . 58
Safety guidelines
Seating capacity
Seating position 57
103
Driver ... .. .... ........... .. .... .. 94
Front passenger . . . . . . . . . . . . . . . . . . . . 95
Incorrect seat position . . . . . . . . . . . . . . . 97
Seats Number of seats 103
Selector lever (S tronic)
Positions . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Service and disposal Safety belt pretens ioner . ........ .. . 109
Service interval display ....... ... .. .. .. 24
Service position for w indshield w ipers .. . 53
Se t menu .. .. ... .. ..... ... .... .. .. .. 24
Setting the time ............ ... .... .. . 9
Shift paddles (S tronic) .......... .. .... 81
Shutting down vehicle ...... .... .... . 154
Side airbags
Description ............... ... .... . 128
How they work . . . . . . . . . . . . . . . . . . . . 130
Side marker lights ......... .. .. .. .. .. 46
Snow chains 204 Socket
......... .. ............. ..... 60
Sound system display . . . . . . . . . . . . . . . . . 20
Sources of information about child re-
straints and their use ............ .... 143
Speedometer . . . . . . . . . . . . . . . . . . . . . . . 10
Speed rating letter code ........... ... 200
Speed warning system . . . . . . . . . . . . . . . . 72
Spoiler ... .. .. .. .. ............. .. .. 148
Sport function (S tronic) ...... ... .. .. . 78
Sport mode ..... .. .. .............. . 146
Starting on hills
Hill hold assist . .. ............. .... . 71
Starting the engine . . . . . . . . . . . . . . 68, 69
What should I do if the engine does not
start? ...... .. .. .. ..... ...... .. .. . 69
Steering co lumn
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . 68
Locking the steering . . . . . . . . . . . . . . . . 68
Steering wheel
Shift paddles (S tronic) .............. 81
Steps for determin ing correct load limit . 197
Stopping the engine ............. .... . 70
Storage ... ..... .. .. .............. .. 60
S tronic (Automatic transm ission) . . . . . . . 78
Automatic shift ing ................ .. 80
Kick-down . . . . . . . . . . . . . . . . . . . . . . . . . 80
Launch control program ........ .... . 80
Manual shifting . ................. .. 79
Parking ........................... 79
Sport function ... ................ .. 78
Steering wheel with shift paddles . .. .. . 81
Sun visors .. .. .. .. ............. .. .. . 51
Symbols Red symbols in the center display ..... . 11
Yellow symbols in the center display .. . 12
also refer to Warning/Indicator lights . . 11
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Tank flap Unlocking the fuel filler flap by hand .. 170
T echnical modifications .......... .. .. 229
Temperature .. .. .. .. ........ ...... .. 64
Tightening wheel bolts ............ ... 214
T ire mobility system ... .......... .. .. 210
Tire pressure .... .. ............. .... 195
