cracked and weakened when the battery
froze.
- Charge the battery in a well ventilated
area. Keep away from open flame or elec­
trical spark. Do not smoke. Hydrogen gas
generated by the battery is explosive.
- To reduce the danger of explosion, never
connect or disconnect charger cables
while the charger is operating.
- Fast charging a battery is dangerous and
should only be attempted by a compe­
tent technician with the proper equip ­
ment .
- Battery acid that may spill during charg­
ing should be washed off with a solution
of warm water and baking soda to neu­
tralize the acid.
0 Note
Never use a fast charger as a booster to
start the engine . This will seriously dam ­
age sensitive electronic components, such
as control units, relays, radio, etc., as well
as the battery charger.
Battery replacement
The new battery must have the same specifi­
cations and dimensions as the original equip­
ment battery.
Intelligent energy management in your vehi­
cle is responsible for distributing the electri­
cal energy throughout your vehicle
q page 202. The intelligent energy manage­
ment system will keep the engine battery
charged better than vehicles without this sys­
tem. To make sure the additional electrical en­
ergy is available once again after you have
changed the battery, we recommend that you install batteries of the same type and manu ­
facture only (the same as those installed at
the time your vehicle was delivered). Specifi­
cations are listed on the battery housing. Your
authorized dealer must code the battery in
the energy management system to enable you
to use the energy management functions cor­ rectly after replacing the battery.
Checking and filling 241
The new battery must have the same capacity,
voltage (12-volts), amperage, construction and plug sealing.
When installing the battery, make sure the ig ­
nition and all electrical consumers are switch­
ed off.
(D Note
Make sure the ventilation hose on the side
of the battery is connected, otherwise
fumes or battery acid can leak out.
- Vehicles with the Start-Stop-System* are
equipped with a special cycle-proof AGM
battery. Installing a different type of
battery can cause problems in the vehi­
cle electrical system. When replacing the
vehicle battery, always install one with
the same specifications as the original
battery.
@ For the sake of the environment
Because of the problem of proper disposal
of a battery, we recommend your author­
ized Audi dealer change the battery for
you. Batteries contain sulfuric acid and lead and must always be disposed of prop­
erly in compliance with all environmental
regulations. Disposing of vehicle batteries
improperly is very dangerous to the envi­
ronment.
Windshield/headlight
washer container
Fig. 199 E ng in e compar tment: cov er on th e w in ds hield
and headl ig ht* washer fluid reservoir
II-
•
•

242 Checking and filling
The washer f luid containe r is marked with the
symbo l$ on its cap
¢fig . 199, ¢page 229,
fig. 193 .
.,. Before you che ck a nyt hin g in the e ng ine
compartment,
always read and heed all
WARNINGS ¢ A in Working in the engine
compartment on page
22 7 .
.,. Lift the filler cap tongue to add washer flu­
i d . Yo u can fill the container to the top .
.,. Press the cap back onto the f iller neck after
filling t he containe r.
You can find t he reservoir
capacity in the tab le
i n ¢
page 283 .
Clean water sho uld be used when filling up. If
possible, use soft water to prevent sca ling on
washer jets. Always add a glass cleane r solu­
tion (with frost protection in the winter).
Do not mi x engine coo lant an tifreeze or
any ot her ad ditives to f ill up the wind ­
shie ld washer reserv oir.

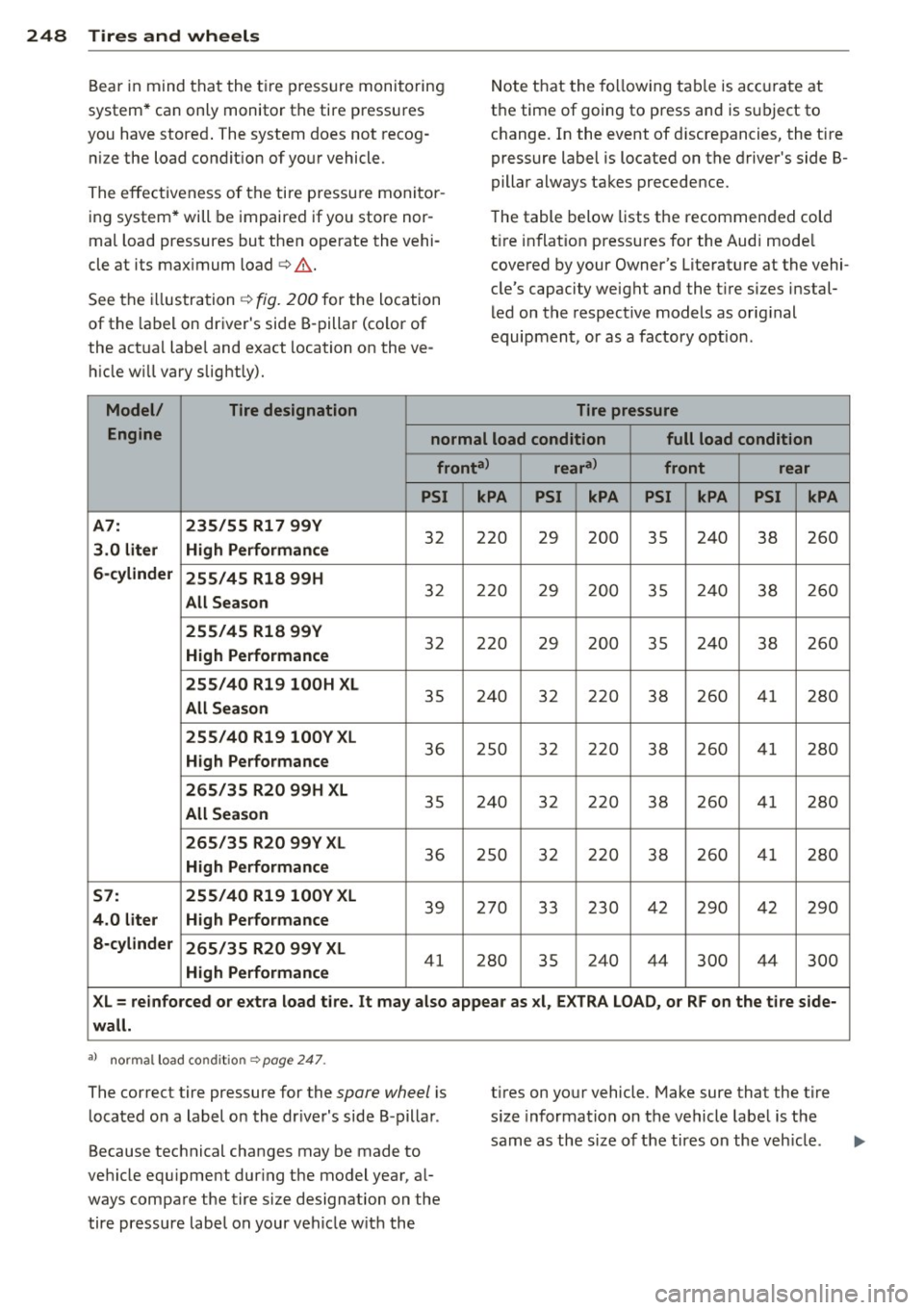

248 Tires and wheels
Bear in mind that the tire press ure monitoring
system* can only monitor the tire pressures
you have stored . The system does not recog ­
n ize the load condit ion of yo ur vehicle.
T he effectiveness of the tire p ressu re monitor ­
ing system * will be impaired if you store nor­
mal load pressures but the n operate the vehi ­
cle at its max imum load
c:> &. .
See the i llustra tion c:> fig. 2 00 for the location
of the la b el on dr iver's side B-pillar (co lor of
the act ua l labe l and exact location on the ve ­
h icle w ill vary slig htly).
Model / Tire designation
Note that the fo llowing ta ble is acc urate at
t h e time of going to press and is s ubject to
c h ange . In the event of d iscrepancies, the t ire
pressure label is located on the d river's side B­
pillar always takes precedence.
T he table below lists t he recommen ded cold
t ir e inflat ion pressu res for the Audi mode l
cove red by your Owner's Lite rat ure at the vehi ­
cle's capacity weig ht and the t ire sizes instal­
l ed on the respective models as or ig inal
equipmen t, or as a factory opt ion.
Tire pressure
Engine normal load condition full load condition
fronta > reara
>
front rear
PSI kPA PSI kPA PSI kPA PSI kPA
A7 : 235/55 Rl 7 99Y
32 220 29 200 35 240
38 260 3.0 liter High Performance
6-cylinder 255/45 R18 99H
All Season
3 2 2 20 29 200 35 24 0 3 8 260
255/45 Rl8 99Y 32 220 29 200
35 2
4 0
38 260
High Perfo
rmance
255 /40 R19 lOOH XL
35 240 32 220 38 260 280 All Season 4 1
255/40 Rl9100YXL
36 2 50 32 220 38 260 41 280 High Performance
265/35 R20 99H XL
35 240
32 220 38 260 41
280 All Season
265 /35 R20 99Y XL
36 250 32 22 0 38 26 0 41 280 High Performance
S7: 255/40 Rl9 lOOY XL
39
270
33 230
42 290 42 290 4.0 liter High Performance
a-cylinder 265/35 R20 99V XL
High Performance
41 280 35 240 44 300 44 300
XL= reinforced or extra load tire. It may also appear as xl, EXTRA LOAD, or RF on the tire side-
wall.
al no
rm al load co ndi tio n r:::., page 24 7.
The correct tire pressure for the spare wheel is
l ocated o n a label o n the dr ive r's side B -pillar .
Because technical changes may be made to
ve hicle equ ipment dur ing the model year, a l­
ways compare the tire size designation on the
tire pressure labe l on your vehicle w it h the t
ires on you r vehicle. Make sure that the tire
s ize informa tion on the vehicle labe l is the
same as the size o f the tires on the veh icle .

264 What do I do now?
What do I do now?
Emergency warning
triangle
App lies to vehicles: with emerge ncy warning triangle
The warning triangle is located on the inside
of the trunk lid .
-
"' M ~ 0 6
~ ~
Fig. 207 Tr unk lid: Warning triang le
.,. To open the cover , turn the locking mecha­
nism and pull the cover downward .
" m
.,. Remov e the warning triang le from its hold­
er.
The rear lid is only designed to hold the warn ­
ing triangle offered by the original accessories
program. If you would like to retrofit your ve­
hicle with a warning triangle, p lease contact
your authorized Audi dealer.
Vehicle tool kit
Vehicle tool kit and jack
The vehicle tool kit is located in the luggage
compartment under the cargo floor cover.
Fig. 208 Lu ggage compartme nt: cargo floor cover
folded upward/spa re t ire
Fig. 209 Trunk lid: Veh icle tool kit
.,. Fold the floor to the seatback with the help
of the handle .
.,. Turn the handwheel counter-clockwise
~ fig. 208 and remove the spare t ire to
reach the vehicle tool kit.
The onboard tool k it includes:
- Hooks to remove the wheel covers*
- Plastic hook to remove wheel bolt covers*
- Wheel bolt wrench
-Alignment pin for changing wheels
- Screwdriver with reversible blade
- Towing loop
-Jack
Before storing the jack, make sure it is wound
back down as far as it will go.
A WARNING
Improper use of the vehicle jack can cause
serious pe rsonal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bolts can­
not attain the necessary tighten ing tor­
que if you use the hex head, potentially
causing an accident .
- The factory-supplied jack is intended on­
ly for your vehicle model. Under no cir­
cumstances sho uld it be used to
lift
heavy veh icles or other loads; you risk in­
juring yo urself.
- Never start the engine when the vehicle
is raised, which could cause an accident.
- Support the vehicle securely with appro­
p riate stands if work is to be performed
underneath the vehicle; otherwise, there
is a potential risk for injury. .,.

266 What do I do now?
Changing a wheel
Before changing a wheel
Observe the following precautions for your
own and your passenger's safety when chang ­
ing a wheel .
... After you experience a tire failure, pull the
car well away from moving traffic and try to
reach
level ground before you stop o ,&.
... All passengers should leave the car and
move to a safe location (for instance, behind
the guardrail)
o A-
.. Engage the parking brake to prevent your
vehicle from rolling unintentionally
o ,&.
... Move selector lever to position Po ,& .
• If you are towing a trailer, unhitch the trailer
from your vehicle .
... Take the
jack and the spare tire out of the
luggage compartment
o page 264,
o page265.
A WARNING
You or your passengers could be injured
while changing a wheel if you do not fol­
low these safety precautions:
- If you have a flat tire,
move a safe dis­
tance off the road. Turn off the engine,
turn the emergency flashers on and use
other warning devices to alert other mo­
torists.
- Make sure that passengers wait in a safe
place away from the vehicle and well
away from the road and traffic.
- To help prevent the vehicle from moving
sudden ly and possibly slipping off the
jack, always fully set the parking brake
and block the wheel diagonally opposite
the wheel being changed . When one
front wheel is lifted off the ground, plac­
ing the Automatic Transmission in P
(Park) will
not prevent the vehicle from
moving.
- Before you change a wheel, be sure the
ground is level and firm.
If necessary,
use a sturdy board under the jack.
-
-Always store the vehicle tool kit, the jack
and the replaced tire in the luggage com­
partment
opage 136.
@ Tips
Before changing the whee l, you must acti­
vate the jacking mode, so that the auto­
matic controls for the Adaptive Air Sus­
pension* do not make it more difficult to
lift the vehicle with the jack
o page 268 .
Changing a wheel
When you change a wheel, follow these­
quence described below step-by-step and in
exactly that order.
l. Activate the vehicle jack mode*
opage 268 .
2. Remove the decorative wheel cover* . For
more details see also
o page 267, Deco­
rative wheel covers
or o page 267,
Wheels with wheel bolt caps.
3. Loosen the wheel bolts o page 268.
4. Locate the proper mounting point for the
jack and align the jack below that point
opage 268.
5. Raise the car with the jack o page 268.
6. Remove the wheel with the flat tire and
then install
the spare opage 270.
7. Tighten all wheel bolts lightly .
8.
Lower the vehicle with the jack .
9 . Use the wheel bolt w rench and
firmly
tighten all wheel bolts o page 268.
10. Replace the decorative wheel cover*.
11. Deactivate the vehicle jack mode * in the
MMI:
I CARI function button > (Ca r)* sys­
tems
control button > Servicing & checks
> Air susp.: jack mode > Off.
The vehicle jack mode* switches off automati­
ca lly at speeds above 6 mph (10 km/h) .
A WARNING ,-
Always read and follow all WARNINGS and
in format ion
o .&. in Raising the vehicle on
page 269
and opage 271.

272 Fuses and bulbs
Fuses and bulbs
Fuses
Replacing fuses
Fuses that have blown will have metal strips
that have burned through.
Fig. 218 Dr iver side of the cockpit: fuse panel cover
The fuses are located at the front left and
right of the cockpit and behi nd the trim on
the right side of the luggage compartment.
• Switch the ign ition and the affected electri­
c al equ ipment off.
• Check the following table to see which fuse
belongs to the consumer.
• Remove the cover ¢
fig. 218 or¢ page 223,
Opening the side trim.
• To remove the purple plast ic clip if necessa­
ry
ll, hold onto it at the small side and pull
i t out of the fuse panel
c:> page 2 72 ,
fig. 219 .
• Remove the clamp from the rea r side of the
fusecover <>fig.
218.
• Remove the fuse using the cla mp and re­
pla ce the blown fuse w ith an ident ical new
one.
A WARNING
Do not repair fuses and never rep lace a
blown fuse with one that has a higher amp
rating. This can cause damage to the e lec­
trical system and a fi re.
ll You can dis pose of the plastic clip after removing it.
(D Note
If a new fuse burns out again after shortly
have you have installed it, have the electri­
ca l system checked by yo ur authorized
Audi dealer.
(D Tips
- The following table does not list fuse lo ­
cations that are not used .
- Some of the equipment items listed are
optional or only available on certain
model configurations.
Driver side cockpit fuse assignment
Fig . 219 Dr iver side cockpit: fuse pa nel w ith plast ic
bracket
Fuse panel ® (blac k)
No. Equipment Amps
Switch panel, electromechan ica l
1 parking brake, seat heating, 5
starting assist, control module
2 Automatic d imm ing in terior
5 rea rview mirro r, horn
3 Exhaust system (diesel engine) 10

No. Equ ipment Amps
4 Suspension control system sen-s sor
s
E
lectronic Stabilization Cont rol
s (ESC) module
6 Climate control
s
7 Adaptive cruise control
10
8
Airbag control module, front
s passenger's seat sensor system
9 Gateway
s
Homelink (garage door opener),
10 night vis ion system cont ro l
s
module
11 Image
processing (active lane
10
ass ist, adaptive cruise control)
12 Dynamic steering
s
13 Terminal 15 in
the instrument
15
panel
14 Terminal 15
in the luggage com-
partment 30
15 Terminal 15
(engine)
15
16 Starter 40
Fu se pa nel ® (b rown )
No . Equipment Amps
1 Gateway s
2 C
limate control 10
3 E
lectronic Stabili zation Control
10
(ESC) module
4 Fron
t door (driver 's side)
30
s
Power seat adjustment (driver's
7,5
seat)
6 Dynam
ic steering
35
7 Sunroof 20
8
Rear door control module (driv-
15
er 's side)
9 Lumbar support (
Front passen-
s ger seat)
10 Tire pressure
monitoring system
s
11 Su
nroof, rear spoi ler (Sportba ck)
20
12 Driver
door control module
15
Fuse s and bulb s 2 7 3
Fuse pan el© (r e d )
No . Equipment
2 Fuel pump
3 Brake light
sensor/brake pedal
sensor system
AdBlue control module (Diesel)/
4 Engine acoust ics
s Left rear door cont rol modu le
6 Power seat adjustment
(pas-
senge r's seat)
7 Horn
8 Windshield wiper motor
9 Light/rain sensor, heater
for vid-
eo camera in windscreen
10 Lumba r support (driver seat)
11 Front
passenger door control
modu le
12 Right rea r door cont rol modu le
Front passenger side cockpit fuse
assignment Amp
s
25
S/S
S/7,S 30
7,5 15
30
s
s
15
15
F ig . 22 0 Front passenger side cockpit: fuse pa nel w it h
plast ic brac ket
Fuse panel @ (bla ck)
No . Equipment Amps
1 Head-up
Display s
2 MMI Display s
3 CD/DVD changer s
4 MMI unit/drives 7,5
s
Chip card reader (not in all coun-
s tries)
6 Instrument
cluster
s
7 Steering column switch module s ...

274 Fu ses and bulb s
No. Equ ipment Amps
8
Headlight range adjustment/
5/7,S
adaptive lighting system
10 Left headlight
(headlight with
7,5
adaptive light)
11 Supplementary heater
s
F
u se p ane l@ (b ro wn)
No . Equipmen t Amps
1 Climate control
10
2 Climate control system blower 40
3 Diagnostic interface
10
4 E lectrical ignition lock
s
s
Power steering column adjust-
s ment
6 Steering column switch module
10
7 Power
steering column adjust-
ment 25
8 Light switch
s
Luggage compartment fuse assignment
Fig
. 22 1 Luggage compartment: fuse panel with plas­
tic bracket
Fuse p anel @ (b la ck )
No. Equipment Amps
4 E lectromechanical parking brake 30
s Electromechanical parking brake
30
6 Front door
(front passenger's
30
s ide)
7 Rear exter ior lighting
30
Rear sun shade, closing aid, lug-
8 gage compartment
lock, con-
20
venience key, START ENGINE
STOP, fuel filler door
No. Equipment Amps
9 Power seat adjustment
15
10 Parking system
s
11 Rear seat
heating
30
Fuse pan el@ (r e d )
No . Equipment Amps
l Left belt tensioner
25
2 Right belt tensioner 25
3 Socket/cigarette
lighter
20
4 Socket 20
5 Electromechanical
parking brake
5
6 adaptive ai r suspension 15
7 Rear door
(front passenger's
30
side)
8 Rear exterior lighting 30
9 Luggage compartment
lid con-
30
t rol module
10 Telephone 5
11 Sound amplifier 30
12 Rear
spoiler (Sportback)
20
Fuse p anel© (brown)
No . Equipment Amps
1 Radio receiver,
Sound amplifier/
30/20
MMI unit/drives
2 Tank leak detection system
s
4 AEM
control module/battery
10/15
module
6 Battery fan 35
7 Rad
io receiver 7,5
8 Rear Seat Entertainment 7,5
9 Automatic dimming interior
5/15
rearview mirror/battery module
10 Parking system 5
Fuse pan el@ (gre en)
No . Equipment Amps
1 pre sense 5
2 Electromechanical parking brake
s
3 adaptive
air suspension
5
4 Automatic transmission 7,5
