2014 Acura ILX Navigation Manual

24
System Setup
Interface Settings
Display and Volume Settings
HINFO button  Set up
Use the Main Setup screen to adjust the display and volume.
1.Rotate i to select an item. Press
u .
2. Rotate i to make the
adjustment. Press u.
The following items are available:
• Brightness: Adjusts the screen’s brightness.
• Contrast: Adjusts the screen’s contrast.
• Black Level: Adjusts the screen’s black level.
• Volume: Adjusts the navigation system volume level.1Display and Volume Settings
You can set separate da ytime and night time
settings for Brightness, Contrast , and Black
Level . Adjust each setting when the display is in
either daytime or night time mode.
You can set the display and volume settings
using voice commands.
2 Main Setup Screen Commands P. 224
Volume
If you set Volume to OFF , you will not hear
route guidance or voice command confirmations.
If you then select Voice in the Map Menu, you
will hear route guidance at the default volume.

25
Interface SettingsInterface Dial Feedback
System Setup
Interface Dial Feedback
HINFO button  Set up  Interface Dial Feedback
Set if and when the system reads aloud a selection made using the Interface Dial.
Rotate i to select an option. Press
u .
The following options are available:
• ON : Always reads the selection.
• AUTO (factory default): Reads the selection only when the vehicle is moving.
• OFF: Disables the feature.1Interface Dial Feedback
You can use this feature to minimise the need to
look at the screen while operating the Interface
Dial.
You can set the interface dial feedback settings
using voice commands on the Setup screen.
2 Main Setup Screen Commands P. 224

26
Interface SettingsBasic Settings
System Setup
Basic Settings
HINFO button  Set up  Other  Basic Settings
Set the map units to either miles or kilo meters, and control the voice feedback from
the navigation system.
Rotate i to select an item. Press u.
The following items are available:
• Units : Sets the map units to either miles or kilometers (factory default).
• Voice Recognition Tutor : Turns the voice feedback feature on or off.
ON (factory default): Provides voice control system confirmation or prompts.
OFF : Disables the feature.
• Display Voice Command Tips : Alerts you when manual control of the system is
disabled to prevent distraction while dr iving. Only voice commands are available.
ON (factory default): Displays a message reminding you to use voice commands.
OFF : Disables the message. Inoperable item s are still grayed out on the screen.
• Verbal Reminder : Turns the verbal reminders on or off.
ON (factory default): Provides warning voice messages when:
– Driving with the parking brake on.
– Driving without wearing the driver and/or passenger seat belt.
OFF : Disables the feature.

27

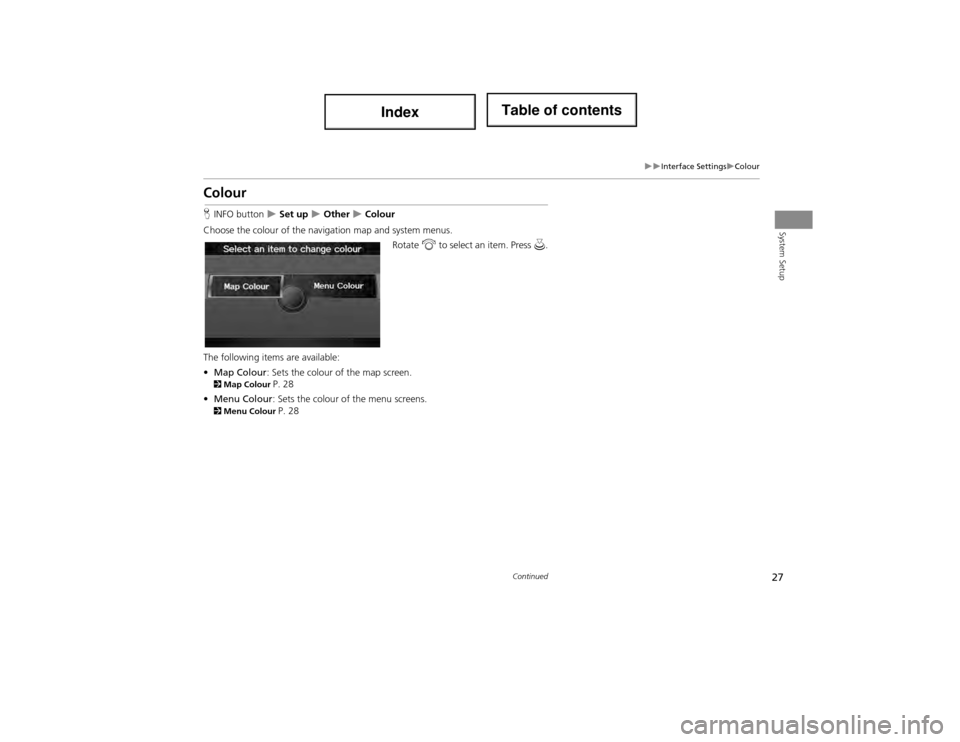

Interface SettingsColour
System Setup
Colour
HINFO button  Set up  Other  Colour
Choose the colour of the navigation map and system menus. Rotate i to select an item. Press u.
The following items are available:
• Map Colour : Sets the colour of the map screen.
2Map Colour P. 28
• Menu Colour : Sets the colour of the menu screens.
2Menu Colour P. 28
Continued

28
Interface SettingsColour
System SetupHINFO button  Set up  Other  Colour  Map Colour
Set separate map colours for Day and Night modes. 1.Rotate i to select Day or Night .
Press u.
2. Rotate i to select a colour for
the map screen. Press u.
H INFO button
 Set up  Other  Colour  Menu Colour
Set separate menu colours for Day and Night modes. 1.Rotate i to select Day or Night .
Press u.
2. Rotate i to select a colour for
the menu screens. Press u.
■Map Colour1 Map Colour
For Day mode
Set to WHITE (factory default is BEIGE ) to obtain
the best daytime display contrast.
For Night mode
Set to BLACK (factory default) to obtain the best
night time display contrast.
■ Menu Colour1 Menu Colour
For Day mode
Set to WHITE (factory default) to obtain the best
daytime display contrast.
For Night mode
Set to BLACK (factory default) to obtain the best
night time display contrast.

29
Interface SettingsColour
System SetupSet the screen brightness separately for Day and Night modes. Press the a
(Display mode) button to cycle through the display modes (Day to Night to Off).
1. Press the a button.
The Brightness bar is displayed
for a few seconds.
Rotate i to adjust the
brightness. Press u.
2. Press the a button again.
Repeat the procedure to switch
the display modes.
■Switching Display Mode Manually1 Switching Display Mode Manually
A visual guide helps you see the difference
between Day and Night modes.
2 Day or Night Mode P. 11
Recommended Settings
•Select mid-range for the dash illumination.
•Select WHITE for the map Day display and
BLACK for the map Night display.
Continued

30
Interface SettingsColour
System SetupIllumination control Priority
Operation
a button1Selects Day, Night, or Off display mode. This button has
the highest priority and overri des all other display control
adjustments listed below.
Remember : Once you press this button, you assume full
manual control of the display mode until the power mode
is set to VEHICLE OFF (LOCK).
Sunlight sensor
(see your
Owner’s Manual
for location) 2 If the sunlight sensor detects daylight and the headlights
are turned on, the system automatically overrides the
Night display and displays the Day display mode.
Remember : If desired, use the a button to override
this automatic choice.
Dash illumination
adjustment
buttons (see your
Owner’s Manual
for location)3When headlights are turned on, and you wish to have the
Day display mode, adjust the illumination to the full
brightness setting (beeps).
Remember : Adjust the dash brightness back to mid-range
to allow auto switching by sensing the headlights are on or
off.
Headlights
(Auto/On/Off) 4 When turned on, the display changes to Night display
mode. The previous three controls listed above can
“cancel” this function.
Remember : Use the a button, or adjust the dash
illumination to full brightness, to set the display to your
desired choice.
Screen colour
choiceN/AThe user can select the colour of the screen that will be
displayed for the Day and Night display modes described
above.
Remember : For best contrast, ensure that the map colour
is white for Day and black for Night.

31
Interface SettingsLanguage
System Setup
Language
HINFO button  Set up  Other  Language
Set the system language used on all scr eens. You can choose from three languages:
English , Français (French), Español (Spanish).
Rotate i to select the system
language. Press u.1Language
Voice confirmation of cities and streets only
occurs when English is the system language.
When Français or Español is selected, some
messages continue to be displayed in English.
