2014 Acura ILX Navigation Manual

96
Map MenuDisplaying the Map Menu
Navigation
•Guidance Menu: Allows you to set or confirm the guidance points and highway
exits for your route.
2 Guidance Menu P. 97
• Find Nearest…: Allows you to find the nearest place/landmark (e.g., nearest gas
station) by specifying a category. You can then add the location to the list of
destinations, set as a waypoint, or set as your destination.
2 Changing Your Destination P. 117
• Cancel Route: Cancels your current route.
2Cancelling the Route P. 111

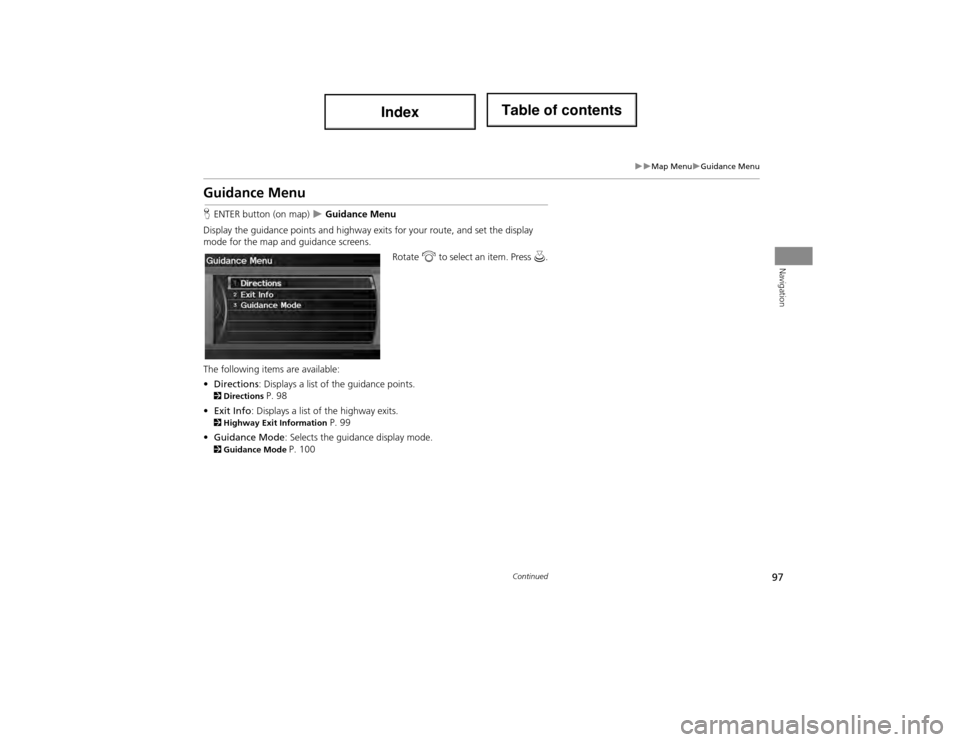

97
Map MenuGuidance Menu
Navigation
Guidance Menu
HENTER button (on map)  Guidance Menu
Display the guidance points and highway ex its for your route, and set the display
mode for the map and guidance screens.
Rotate i to select an item. Press u.
The following items are available:
• Directions : Displays a list of the guidance points.
2Directions P. 98
• Exit Info : Displays a list of the highway exits.
2Highway Exit Information P. 99
• Guidance Mode : Selects the guidance display mode.
2Guidance Mode P. 100
Continued

98
Map MenuGuidance Menu
Navigation
HENTER button (on map)  Guidance Menu  Directions
Display a list of the guidance points on your route for your confirmation. 1.Rotate i to select a guidance
point from the list. Press u.
The system displays a map of
the guidance point.
2. Press u to select RETURN or press
the CANCEL button to return to
the previous screen.
■ Directions1 Directions
Guidance points with exit information are
indicated by a (highway exit information)
icon. Move y to select Exit Info to display the
exit information.
2 Highway Exit Information P. 99
The route guidance inform ation is automatically
deleted when you reach your destination.

99
Map MenuGuidance Menu
Navigation
HENTER button (on map)  Guidance Menu  Exit Info
Display a list of the highway exits for the route. You can view highway exit
information (whether the exit is near gas stations, restaurants, ATMs, etc.) and add
new destinations or waypoints to the calculated route.
1.Rotate i to select an exit from
the list. Press u.
2. Rotate i to select a list item.
Press u.
Move w or y to display
information for different exits.
The location is displayed on the
Calculate Route screen.
2 Calculating the Route P. 87
■Highway Exit Information1 Highway Exit Information
d “Display Highway Exit Information”
You can scroll the map and select a (highway
exit information) icon on the map screen to
display the highway exit information. The
icon is only displayed if there is exit information
available.
Icons are displayed only at 400, 800 m or 1.6 km
scale.
2 Showing Icons on the Map P. 103
The route guidance inform ation is automatically
deleted when you reach your destination.
Continued

100
Map MenuGuidance Menu
Navigation
HENTER button (on map)  Guidance Menu  Guidance Mode
Select the display mode during route guidance: single-screen mode (default) or split-
screen mode.
Rotate i to select an option. Press
u .
The following options are available:
• Single Screen: Displays the map and guidance screens on separate screens.
■Guidance Mode1 Guidance Mode
The guidance mode can also be selected from
the System Setup menu.
2 Routing & Guidance P. 48
Map screen Press the
MAP/GUIDE
button
Guidance screen

101
Map MenuGuidance Menu
Navigation
•Split Screen: Displays the map and guidance information simultaneously on the
map screen.1 Guidance Mode
Next guidance point
The next guidance point (the pop-up window) is
displayed on the map screen as you approach a
guidance point in the single-screen mode.
Next guidance point Press the
MAP/GUIDE
button
Guidance direction list

102
Map MenuMap Information
Navigation
Map Information
HENTER button (on map)  Map Information
Select the landmark icons to display on the map, change the orientation of the map,
display your current location, and learn the meaning of the icons, colours, and
symbols displayed on the map.
Rotate i to select an item. Press u.
The following items are available:
• Show Icon on Map: Selects the icons to display on the map.
2Showing Icons on the Map P. 103
• North-up/Heading-up: Selects the map orientation ( North-up or Heading-up ).
2Map Orientation P. 105
• Current Location: Displays and saves your current location.
2Current Location P. 106
• Map Legend: Displays an overview of the map features.
2Map Legend P. 107

103
Map MenuMap Information
Navigation
HENTER button (on map)  Map Information  Show Icon on Map
The icon bar along the bottom of the screen allows you to select the icons that are
displayed on the map.
Rotate i to select an icon in the
icon bar. Press u.
Pressing u toggles the icon display
on or off.
Repeat the procedure as necessary.
The following options are available:
• Icon check boxes : Displays or hides the landmark icons.
2Map Screen Legend P. 10
• ALL OFF: Hides all icons.
• ICON OPTION : Fine-tunes the icon display. Move r.
2 Fine-tuning the Icons P. 104
■Showing Icons on the Map1 Showing Icons on the Map
You can display or hide the icons using voice
commands on the map screen (e.g., say d
“Display hospital” ).
2 Map Display Commands P. 218
Continued
