2014 Acura ILX Navigation Manual

104
Map MenuMap Information
Navigation
■Fine-tuning the Icons
Icons in some categories can be fine-tuned to display or hide. 1.Rotate i to select an icon
category from the list (e.g., Other
Icons ). Press u.
2. Rotate i to select the icons to
display on the map. Press u.
Pressing u toggles the icon
display on or off.
Repeat the procedure as
necessary.
3. Move r to select OK.
1Fine-tuning the Icons
To display the “Other Icons ,” be sure to turn on
OTHER ICON in the icon bar.

105
Map MenuMap Information
Navigation

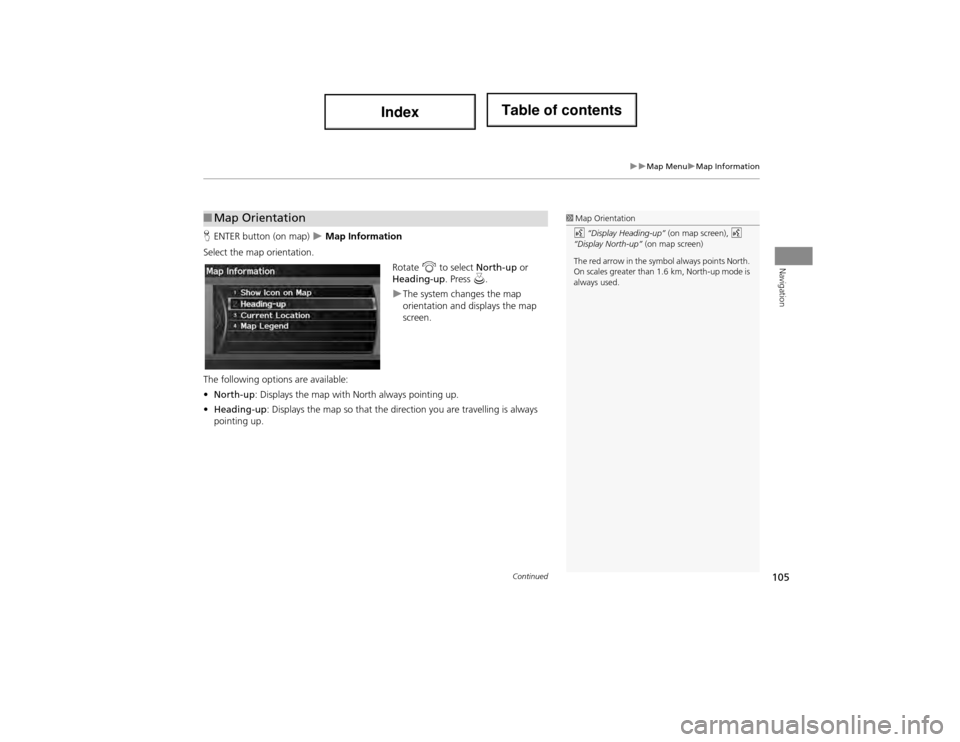

HENTER button (on map)  Map Information
Select the map orientation. Rotate i to select North-up or
Heading-up . Press u.
The system changes the map
orientation and displays the map
screen.
The following options are available:
• North-up: Displays the map with North always pointing up.
• Heading-up : Displays the map so that the dire ction you are travelling is always
pointing up.
■ Map Orientation1 Map Orientation
d “Display Heading-up” (on map screen), d
“Display North-up” (on map screen)
The red arrow in the symbol always points North.
On scales greater than 1.6 km, North-up mode is
always used.
Continued

106
Map MenuMap Information
Navigation
HENTER button (on map)  Map Information  Current Location
Display and save your current location for future use as a destination. The address,
latitude, longitude, and elevation of your current location are displayed.
■ To save your current location in the address book:
1.Rotate i to select Save. Press u .
2. Edit the name, phone number, and
category.
2 Address Book P. 37
3. Move r to select OK.
■Current Location1 Current Location
d “Display Current Location” (on map screen)
You can also save the current location by saying
d “Register the Current Location” .
If you have PIN-protected your address book,
enter your PIN when prompted. Move r to
select OK. PINs are optional.
2 PIN Numbers P. 42
The elevation is not displayed if the system is
receiving insufficient GPS information. When
elevation is displayed, it may differ with roadside
elevation signs by ±100 feet or more.
Saving your current locati on does not change or
cancel your current route.

107
Map MenuMap Information
Navigation
HENTER button (on map)  Map Information  Map Legend
See an overview of the map lines, areas, routes, and navigation icons.
Rotate to i select an item.
The system displays the map
legend.
■Map Legend1 Map Legend
A visual guide helps you see the map legend.
2 Map Screen Legend P. 10
Continued

108
Map MenuMap Information
Navigation
The functions that are available from the map screen depend on the map scale.
■Map Scale and Functions
Functionpage
Map Scale (top: mile, bottom: metric)
1/201/81/41/212515501503501000
802004008001.63824802405601600
Icon display
Landmark icon10✔✔
Exit info.10✔✔✔
One-way traffic10✔
Waypoint
“flag”11✔✔✔✔✔✔✔✔✔✔✔✔
Map orientation
Heading-up105✔✔✔✔✔
North-up105✔✔✔✔✔✔✔✔✔✔✔✔
Others
Off-road
tracking dots93✔✔✔✔
Unverified road10✔✔✔✔✔✔✔✔
Map features10✔✔✔✔✔✔✔✔✔✔✔
Avoid areas52✔✔✔
1 Map Scale and Functions
You can change the map scale using voice
commands on the map screen (e.g., say d
“Display 3 km scale” ).
2 Map Scale Commands P. 219
You can change between miles or kilometers.
2 Basic Settings P. 26

109
Map MenuMap Information
Navigation
Display or hide all icons on the map screen, with the exception of Honda/Acura
Dealer icons which are always shown.
■Landmark icon
■Map Icons and Functions
Type Icon display
control Icon
selectable Icon
searchable
Honda/Acura dealerAlways onYesYes
Hospital Yes Yes Yes
SchoolYesYesYes
ATM Yes Yes Yes
Gas stationYesYesYes
Restaurants Yes Yes Yes
Post officeYesYesYes
Grocery store Yes Yes Yes
Hotel/LodgingYesYesYes
Police station No icon No Yes
Shopping, Tourist attraction, BankNo iconNoYes
Parking garage Yes Yes Yes
Parking lotYesYesYes
Highway exit info. Yes Yes No
1 Map Icons and Functions
You can display or hide the icons using voice
commands on the map screen (e.g., say d
“Display hospital” ).
2 Map Display Commands P. 218
Some icons, like police st ations, are not shown,
but you can still locate th e nearest one with the
Find Nearest voice command (e.g., say d “Find
nearest police station” ).
2 Find Place Commands P. 219
Icon display control
Icons that can be displayed or hidden using the
Interface Dial or voice command.
Icon selectable
Icons that can be selected as a destination using
the Interface Dial.
Icon searchable
Icons that can be searched using the d Find
Nearest voice command.

110
Navigation
Changing Your Route
HDEST/ROUTE button (when en route)
This section describes how to alter your ro ute, add an interim “waypoint” (pit stop),
choose a different destination, cancel your current destination, and continue your
trip after stopping.
Rotate i to select an item. Press u.
The following items are available:
• Cancel Route : Cancels the route guidance.
2Cancelling the Route P. 111
• Detour : Calculates a detour route.
2Taking a Detour P. 111
• Avoid Streets : Avoids streets along your route.
2Avoiding Streets P. 111
• Change Route Preference : Changes the route preferences (calculating method).
2Changing the Ro ute Preference P. 88
• Waypoint : Sets waypoints along your route.
2Adding Waypoints from the Route Menu P. 113
• Destination Lists : Shows a list of waypoints. Y ou can delete waypoints or edit
the order of them.
2 Editing the Destination List P. 116
1Changing Your Route
d “Display Destination” , d “Display
Navigation” (when en route)
If you press the DEST/ROUTE button when not en
route, the Destination Me nu screen is displayed.
2 Entering a Destination P. 64

111
Changing Your RouteCancelling the Route
Navigation
Cancelling the Route
HDEST/ROUTE button (when en route)  Cancel Route
Cancel the route guidance and remove th e destination and all waypoints from the
destination list. The system th en returns to the map screen.
Taking a Detour
HDEST/ROUTE button (when en route)  Detour
Calculate a detour route manually. The system attempts to calculate a new route by
avoiding the next 8 km (while on a highway) or 1.6 km (while on a surface street).
Avoiding Streets
H DEST/ROUTE button (when en route)  Avoid Streets
Select a street or streets along your route to avoid.
1.Rotate i to select the street you
want to avoid. Press u.
Repeat the procedure to avoid
other streets.
Streets to be avoided are
indicated with a trash icon.
1Cancelling the Route
You can also cancel your route from the Map
Menu.
2 Map Menu P. 95
1Taking a Detour
The detour option is convenient if you encounter
an unexpected obstacle such as a road closure or
extremely heavy traffic congestion.
1 Avoiding Streets
Avoiding certain streets is convenient if you
know of road construction, road closures, or
excessive traffic along the route.
You cannot choose specif ic streets you want to
use, only those to avoid. However, you can select
intersections or waypoi nts (places/landmarks)
that the system will use in your route.
2 Adding Waypoints P. 112
You can store up to 10 streets to avoid. You
cannot avoid your current street or the streets of
your waypoint(s) or destination (system beeps if
selected).
Continued
