Instruments and controls
Instrument panels 18 -20
Warning lamps 2 1-34
Indicators
35
-38
Manuel test
3
9
Setting buttons
4
0 - 42
-
t
rip distance recorder
-
d
ashboard lighting dimmer / black panel
-
c
ustomisation of dials and screens
Adjusting headlamps
1
38
Door mirrors
1
09 -110
Electric windows
87
- 88
Dashboard fuses
2
84-287
Opening the bonnet
2
40
Multifunction screens
4
6 -54
Seat belt / front passenger
airbag warning lamp display
1
76 -177, 181
Manual gearbox
2
03
Electronic gearbox
20
4-207
Automatic gearbox
2
08 -211
Parking brake
1
96 -201, 202
Rear view mirror
1
11
Courtesy lamps
1
46
Ventilation
9
2-94
Manual air conditioning
9
5 -96, 101
Digital air conditioning
9
7-100, 101
Demisting / defrosting the rear screen
1
02
Audio system
3
97- 429
Setting the date / time
4
9
Touch screen tablet
3
27-396
Setting the date / time
5
4
Interior mood lighting
1
47
Ignition switch / Steering lock /
Starting with the key
1
89 -191, 195
Steering lock / Starting with the START/STOP button
1
92-195
Page 117 of 444
11 5
Illuminated glove boxPortable ashtray
F Pull the cover to open the ashtray.
F
T o empty it, remove the ashtray by pulling it
upwards.
To avoid any problem of inter ference
or risk of overturning, do not place the
ashtray near the gear lever.
Its lid has locations for storing a pen, a pair of
glasses, tokens...
F
T
o open the glove box, raise the handle.
The glove box is illuminated when the lid is
opened.
It gives access to the passenger's front airbag
deactivation switch A.
It contains a ventilation nozzle B that can be
closed, distributing the same cooled air as the
vents in the passenger compartment.
It also gives access to the dashboard fusebox
(see the "Practical information - Changing a
fuse" section).
Fittings
Page 243 of 444
241

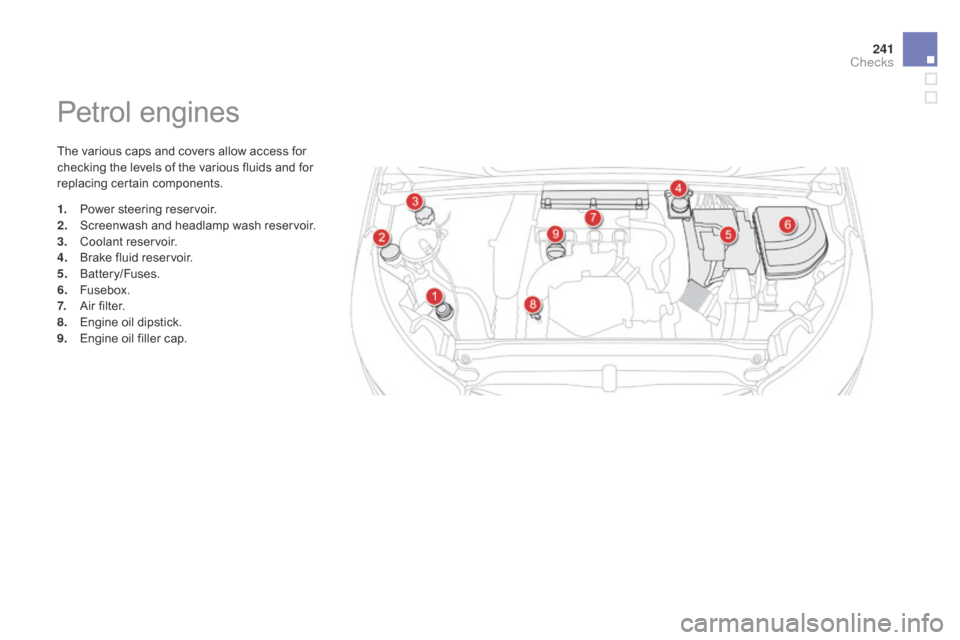

Petrol engines
The various caps and covers allow access for
checking the levels of the various fluids and for
replacing certain components.
1.
P
ower steering reservoir.
2.
S
creenwash and headlamp wash reservoir.
3.
C
oolant reservoir.
4.
B
rake fluid reservoir.
5.
B
attery/Fuses.
6.
F
usebox.
7.
A
ir filter.
8.
E
ngine oil dipstick.
9.
E
ngine oil filler cap.
Checks
Page 244 of 444
Diesel engines
The various caps and covers allow access for
checking the levels of the various fluids, for
replacing certain components and for priming
the fuel system.
1.
P
ower steering reservoir.
2.
S
creenwash and headlamp wash reservoir.
3.
C
oolant reservoir.
4.
B
rake fluid reservoir.
5.
B
attery/Fuses.
6.
F
usebox.
7.
A
ir filter.
8.
E
ngine oil dipstick.
9.
E
ngine oil filler cap.
10.
P
riming pump*.
11.
B
leed screw*.
* According to engine.
Page 286 of 444
Changing a fuse
The extraction tweezer is fitted to a carrier
clipped to the dashboard fusebox cover.
For access to it:
F
o
pen the glove box lid,
F
u
nclip the carrier on the fusebox cover by
pulling on the right
F
r
emove the tweezer,
Access to the tools
F open the fusebox cover by pulling at top right,
F
f
old down completely the fusebox cover.
Page 288 of 444
Dashboard fuses
The fuseboxes are located in the lower
dashboard (left-hand side).
Access to the fuses
F Refer to the paragraph "Access to the to o ls".
Page 289 of 444
287
Fusebox 1Fuse N° Rating Functions
F8 3 AAlarm siren, alarm ECU.
F13 10 ACigarette lighter.
F14 10 A12 V socket in boot.
F16 3 ALighting for the large multifunctional storage unit, rear map
reading lamps, glove box illumination.
F17 3 ASun visor illumination, front map reading lamps.
F28 15 AAudio system, radio (after-market).
F30 20 ARear wiper.
F32 10 AHi-Fi amplifier.
Fusebox 2 Fuse N° Rating Functions
F36 15 ARear 12 V socket.
F37 -Not used.
F38 -Not used.
F39 -Not used.
F40 -Not used.Fuse tables
Practical information
Page 290 of 444
The fusebox is placed in the engine
compartment near the battery (left-hand side).Access to the fuses
F Unclip the cover.
F C hange the fuse (see corresponding
paragraph).
F
W
hen you have finished, close the cover
carefully to ensure sealing of the fusebox.
Engine compartment fuses
